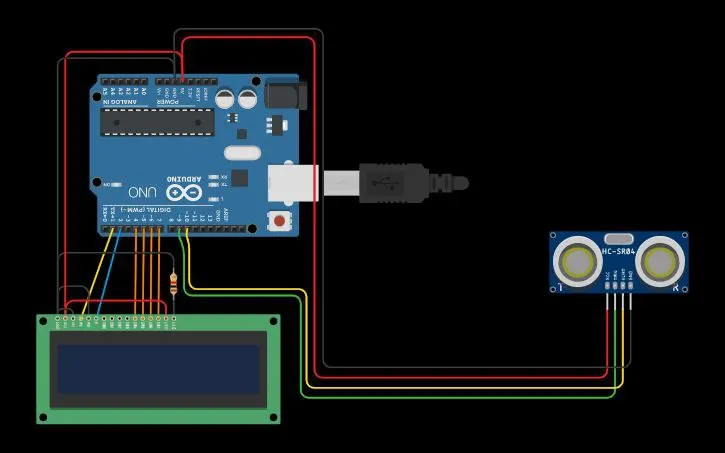

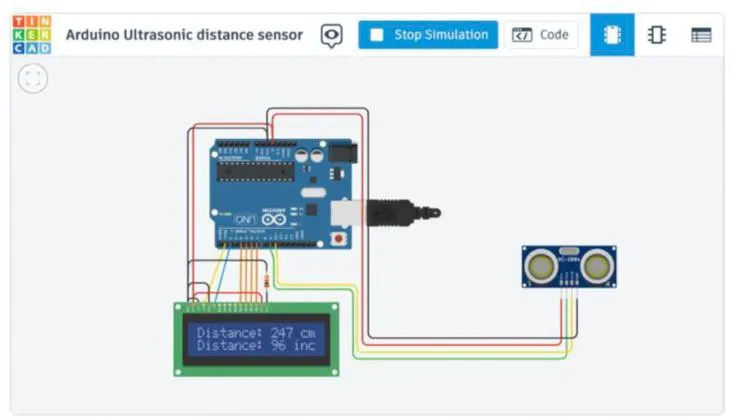

Project 2 - Measuring the distance of an object using ultrasonic sensor and also smoothen the sensor data using moving average filter

PROGRAM:

#include

#define trigger 18

#define echo 19

LiquidCrystal lcd(2,3,4,5,6,7);

float time=0,distance=0;

void setup()

{

lcd.begin(16,2);

pinMode(trigger,OUTPUT);

pinMode(echo,INPUT);

program

#include <LiquidCrystal.h> // includes the LiquidCrystal Library

LiquidCrystal lcd(1, 2, 4, 5, 6, 7); // Creates an LCD object. Parameters: (rs, enable, d4, d5, d6, d7)

const int trigPin = 9;

const int echoPin = 10;

long duration;

int distanceCm, distanceInch;

void setup() {

lcd.begin(16,2); // Initializes the interface to the LCD screen, and specifies the dimensions (width and height) of the display

pinMode(trigPin, OUTPUT);

pinMode(echoPin, INPUT);

}

void loop() {

digitalWrite(trigPin, LOW);

delayMicroseconds(2);

digitalWrite(trigPin, HIGH);

delayMicroseconds(10);

digitalWrite(trigPin, LOW);

duration = pulseIn(echoPin, HIGH);

distanceCm= duration*0.034/2;

distanceInch = duration*0.0133/2;

lcd.setCursor(0,0); // Sets the location at which subsequent text written to the LCD will be displayed

lcd.print("Distance: "); // Prints string "Distance" on the LCD

lcd.print(distanceCm); // Prints the distance value from the sensor

lcd.print(" cm");

delay(10);

lcd.setCursor(0,1);

lcd.print("Distance: ");

lcd.print(distanceInch);

lcd.print(" inch");

delay(10);

}

lcd.print(" Ultra sonic");

lcd.setCursor(0,1);

lcd.print("Distance Meter");

delay(2000);

lcd.clear();

lcd.print(" Circuit Digest");

delay(2000);

}

void loop()

{

lcd.clear();
