Project 2 - Crush analysis of aluminium Tube
1. Velocity - 30m/s

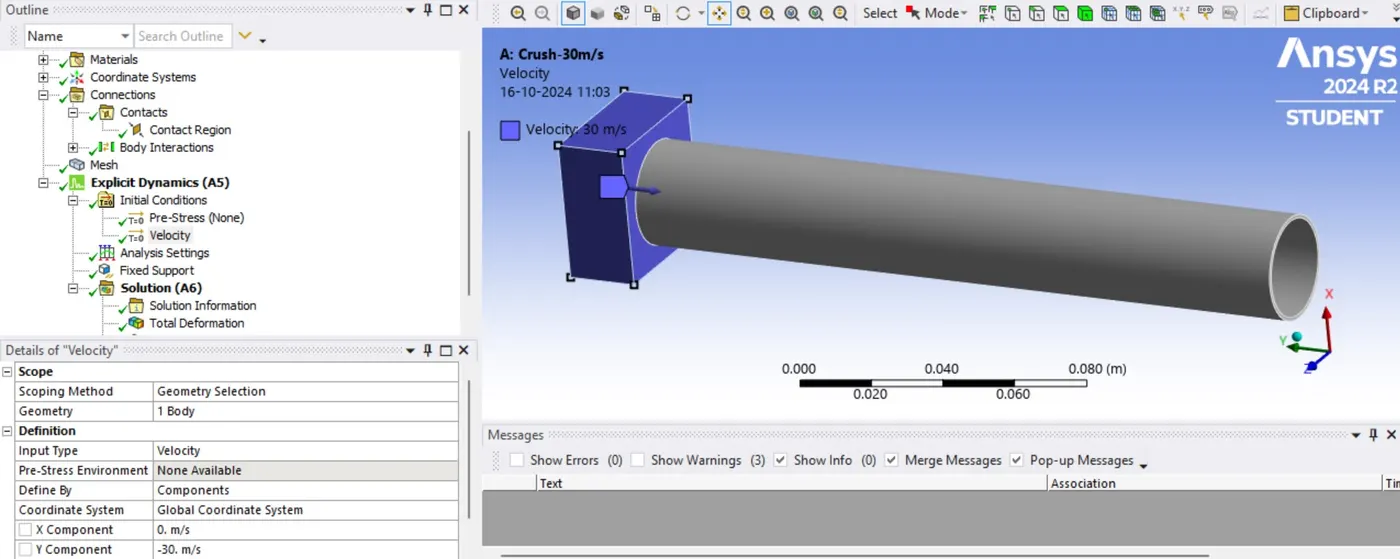

Material selection

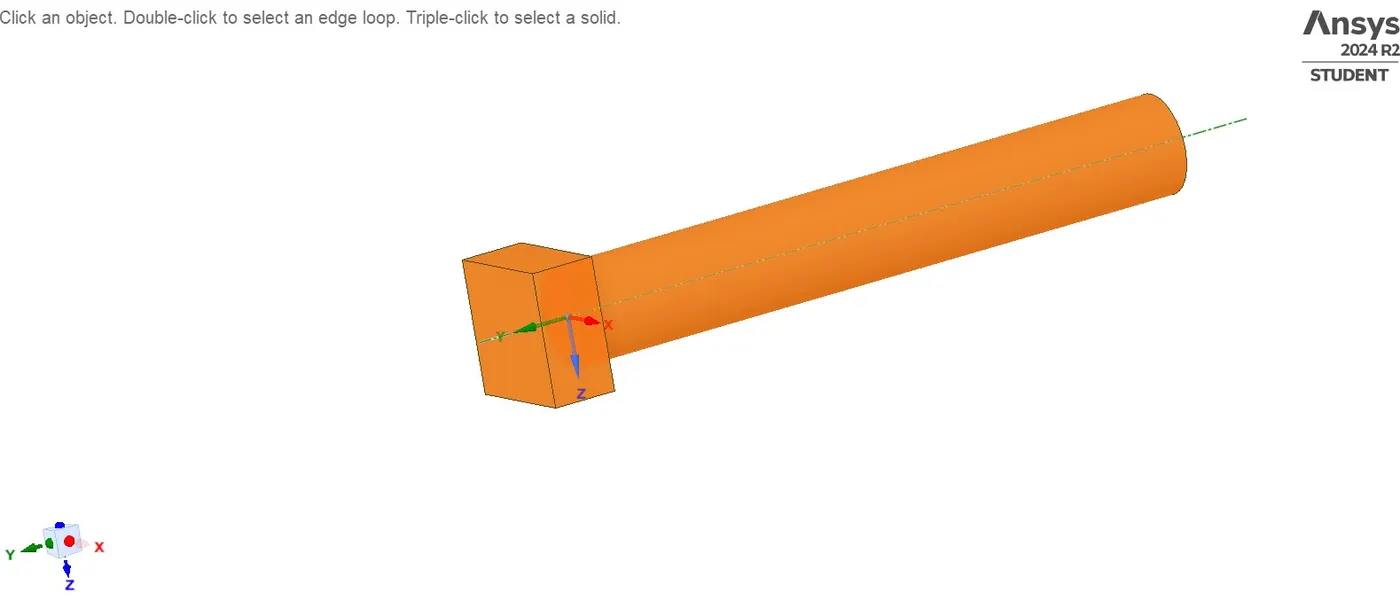

Geometry creation

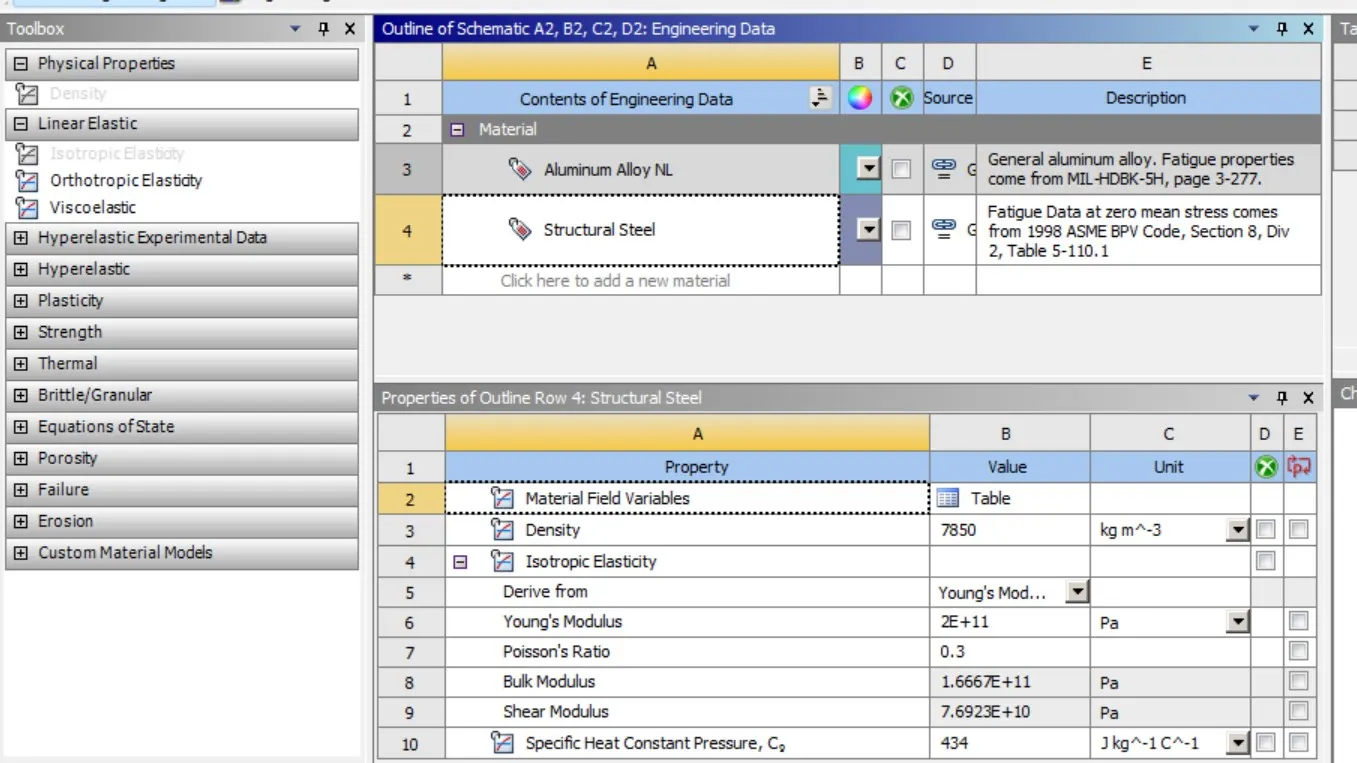

Stiffness behaviour & Material assignment for Tube
Stiffness behaviour & Material assignment for Rigid wall

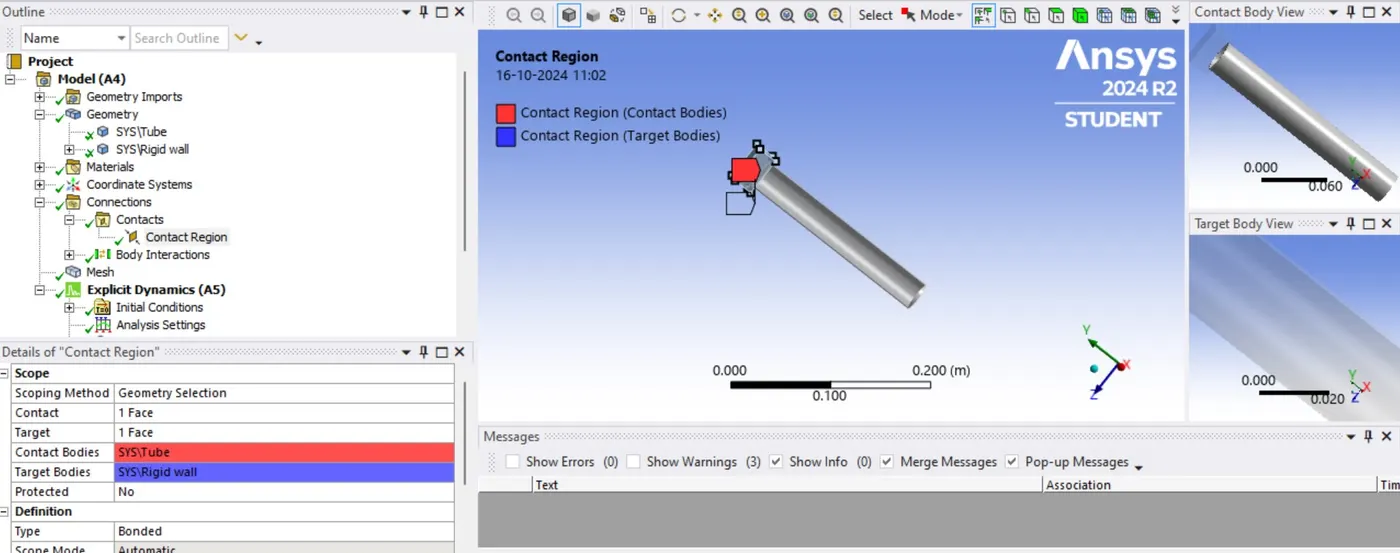

Bonded connection

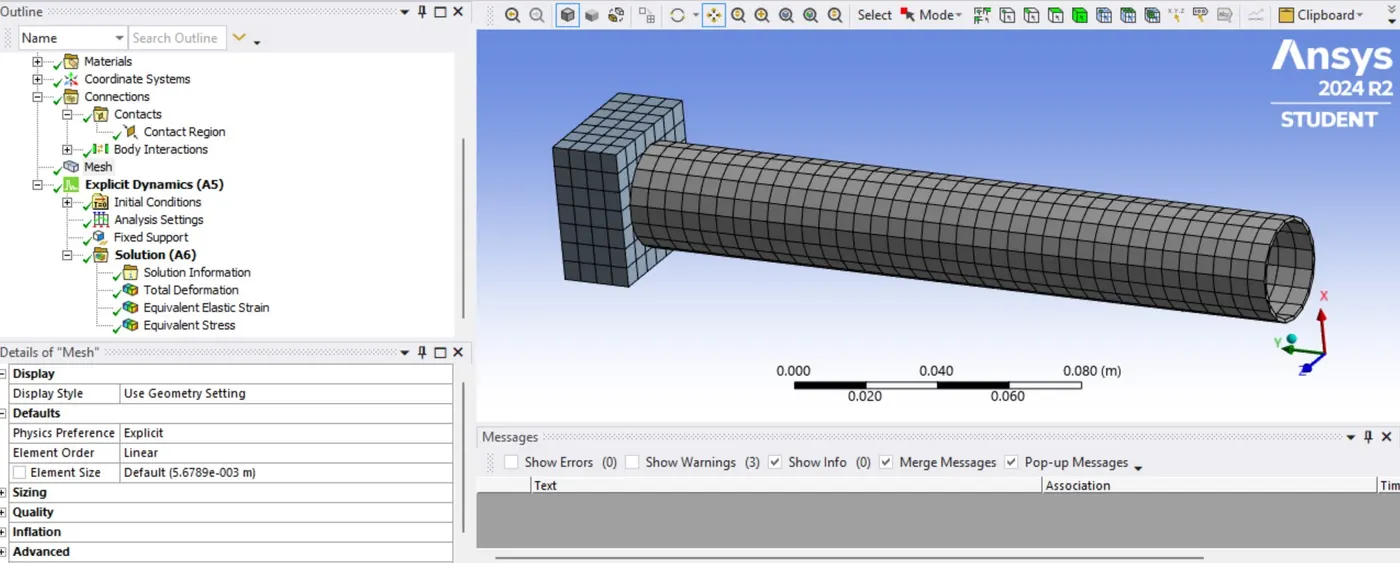

Meshing
Initial condition-Velocity
End time

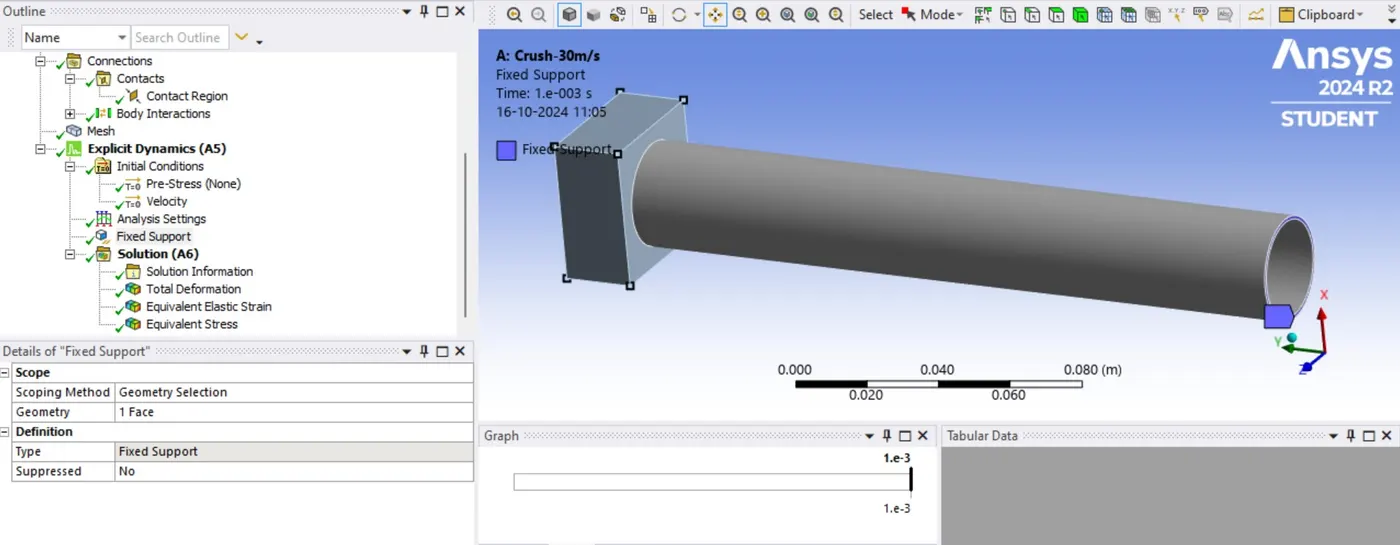

Fixed support

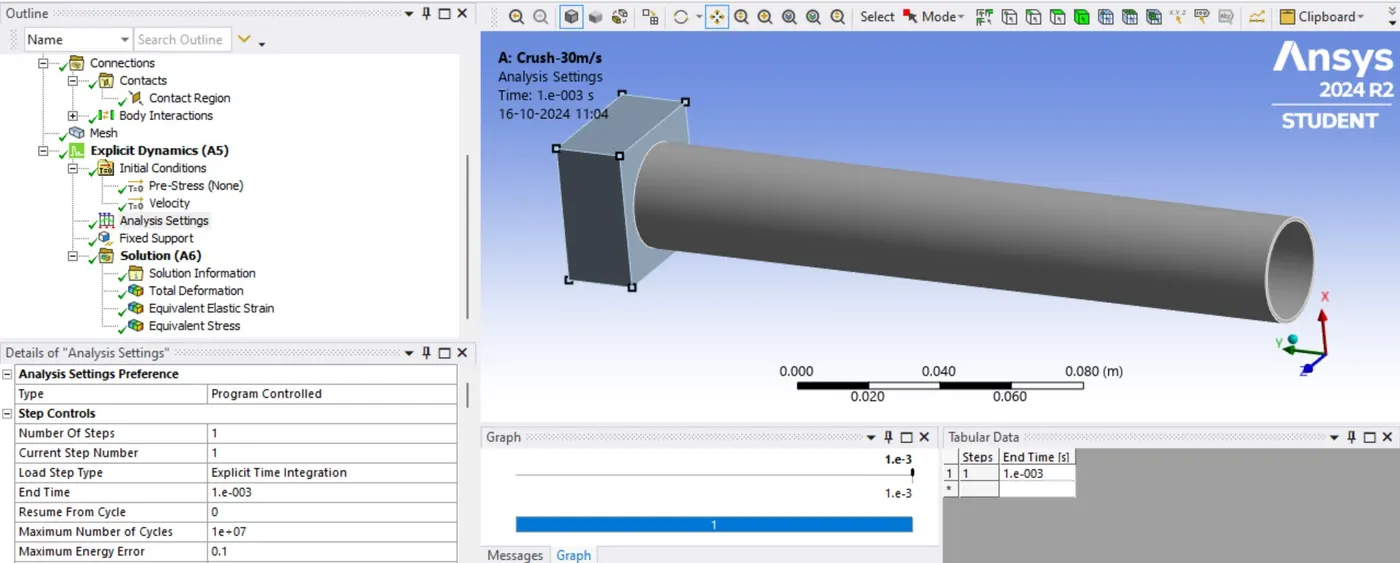

Total deformation

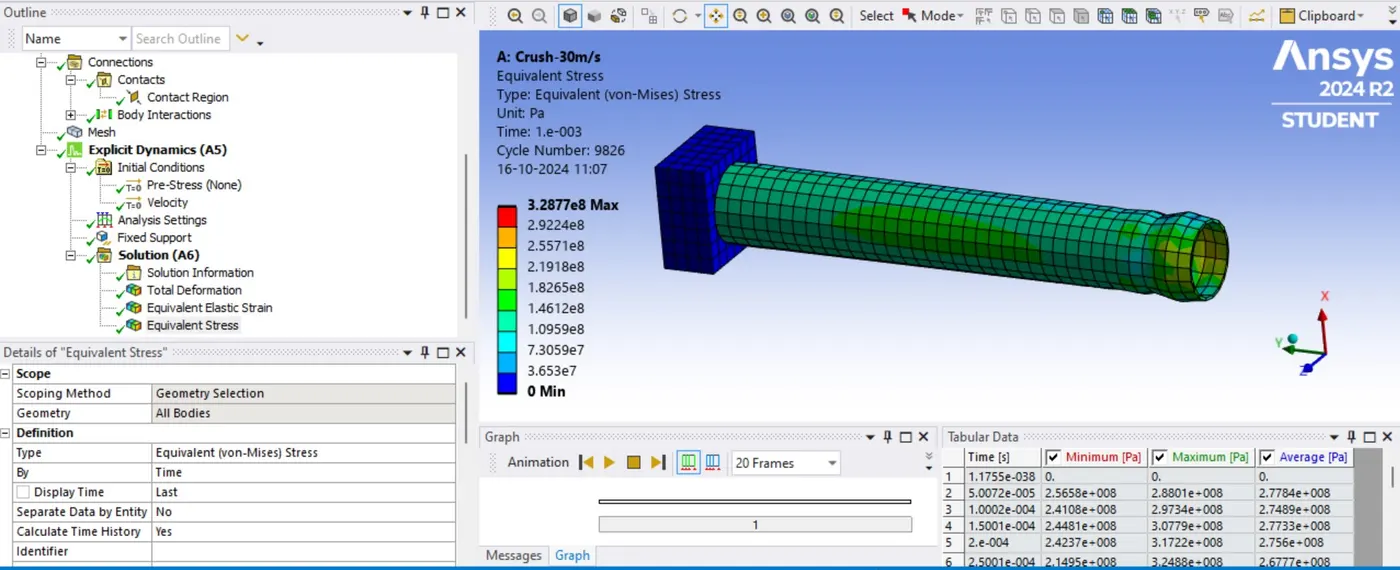

Von-mises stress
2. Velocity - 40m/s

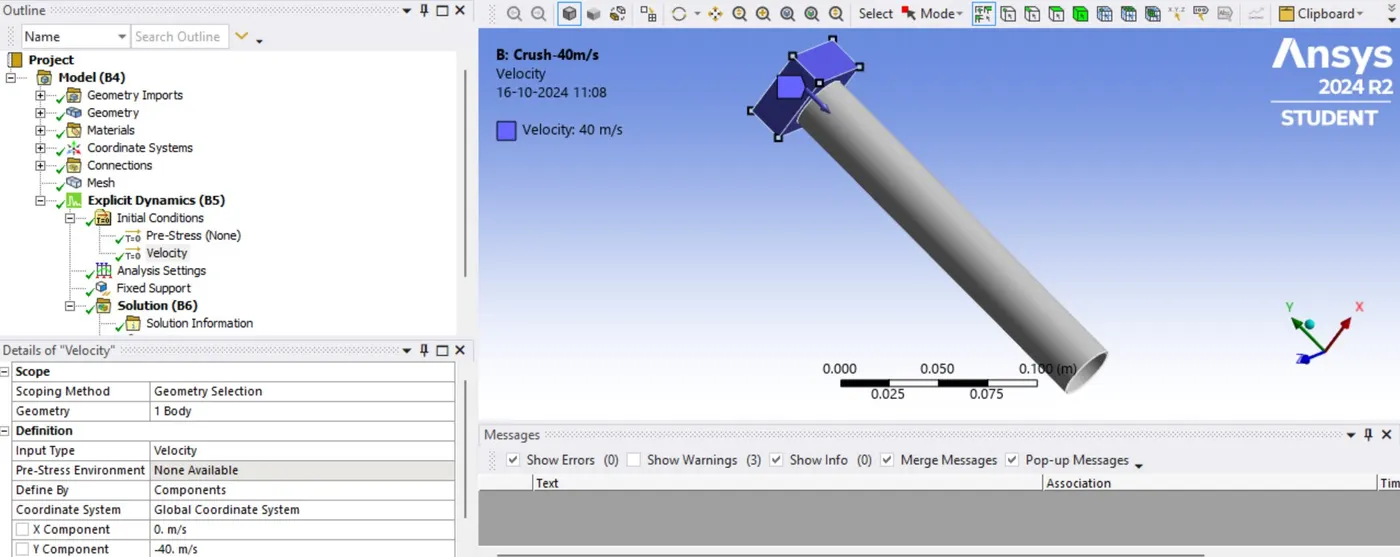

Initial condition-Velocity

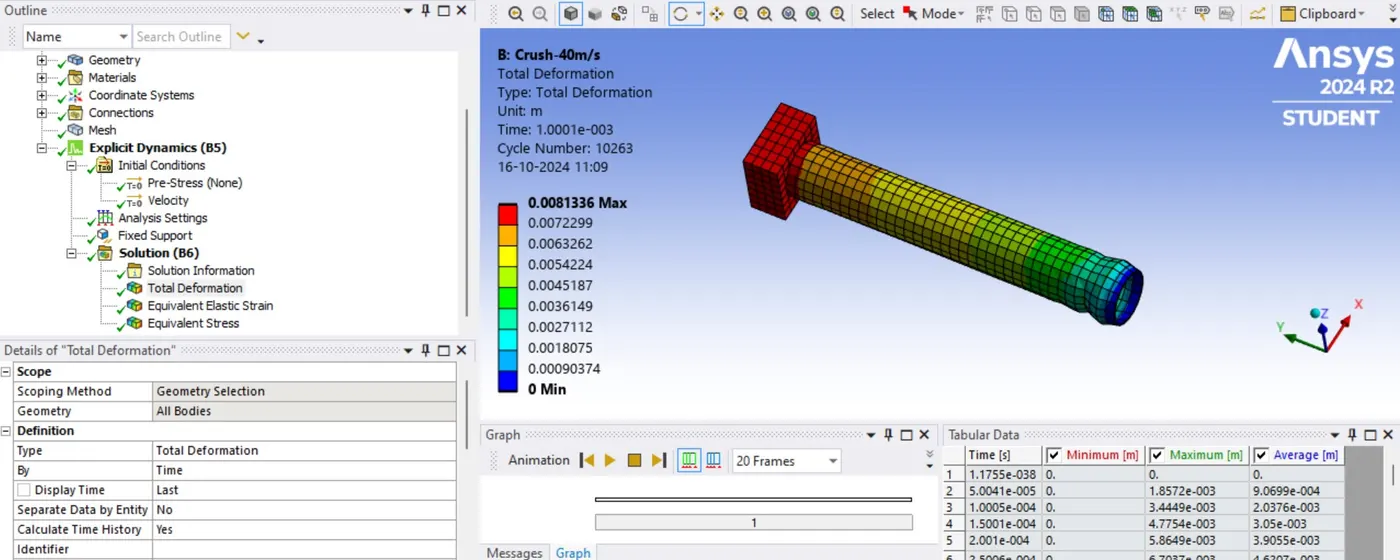

Total deformation

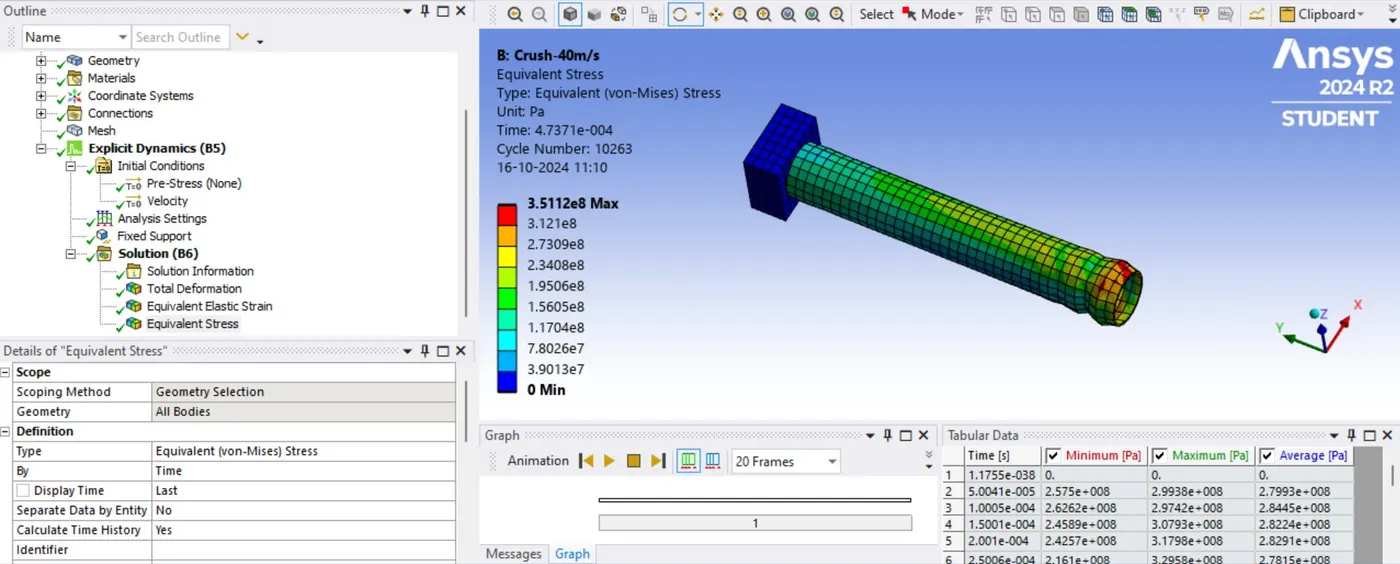

Von-mises stress
3. Velocity - 50m/s

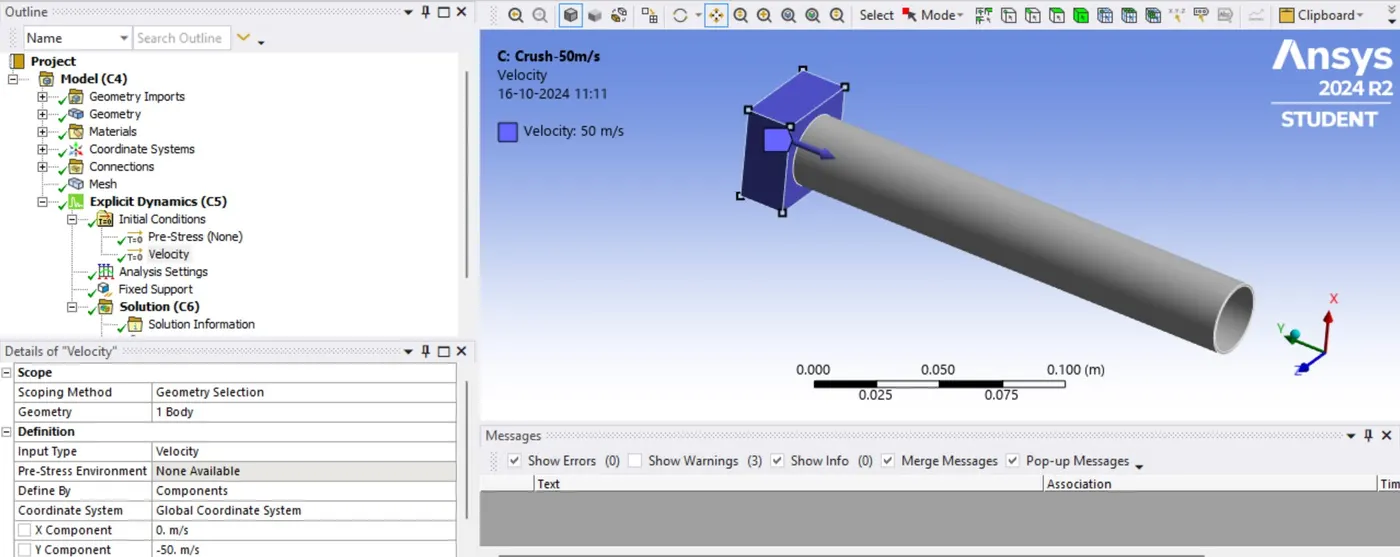

Initial condition-Velocity

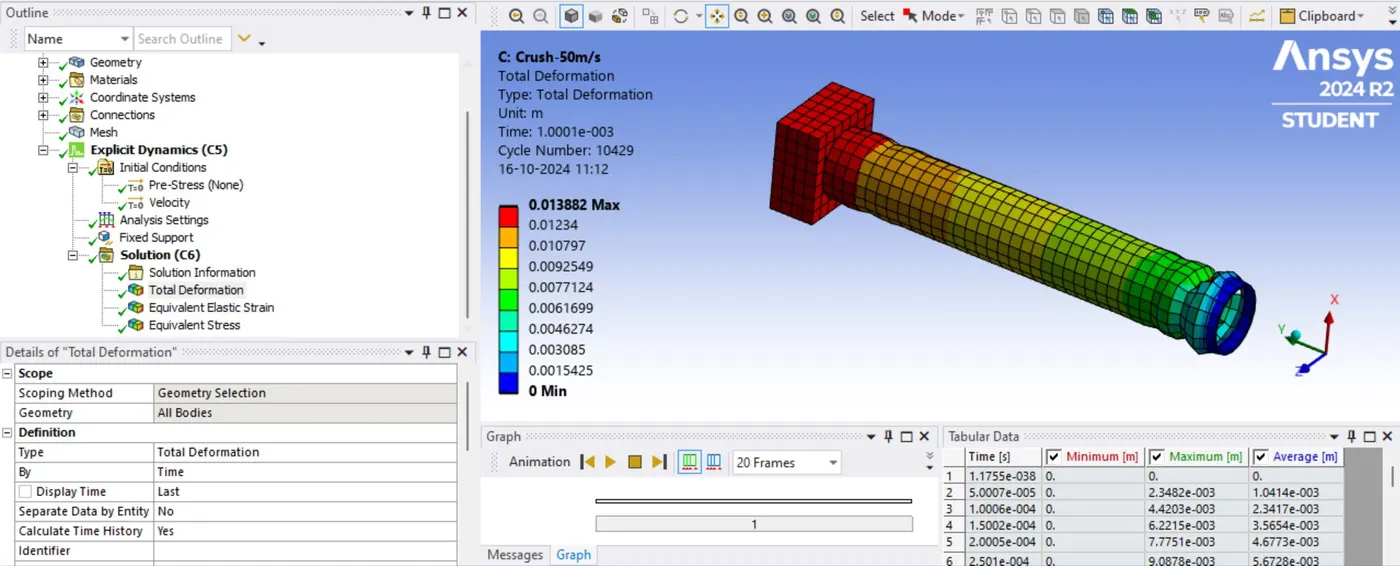

Total deformation

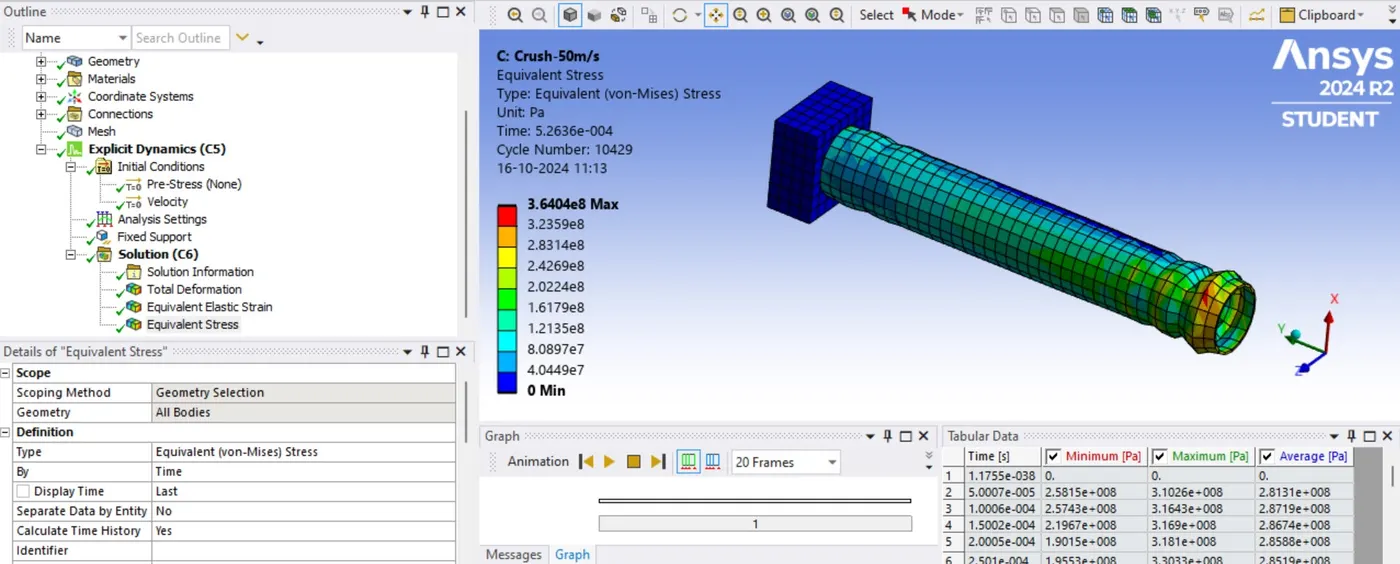

Von-mises stress
3. Velocity - 60m/s

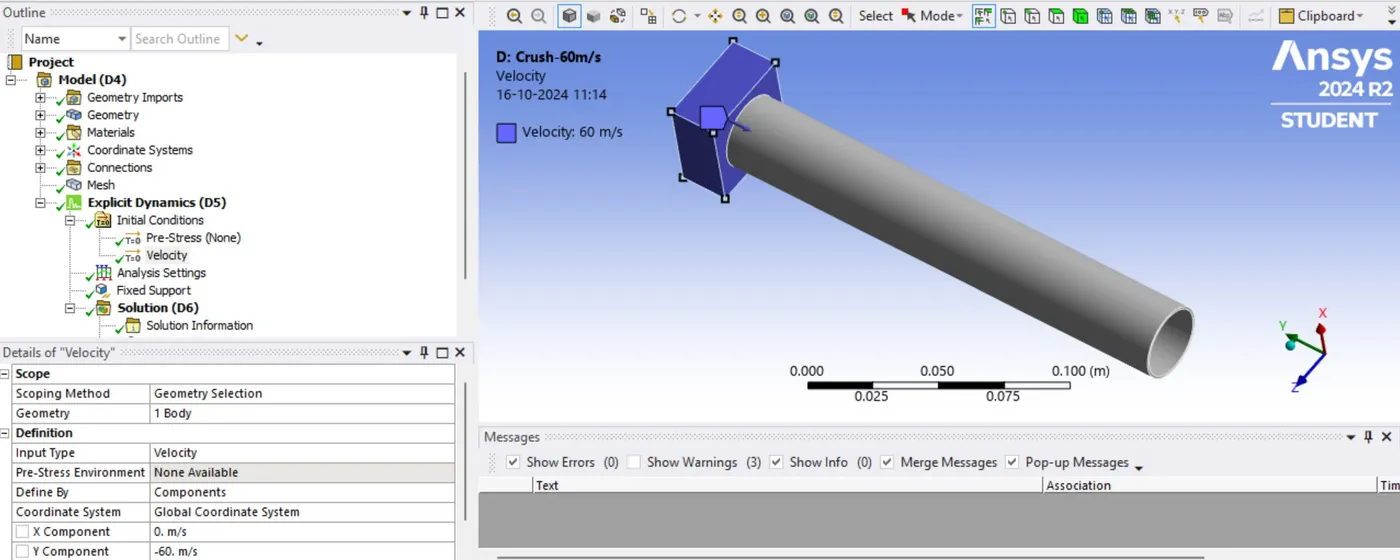

Initial condition-Velocity

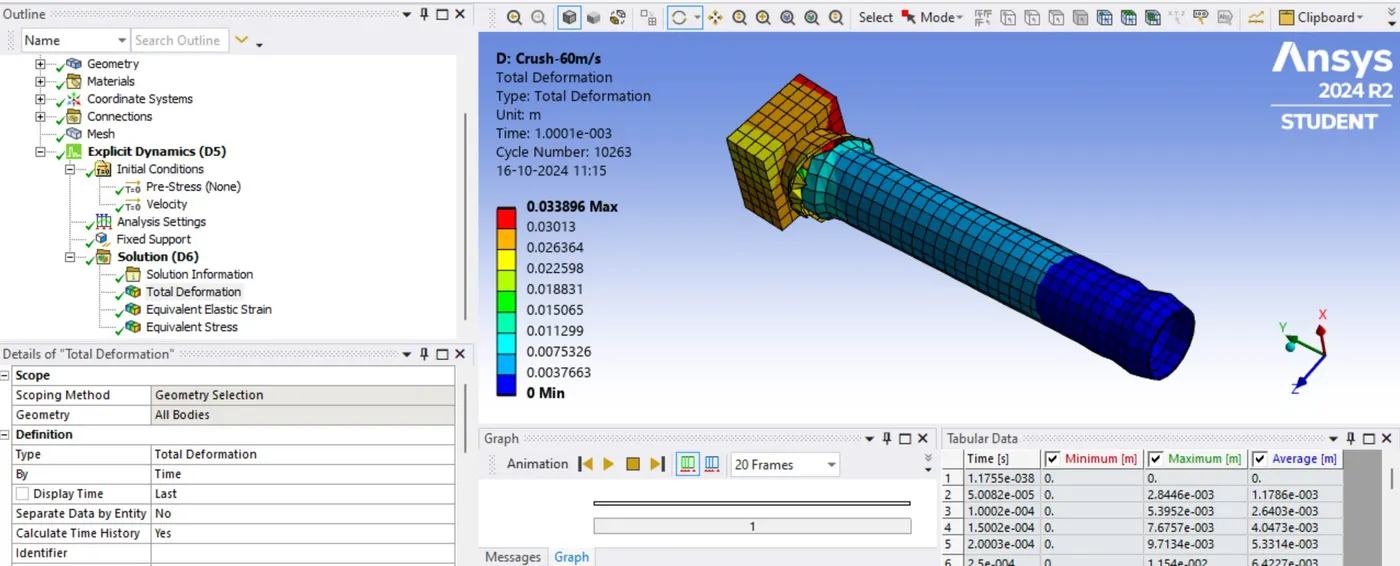

Total deformation

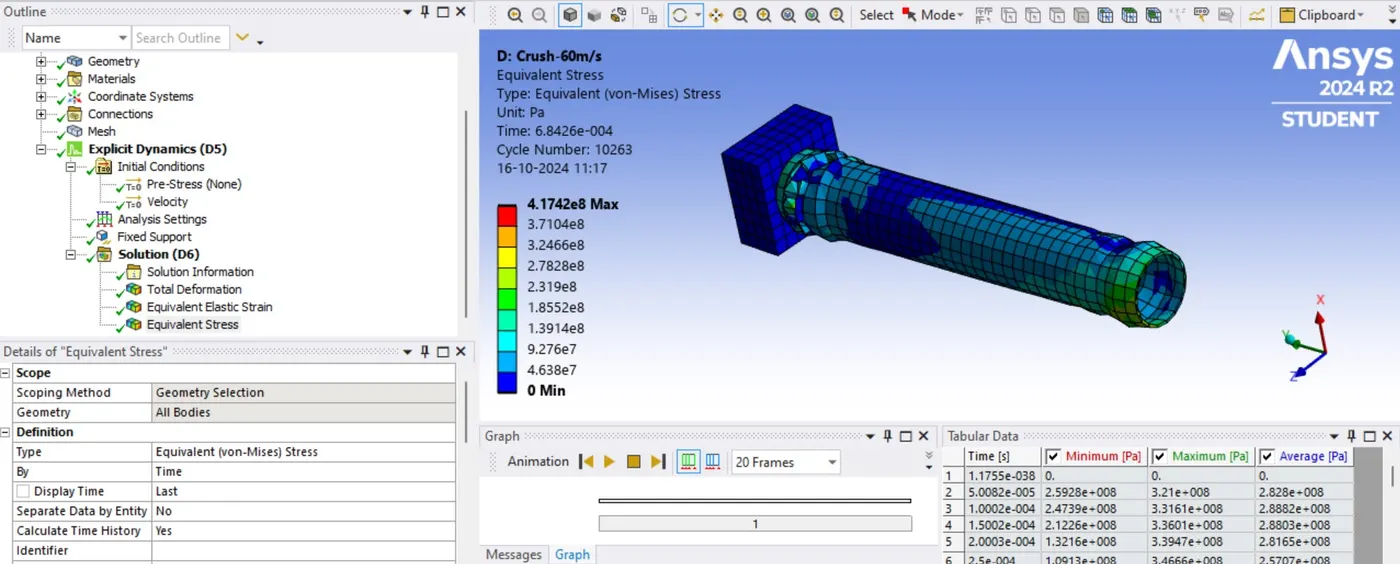

Von-mises stress
| Velocity (m/s) | Deformation (mm) | % Increase | Stress (MPa) | % Increase |
|---|---|---|---|---|
| 30 | 4.5785 | - | 328 | - |
| 40 | 8.1336 | 77.64 | 351 | 7.01 |
| 50 | 13.882 | 70.67 | 364 | 10.97 |
| 60 | 33.896 | 144.12 | 417 | 27.13 |
