Project 2_Creating a 3D rendered model for a Residential Building in AutoCad
- Open Auto Cad.
- In the right left corner click on the settings icon that is the icon of workspace.
- Select 3d modelling.
- Enter UN (Units ) command in the command box and change the type as decimal and select precision as 0.0
- Now enter Dim style in command box and modify the settings and select primary units as decimal and give precision as 0.0
- Select line command and draw in top or 2D mode.
- Line command is used to draw the plan.
- Command X line and draw line in X Direction as well as in Y direction.
- Trim the unwanted corner lines.
- Offset 230 for wall.

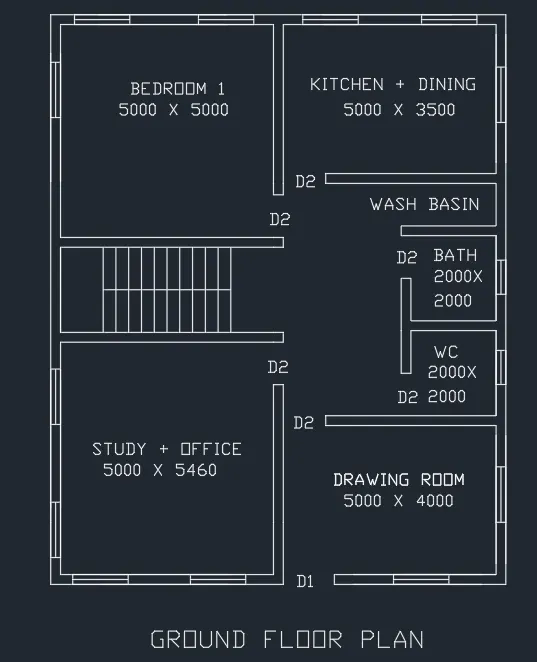

- Offset 5000 for bedroom in X direction and 5000 in Y direction.
- Offset 230 for wall.
- offset 5000 in X direction and offset 3500 in Y direction for kitchen + dining.
- Offset 1000 for was basin.
- Offset 2000 in X and 2000 in Y direction both for bath and WC.
- All walls are 230 mm thick.
- Line command is used to draw windows and doors.
- Size of window is 1500 X 1500.
- Size of doors are 1000 X 2100 and 1200 X 2100.
- Landing width is 1000
- Tread is 300 and rise is 150.

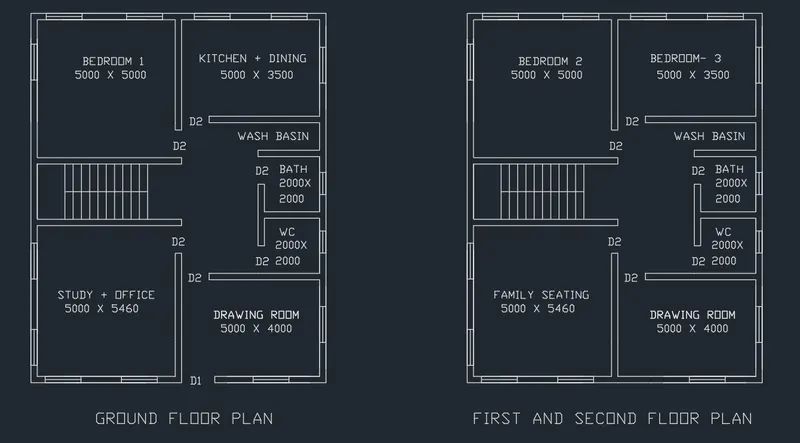

- Mtext command is used to give naming to the plan.
STEPS FOR RENDERING-
- Go to the visualize tab from the fibbon.
- This will give access to the panels like light, sunlight, Camera, Animations, Render and Views.

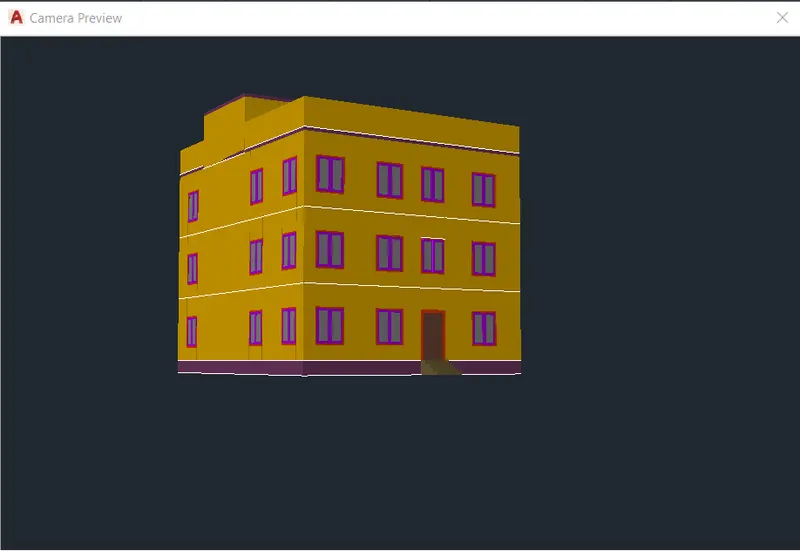

- Create different views using the cam
STEPS FOR CREATING THE 3D PLAN.
- In the right left corner click on the settings icon that is the icon of workspace.
- Select 3d modelling.
- Command boundary and in that select region.

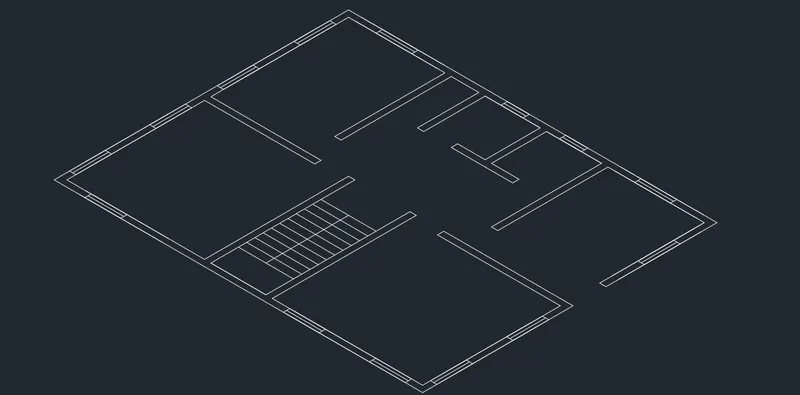

- Create boundaries as well as regions of the plan.

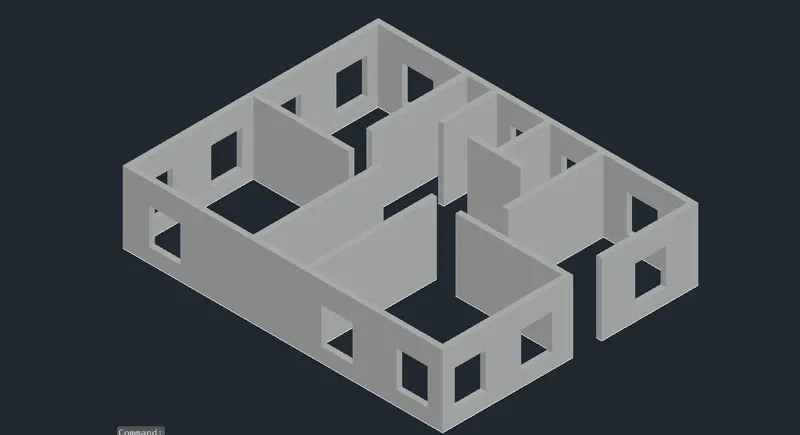

- Extrude the regions that are the walls to the height of 3000 from bottom.
- Floor to floor height of the building is 3000.
- Create different type of layers using layer properties like 3D walls, window frames, slab, window glass etc as desired.
- Assign colors to each layer separately
- Line command is used to draw the windows and doors.

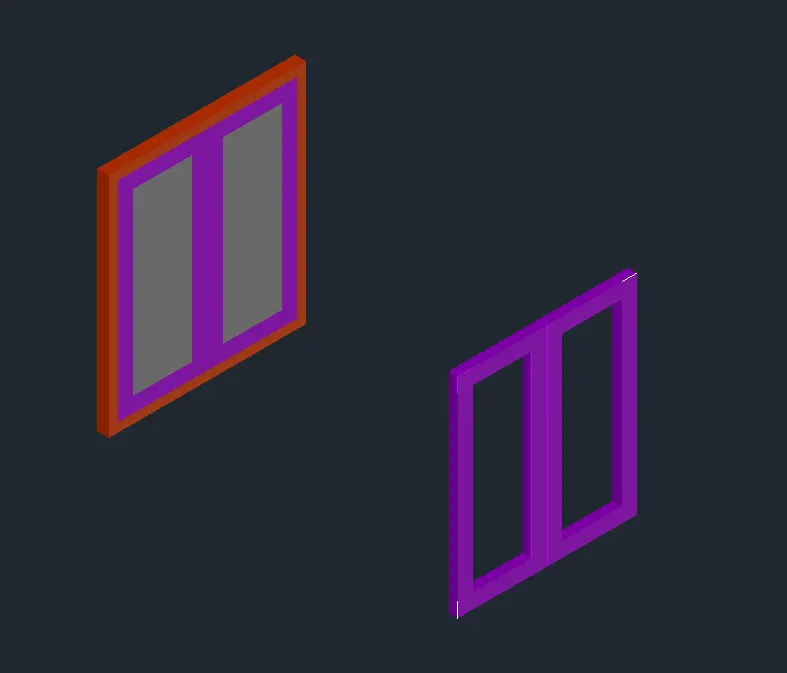

- Extrude the windows and doors to the suitable depth.
- Rotated 3D is used to rotate the objects as in windows and doors.
- Move and copy command is used to move the windows to their desired locations.
- Command polyline at the terrace and create the parapet wall at the top of the building.
- Command polyline and create the plinth of the building of 600 at the bottom.
- Create the staircase and extrude it to the distance of 1200.
- Create the mumty separately and place it on the top of the building.
STEPS FOR RENDERING-
- Go to the visualize tab from the fibbon.
- This will give access to the panels like light, sunlight, Camera, Animations, Render and Views.
- Create different views using the cam
-
- Views.

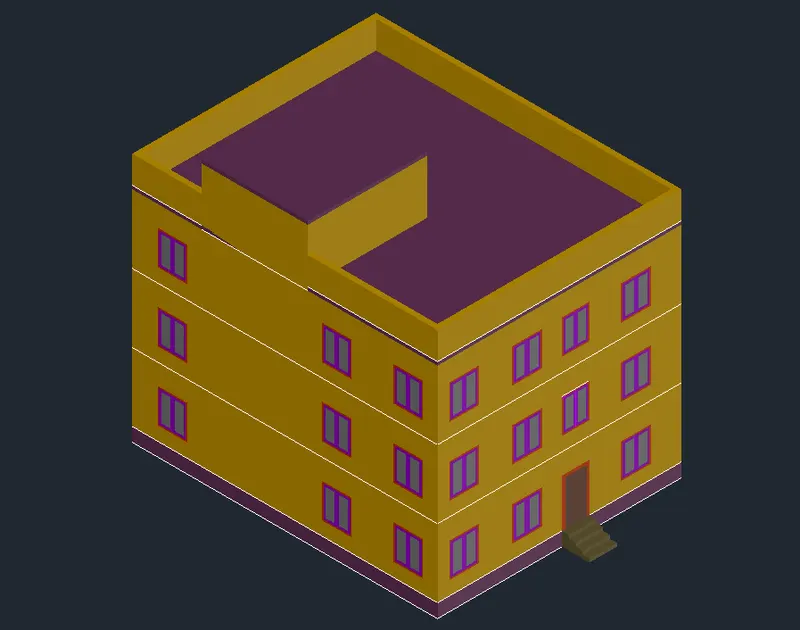

- Create different views using the camera anf render the building.
- Place the lights at the desired locations.

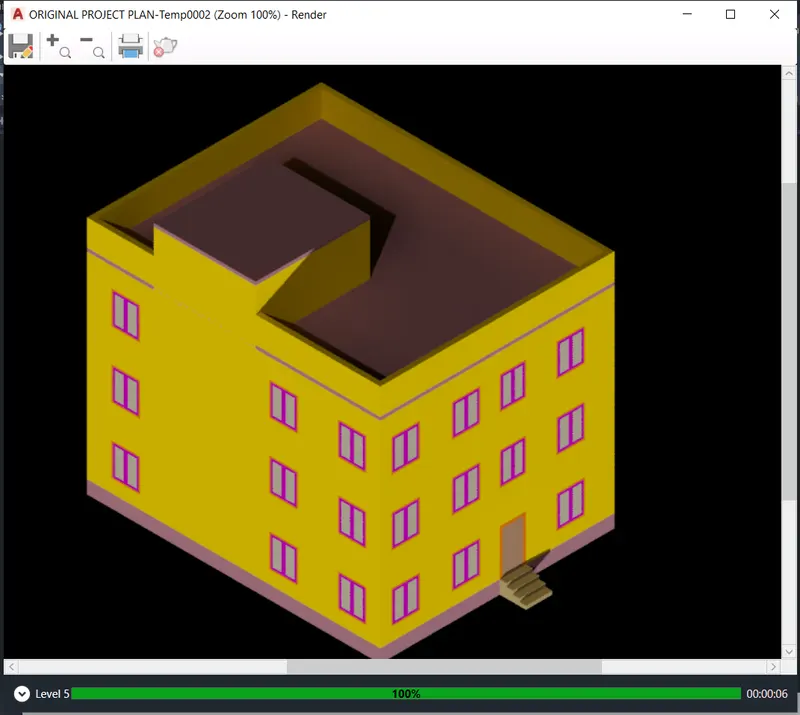

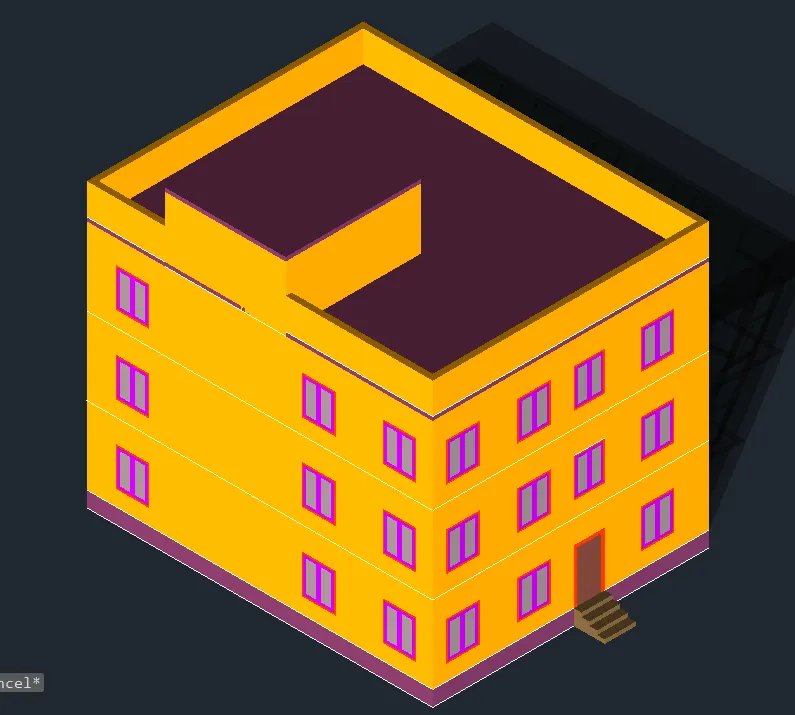

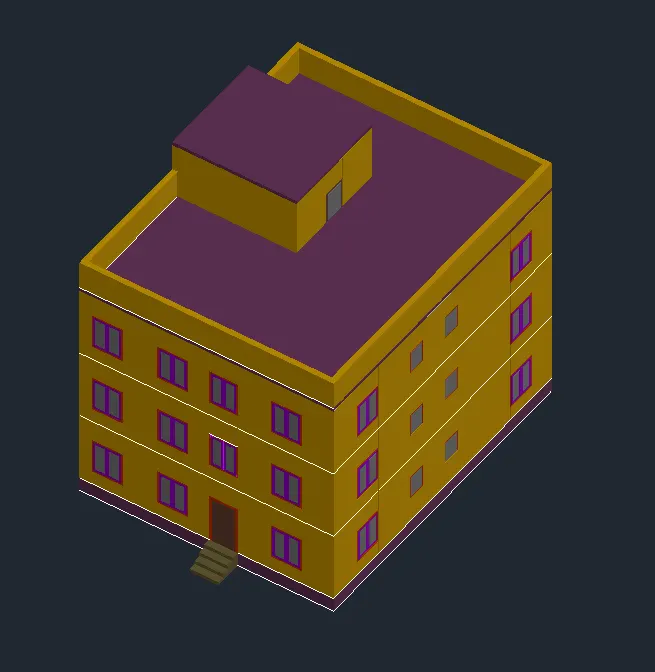

RENDERED VIEW-
