Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

.AIM:To create a 3D redered model for a residential building in AutoCAD

PROCEDURE:

First open the Autocad and click on settings below and in that select 3D modelling.
After selecting the 3D modeling set the units and limits as per the drawing requirements.

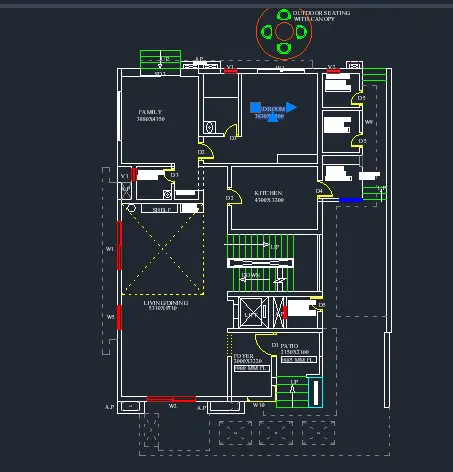

After that go to views and select top view and draw the drawing in 2d modeling.

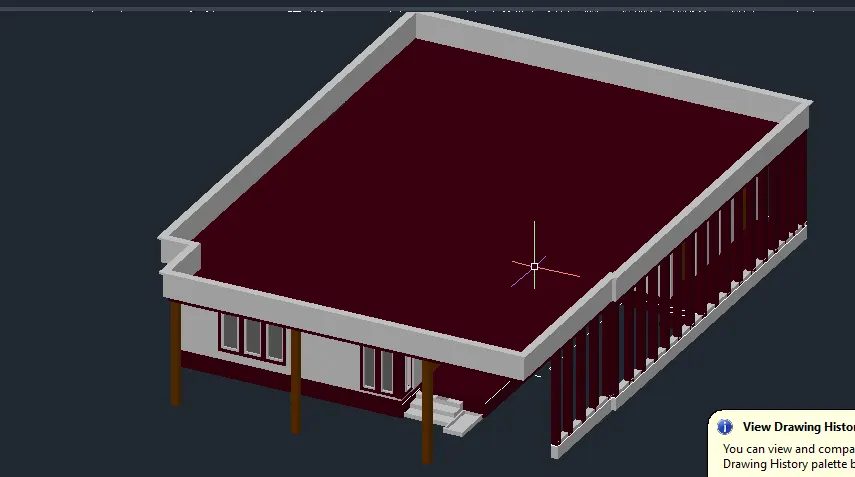

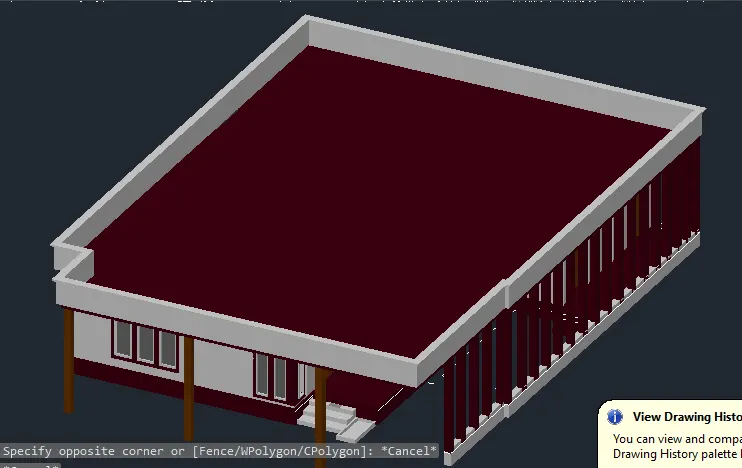

After draw in 2d modeling go to conceptual view and exturde the solid objects to required height and then by using the solidedit command edit the solid object.
The colour are given to the faces of the solid object by using the solidedit command.

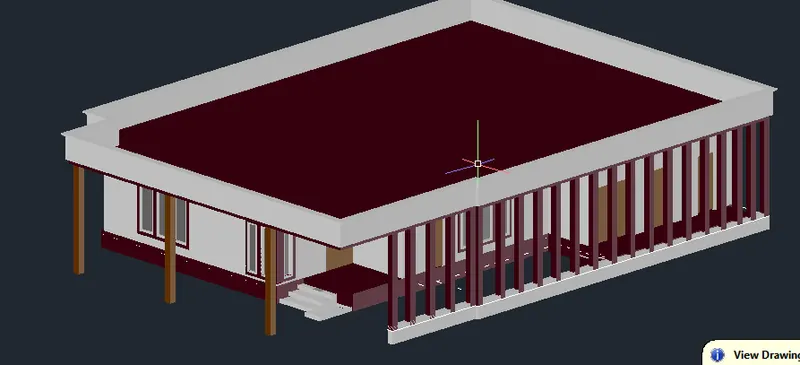

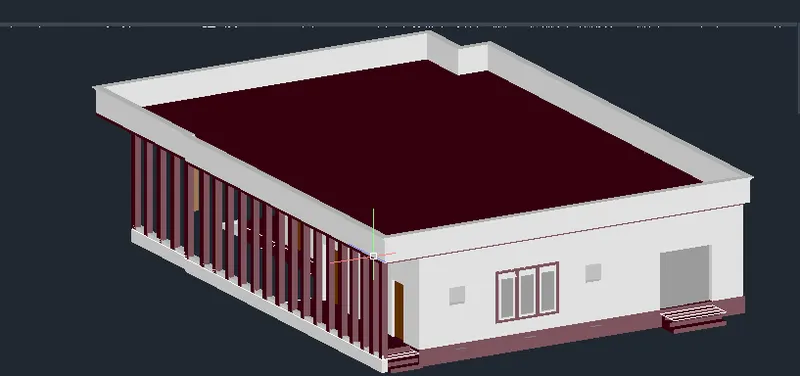

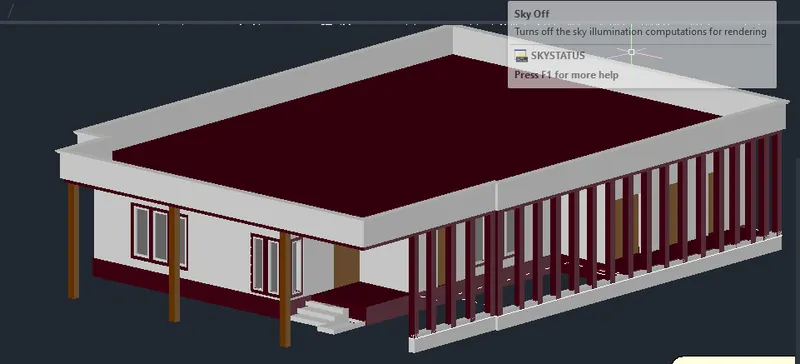

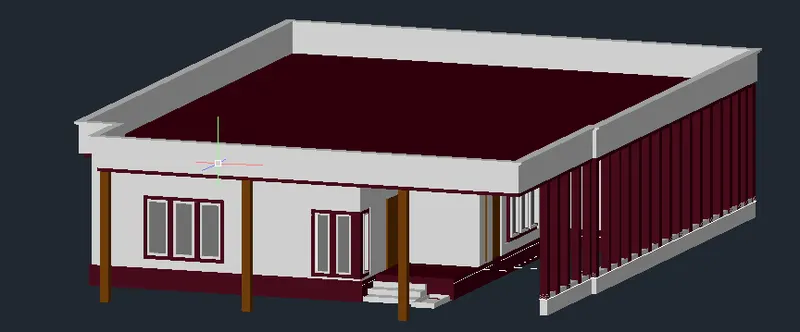

Use the 3dorbit command to view the solid object in 360 degrees.
The solid object edges colours are given by using the solid edit command in the edge and click on colour.
All the lines in the above drawing are drawn by using line command in the below command section.
Trim command is used to remove unwanted objects in the above drawing.
Dim command is used to give all the dimensions in the drawing.
Dimensions are given to the 3d solid objects by using UCS command.
UCS command is used to give dimensions in the z-axis direction.
Offset command is used to creat another object with the same dimensions of the objects.
rec command is used to draw the walls and windows.
