Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

CHALLENGE -14

Aim:

Creating a 3D rendered model for a Residential Building in Autocad

Keys Used:

• Rectangle
• Extrude
• Material Assign
• Material Browser
• Layers
• Press Pull
• Camera
• Render Window
• 3dorbit
• Navswheel

Procedure:

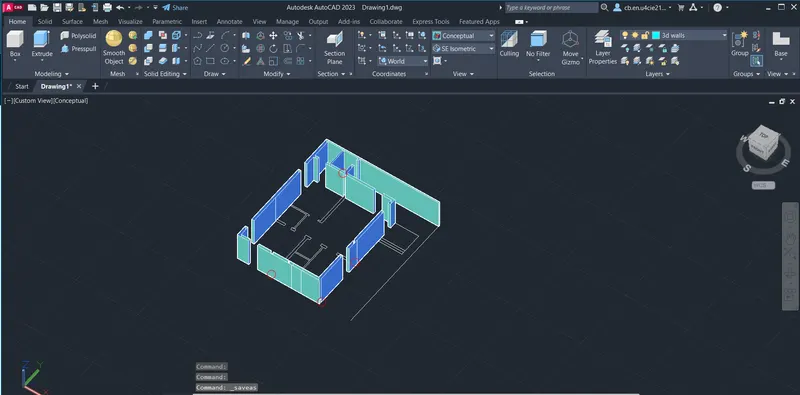

Step 1:

Extrude 3d walls from the plan

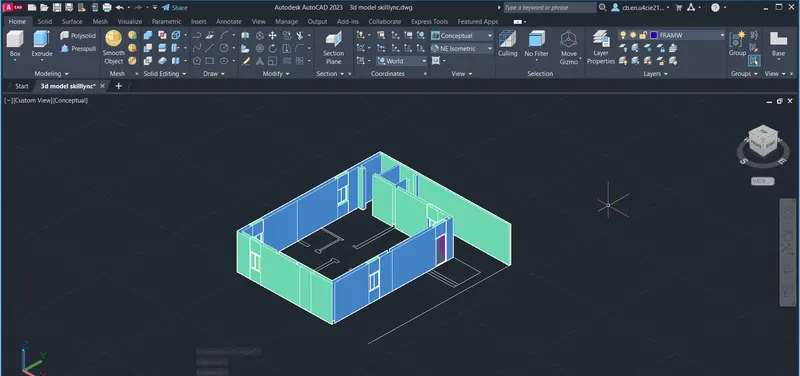

Step 2:

Place Doors and Windows

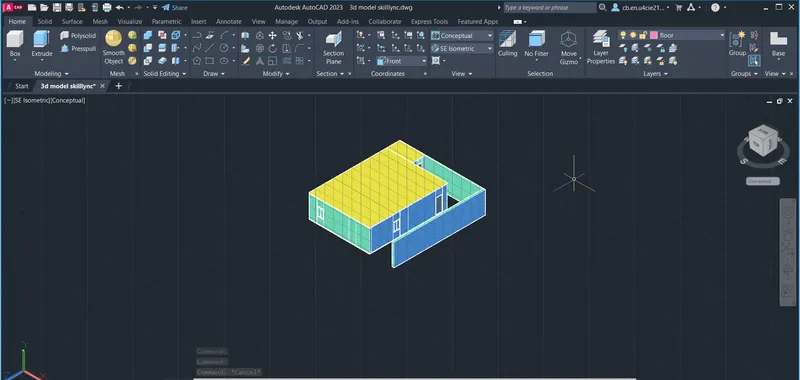

Step 3:

Lay roof and flooring

Step 4:

Assign Materials to the 3d model

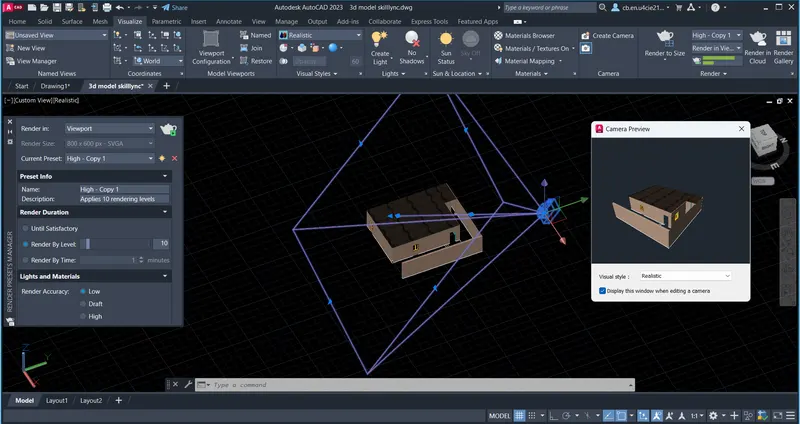

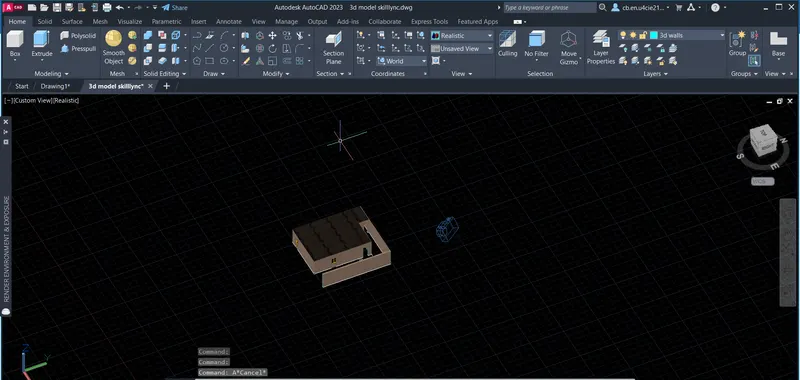

Step 5:

Render the model with required settings.

Output:
