Project 2 - 2D meshing on the instrumental Panel

AIM:
To check the geometry errors and clean the geometry and used casting method for mesh generation.

QUALITY CRITERIA USED:

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

ABSRTACT:

In this Project-1,

ANSA pre-processor is used to generate mid surface using various
options like casting, offset, middle etc. Created 2D interpretation of the parent geometry.
Extended mid surfaces in order to connect all the generated mid surfaces. Mesh the
component using spot with given quality criteria. Cleared off elements without any kinks
or raised edges

here I have mesh by using castinng method

INTRODUCTION:

A dashboard (instrument panel (IP), or fascia) is a control panel usually located directly
ahead of a vehicle's driver, displaying instrumentation and controls for the vehicle's
operation. These days car dashboards may include so many indicators like
speedometer, tachometer, odometer, fuel gauge, turn indicators, gearshift position
indicator, seat belt warning light, engine-malfunction lights. Other features may include
a gauge for alternator voltage, indicators for low fuel, low oil pressure, low tire pressure
and faults in the airbag (SRS) systems, lighting controls, safety systems, entertainment

Dashboard can be made from metal as the simplest and cheapest way. This could be
the same base metal as the car, which is steel or Aluminium. The more expensive luxury
Cars are made of exotic wood with a highly polished finish. Usually, top layer on old cars
is PVC. More recently, dashboard coverings have been made of PVC blended with
something called ABS. ABS is an acronym for a block copolymer made of acrylonitrile,
butadiene, and styrene.

PROCEDURE:

Step 1:

Import the geometry into ANSA and do topo to stitch the surfaces. Assign PID for
the whole geometry.

Step 2:

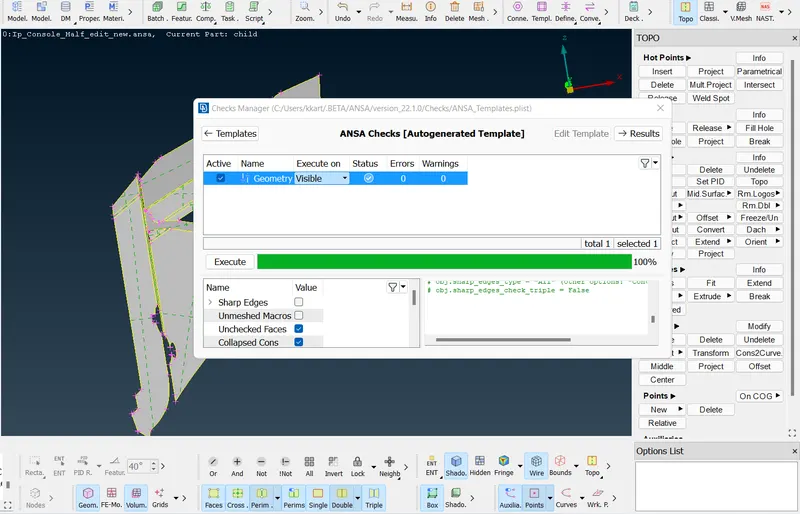

Clean the geometry using checks manager. Enable unchecked faces, collapsed
cons, triple cons, needle faces, overlapped faces, cracks, single cons. Clear all these
issues until no error is found. One can use fix option in ANSA to clear all the errors
automatically. However, sometimes manual intervention is required for fixing some
errors.

Step 3

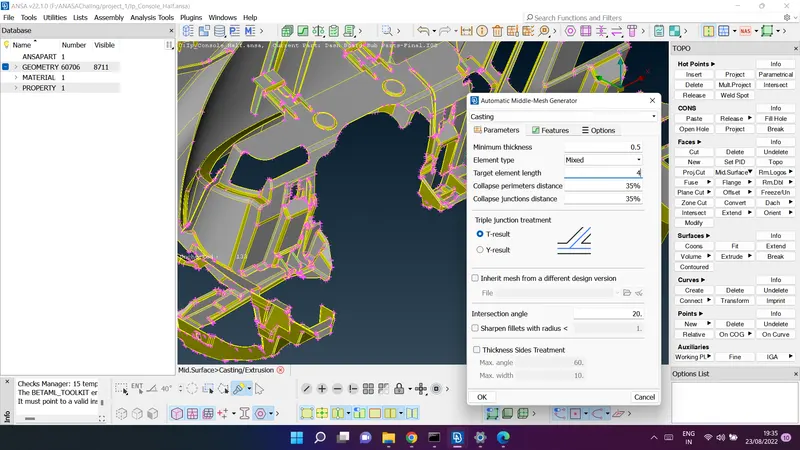

mid mesh generation using casting
For this component in the instrument panel, I have generated mid using casting
option.

tools used:

for the element joing :pest option used

to get proper surface draw curve

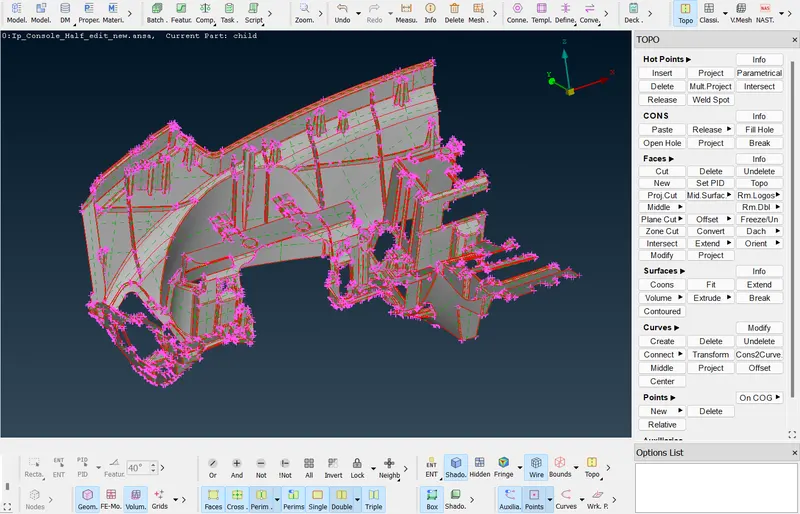

topo>curve>create

project

mesh> shell mesh>project

fill the mesh

classic mesh> shell mesh >fill

Step 7:

Meshing and Improving mesh flow

In this mid surface there are lot of double cons nearer to each other. Therefore, lot of
topological clean up should be done before starting mesh.

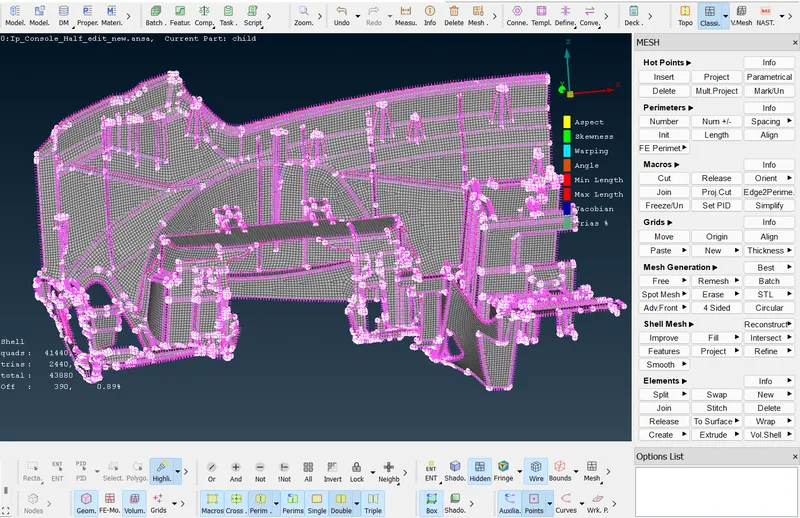

For this dash board, manual mesh is preferred as it has more features connected with
each other. I have used spot mesh option and meshed region by region manually.

Reconstruct and Smooth:

I have used smooth option in order to clear some off elements at converging places

For better mesh flow reconstruct option can be used. I have removed opposite trias and
trias at the edges using options like swap, split and paste options.

some of the element cannot be clear as it is in the complicated part:

Aasign thickness:

classic mesh > grid>thickness>convert>(select component ) asign the thickness> ok (click)

Learning Outcomes:

Able to do topological clean-up with no errors.
Assigned separate PIDs for different surfaces.
done the casting with asign thickness
Aware of all the quality criterias and quality parameters during mesh generation.
Understood about mesh generation and implemented mesh generation for complex
geometry.
Learned how to improve mesh flow and remove trias to achieve better mesh flow.
Understood all the concepts regarding mid surface generation and meshing in ANSA.

Conclusion:

In this project, I have generated mesh using castinng options available in
ANSA Able to defeature and do line adujstments in some areas Did topological clean
Able to defeature and do line adujstments in some areas. Did topological clean
up. Understood about transparency mode and the concepts related in generating mid
surface for different features. Able to achieve better mesh flow using
smooth,reconstruct,swap,paste,move options. Eliminated kinks and raised edges.
Successfully generated mid surface and meshed whole Instrument panel usinh ANSA.
