Project 1 - Parsing NASA thermodynamic data

 Project 1 - Parsing Nasa Thermodynamic Data

Function Codes

% Enthalpy Calculation function

function [H] = enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,local_mid_temp,R,T)

    % finding enthalpy with low and temperature variables
    if T<=local_mid_temp
        H = (a8+(a9*T/2)+(a10*(T.^2)/3)+(a11*(T.^3)/4)+(a12*(T.^4)/5)+(a13./T))*R.*T;
    else
        H = (a1+(a2*T/2)+(a3*(T.^2)/3)+(a4*(T.^3)/4)+(a5*(T.^4)/5)+(a6./T))*R.*T;
    end
end

% Entropy Calculation function

function [S] = entropy_calc(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,local_mid_temp,T,R)

    % finding entropy with low and temperature variables
    if T<=local_mid_temp
        S = ((a8*log(T))+(a9*T)+(a10*(T.^2)/2)+(a11*(T.^3)/3)+(a12*(T.^4)/4)+a14)*R;
    else
        S = ((a1*log(T))+(a2*T)+(a3*(T.^2)/2)+(a4*(T.^3)/3)+(a5*(T.^4)/4)+a7)*R;
    end
end

% Molecular Weight Calculation function

function molecularweight = molecular_weight(species_name)
         % Standard - Atomic Name
         atomic_name = ['H','C','O','N','A'];
         % Hydrogen, Carbon, Oxygen, Nitrogen, Argon

         fprintf('Molecular Weight of ');
         fprintf(species_name);
         fprintf(' : ');
         % Standard Atomic Number
         atomic_Weight = [1.008 12.011 15.999 14.007 39.948];
         % Starting Range of Molecule
         molecularweight = 0;

         % Adding Atomic number to obtain particular value
        for i = 1:length(species_name)
            for j = 1:length(atomic_name)
                if strcmpi(species_name(i),atomic_name(j))
                        molecularweight = molecularweight +atomic_Weight(j);
                    position = j;
                end
            end
            n = str2num(species_name(i));

            if n>1

                molecularweight = molecularweight + atomic_Weight(position)*(n-1);

            end
        end
            fprintf('molecular weight %s :',species_name);
            fprintf('%d',molecularweight);
            disp(' ');
end

% Specific heat calculation function

function [cp] = specificheat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,local_mid_temp,T,R)

    % finding specific heat with low and temperature variables
    if T<=local_mid_temp
        cp = (a8+(a9*T)+(a10*T.^2)+(a11*T.^3)+(a12*T.^4))*R;
    else
        cp = (a1+(a2*T)+(a3*T.^2)+(a4*T.^3)+(a5*T.^4))*R;
    end
end

MAIN CODE

% NASA File Parsing
close all
clear all
clc

% Reading the file
f = fopen('THERMO.dat','r');

% Skipping 5 comments in the file
for i = 1:5
    fgetl(f)
end

for j = 1:53
line_1= fgetl(f)
a = strsplit(line_1,' ');

% Reading species name
species_name = a{1};
len = length(a);

% Reading local temp
local_mid_temp = str2num(a{len-1});
local_high_temp = str2num(a{len-2});
local_low_temp = str2num(a{len-3});

% Reading Coefficients
% Extracting lower and higher temperature ciefficients
% Extracting FIRST 7 coefficients i.e. HIGH -  temperature coefficients
coeff_line_1 = fgetl(f);
pos1 = strfind(coeff_line_1,'E');

a1 = str2num(coeff_line_1(1:pos1(1)+3));
a2 = str2num(coeff_line_1(pos1(1)+4:pos1(2)+3));
a3 = str2num(coeff_line_1(pos1(2)+4:pos1(3)+3));
a4 = str2num(coeff_line_1(pos1(3)+4:pos1(4)+3));
a5 = str2num(coeff_line_1(pos1(4)+4:pos1(5)+3));

coeff_line_2 = fgetl(f);
pos2 = strfind(coeff_line_2,'E');

% Extracting SECOND 7 coefficients i.e. LOW - temperature coefficients
a6 = str2num(coeff_line_2(1:pos2(1)+3));
a7 = str2num(coeff_line_2(pos2(1)+4:pos2(2)+3));
% lower coefficients
a8 = str2num(coeff_line_2(pos2(2)+4:pos2(3)+3));
a9 = str2num(coeff_line_2(pos2(3)+4:pos2(4)+3));
a10 = str2num(coeff_line_2(pos2(4)+4:pos2(5)+3));

coeff_line_3 = fgetl(f);
pos3 = strfind(coeff_line_3,'E');

a11 = str2num(coeff_line_3(1:pos3(1)+3));
a12 = str2num(coeff_line_3(pos3(1)+4:pos3(2)+3));
a13 = str2num(coeff_line_3(pos3(2)+4:pos3(3)+3));
a14 = str2num(coeff_line_3(pos3(3)+4:pos3(4)+3));

% Temperature range assumed
T = linspace(local_low_temp,local_high_temp,100);

% Universal Gas Constant
R = 8.314;

% Specific Heat Calculation
cp = specificheat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,local_mid_temp,T,R);

% Enthalpy Calculation
h = enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,local_mid_temp,R,T);

% Entropy Calculation
s = entropy_calc(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,local_mid_temp,T,R);

% Molecular Weight
molecularweight(i) = molecular_weight(species_name);

% Read & Write Molecular list
Molecular_list = fopen('Molecular weight.txt','a+');
fprintf( Molecular_list,'Molecular weight of %s is %d \n',species_name,molecularweight);
fclose(Molecular_list);

% Creating directory
cd('C:\Users\surka\OneDrive\Documents\MATLAB\species_name');
mkdir(species_name)
cd(species_name)

% Plotting
% Plot 1 Temperature vs Specific Heat
figure(1)
plot(T,cp,'linewidth',2,'color','r')
saveas(figure(1),'cp VS T.jpg')
grid on
xlabel('Temperature [K]')
ylabel('Specific Heat [KJ]')
title(sprintf('Varying Specific Heat with Temperature Range of %s',species_name))

% Plot 2 Temperature vs Enthalpy
figure(2)
plot(T,h,'linewidth',2,'color','c')
saveas(figure(2),'h VS T.jpg')
grid on
xlabel('Temperature [K]')
ylabel('Enthalpy [KJ/mol]')
title(sprintf('Varying Enthalpy with Temperature Range of %s',species_name))

% Plot 3 Temperature vs Entropy
figure(3)
plot(T,s,'linewidth',2,'color','m')
saveas(figure(3),'s VS T.jpg')
grid on
xlabel('Temperature [K]')
ylabel('Entropy [KJ/mol-K]')
title(sprintf('Varying Entropy with Temperature Range of %s',species_name))
end

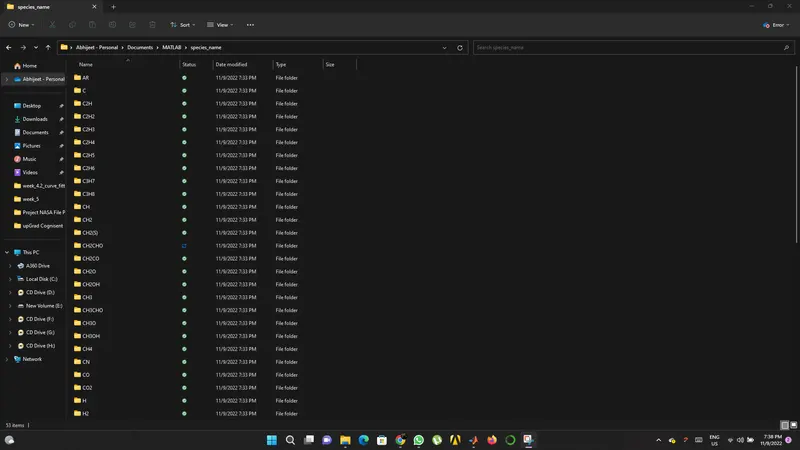

Screenshot of the window where all the folders are saved

Plots for o2, N2 and Co2 species

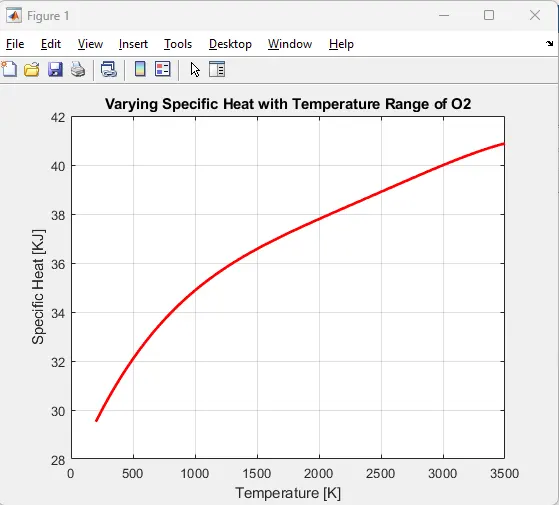

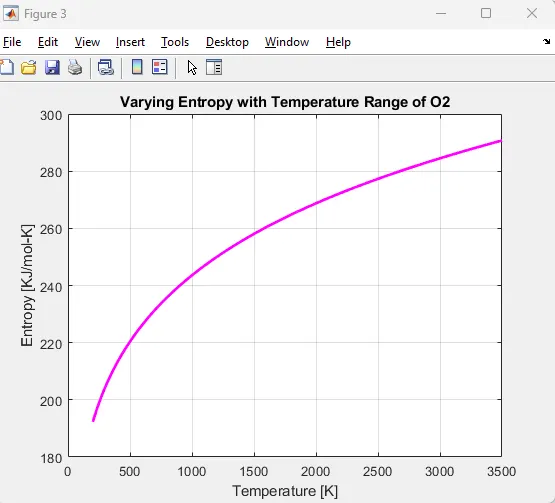

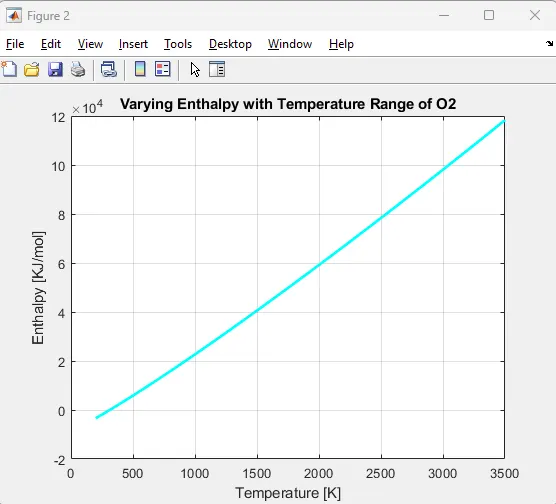

Plots for O2

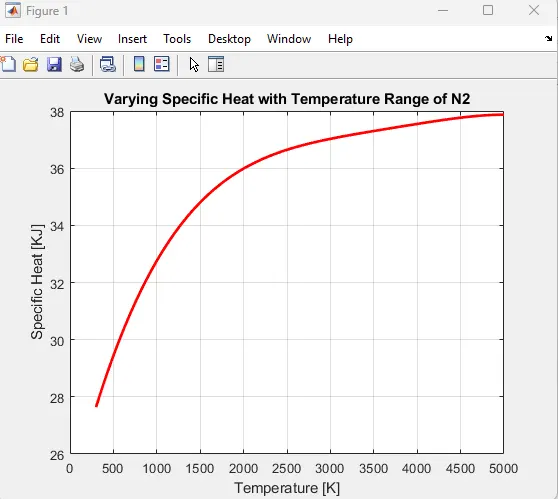

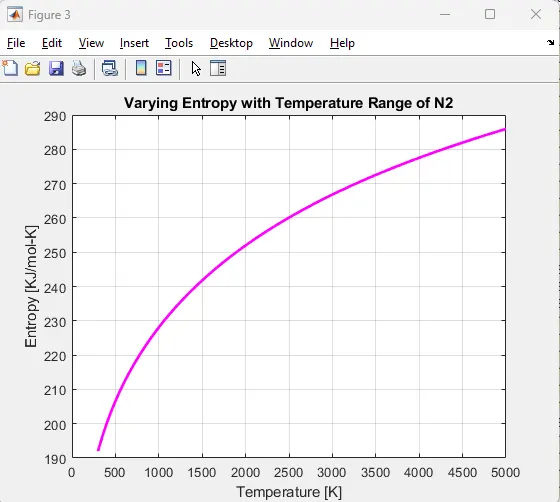

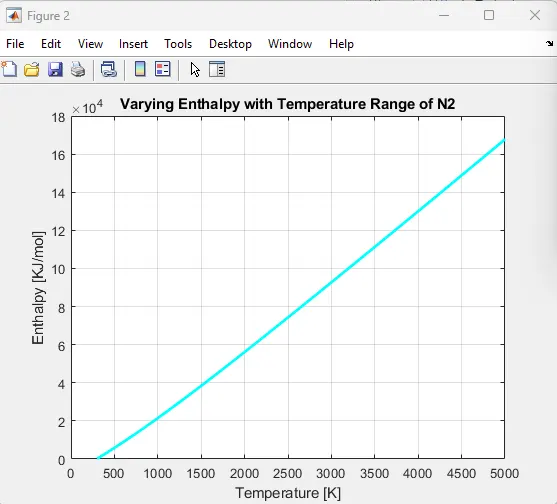

Plots for N2

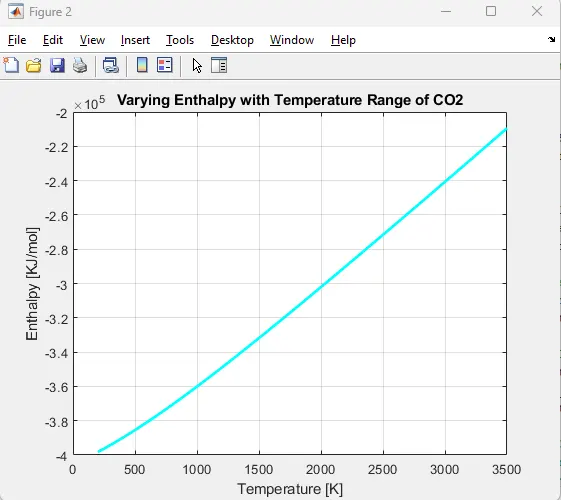

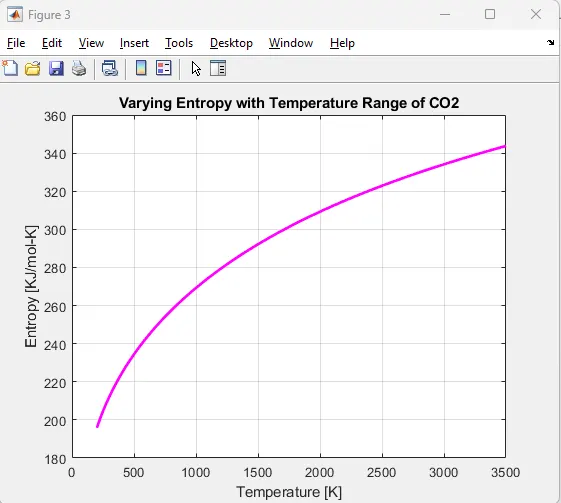

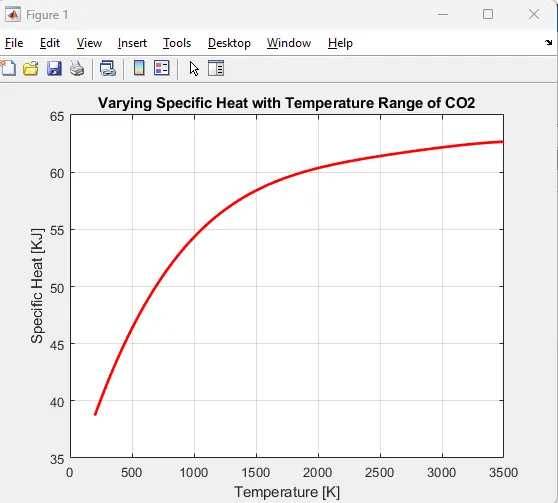

Plots for CO2
