Project 1-Meshing of Rear Wheel Holder challenge

OBJECTIVE:

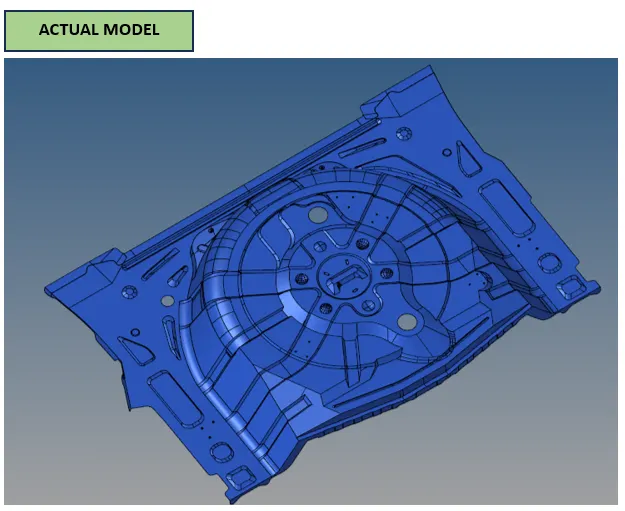

To generate a mid-surface & generate a 2D mesh on the mid surfaced part by subdividing the main assembly in to subdivided component.

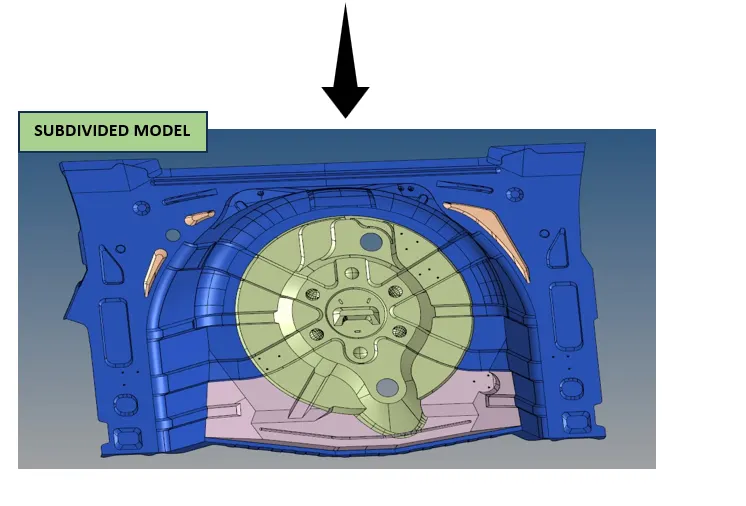

SUBDIVIDED PARTS:

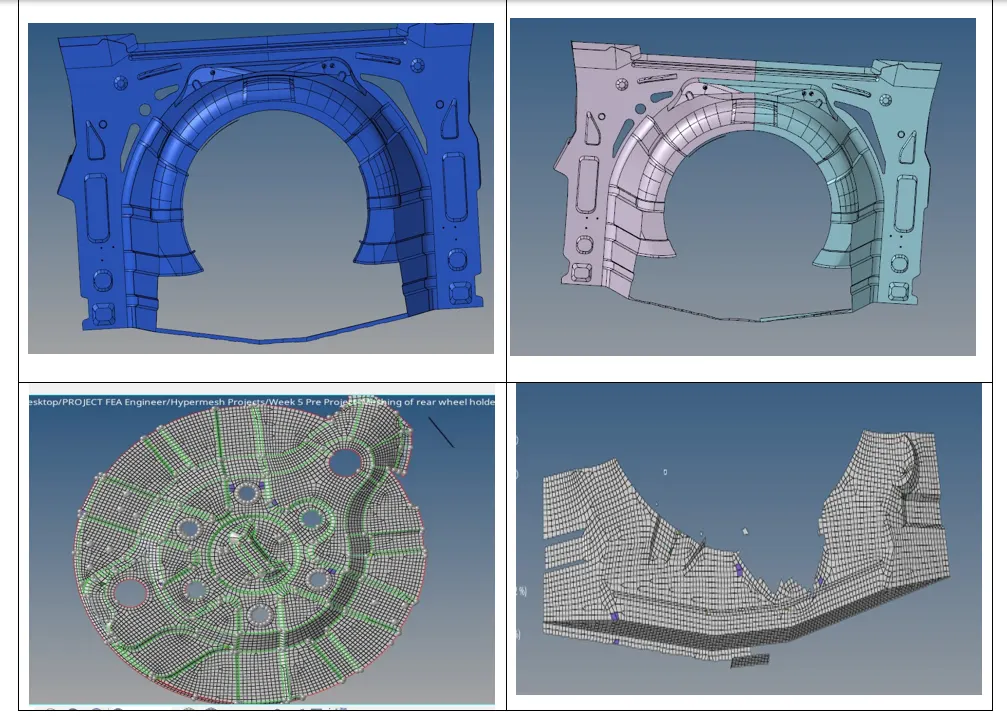

The above subdivided parts have separately meshed in order to make the meshing more accurate & simplification.

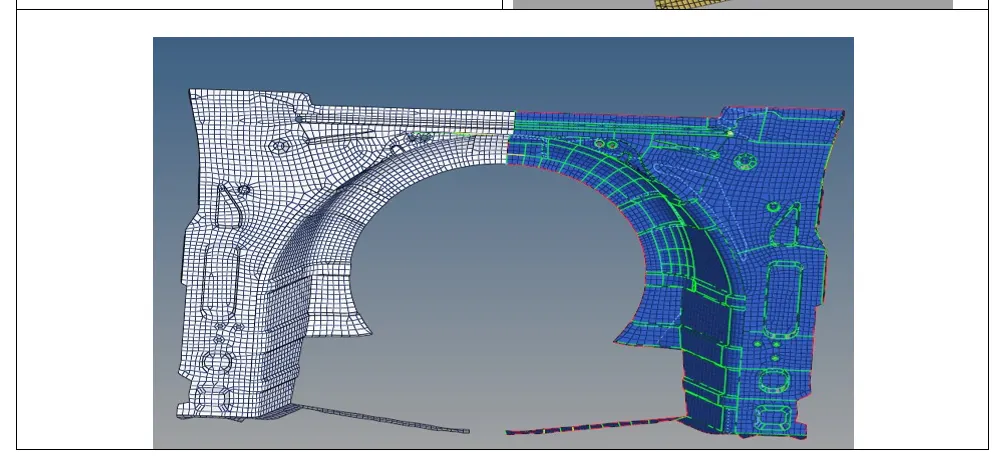

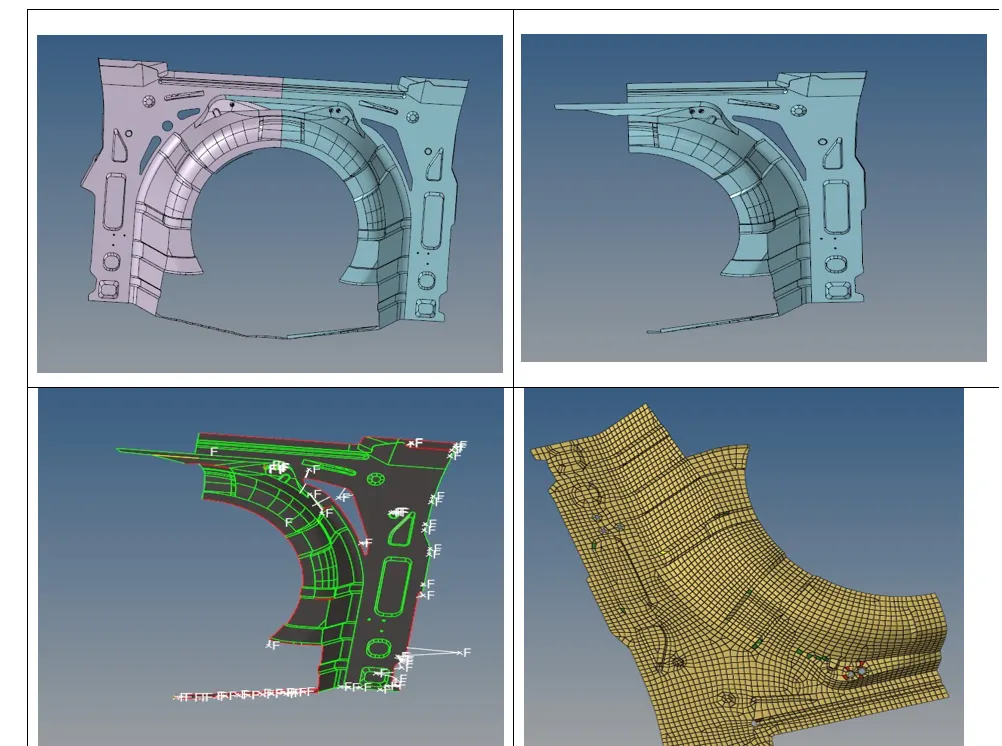

USING THE SYMMETRICITY:

The subdivision of the components are also done in order make use of the symmetric geometry, which was subdivided in to one new component, which is meshed and the elements are reflected to the opposite side of the symmetric components.

Usage of the above symmetricity saves a lot of time in meshing. Always CAE engineer should identify such symmetric component and mesh accordingly.

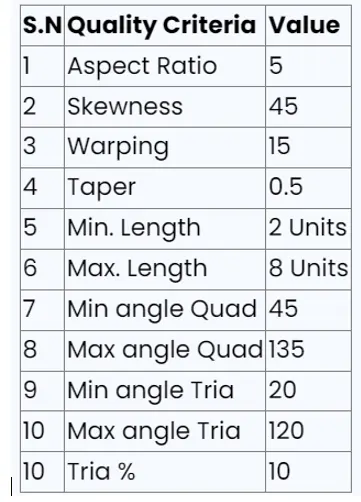

ELEMENT QUALITY CRITERIA:

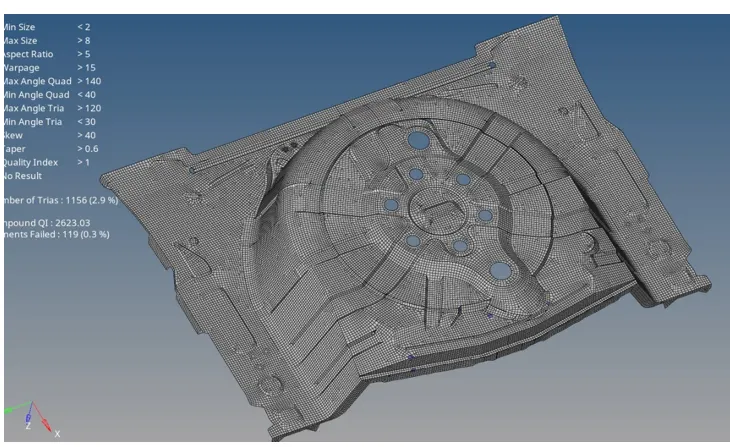

COMPLETELY MESHED COMPONENT:

https://drive.google.com/file/d/1XoEtRw1HTPD-SEDlenTd11DrTU0pKhWX/view?usp=drive_link

...
