Project 1 - Meshing of Floor Panel

As shown in the pscreenshots below,the following steps were taken to solve the question:

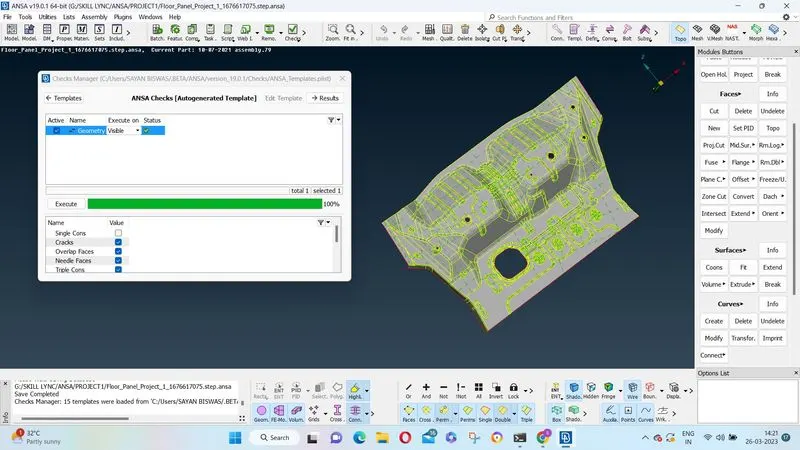

1)First of geometry checks for the whole component was done

2) After checks all the errors obtained was cleared one by one.

3) Then midsurfsce was extracted using the ofset command and the features option after measuring the thickness of the component.

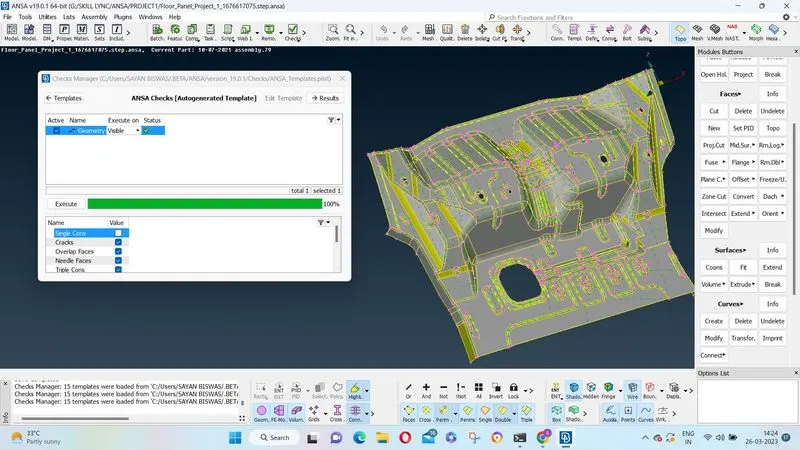

4) After extracting midsurface,again geometry checks and cleanup was done.

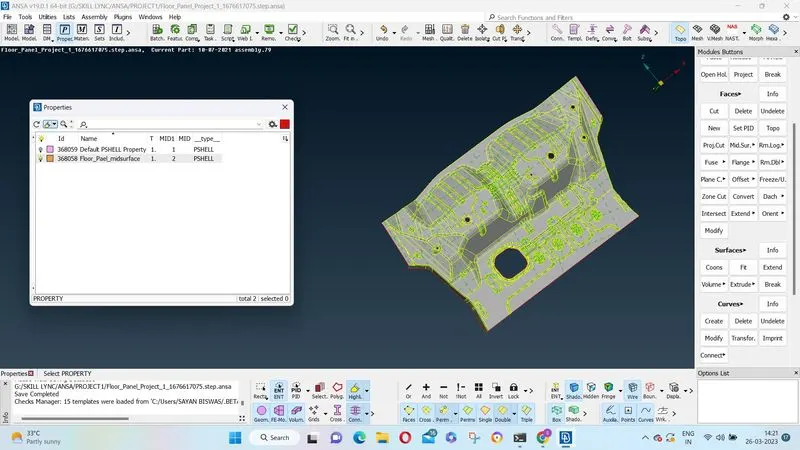

5) PID was created for the midsurface with a given thickness.

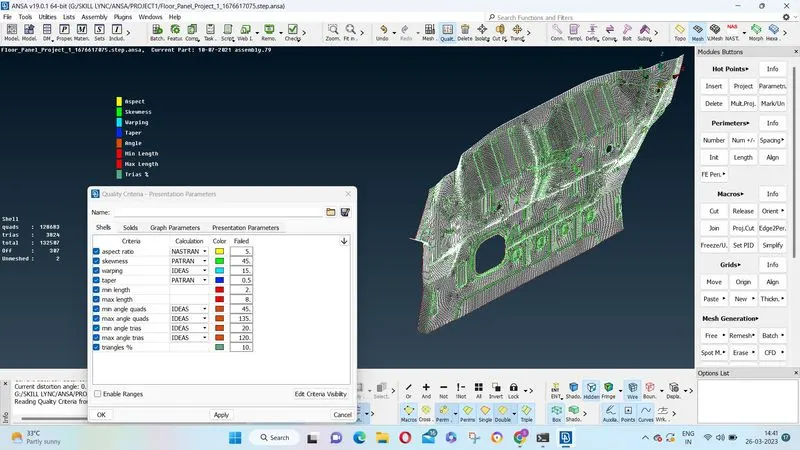

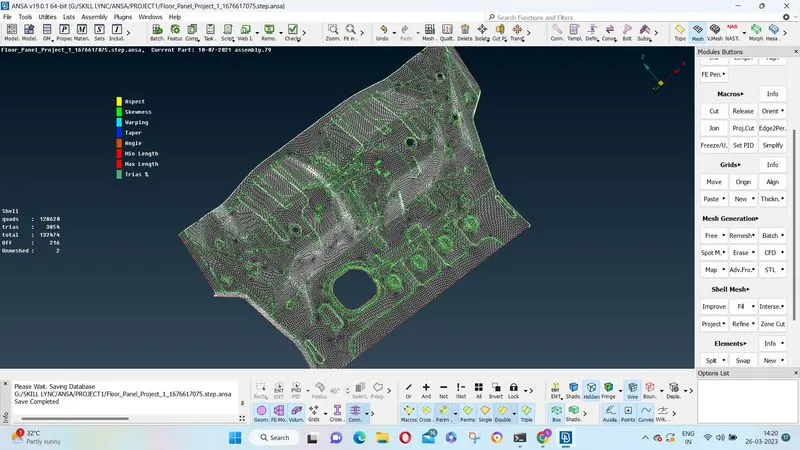

6) Then in the mesh module, lenght of perimeter/macros was set to obtain a perfect element size, then quality criteria and mesh parameters were set and applied, and then mesh was created using the best mesh command.

7) After mesh creation failure of the elements were checked in the hidden tab as shown in screenshot.

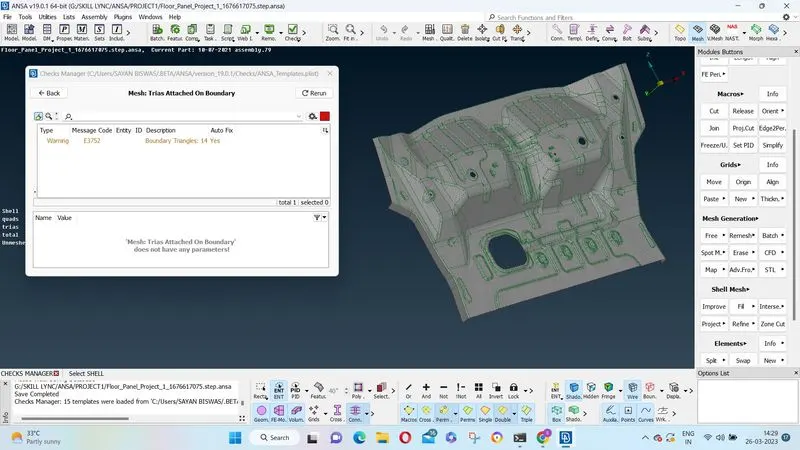

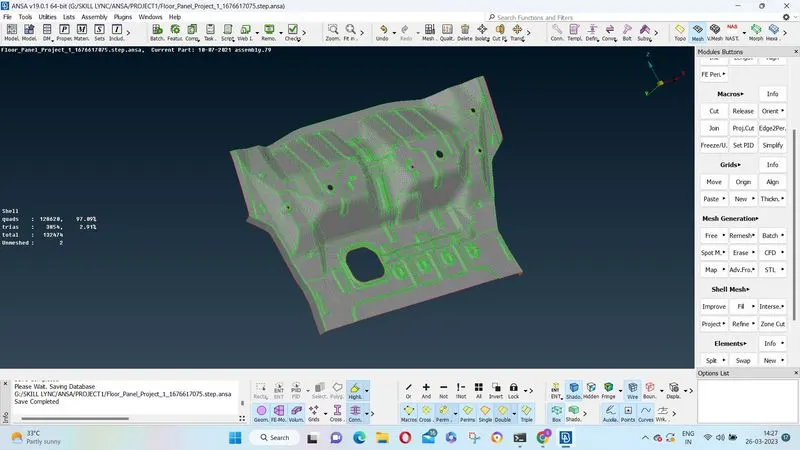

8) The using the recontruct feature reconstruction of mesh was done for reducing the tria percentage and also checks were run for tria at the border or tria near holes and errors obtained was solved to get the best meshflow.
