Project 1 - Meshing of Floor Panel
AIM:-
To mesh the given floor panel for the given quality criterias without any failure in the elements.
objecective:-
Target Element Length = 5 Units
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 8 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
PROCEDURE-The cad geometry is open in the Ansa for Meshing, the file is open, The design component to extract the middle surface and mesh the component

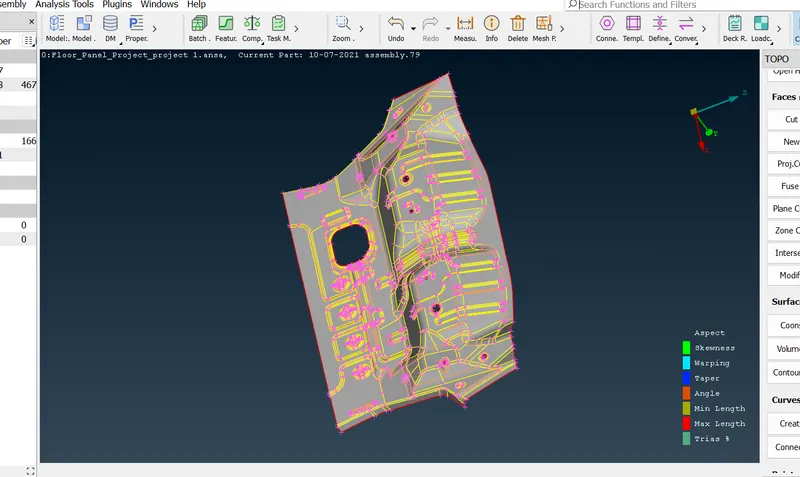

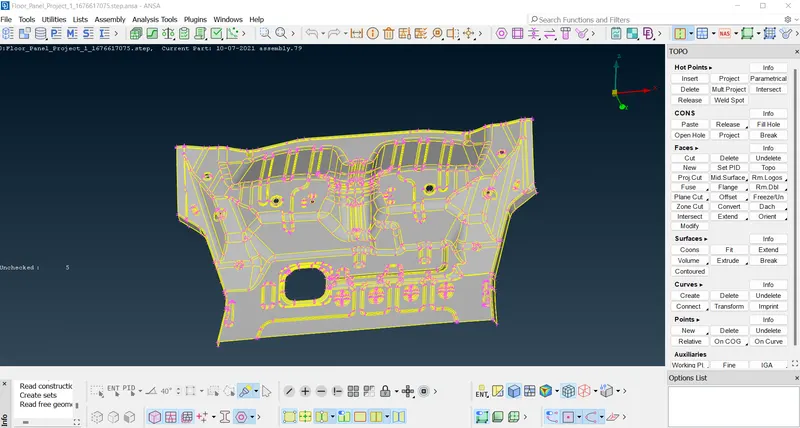

FLOOR PANEL GIVEN:-
- After importing the geometry do the topo and geomtry check and clear the geomtrical error
- after geometrical error taken mid surface of the model by using offset command
- Failed elements and Fixing them-The elements are failing for minimum and maximum length they are fixed by re-meshing it or moving them in a particular direction, this option clears the failing criteria.
-

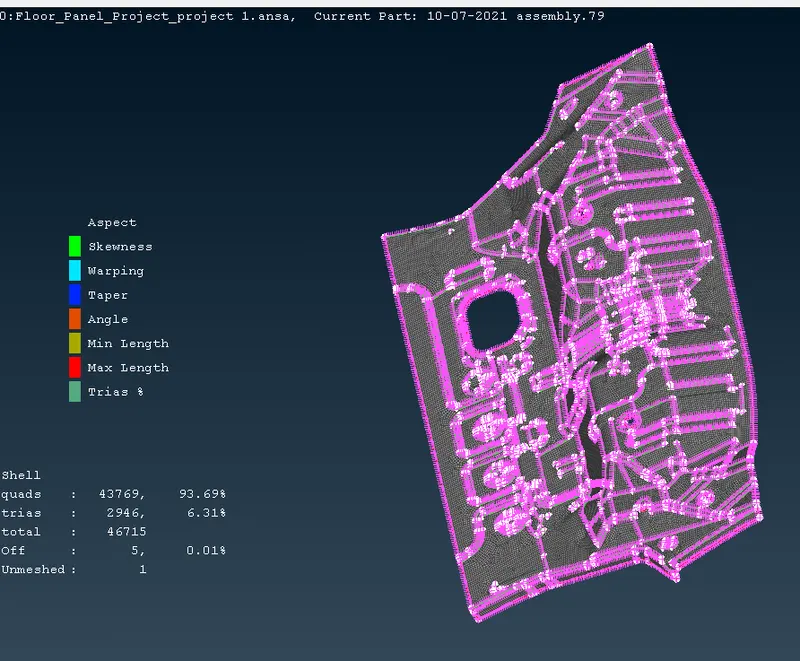

RESULTS-The mesh is obtained significantly on each component fixing them by using several options in the mesh panel. as the symmetric surfaces are deleted and meshed on single surfaces but the as a result on the outer panel the mesh is not connected as it used with auto paste option but it not working as well.But the elements that are failing are fixed and the quality result is obtained with less trias percentage
