Project 1 - Loss calculation for a DC/DC converter-MATLAB
AIM:-
- Extending the learned lessons in the previous module, you will be diving into another power electronics concept on your own

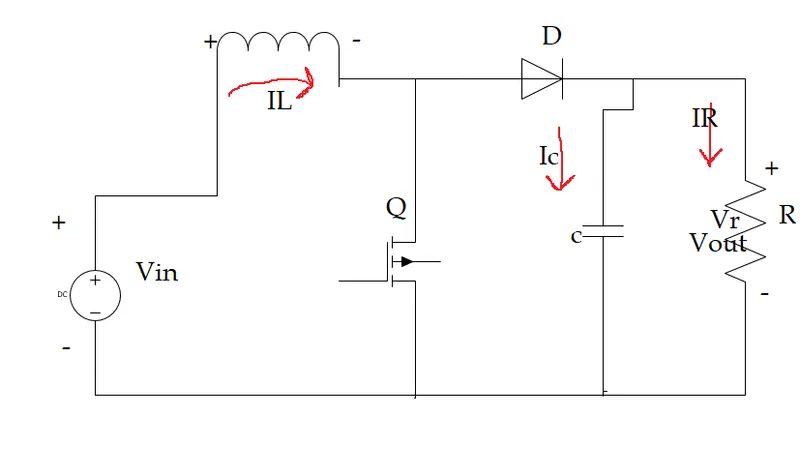

- Design of boost converter, and calculating the loss of different components including power switching device and deriving efficiency of the boost converter. This is applicable in the power supply industry, electric vehicles etc where a DC-DC converter is required to boost the voltage from the DC source. All the aspects of this project with loss calculation, device selection, simulation etc are industry relevant.Given,

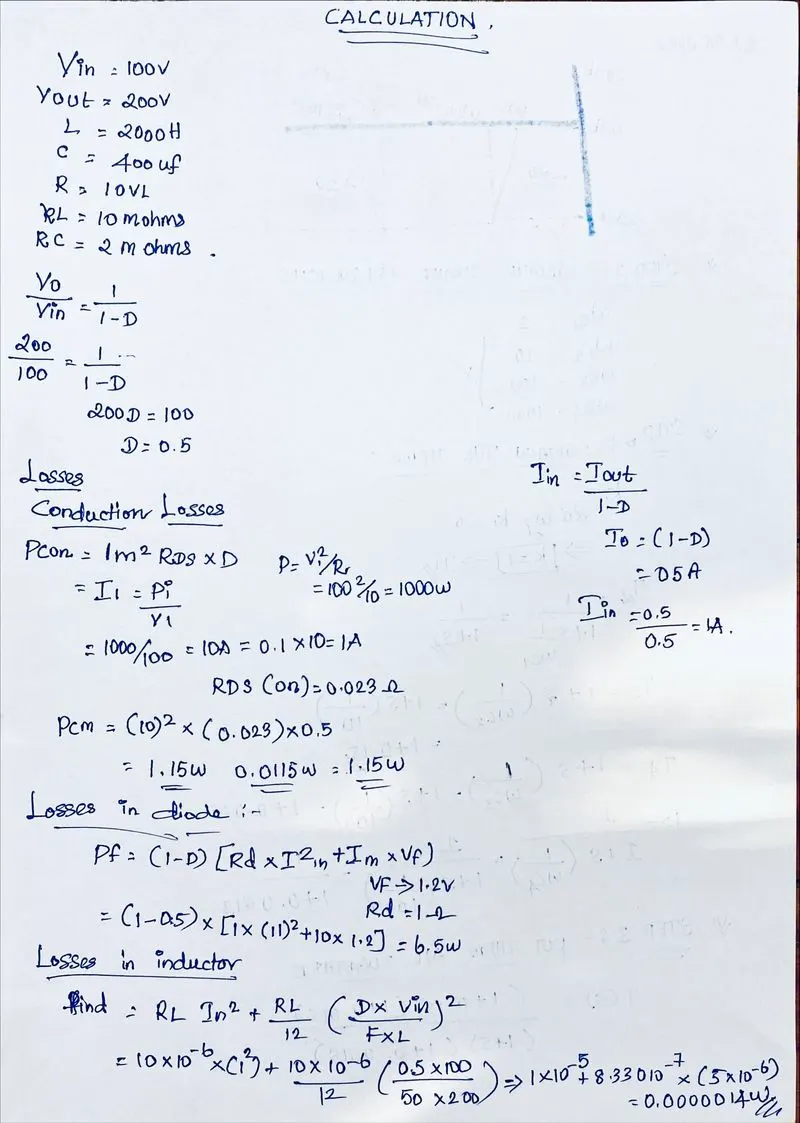

- Vin = 100 V;
- Vout = 200 V;
- L = 200uH ;
- C = 400uF;
- R= 10 Ohms;
- RL = 10 mOhms;
- RC = 2 mOh
