Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

1) Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows:      Width  30m Length 50m Eave Height 9m Bay spacing 6m Soil type Medium Safe Bearing Capacity 200 kN/m2 Roof slope 1 in 12 Assume suitable sections for structural elements. Follow IS800:2007, IS1893…

Ans)  1. Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:      Building floors G + 6 + R Plan dimension B = 25m ,  L = 16m Storey Height h = 3.5m Soil  Hard soil Use Residential Purpose Safe Bearing…

1. 1. State the primary load cases to be considered for design.    2. What is One – Way slab?    3. What is the value of unit weight of structural steel and soil?    4. Name few sections that can be defined using Properties tab in STAAD Pro.    5. Define Primary Beams. 2. 1. State the factors and parameters that influence…

Que :- 1. 1. How will you assign Circular section to column? Ans :-  Go to properties in that select define property select circle and give the radius for the member and assign the defined circle to the member created     Que :- 1. 2. How will you assign Unit system to a .std model file?  Ans :-  While creating a model…

Q1. 1. Write the steps involved to upload a .std file through web mail? ANSWER:- Steps involved to upload a .std file through web mails are as follows; Open the STAAD pro software and locate the share option available on the introduction screen. After clicking on the share button, select send mail option. Then, browse…

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class AIM: To use the architecture/ structure project file  to export revit architecture and structural model to Naviswork…

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. AIM: Need to create sinusoidal point then curve from the point and then create surface INTRODUCTION: By using dynamo created a sinusoidal point then created a curve from the point and converted into the surface PROCEDURE:…

   1) Select the type of structure you want to build from one of the three below        a. Multi Unit Residential Apartment        b. Office Buildings        c. School Ans:- As per the given options in the question I am opting for Multi Unit Residential Apartment 2) Assume reasonable assumptions for geographic and location…

ans1) AIM: Created a ceiling in the first floor level  INTRODUCTION: From the architectural tab to model a ceiling at the first floor level on the saved week 3 project of the residential unit. PROCEDURE: STEP 1) OPEN MODEL Launch the Revit software Click on open and select previously created drawing as Arch_Drawing_chanllenge2…

ANS1)

ANS1)       ANS2)   ANS3)   ANS4)

ANS1)        ANS2)              ANS3)         ANS4) ANS5)

ANS1)                ANS2)    ANS3)

ANS1)   ANS2)               ANS3)

ANS1)    ANS2)   ANS3) ANS4)  ANS5)

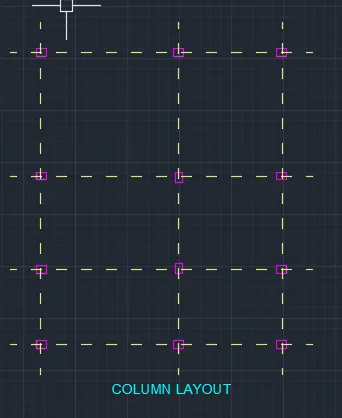

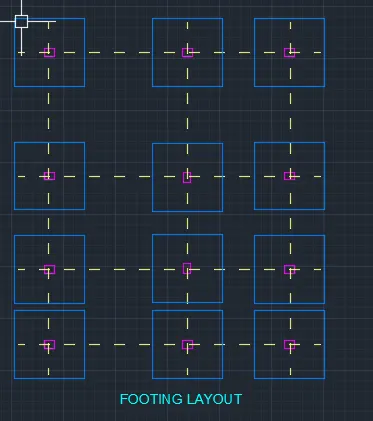

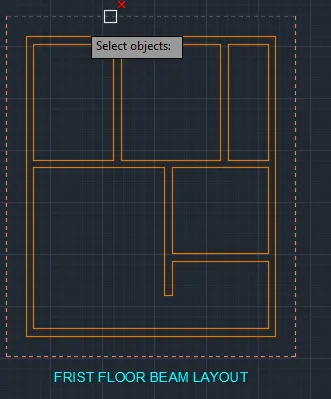

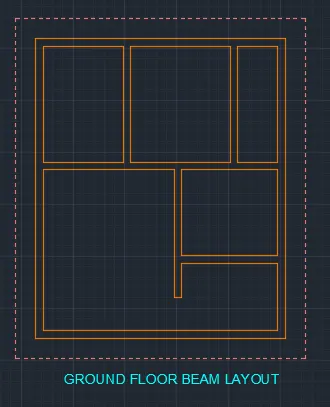

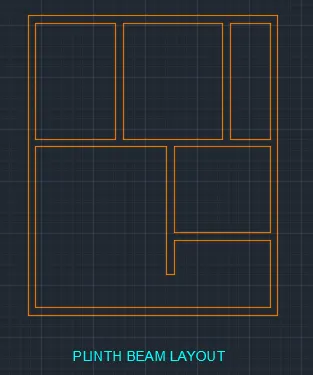

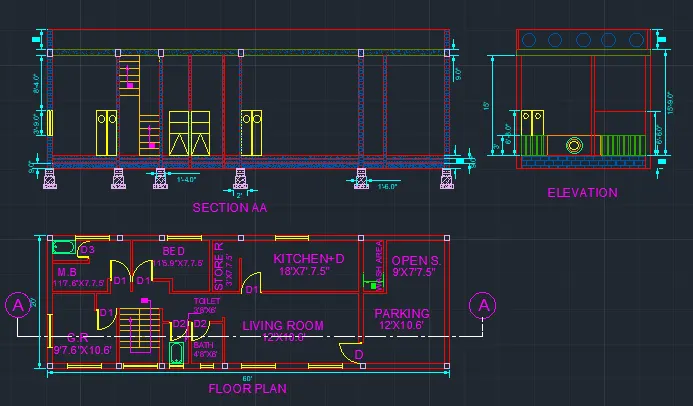

ANS1)            ANS2)              COLUMN AND FOOTING)
