Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

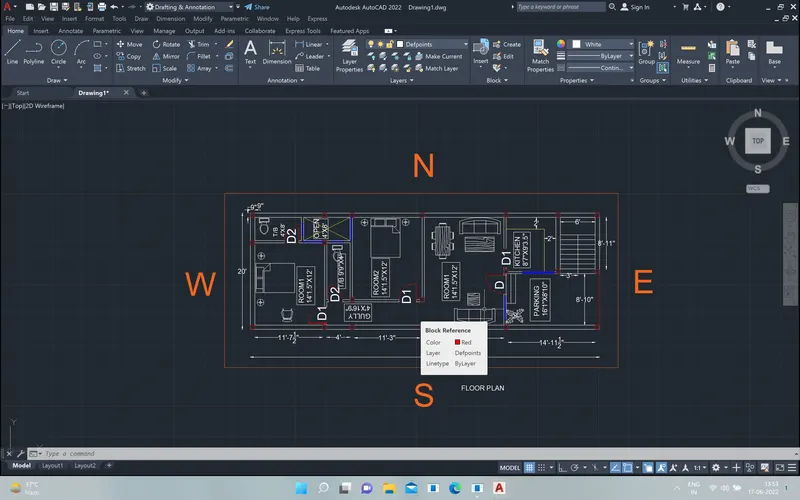

Ans. Aim- draw a residential building floor plan 60'x20'

Orientation- Facing East

Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan)

1. set the unit UN enter

ans select the Architectural Drawing

scale in inches

then creat a rectangle 60x20'

outer wall of the plan 9"

and inner wall thik 4.5"

CREAT 2 large room and two bathrom using the line command and offset command

in this floor plan a kitchen and dinning hall and living hall

and a parking

. stairs width 3' and the rise of stairs are 7.5" and thred 10"

hight of the building 10'

creat doors and window

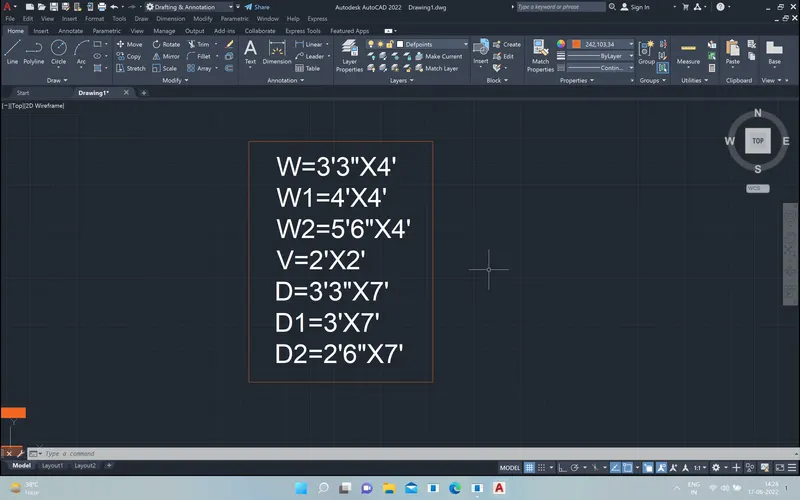

and show the dim.. of all window

Now creat the footing plan of the plan

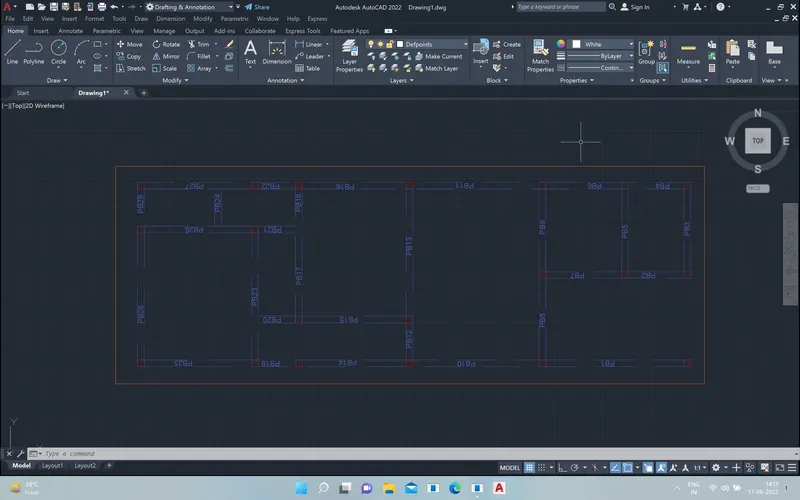

select all column from the floor plan and copy it using command cop enter

and draw a line center of the column and show the all dim....

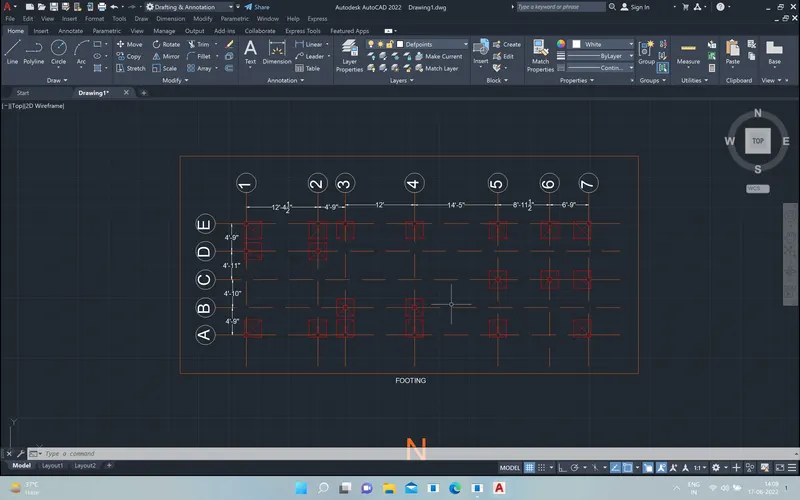

and show the footing plan

and same process fallow in the making of plinth beam and beam select the all column from the floor plan

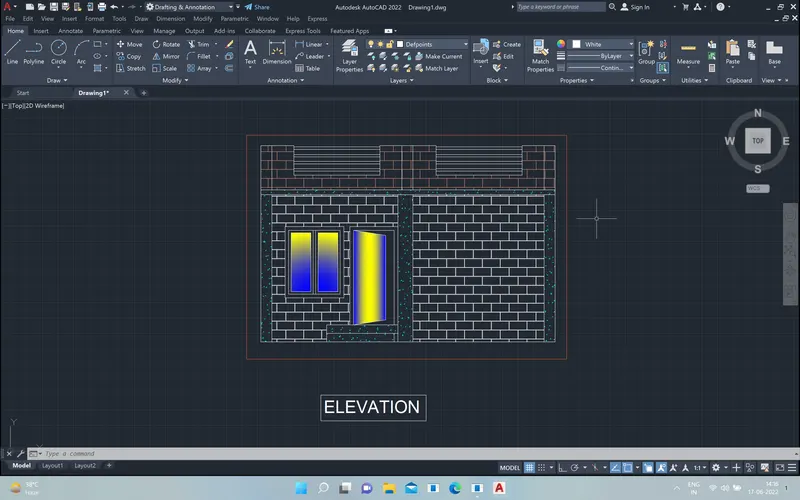

Then creat the front elevation with the help of construction line xl enter and v enter

and XL enter and H enter and creat door window elevation

And creat the footing plan

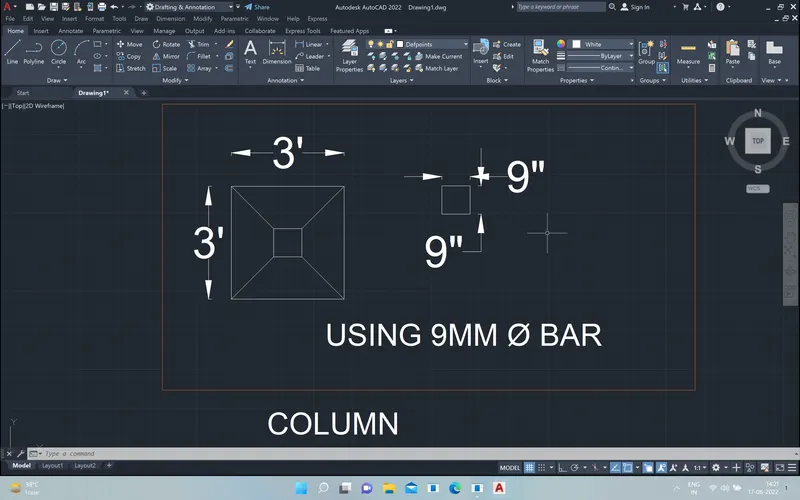

footing size 3'x3'

and the column size 9"x9"

the size of the bars 16mm dia
