(ANSA_PROJECT_1) MESHING OF AN INSTRUMENTAL PANEL (IP)

AIM : Succesfully mesh the provided intrumental Panel (IP) using Ansa

Components

• Single IP component

PROCEDURE

• Geometry cleanup
• Extracton of midsurface
• Meshing of all components
• Checking quality
• Assigning thickness
• Conclusion

GEOMETRY CLEANUP

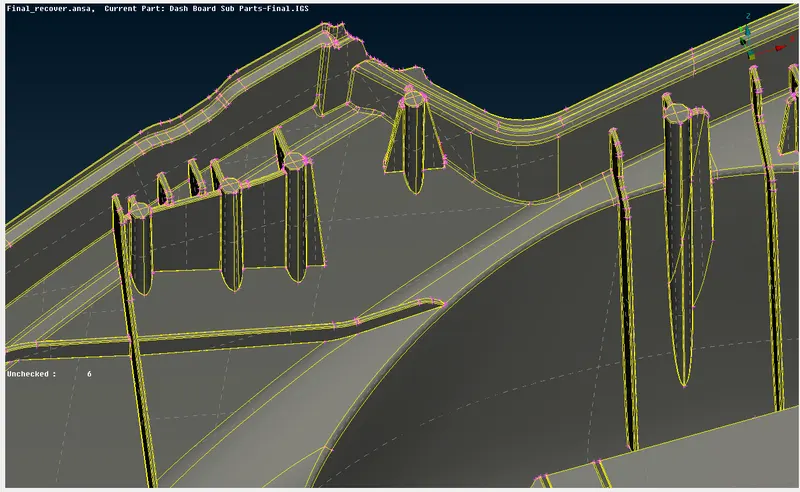

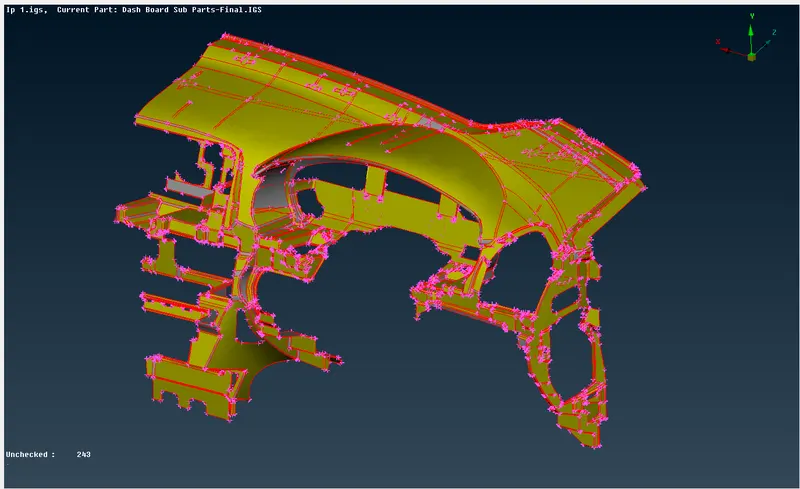

• When the geometry is first opened in Ansa, it can be seen as a single entity from the image below
•

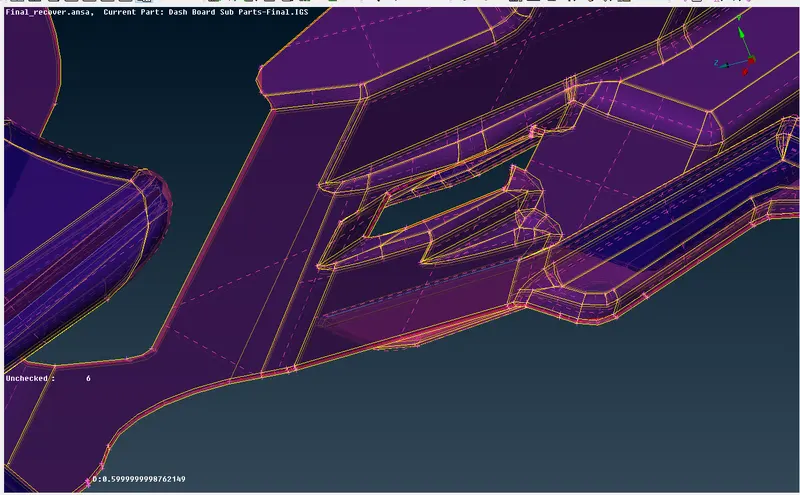

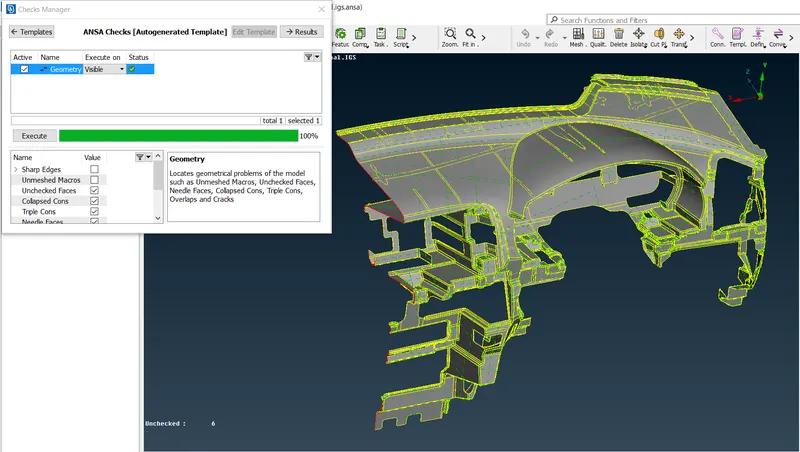

• An automatic geometry check is made on all of these lock screens to check for errors in geometry surfaces by specifying, ( single,triple and double cons , cracks, collapse cons etc). It can be seen below the results.
•

EXTRACTION OF MIDSURFACE

• Midsurface of the components are created in order to make a shell mesh on the components.This is because it is more efficient and time saving than using 3D meshing.
• The midsurface can be generated automatically and manually.This task, i chose to use the manual option. The "offset" function is used to offset the surfaces of all the components by a distance which is equall to half the thickness of the components. After offsetting, the surfaces are all joined together using "topo".

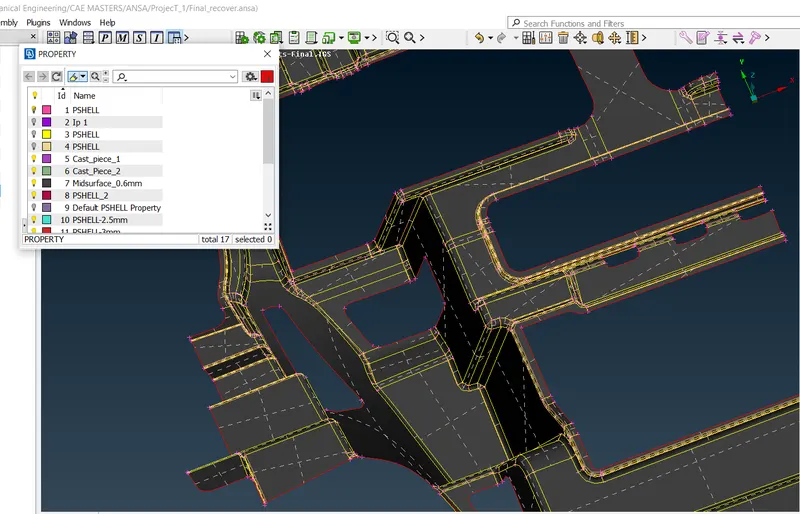

• The midsurface of all components are generated separately and saved with specific PID's.
• The final geometry check is done to make sure there are no errors in the midsurface generated.
•

Midsurface is taken in parts according to thickness and saved with required properties.

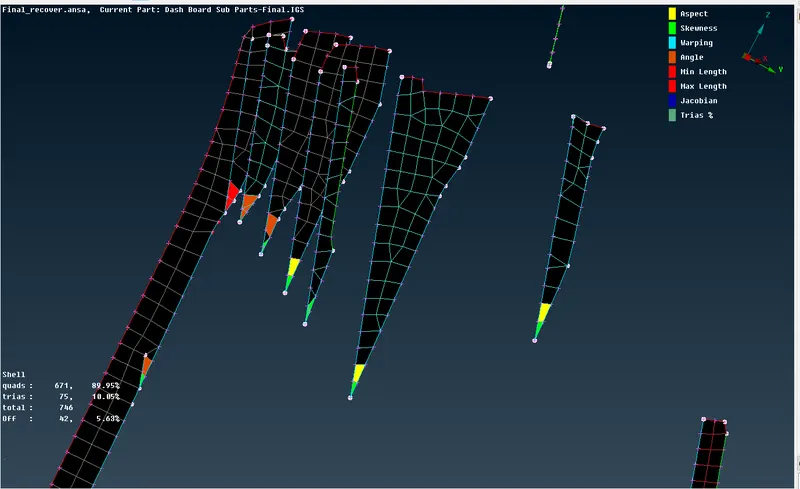

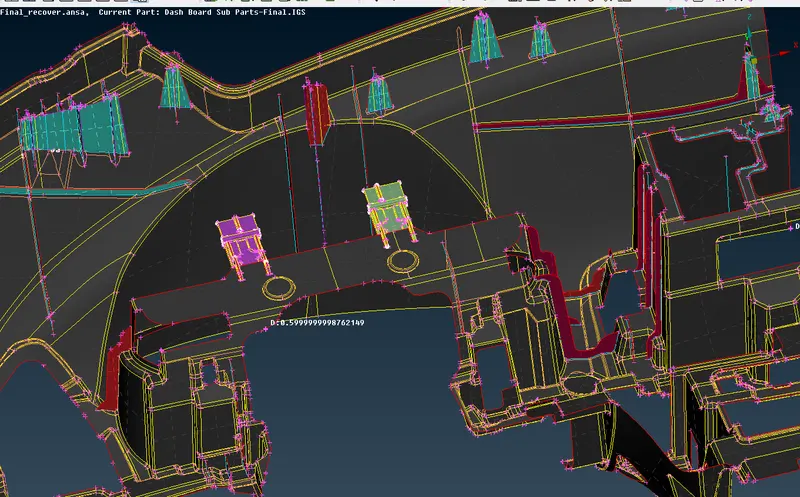

Using the extend feature together with the intersect, the midsurface of the fins and attachments are created

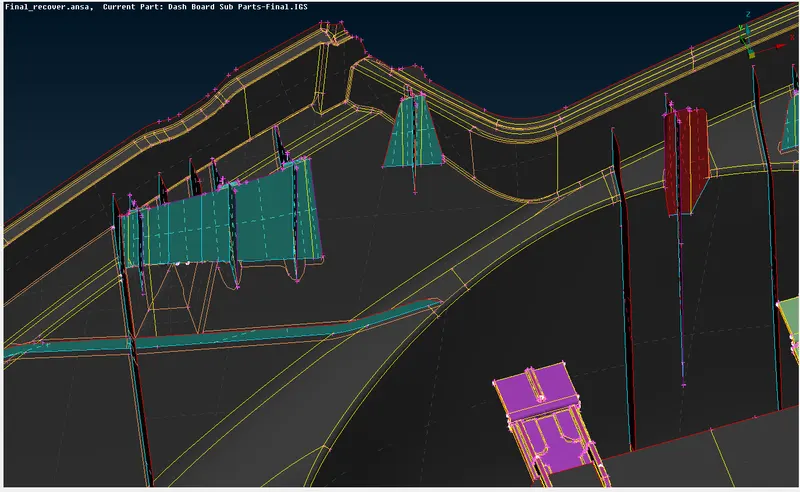

After midsurface

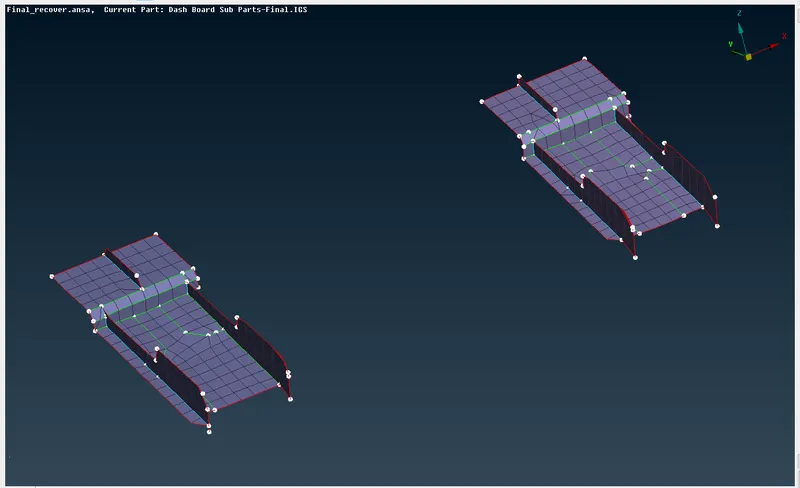

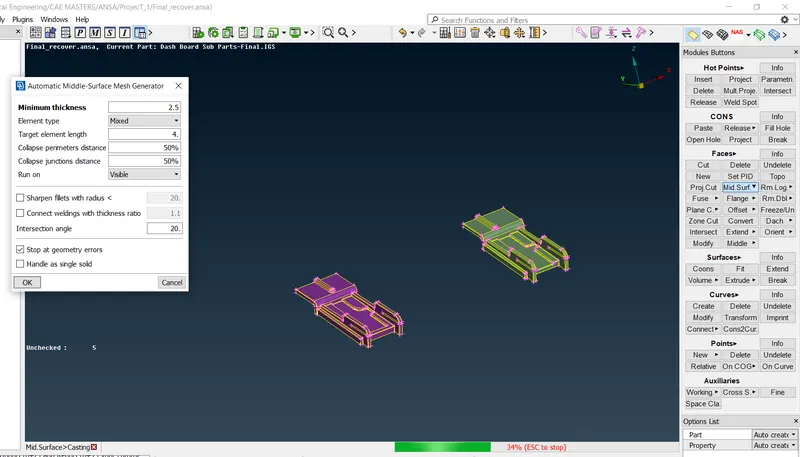

Cast midsuface is made for these two components automatically and meshed .

Final image midsurface

MESHING OF COMPONENTS

• Before meshing is done, all geometries must be cleaned up in order to control the rquired mesh sizes.
• For a mesh of target element size of 4, all cons and lines which form spaces with length below 2mm must be controlled. In a sense that, we must re-edit these cons to increase their sizes to 2mm and above.
• This can be done by using the perimeter length of 4mm across all components and carefuly checking for cons and edges lesser than 0.5mm to be editted.
• Editting is done by using the "cut" function to create cons and remove cons.
• All circles should be captured with even number of elements and they should be rotated and maked to position them parallel.
• After clean up, meshing can be started
• The element mesh size is set to 4mm and mixed element type is chosen
• All components are meshed using this mesh type and considering the following criterias for optimum mesh flow

1. All rotating quads should be eliminated from the mesh
2. Minimum tria elements should be present
3. All opposite tria elements should be combined to form quads
4. No tria elements should be in contact with any feature lines
5. Tria elements should be well spaced from each other and should not be in contact with each other.
6. No tria elements should be present at the edges of the components

These criterias where used to provide optimum mesh flow for the meshing of components.

Checking Quality

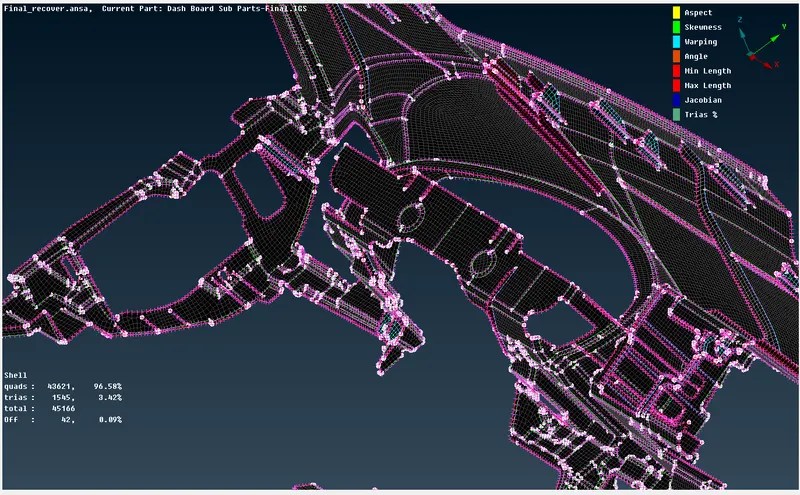

Quality parameters for this mesh can be seen below

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

Errors

Due to the nature of the geometry some surfaces had bad element quality due to their converging nature .

These errors are left as it is because nothing really can be done without changing the required geometry.

The rest of the mesh was made with optimum quality as required

CONCLUSION

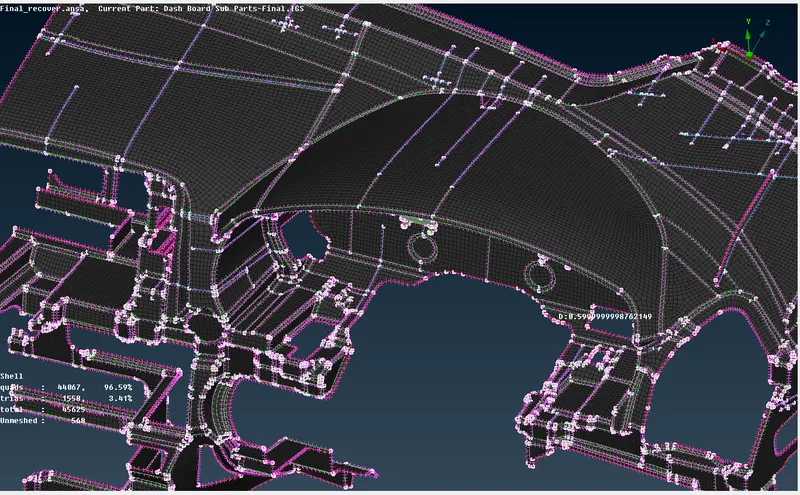

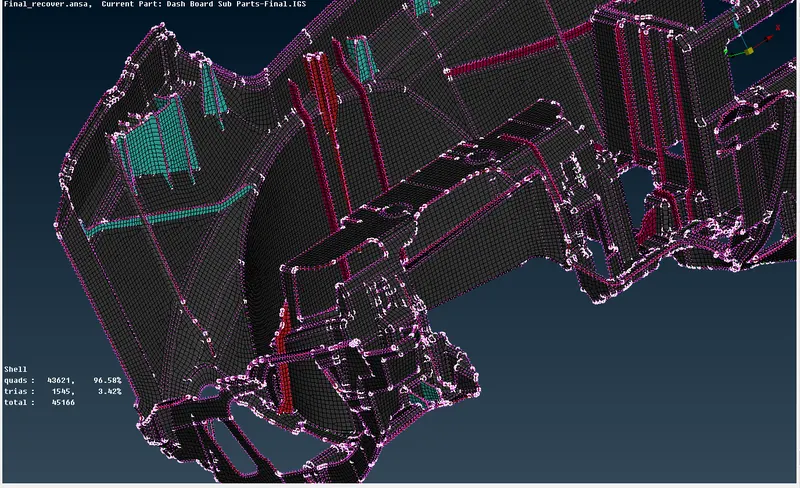

The component were all meshed successfully. Display shell as slide was activated.

NB : THIS CHALLENGE HELP ME GAIN KNOWLEDGE IN USING ANSA TO GENERATE MIDSURFACE AND MESH SUCCESSFULLY WITH PASSING ELEMENT QUALITY.
