Project 1

1) Buck CCM,

Vin= 40V to 50V, fs= 100kHz

Vout = 30V, Pout = 500W,

So, Iout = P/V = 16.6A, Rout = 1.8ohm

D = Vo/Vin

D1 = 30V/40V = 0.75

D2 = 30V/50V = 0.6

V/L = di/dt, consider 10% inductor ripple, i.e 1.67A

(50 - 30) * 0.6 / (1.67 * 100 * 10^3) = 71.8 uH

Lmin = Io * (1-D) / 2fs = 3.75uH

Cout = Iout * (1-D) / fs*0.3 , dv = 0.3V

= 16.6 * 0.4 / 100K*0.3 = 221uF

Buck in CCM

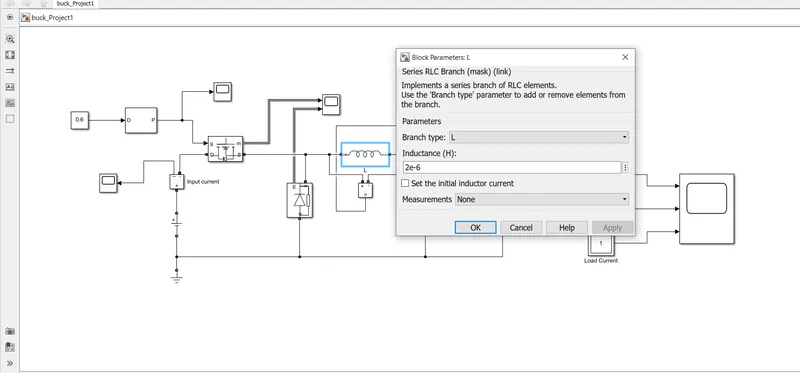

Inductor choosen for CCM operation

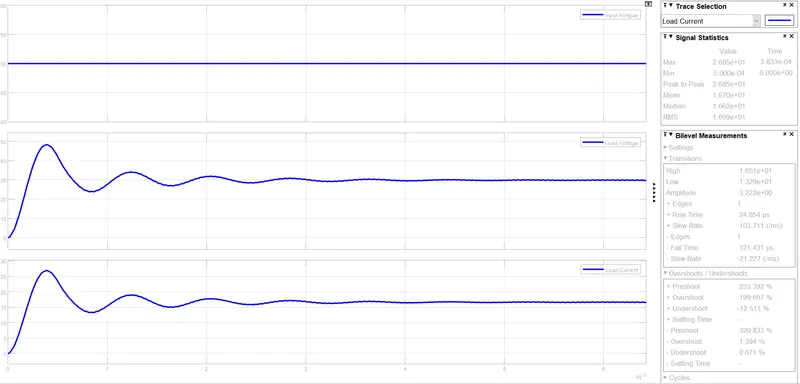

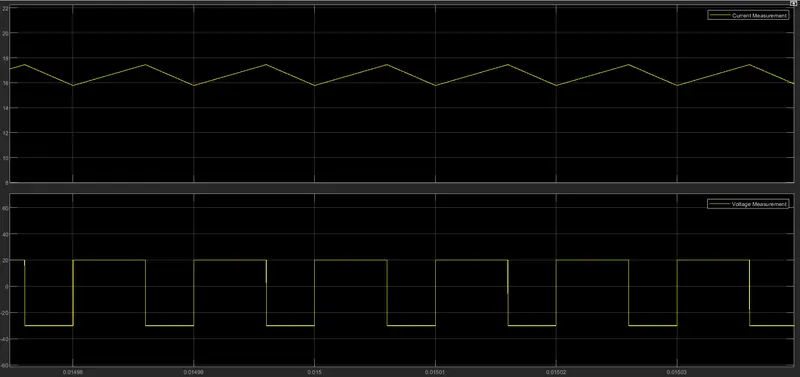

Inductor Voltage current

2) To Operate the Same Topology in DCM mode,

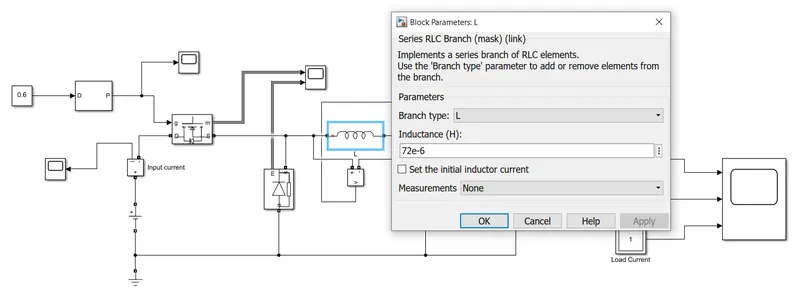

I'm replacing the inductor value to 20uH (lesser the Lmin 3.3uH, as calculated above)

3) Boost

Vin = 20V - 30V, Vout = 40V , Pout = 600W, D = 0.5

Iout = 600/40 = 15A, R = 600/225 = 2.6ohm

Lmin = V * (1-D) / f * di

= (40 - 20) * 0.5 / 100K * 30A

= 3.34uH

I = C dv/dt

C = 15*0.5/ 0.4*100K = 187.5uF

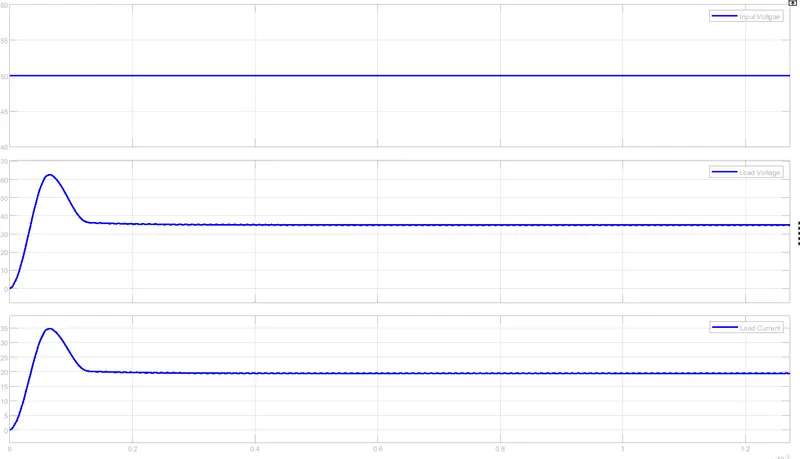

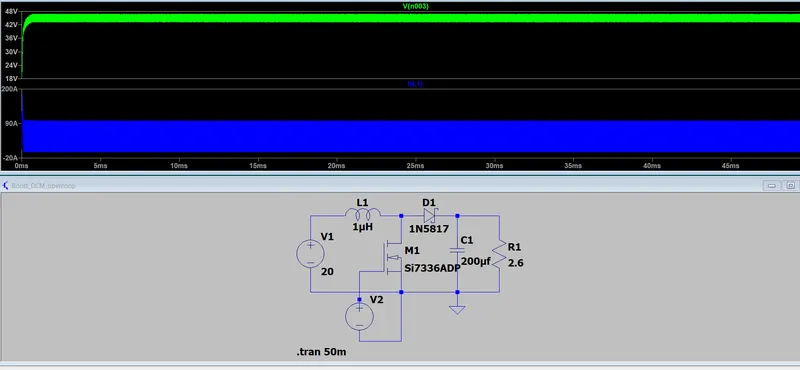

Inductor Current

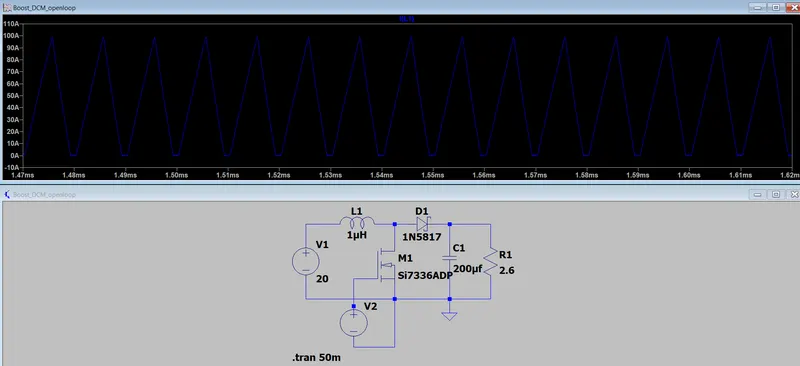

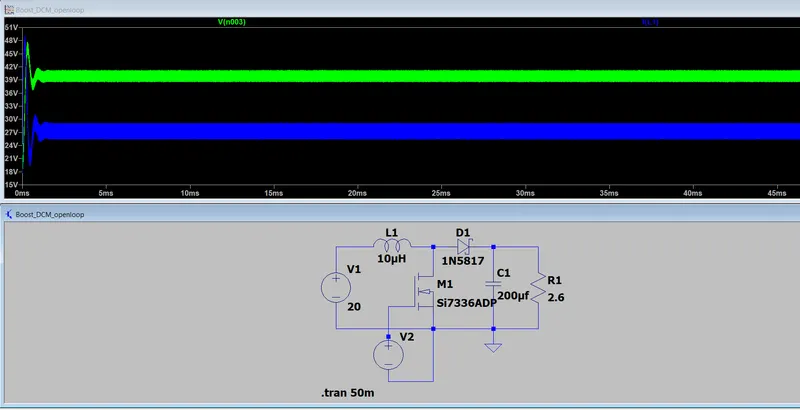

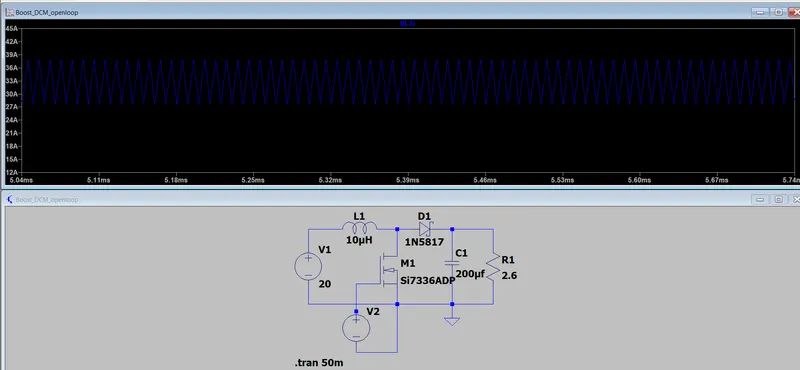

In DCM

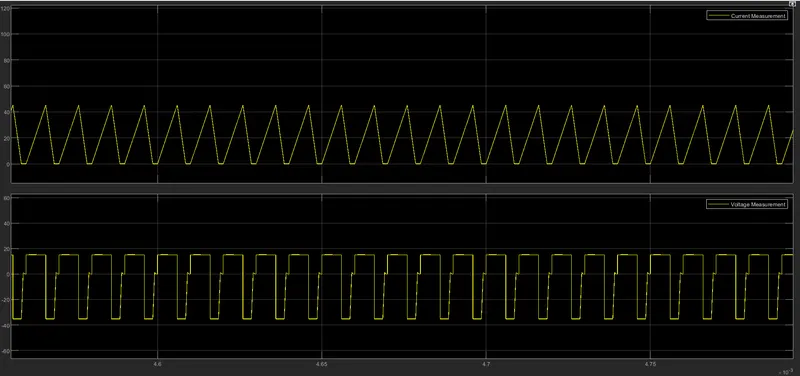

Inductor Current
