Project 1
Aim:-

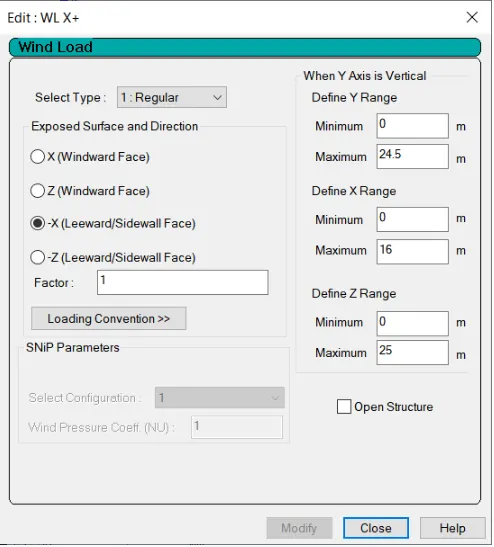

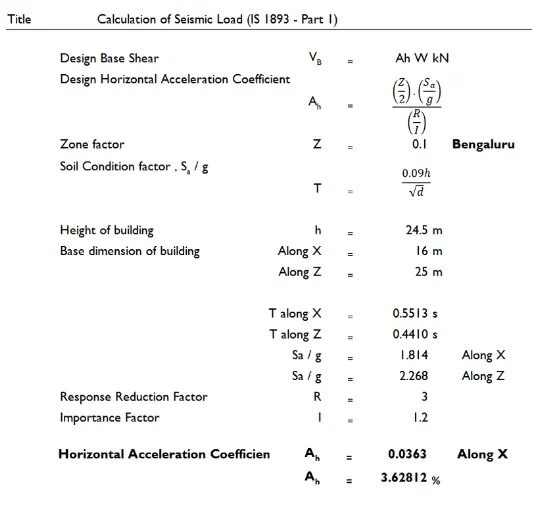

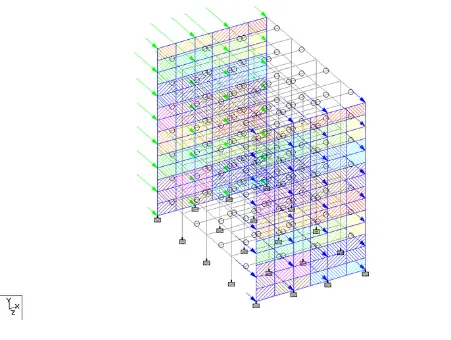

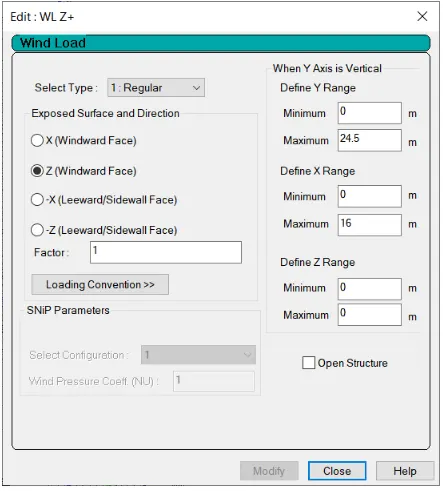

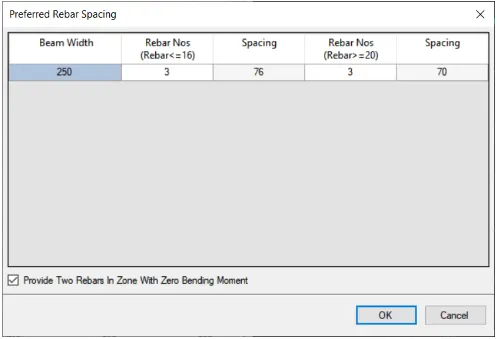

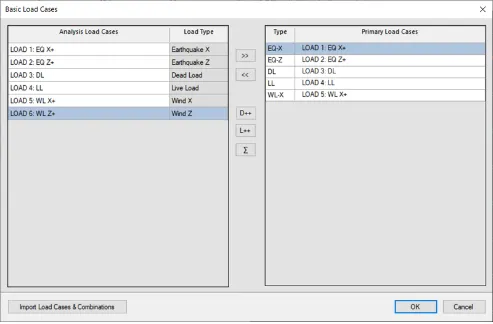

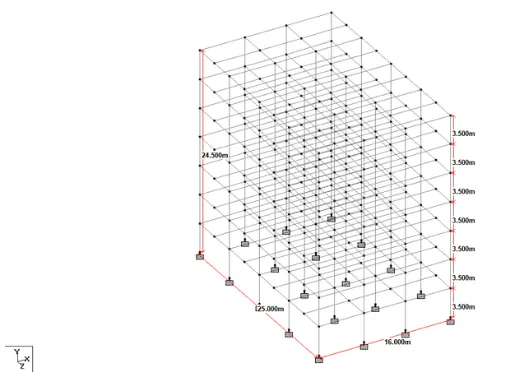

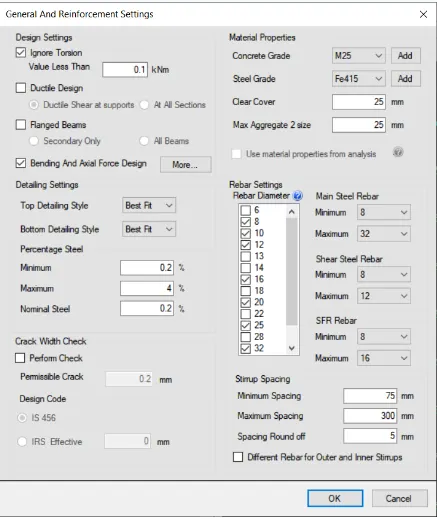

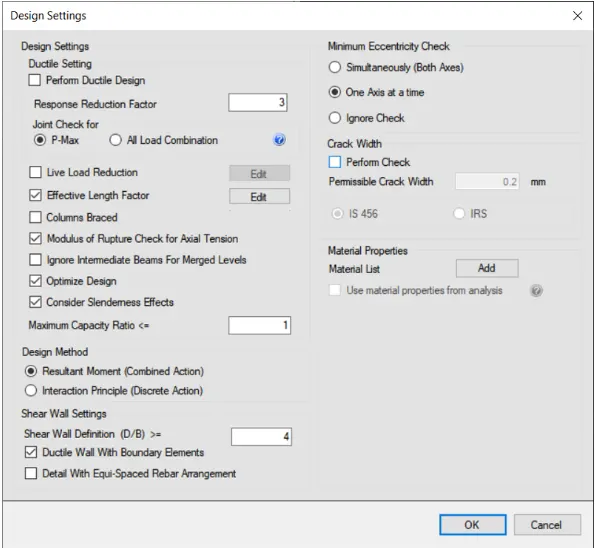

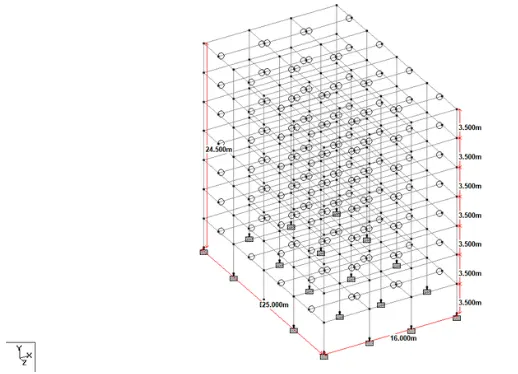

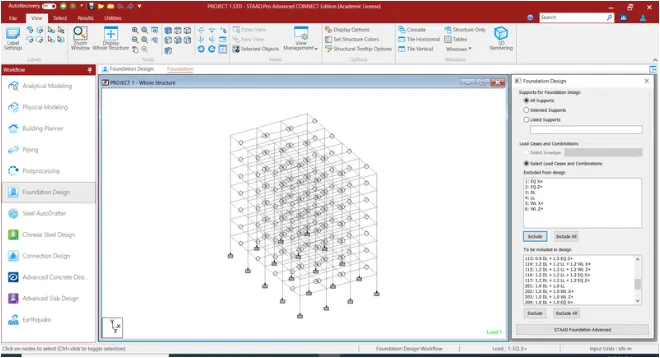

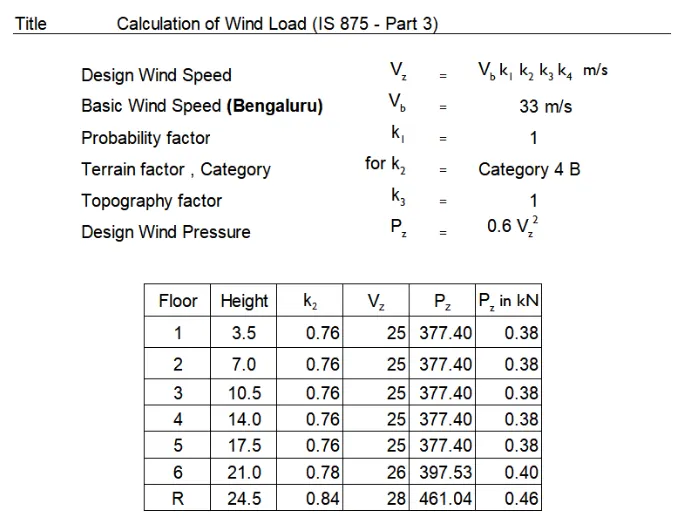

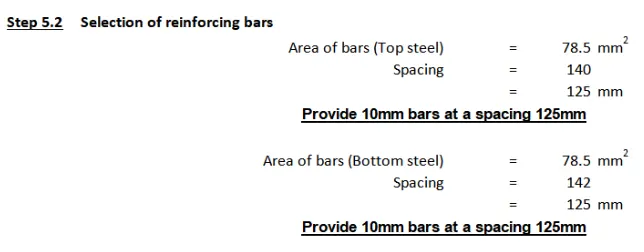

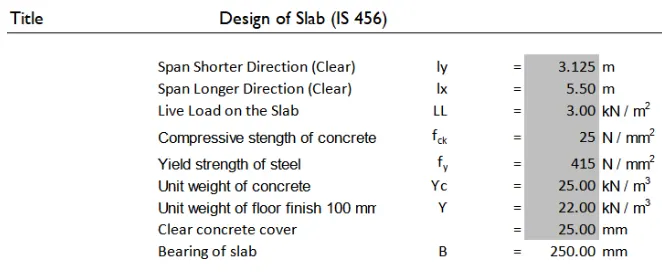

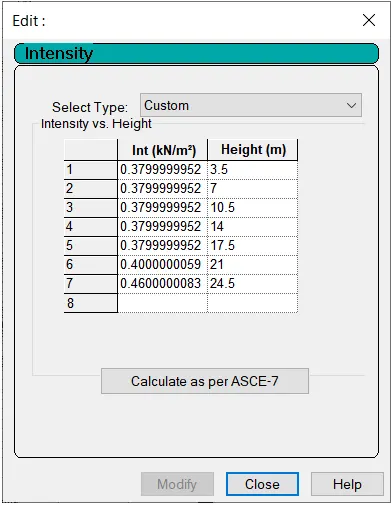

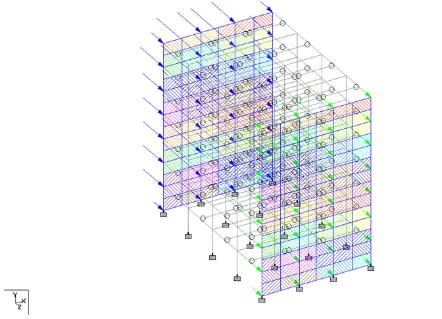

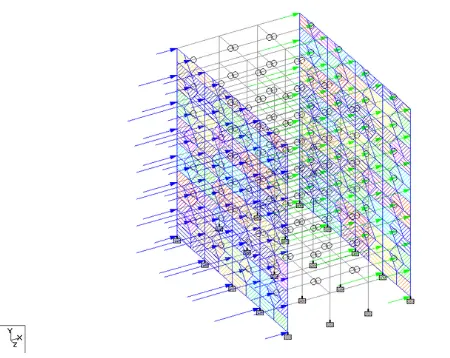

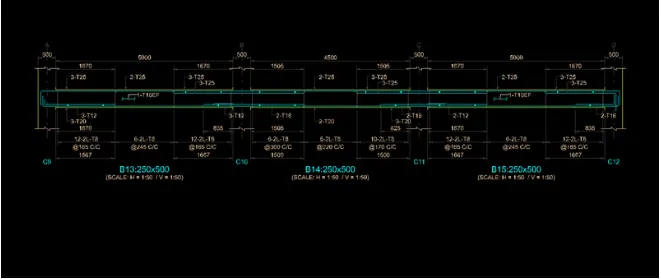

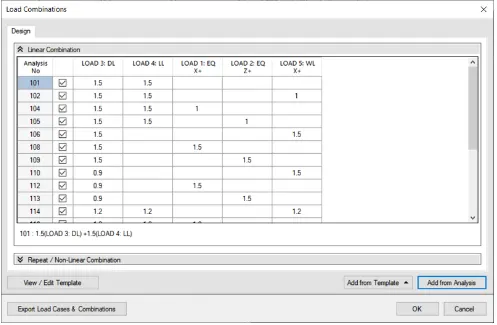

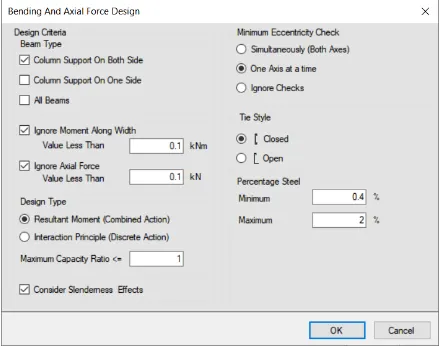

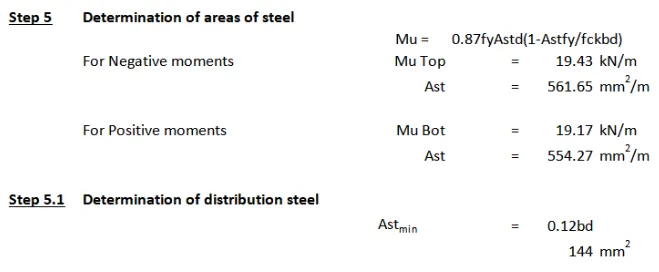

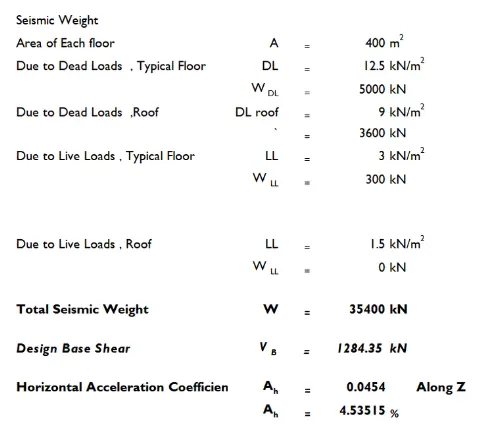

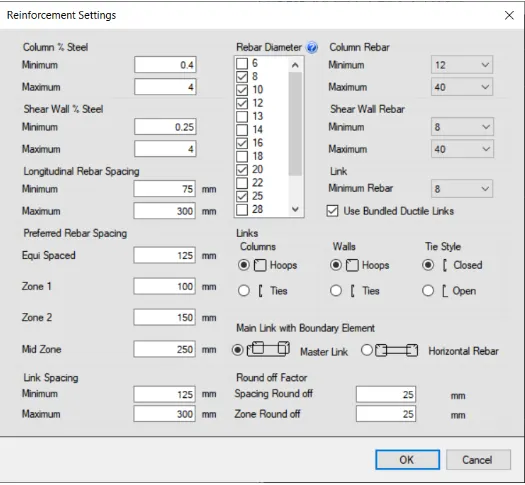

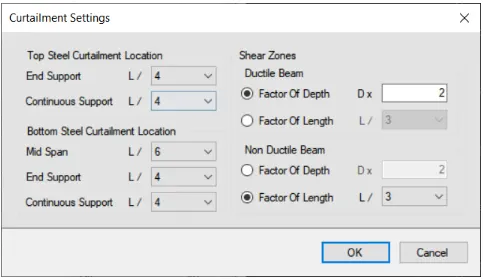

To design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition
Procedure:-
Unit weight of the materials
Reinforced Cement Concrete = 2525 kN/m3kN/m3
Plain Cement Concrete = 2424 kN/m3kN/m3
Cement Concrete Screed = 2020 kN/m3kN/m3
Cement Masonry Units = 2222 kN/m3kN/m3
Structural Steel = 78.578.5 kN/m3kN/m3
Soil = 1818 kN/m3kN/m3

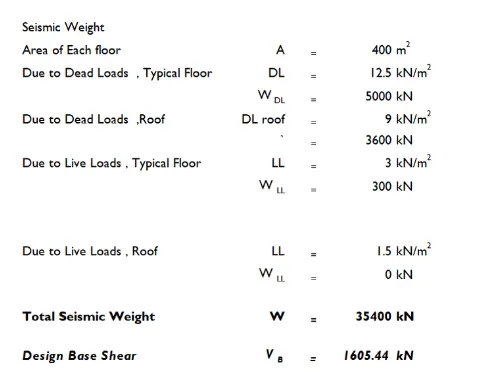

Dead Load

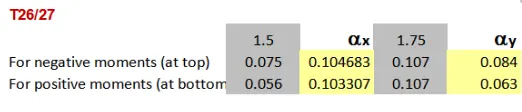

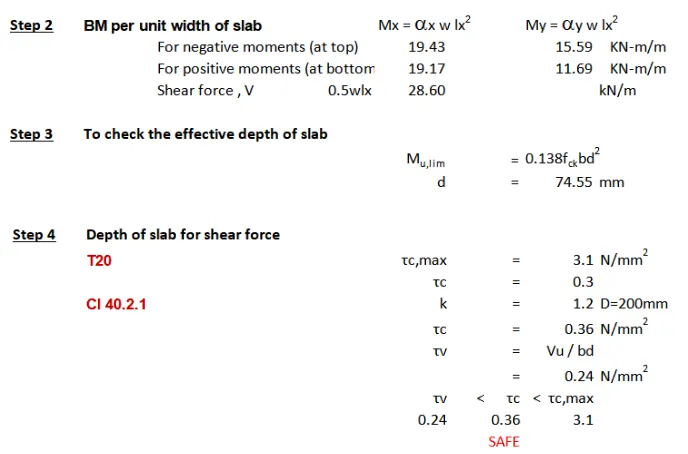

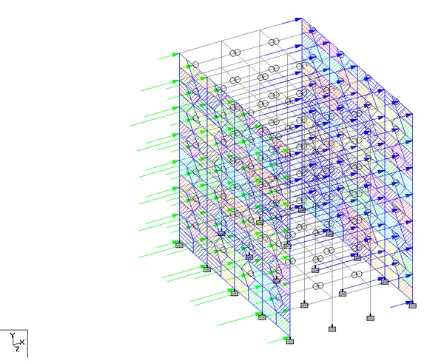

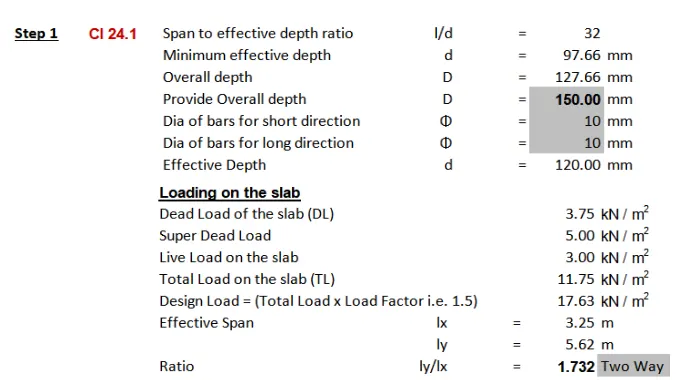

Floor slab
Slab weight = 3.753.75 kN/m2kN/m2 (0.15m×25kN/m3)(0.15m×25kN/m3)
Partitions = 1.51.5 kN/m2kN/m2
Floor Finish = 2.52.5 kN/m2kN/m2
Miscellaneous = 11 kN/m2kN/m2
Total Floor Load = 8.75 kN/m2
Roof slab
Slab weight = 3.753.75 kN/m2kN/m2 (0.15m×25kN/m3)(0.15m×25kN/m3)
Insulaions and Water Proofing = 0.50.5 kN/m2kN/m2
MEP Services = 0.50.5 kN/m2kN/m2
Miscellaneous = 0.50.5 kN/m2kN/m2
Total Roof Load = 5.25 kN/m2kN/m2
Live Load
Floor slab
Common Corridor = 33 kN/m2kN/m2
Total Floor Load = 3 kN/m2kN/m2
Roof slab
Accessible Roof = 1.51.5 kN/m2kN/m2
Total Roof Load = 1.5 kN/m2

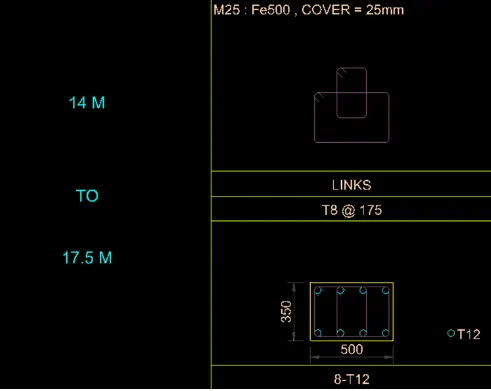

Result :
Thus, multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition is been designed.
