Photo Realistic Rendering

TITLE-MODELLING AND RENDERING AMERICAN CHOPPER USING SOLIDWORKS

OBJECTIVE:-

Create 3d model American chopper using solidworks 2021

Create sub-assemblies of different models using solidworks 2021

Assembly of model parts create final model.

Rendering final model to get photorealistic model using Solidworks Photoview 360.

INTRODUCTION

Designing of any object start with the sketching of 2D and convert it into 3D Modelling.There are so many CAD softwares available for 2D sketching and 3D modelling.2D Environment means representations of views in 2D or X and Y plane only.3D environment means we can see physical body in 3D space or X,Y and Z planes. In part modelling you can create part by conceptual sketch through solid feature-based modelling. This project consists of concept of sketching, part modelling and final Assembly of American Chopper using Solidworks 2021.

What is SOLIDWORKS?

Solidworks is a 3D modelling software (CAD/CAE) which is used to model a product and perform analysis to check its behavior in real world. It is Developed by Dassault System.

DESIGN METHODOLOGY

DESCRIPTION

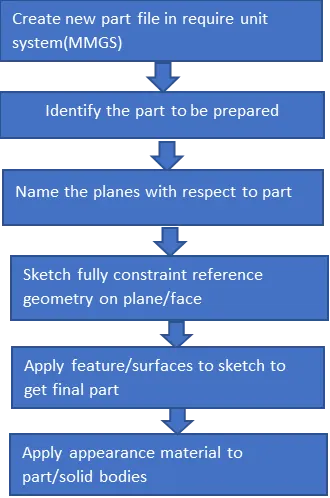

Part creation process start from drawing fully define 2D sketches. These Sketches are reference to multiply feature/surfaces by which 3D part created.

SKETCH

Sketch consists of various options for creating different entities. Some of these are as follows.

• Line
• Rectangle
• Polygone
• Spline
• Offset
• Fillet
• Convert entities
• Trim Entities
• Pattern

There are different ways available to use above options.

• Feature and Surfaces

These tabs consist of multiple options which can help to create different shape solid body and surfaces. All require options will discuss in each part of modelling of American Chopper.

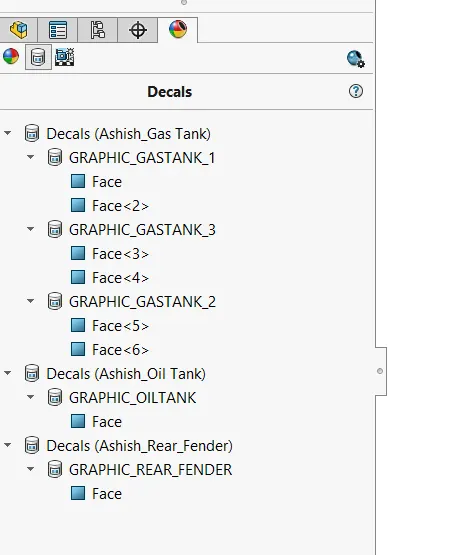

• Appearance

In this feature, we can apply material or visual appearance to part or model. These appearances help us while rendering to achieve real world image.

American Chopper

American Chopper consists of 13 parts or sub-assembly as per below.

1. Transmission Belt
2. Kick Stand
3. Front Fender
4. Rear Fender
5. Front Wheel
6. Rear Wheel
7. Pedal
8. Chain
9. Gas Tank
10. Oil Tank
11. Front Fork
12. Chassis
13. Engine

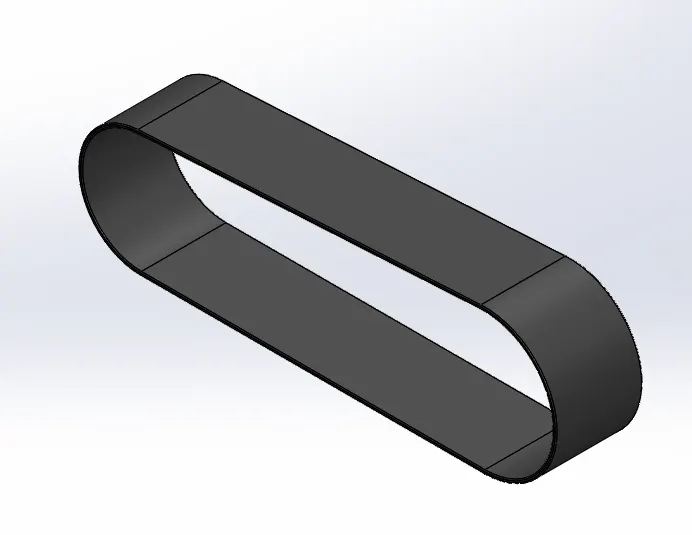

1) TRANSMISSION BELT

Transmission belt in the copper is used to transmit power from the gearbox.

Feature used to create Transmission belt

• Extrude: This feature is used to convert 2D sketch into 3D model.
• Fillet: This feature is used to converts external and internal edges into rounded shape.
• Offset Entities: offset option is used to create some entities on some distance or create loop of entities

Procedure

• First draw fully define sketch of require dimension on front plane using line and arc option. Then offset the sketch on some distance to create thickness of belt.
• Then extrude command used to convert 2D sketch into 3D object.
• Fillet is applied as per requirement to sharp corners or edges.
• Transmission belt is ready and ready to save.

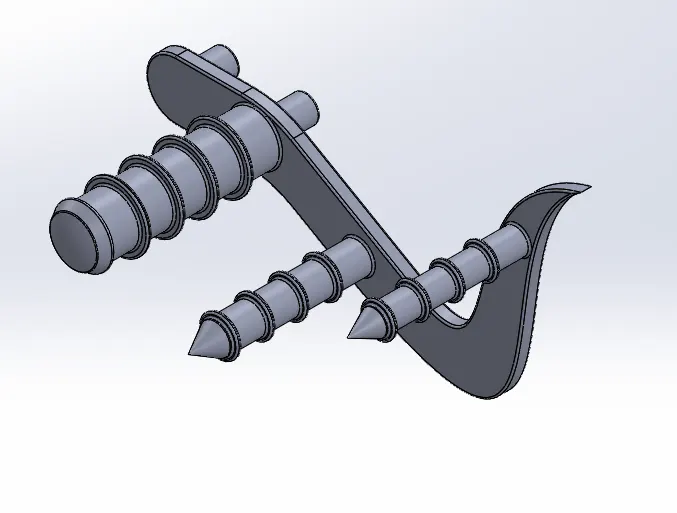

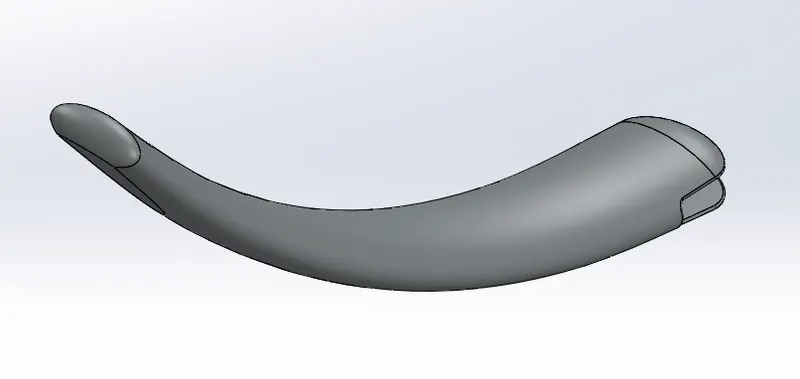

2) Kickstand

It is used to support the chopper when not in use and pivoted to chassis in such a way that it can be move down the frame

Feature Used To Create Kickstand

• Extrude Boss: This feature is used to convert 2D sketch into 3D object.
• Fillet: This feature is used to converts external and internal edges into rounded shape.
• Loft: Determines the profile used to create a loft. Select sketch profile, faces, or edges to connect. Lofts are created based on the order of profile selection.
• Dome: This feature is used to apply dome shape to faces. You can apply domes to faces whose centroid lies outside the face. This allows you to apply domes to irregular shape contour.
• Spilt: This feature is used to split the solid bodies, surfaces and allow us to remove unnecessary portion.
• Extrude Cut: It helps to remove the material from solid bodies.

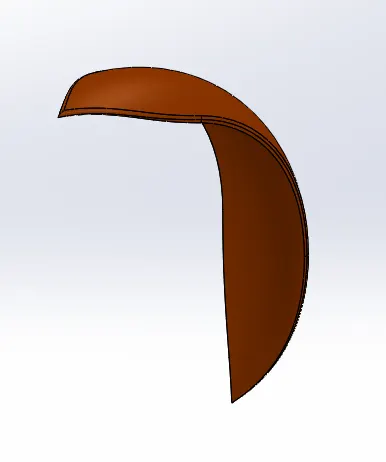

3) FRONT FENDER

It is mounted on the front wheel and below the front fork. It prevents mud particle being thrown into the air by rotating Tyres.

Feature Used To Create Front Fender

• Revolve: Any Profile or multiple profile can revolve about an axis, center line or edges and obtain solid bodies from 0 degree to 360 degree.
• Dynamic mirror: With this feature any sketch or entities can be mirror about pre-selected entities or sketch.
• Split: This feature is used to split the solid bodies, surfaces and allow us to remove unnecessary portion.
• Offset Entities: offset option is used to create some entities on some distance or create loop of entities

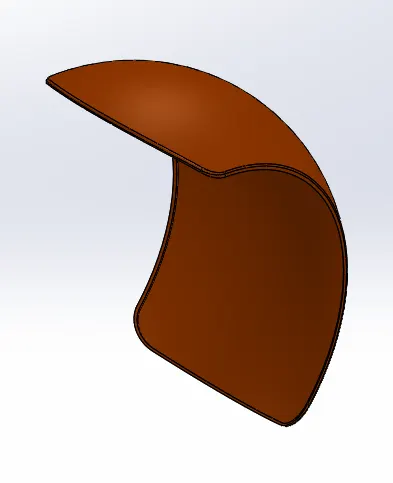

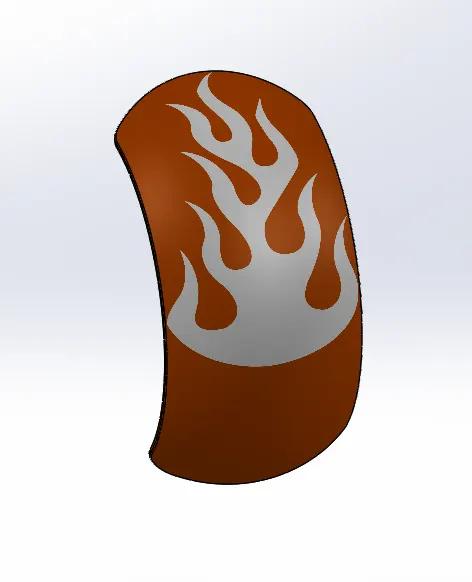

4) REAR FENDER

The use of rear fender same as front fender. It is mounted on chassis above the rear wheel

Feature Used To Create Rear Fender

• Shell: This feature hollows out part, leaves open the faces selected and create thin-walled feature on remaining faces. Also, it creates closed hollow model.
• Revolve: Describe above.
• Split: Describe above.
• Fillet: Describe above.

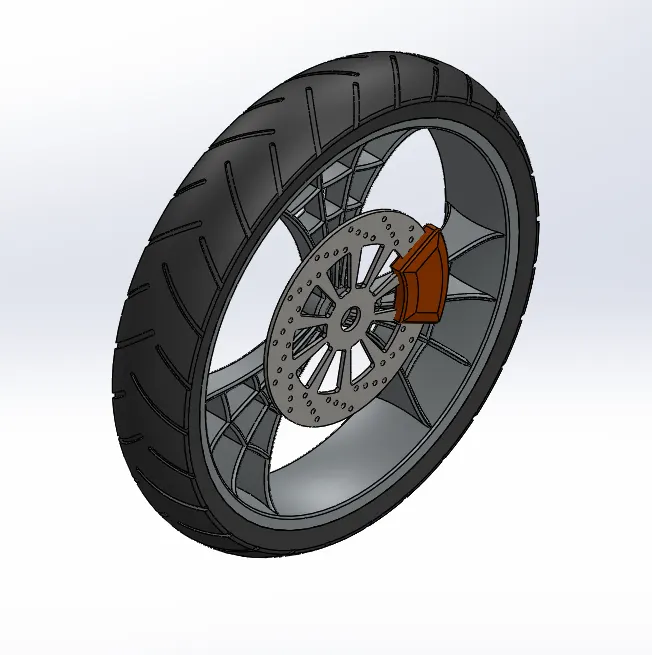

5) FRONT WHEEL

Feature Used To Create Front Wheel

• Combine: It allows combining two or more solid bodies.
• Circular pattern: It is used to pattern the feature circular at require instances.
• Chamfer: It create slopping surface at solid bodies corner or edges.
• Extrude Boss: Describe above.
• Extrude Cut: Describe above.
• Revolve: Describe above.

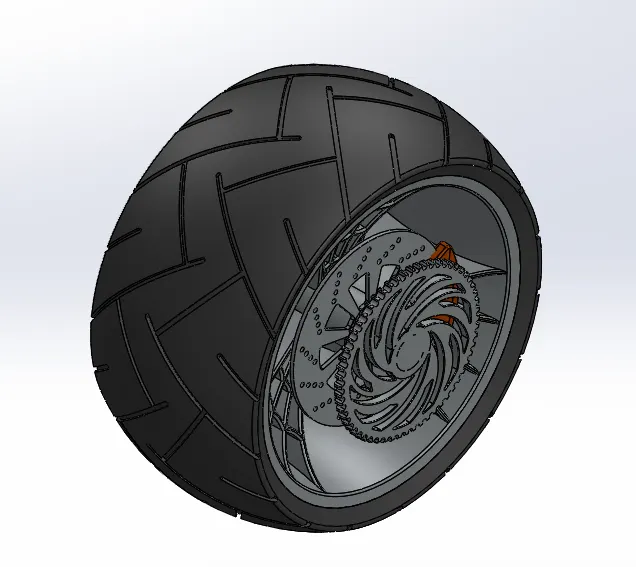

6) REAR WHEEL

6) REAR WHEEL

Feature Used To Create Front Wheel

• Combine: It allows combining two or more solid bodies.
• Circular pattern: It is used to pattern the feature circular at require instances.
• Chamfer: It create slopping surface at solid bodies corner or edges.
• Extrude Boss: Describe above.
• Extrude Cut: Describe above.
• Revolve: Describe above.

7) PEDAL

It is attached to chassis to rest rider’s foot while driving.

Feature Used to Create Pedal.

• Linear Pattern: This pattern is same like circular pattern. But it works like its name linearly along a line, centerline or edge at require instances.
• Revolve: Describe above.
• Extrude Boss: Describe above.
• Fillet: Describe above.
• Dome: Describe above.
• Chamfer: Describe above.

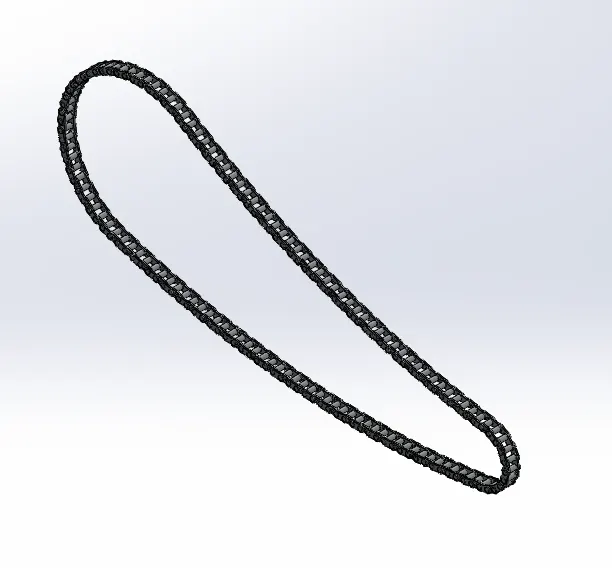

8) CHAIN

It is part of transmission system. It helps to transmit power from engine to rear wheel with the help of sprocket mounted on rear wheel and engine.

Feature Used to Create Chain.

• Curve Pattern: It allows to pattern solid bodies along a curve path at require instances.
• Block: Sometimes we need single sketch multiple times. We can convert such a sketch into block and add it whenever require.
• Mirror: Describe above.
• Extrude: Describe above.
• Fillet: Describe above.

Procedure To Create Block

1. Create sketch

1. Clicks makes blocks. (Block Toolbar) or Tool>Block>Make.

1. Select sketch to convert into block and save it.

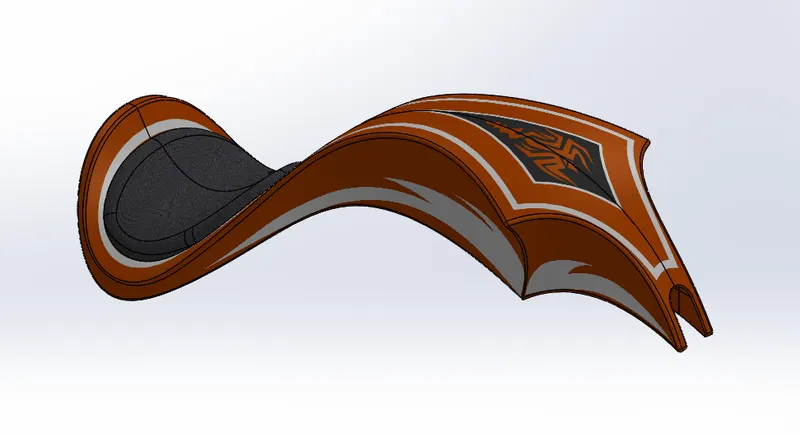

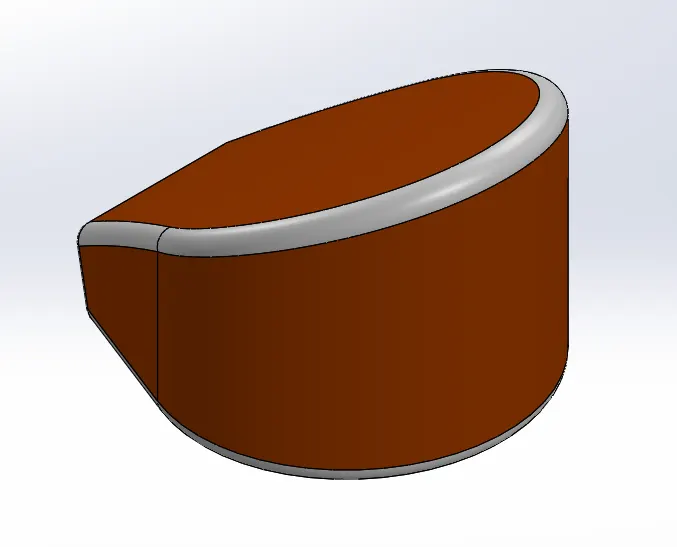

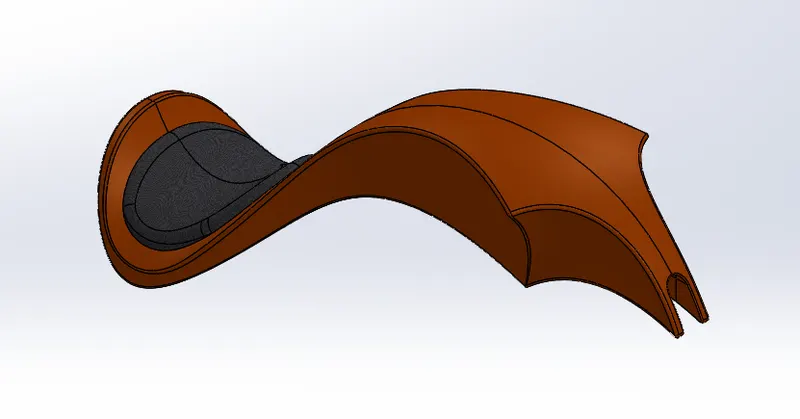

9) Gas Tank

It is used to store gas require to start engine.

Feature Used To Create Gas Tank

• Sweep Surface: It generate surface from section curve positioned along a path.
• Loft surface: It create surfaces between existing edges by creating smooth tangency between selected curve.
• Extrude Surface: It convert projected surface into 3D surface.
• Boundary surface: This feature creates surface between boundaries or edges but specifying both directions.
• Surface Knit: This feature used to combine two or more surfaces to make one solid surface.
• Surface Trim: It is used to remove unnecessary surface.
• Sweep Cut: It is used cut solid bodies along a path.
• Fillet: Describe above.
• Shell: Describe above.
• Mirror: Describe above.

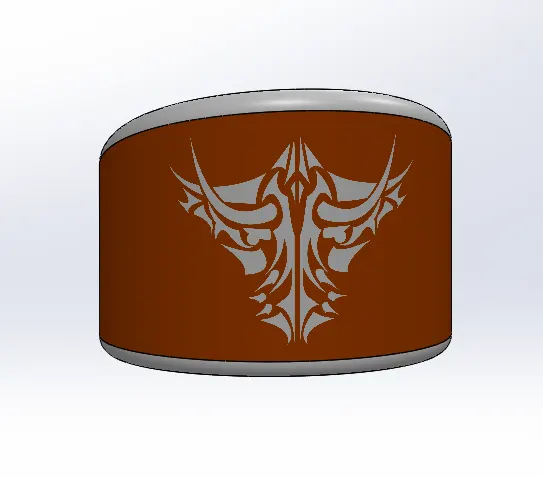

10) OIL TANK

It is store oil require for engine.

Feature Used to Create Oil Tank

• Extrude: Describe above.
• Combine: Describe above.
• Fillet: Describe above.
• Shell: Describe above.

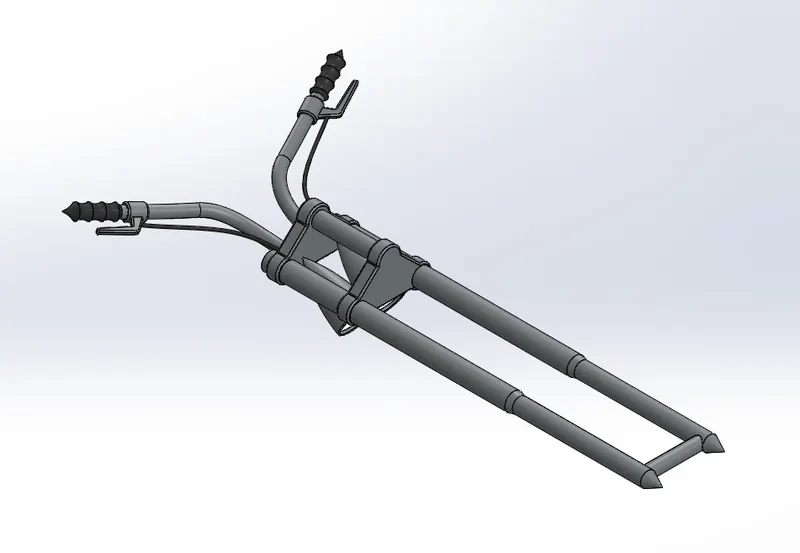

11) FRONT FORK

It is a handling system of bike. It is connected between chassis and front wheel.

Feature Used to Create Front Fork.

• Project Curve: It is help to get 3D curve which is projected on the basis of two 2D sketches.
• Sweep: This Feature Creates solid body from 2D sketch profile along a 3D curve.
• Move/Copy: It helps to move or copy object.
• Mirror: It help it to mirror half portion of fork to complete the fork.
• Extrude: Describe above.
• Combine: Describe above.
• Revolve: Describe above.
• Fillet: Describe above.
• Plane: Describe above.
• Dome: Describe above.
• Linear Pattern: Describe above.

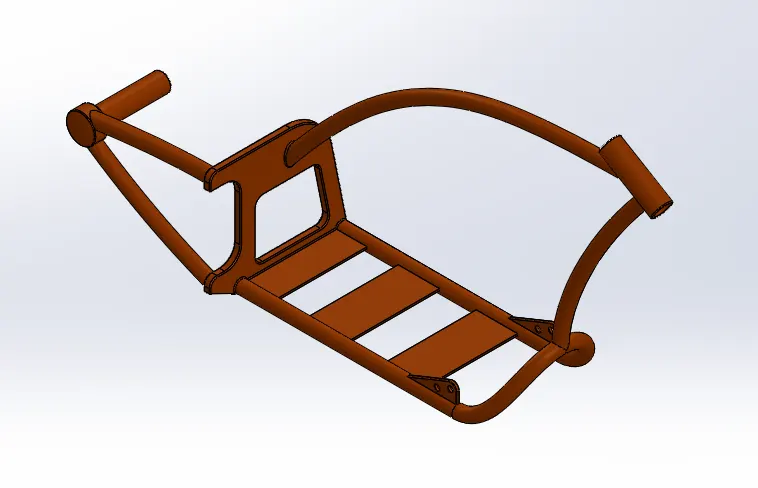

12) CHASSIS

It is a load bearing framework. It forms a skeleton of chopper which supports to all part of bike line engine, front fork, wheel etc.

Feature Used to Create Chassis.

• Project Curve: Describe above.
• Sweep: Describe above.
• Mirror: Describe above.
• Extrude: Describe above.
• Combine: Describe above.
• Revolve: Describe above.
• Fillet: Describe above.
• Plane: Describe above.
• Dome: Describe above.
• Split: Describe above.

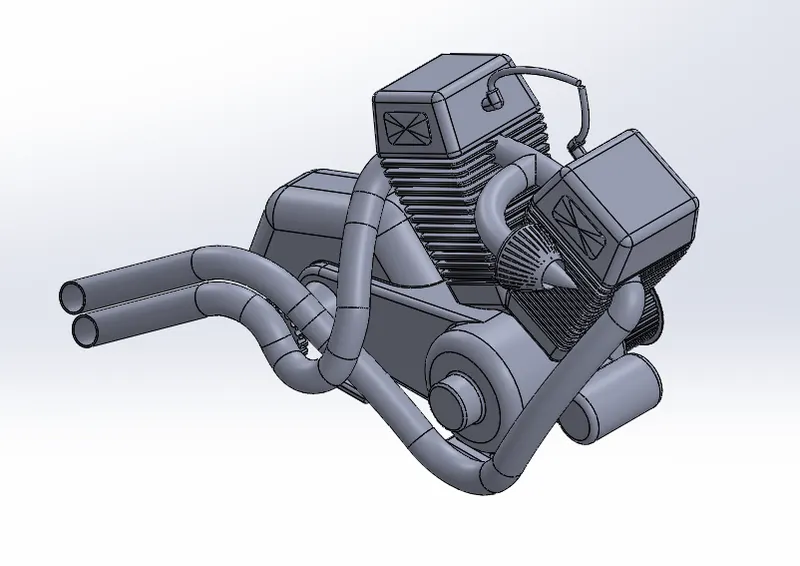

13) ENGINE

It is a heart of bike which is used to run the chopper. It converts chemical energy into mechanical energy.

Feature Used to Create Engine.

• Composite curve: It helps to create to 3D Curve.
• Extrude Cut: Describe above.
• Plane: Describe above.
• Offset: Describe above.
• Circular Pattern: Describe above.
• Linear Patten: Describe above.
• Sweep: Describe above.
• Mirror: Describe above.
• Project Curve: Describe above.
• Extrude: Describe above.
• Combine: Describe above.
• Revolve: Describe above.
• Fillet: Describe above.
• Plane: Describe above.
• Dome: Describe above.
• Split: Describe above.

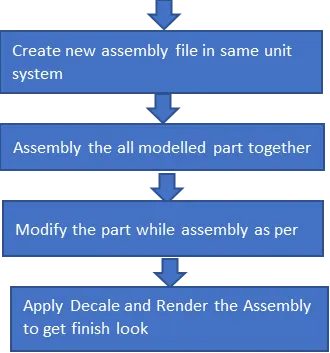

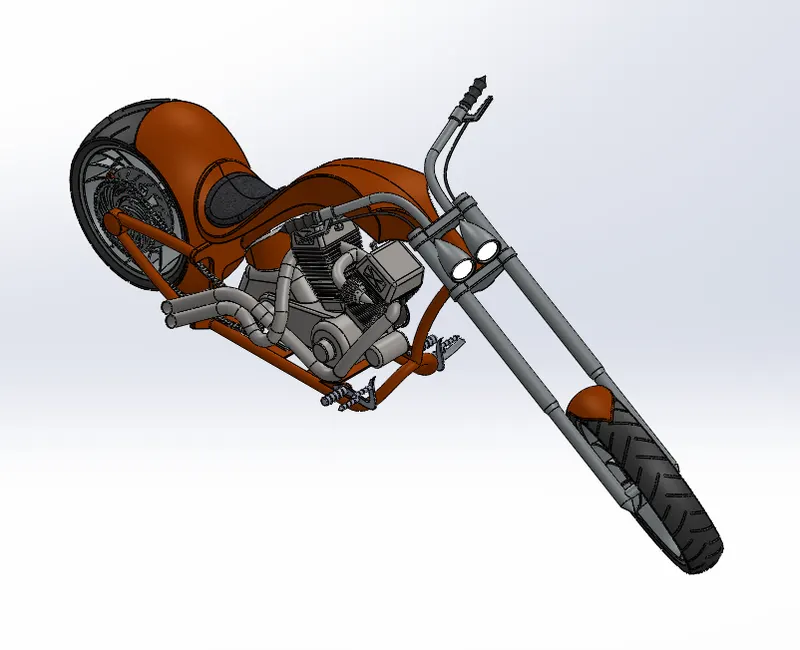

Assembly Of American Chopper

To start assembly, we have to load new assembly file.

While assembly we need to insert each part step by step followed by mating relation to each other

Feature Used For Assembly

• Insert Part
• Mates
• Mirror

Whereas,

Mates: It is used to provide relation between part as per their working principle. We have to define the mates as per the present condition and whatever look we require.

Following Are The Relations Used In Mates

1. Coincident
2. Parallel
3. Concentric
4. Angel Tangent
5. Width mate

Photo Realistic Rendering

Rendering is the process of creating realistic image model in real world environment.

Rendering can be done in two ways in solidworks

• Photoview 360
• Solidworks Visualize

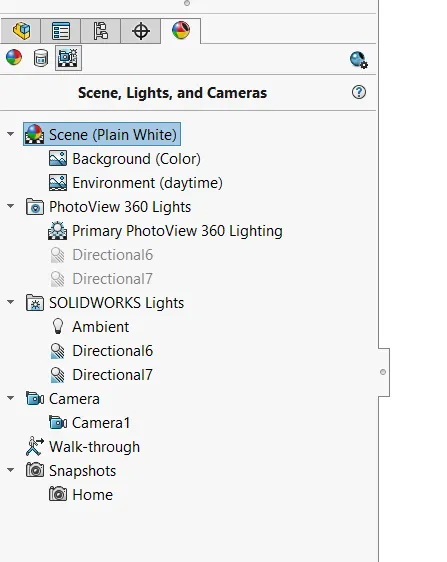

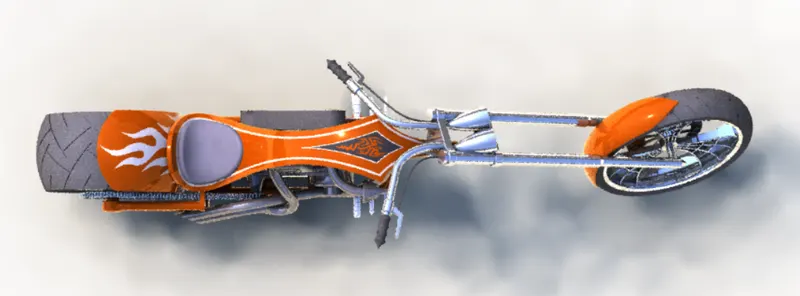

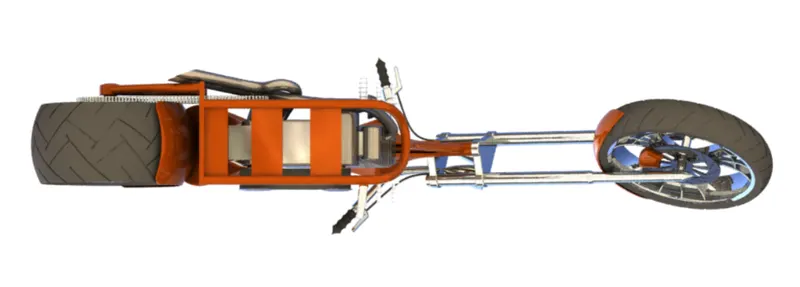

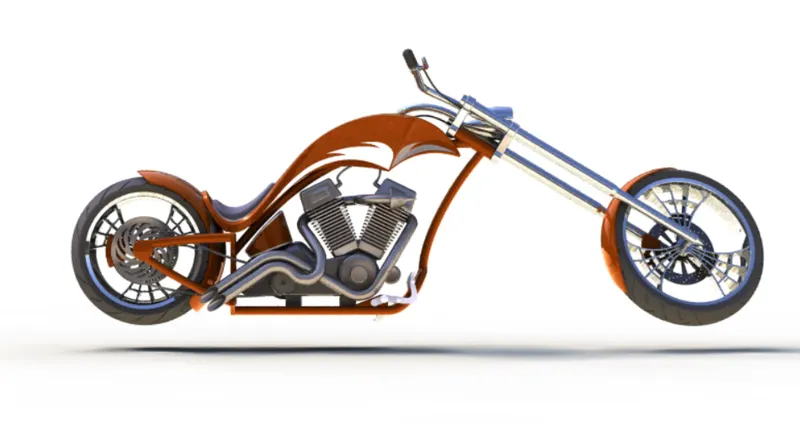

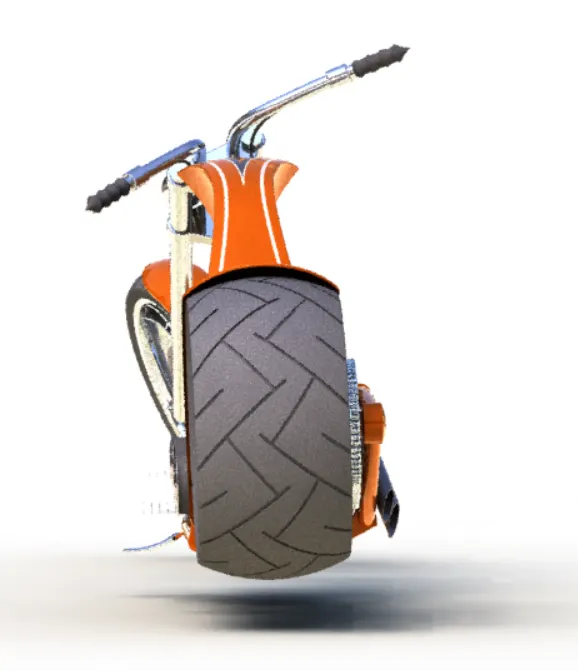

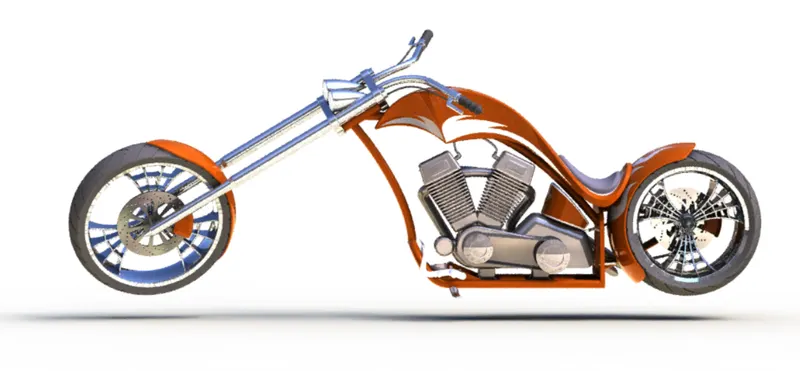

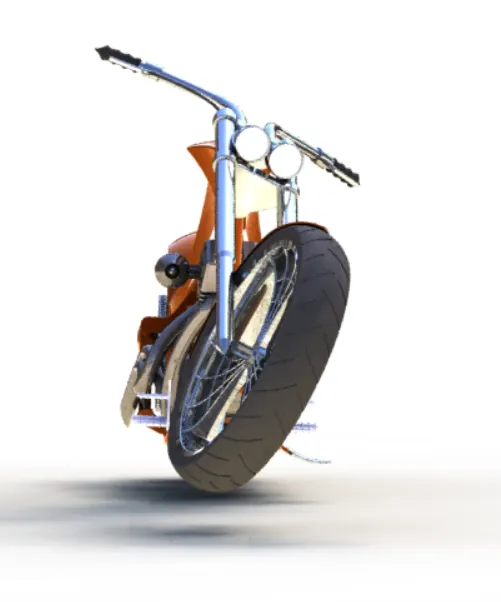

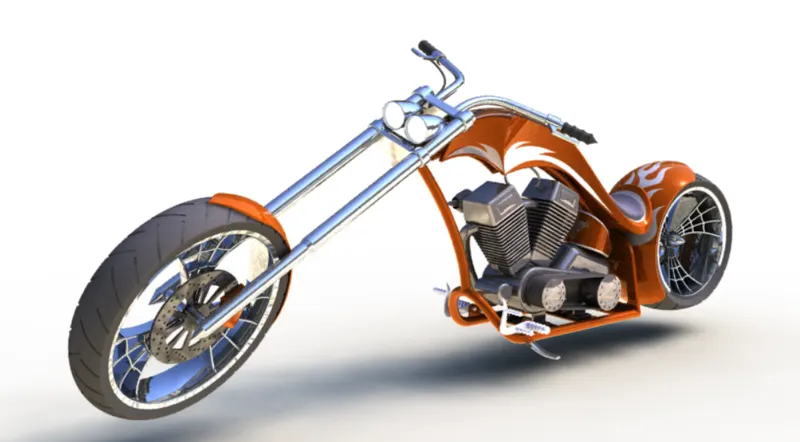

Followings are the Rendering images in photoview 360

CONCLUSION:

• Understanding of use interface of solidworks.
• Part Modelling of American Chopper using solid modelling in solidworks
• understanding of features and flexibility modelling in solidworks
• In assembly part get assembled and correct it in assembly area only as per the requirement of assembly.
• The realistic image generates in photoview 360.
