Fender Design

1Q) Design the fender part

2Q) Follow the given Master section to create the Drip Area

What is Fender ?

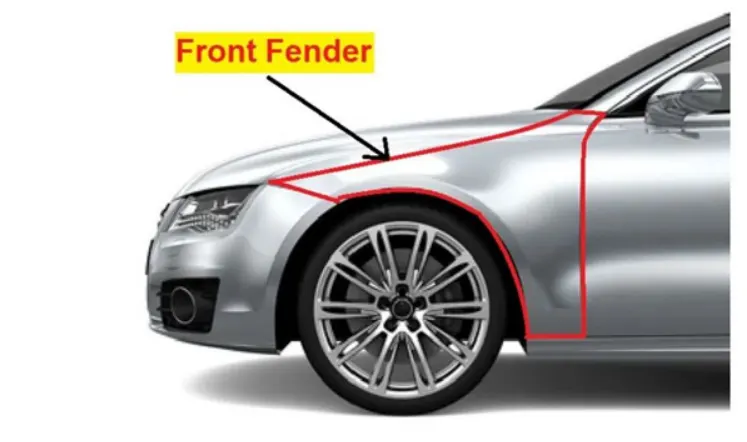

A fender is the part of a car that protects and frames its wheels and keeps mud from splashing it. Most modern vehicles have fenders on their front wheels.

A fender is different than a bumper because it's a metal structure that frames the wheel well of your car, instead of the front or back. The fender extends between the front door to the front bumper covering the front wheels of the vehicle

Fenders are of great importance for good protection of the vessel from damage.

First of all we take the class A surface of fender

Then we make the Design of Fender Mountings like

1. Bumper

2.Drip

3.A Pillar

4. Sill

5. Baffel Area

The Drip Area Dimensions Are Followed by Question

BUMPER AREA

Drip Area

A PILLAR

SILL

BAFFEL AREA

Finally Give the thickness of Design around 0.75 inside.
