Fender Design

FENDER

Fender is a metal or plastic enclosure over the wheels of an automobile or other vehicle to protect against splashing mud, etc.

Sticky materials, such as mud, may adhere to the smooth outer tire surface, while smooth loose objects, such as stones, can become temporarily embedded in the tread grooves as the tire rolls over the ground. These materials can be ejected from the surface of the tire at high velocity as the tire imparts kinetic energy to the attached objects. For a vehicle moving forward, the top of the tire is rotating upward and forward, and can throw objects into the air at other vehicles or pedestrians in front of the vehicle.

Objective is to Design the fender :-

1.  Drip Area

2. Sill Mount Area

3. Body Mount Area

4. Baffle Mount Region and A-pillar mount Region

Data given for Designing Fender

The Drip Area

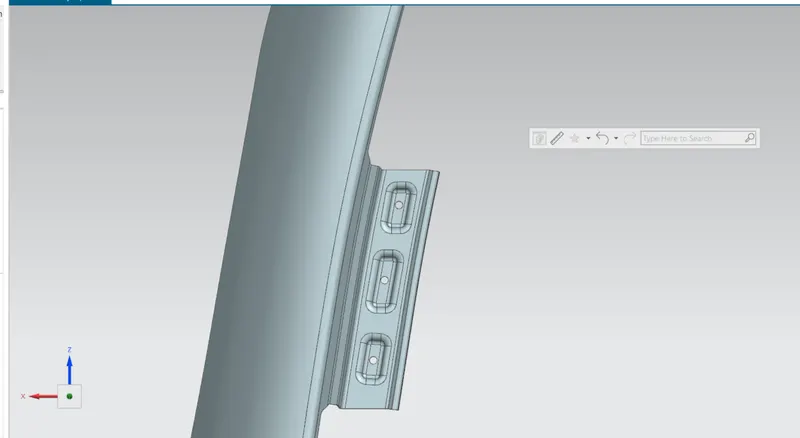

SILL MOUNT AREA

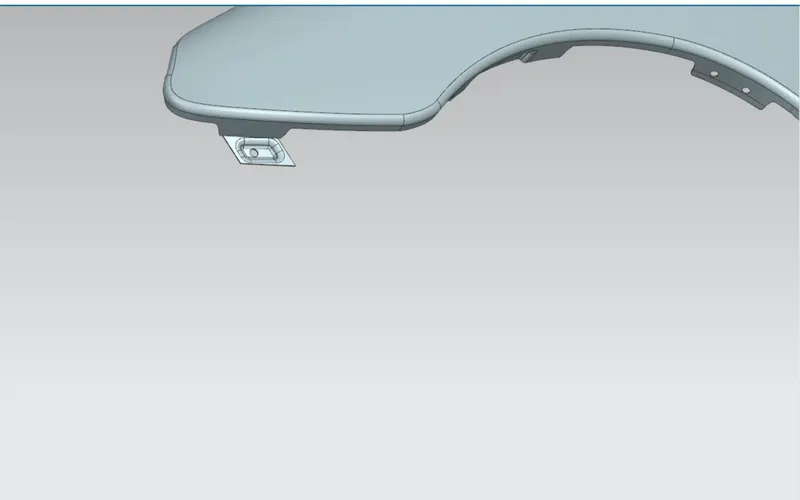

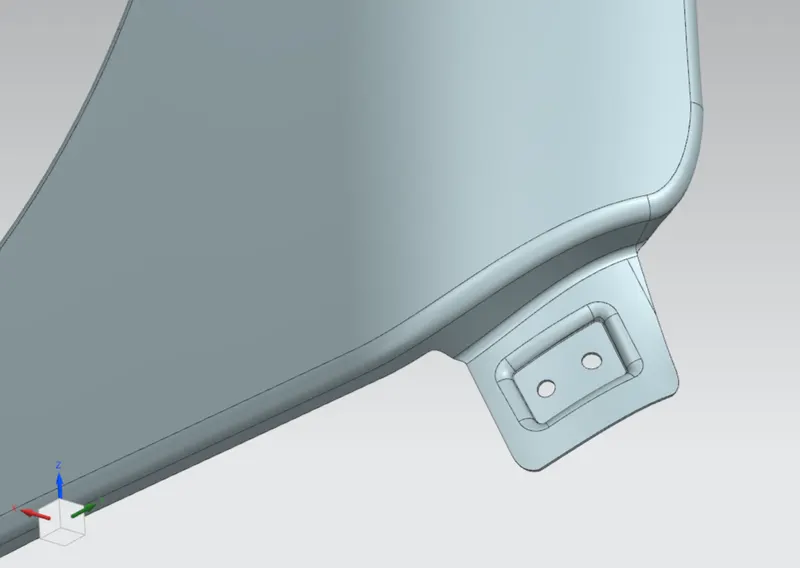

BODY MOUNT AREA

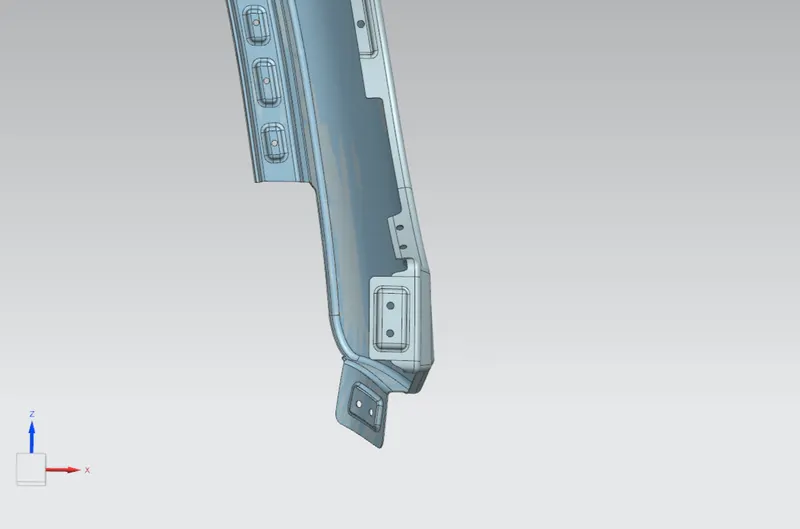

Baffle MOUNT AREA

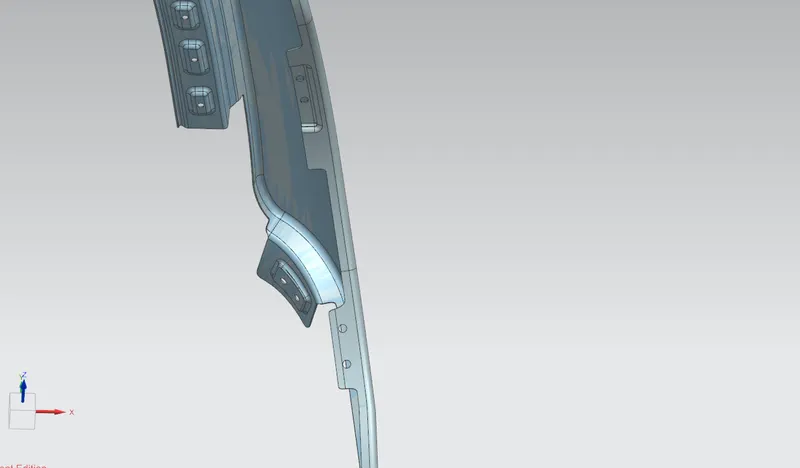

PILLER MOUNT

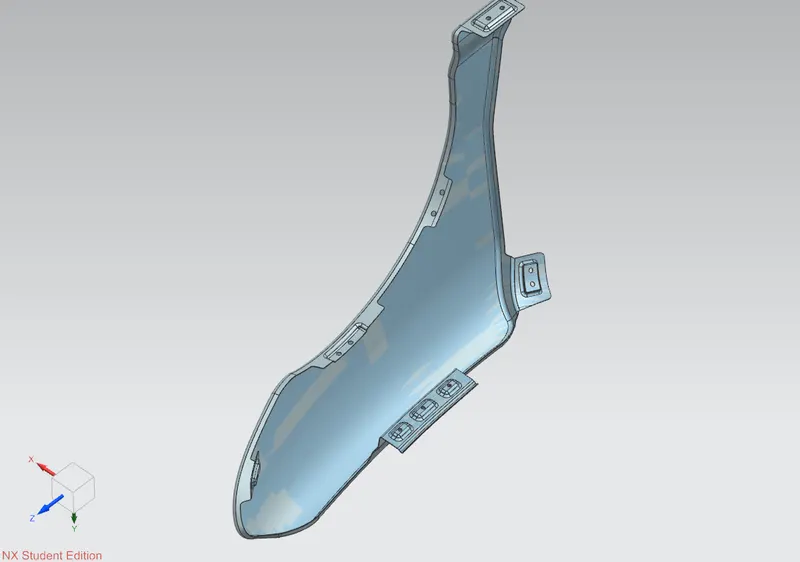

Final Fender part after giving thickess of 0.75mm to make a Solid body

cad model is in the attached file.

https://1drv.ms/u/s!AoPal1xw7-3Ngz1f2-Mmy67BH7Vd?e=tgwhe5
