Design of backdoor

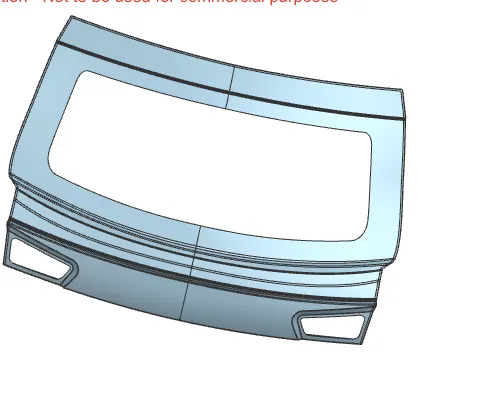

BACK DOOR ASSEMBLY

I attached 2 files plase make it one because file size is greater then 20MB so i convert it into 2.

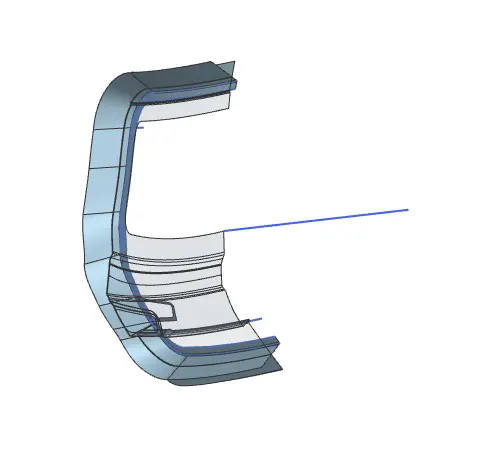

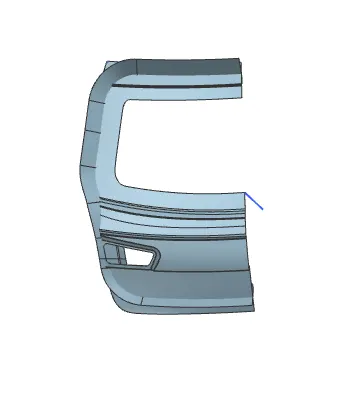

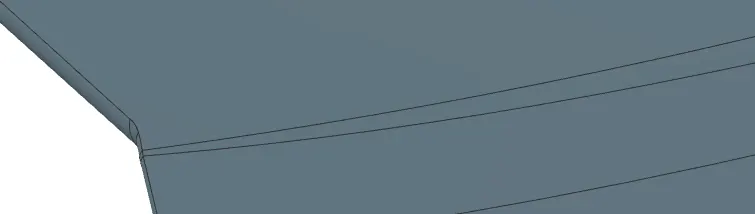

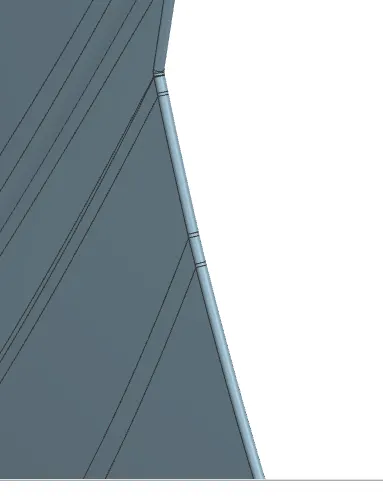

First I started with inner pannel and I take the offset from a surface and then start with cutting flanges

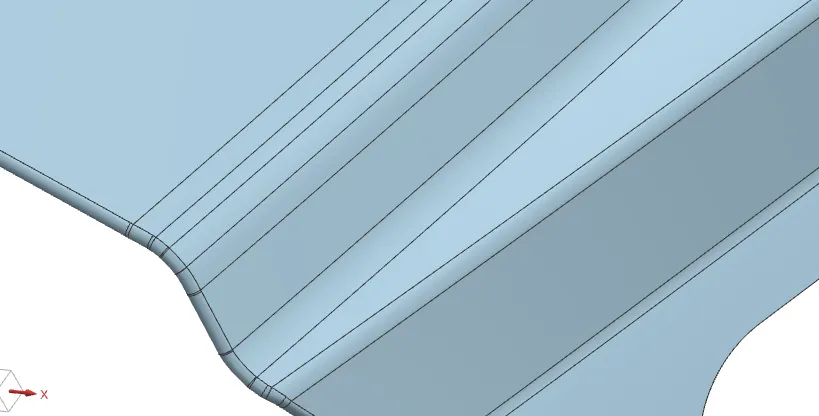

and making all the flanges and repair a surface at some places

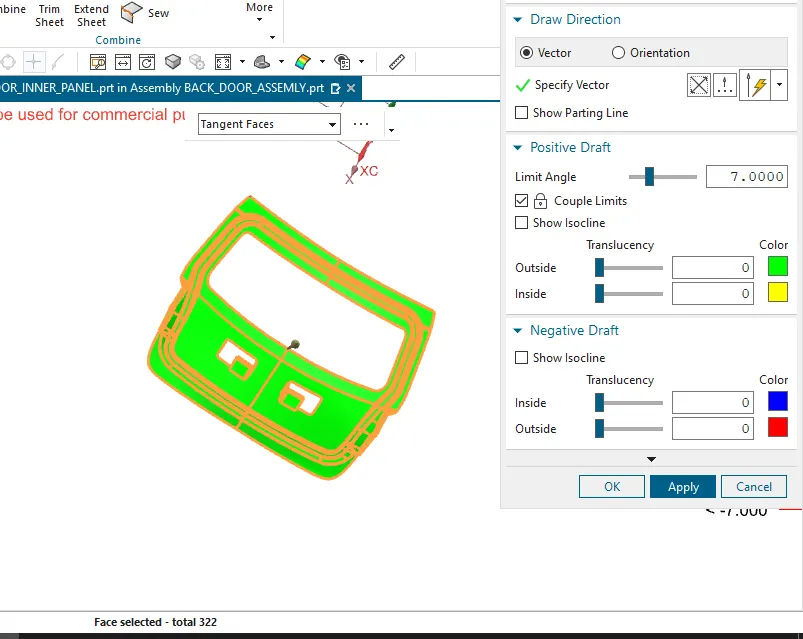

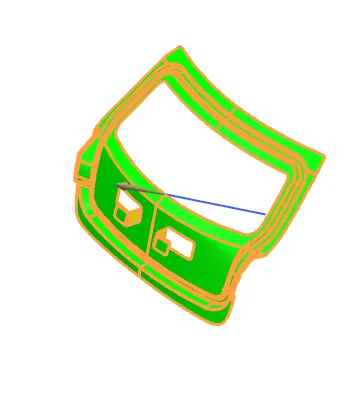

Also I made a tooling axis for the draft analsis and giving draft according to it.

Then after making flanges need to make sone surfaces and then making some cut outes

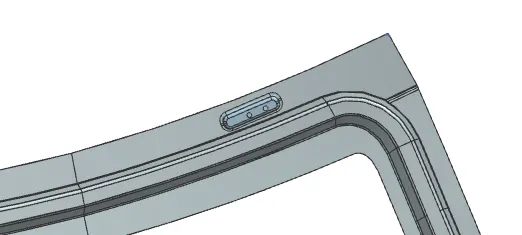

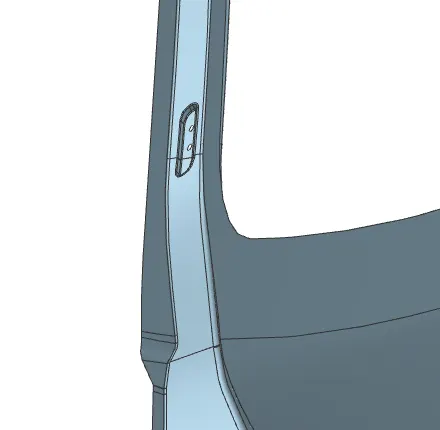

after that i give reinforcement LH and RH and embosses for good fitment

 and after working on it I turned into outer pannel

for that first i repair the A surface of back door at some places

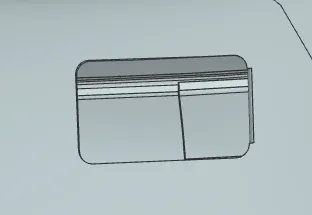

then after repair the A suraface goes to hamming process geometry and then offset a surface cut it to some distance

then five a face blend to it

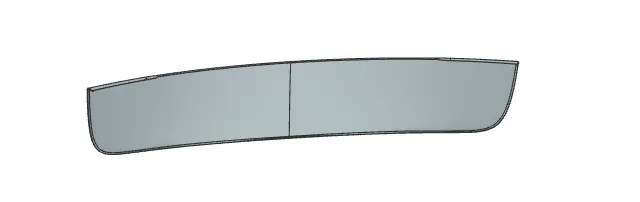

and then make the mirror geometry and ticken the surafce

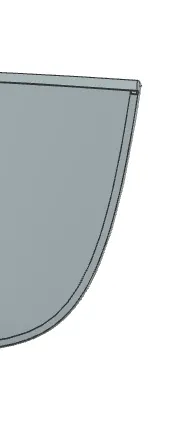

after that comes to lower portion and than doing te same process just repair A surface and then goes to hamming process geometry

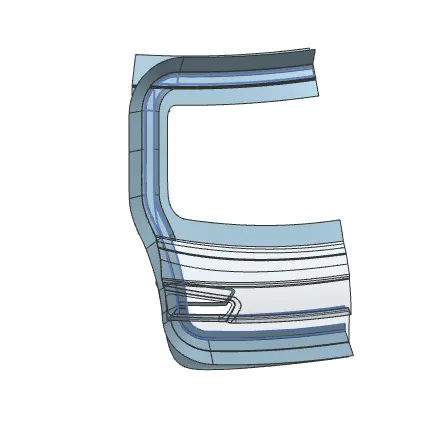

After that i took the draft analysis of the inner pannel



so at the end there are some mistakes like at the ends od  hamming geometry inner pannel goes out and will working on it for more better surafce and some for modifications on inner pannel

THANK YOU
