Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad
Aim :-
- To create a layout of the plan and sectionusing template tutorial-mArch.dwt. To create a viewports by edit attributes in templates and taking a plot.
Procedure :-
- First, Go to LAYOUT command and Select new layout and rename it as PLan and Section.
- And Delete the current Viewport.

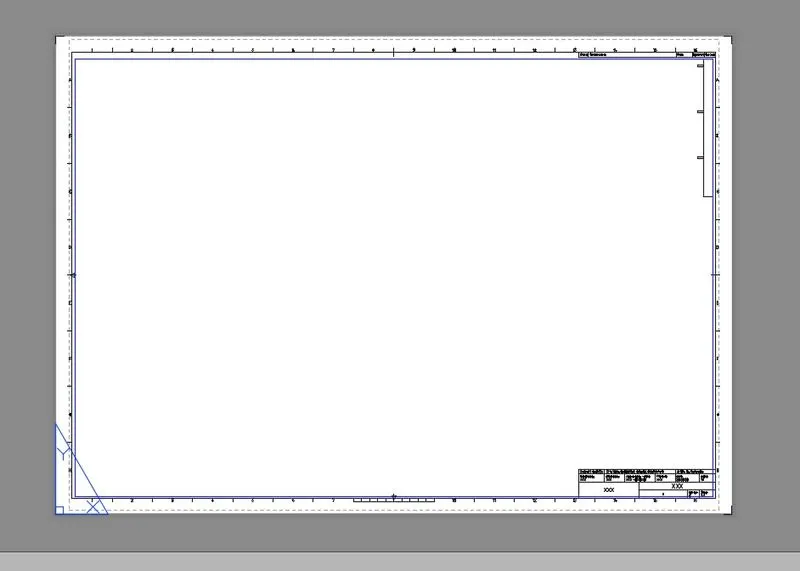

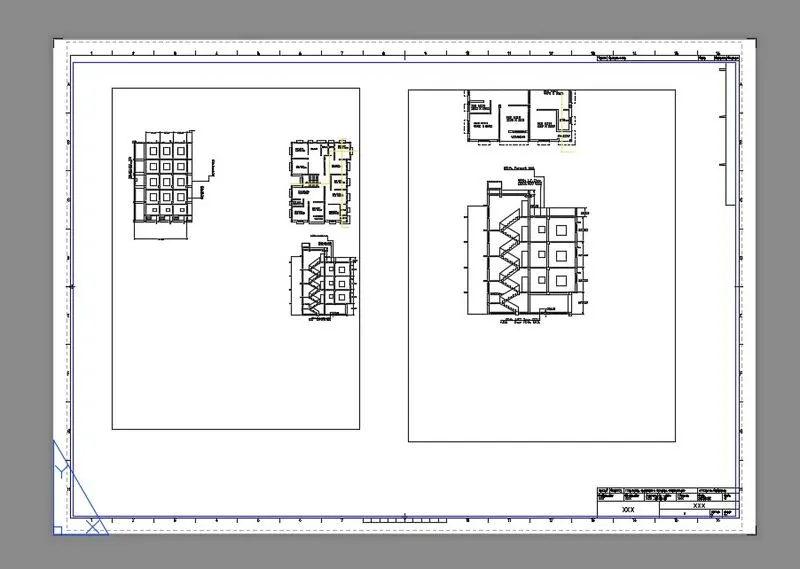

- Type LAYOUT command and select template option and select Tutorial-mArch sheet and select ISO A1 Layout and rename it as Plan and Section.
- Type MS command to activate Model Space.

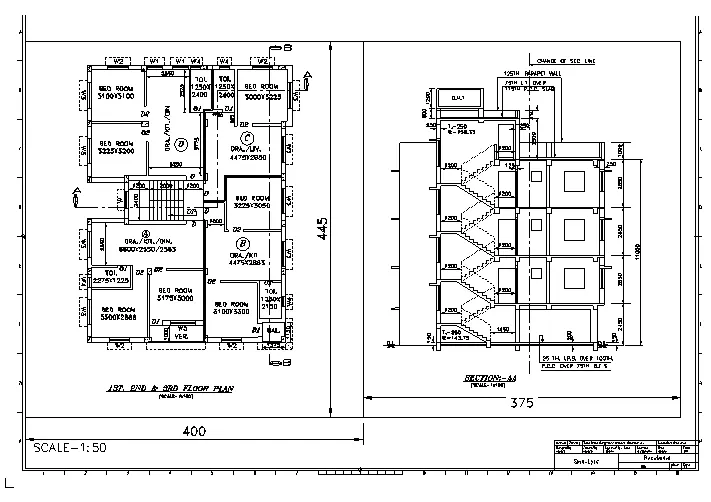

- Draw the rectangle of size 400 X 445 and 375 X 445.
- Type MV command, then insert the drawin by selecting rectangles.
- Do the same process in second drawing too.

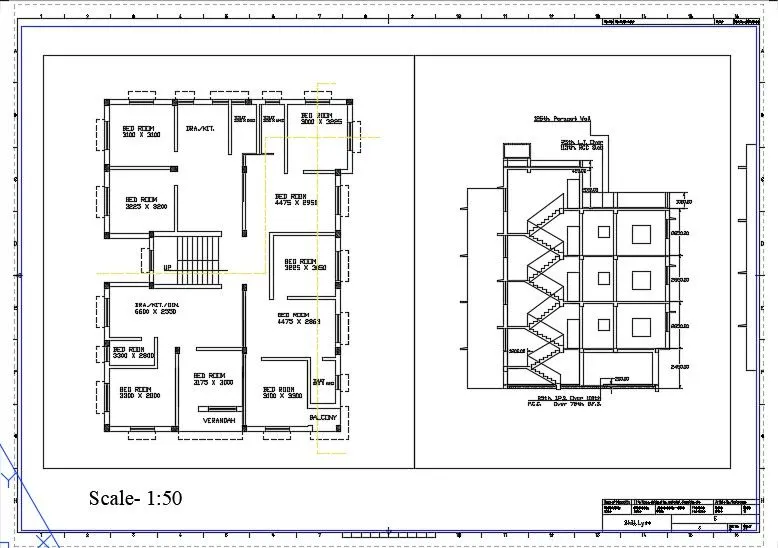

- Type MS command and click on first viewport zoom the plan and give the scale as 1:50 and lock the View.
- Do the same process for second viewport.

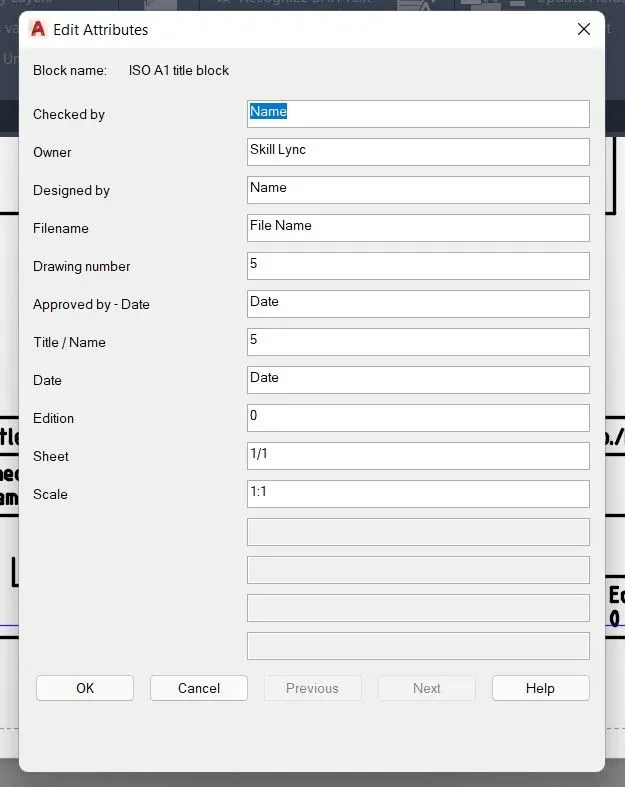

- The edit the attributes by ATTEDIT command and select the block of sheet.
- And enter the MTEXT of scale with the height of 15

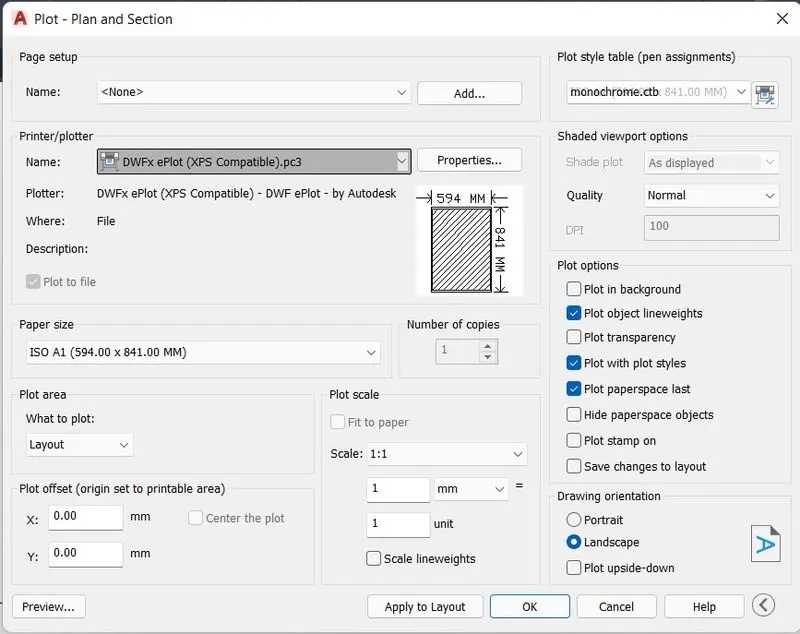

- To plot the Sheet, right click on layout and select plot.
- Give the name as DWG to PDF.
- Slect the paper size ISO A1.
- Select the pen assignment as Monochrome.

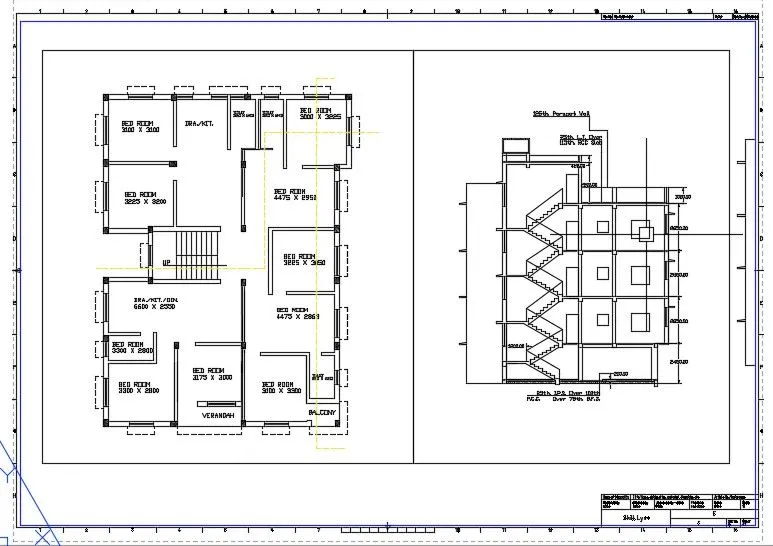

Result :-
Aim :-

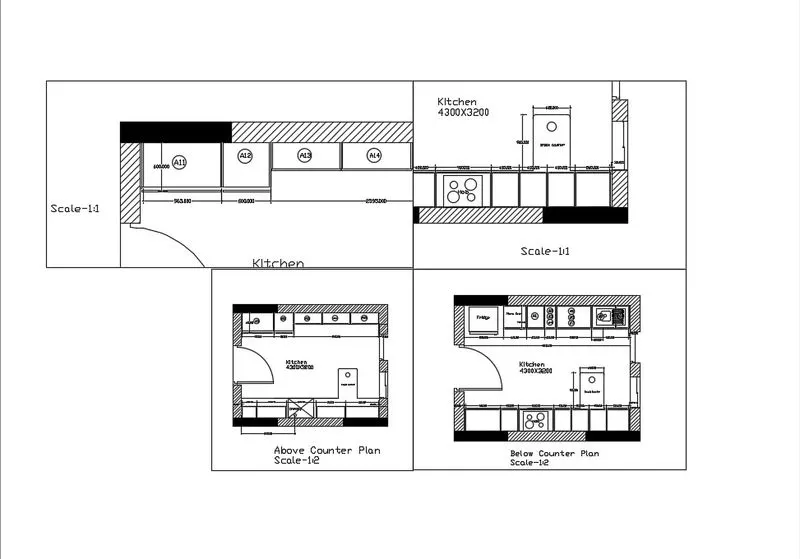

- To create the different view of kitchen and create 4 viewports and plot with A4 size page.
Procedure :-
- To create a layput of this drawing, firstly we have to create the views of the drawings.

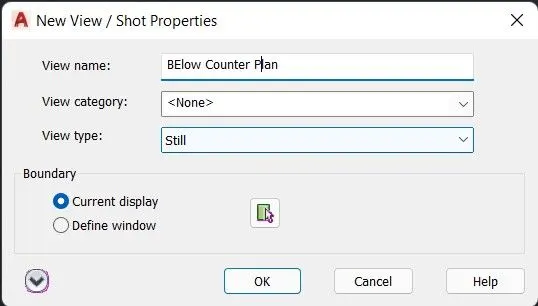

- For tht goto VIEW Command-> NEw -> Then type the view name -> Define the window of the view -> Ok.

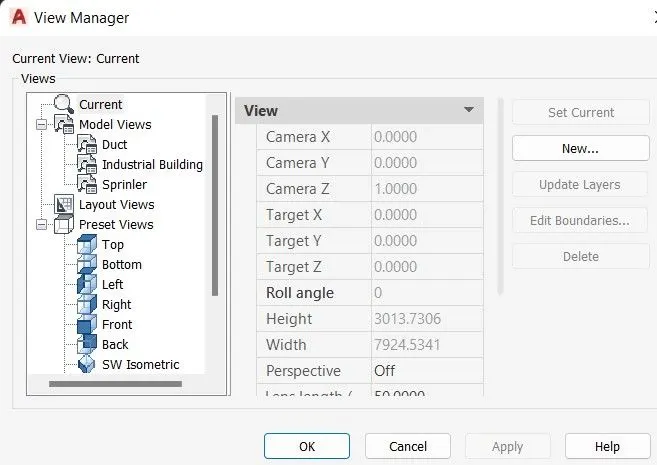

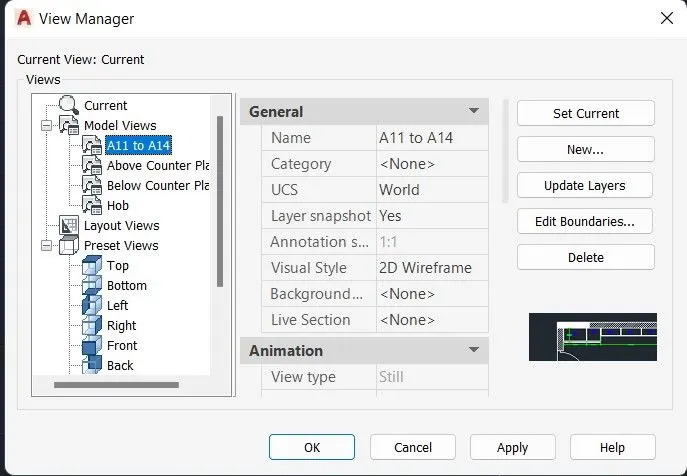

- Open the View MAnager from Insert and there will be the views.
- Create all similar views that are going to use.
- Now create the layout with A4 Sheet.
- Type MV command to create 4 viewports by making window.
- And insert the all 4 views in the all 4 windows by selecting the windows and with the use of VIEW command.

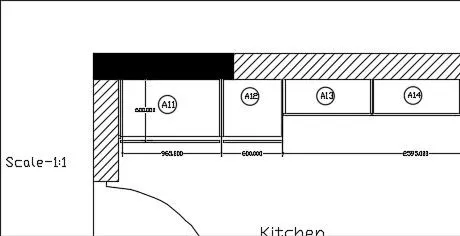

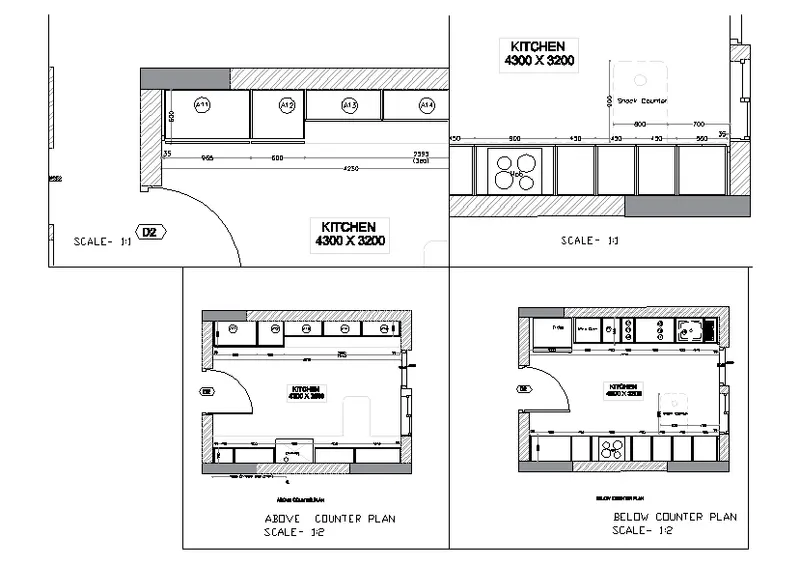

- Select the first drawing of kitchen cabinet in viewporrt and set it.
- Set the Scale as 1:1.

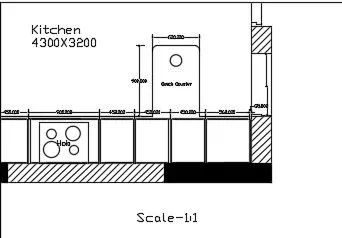

- Select the first drawing of Hob and Snack Counter in viewporrt and set it.
- Set the Scale as 1:1.
- Select the first drawing of Above Counter Plan in viewporrt and set it.
- Set the Scale as 1:2.

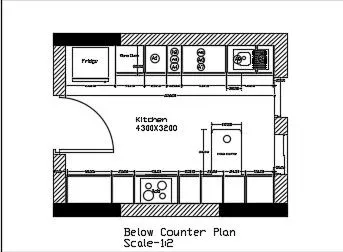

- Select the first drawing of Below Counter Plan in viewporrt and set it.
- Set the Scale as 1:2.

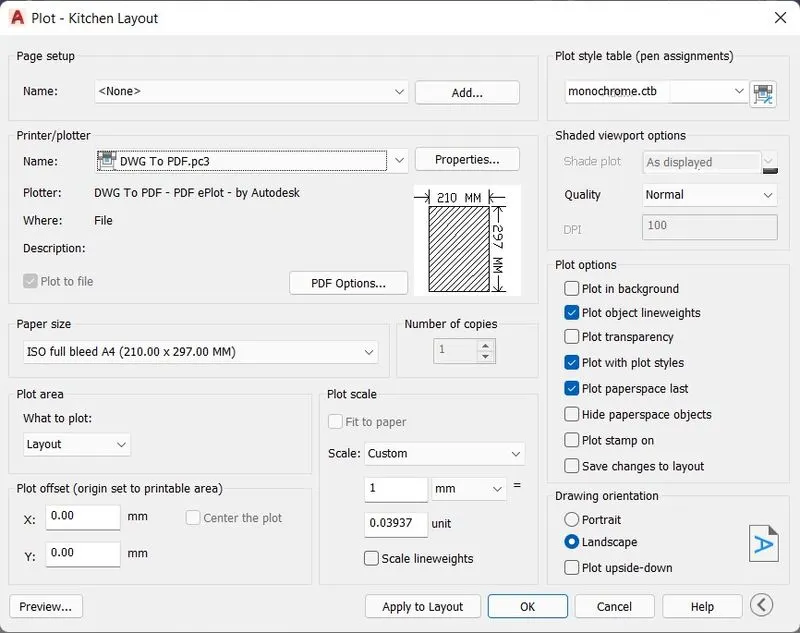

- Now for plotting of drawing, USe PLOT command.
- Select paper size as A4.
- Plot as LAyput.
- Plot style table as Monochrome.ctb
- Ok,
Result :-
Aim :-

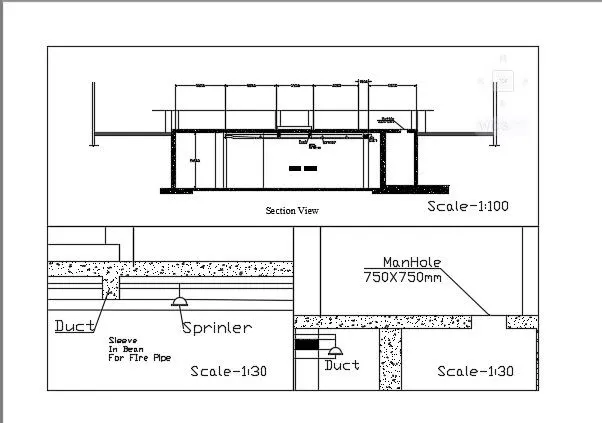

- To create a layout of Industrial Building and to create a multiple viewports and to take aplot.
Procedure :-
- Create the LAyout and reaname it.

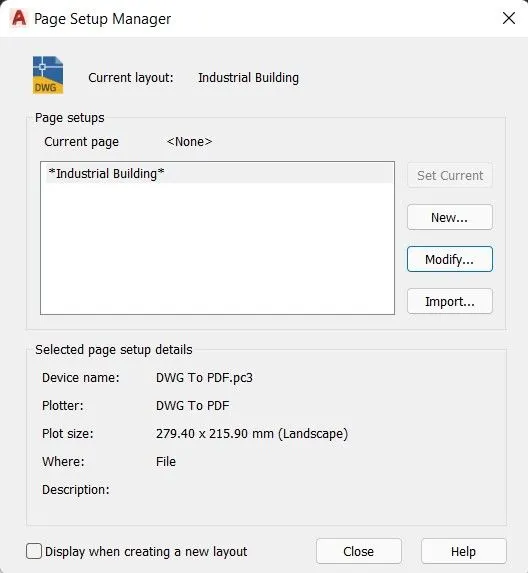

- Right click on the layer and go to page setup manager and select the layer then give name.
- After clicking Modify, select the paper size A3, and plotetr as DWG to PDF.

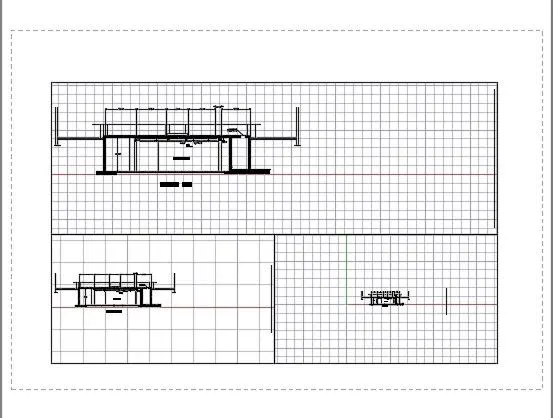

- Use Mv command and draw the 3 viewports.

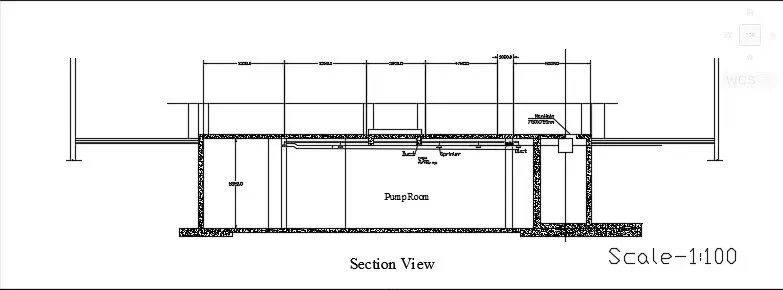

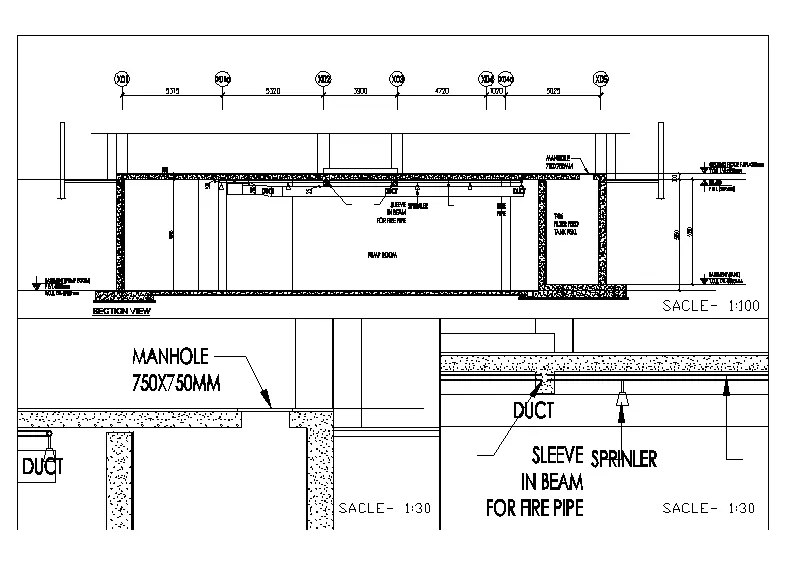

- Type MS command and go to first Viewport named Industrial Building.
- set the scale and set it with PAn Command.
- Type the text of height 15 as Scale1:100.
- And lock the ViewPort.

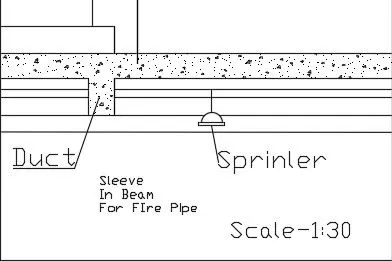

- Type MS command and go to Second Viewport named Duct.
- set the scale and set it with PAn Command.
- Type the text of height 15 as Scale1:30.
- And lock the ViewPort.

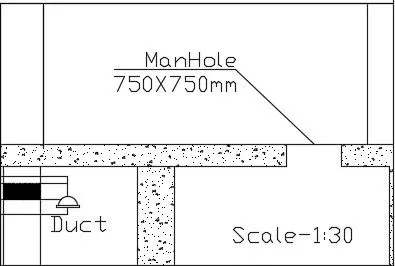

- Type MS command and go to Third Viewport named Manhole.
- set the scale and set it with PAn Command.
- Type the text of height 15 as Scale1:30.
- And lock the ViewPort.

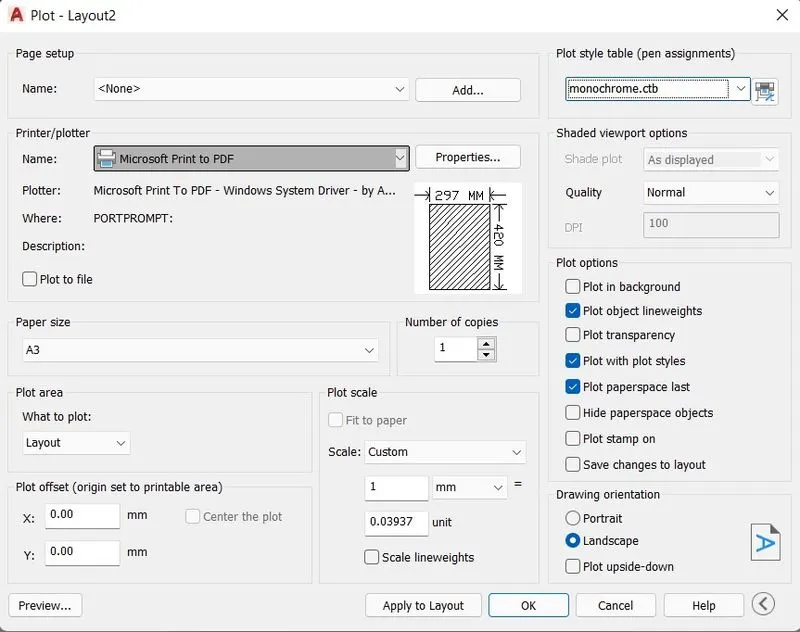

- For Plotting, Type PLOT coomand or rightclick on Layout.
- Select the paper size as A3.
- Pen assignment as Monochrome.
Result :-
