Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

Ans1.Aim-

Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

1.set the unit using command UN enter

2. creat the page size of A1 size rectangle

3. add attributes

4.att enter tag- TITLE

prompt-TITLE

Difolt-**********

text height-7 mm other 3mm

creat for all text

5. creat block B enter difine name TEMP select object select all object enter

.pik point click specifi corner click

open in block editor ok

save block as select block name

save block defination to drawing file ok

close block editor click

7. layout setup

open drawing file

go to layout 1

right click in layout 1

page setup manager modifiy

title name - dwg to pdf

paper size A1 ok

I enter insert block set page

8.VIewport seting

main manue bar view, viewport, select any viewprot creat in reactangle

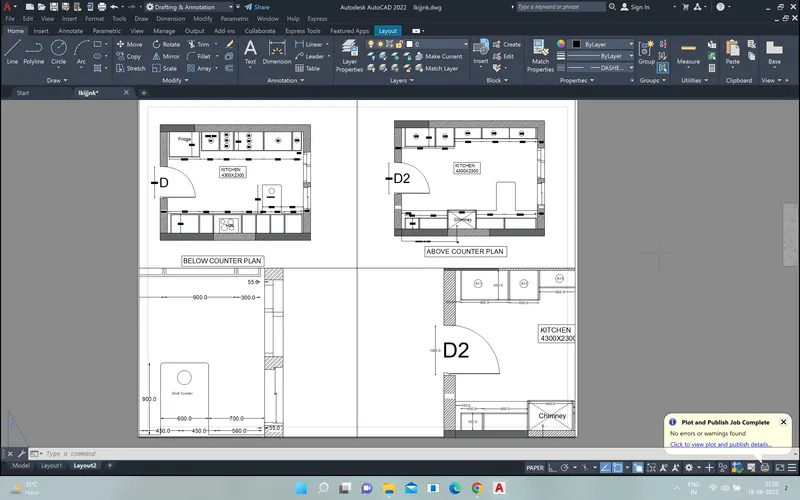

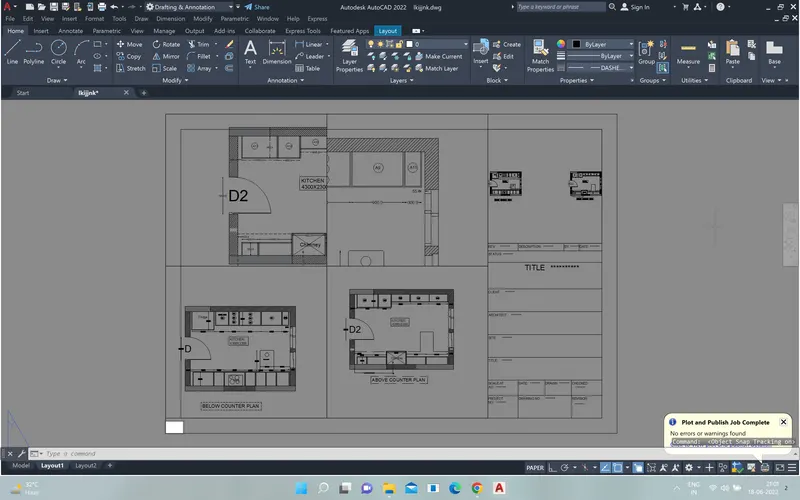

Ans2. Aim-Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

1. same process in second one

only creat the view port

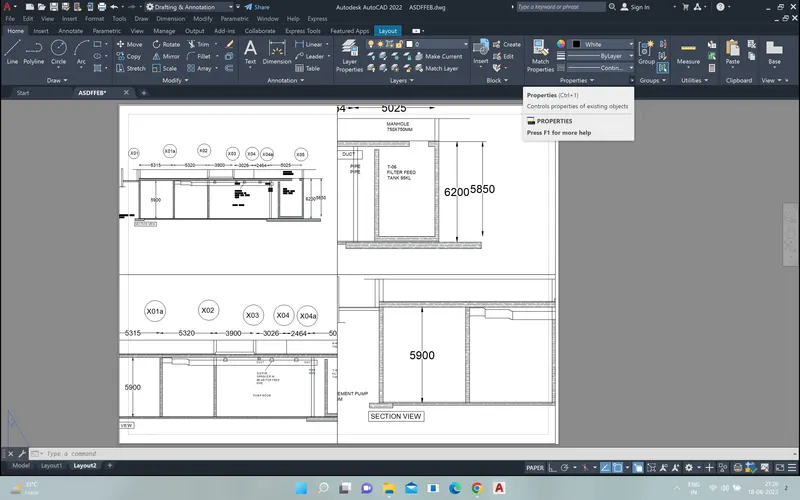

Ans3. Aim-

Create a layout of the section created in Challenges 9.

Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

same process as the upper templeat
