Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad
ASSIGNMENT NO 11

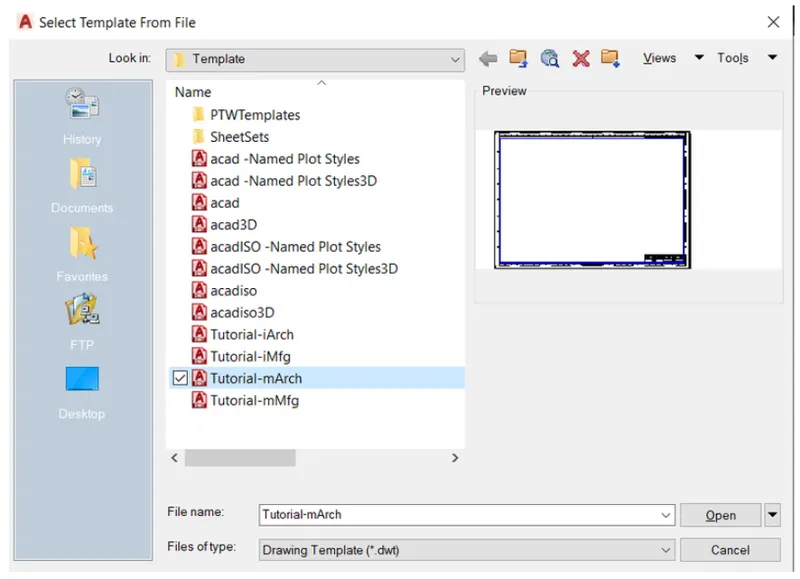

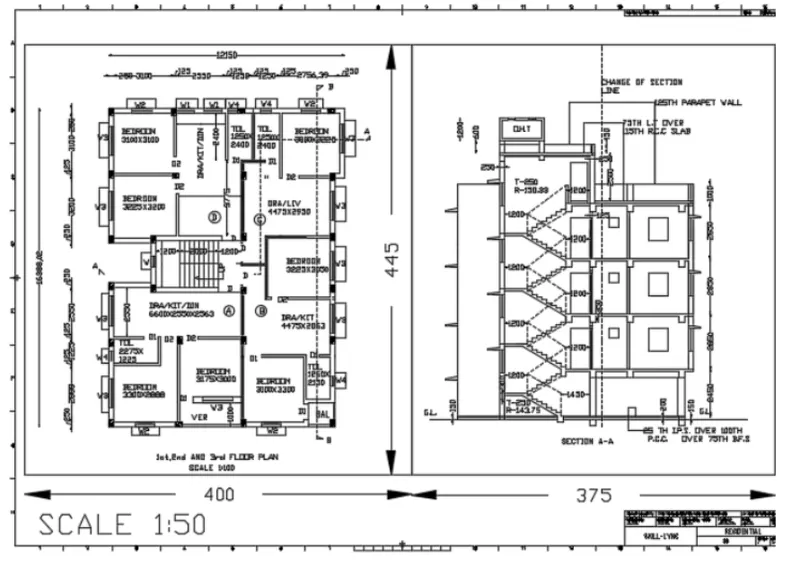

- Create a layout of the plan and section a from challenge 7. Use template tutorial m arch dwt in scale. Use MV command and create viewport. Also use ATTEDIT command to edit information in block.

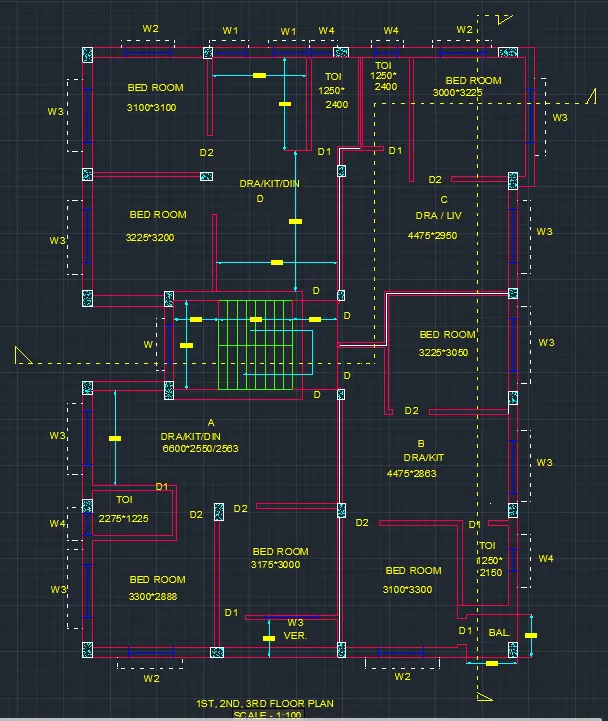

Creating Floor plan
Open new file in AutoCAD and Type ”un’ in command box for unit and press enter.
Change unit type to decimal and precision to 0 and insertion scale to millimeters
Type ”XL" in command box and press enter.
Click on ”horizontal” in command box And select any point on the screen.
Type ”XL" in command box And press enter.
Click on ”vertical” in common d box and select any point on the horizontal x line.
Type ”O” for offset in command box and press enter.
Specify offset distance as 250 And press enter.
Select horizontal x line an d click on bottom
Select vertical x line and click on right
Type ”O” for offset in command box and press enter.
Specify offset distance as 3100 And press enter.
Select the vertical offsetted x line of wall thickness and click on right.
Type ”O” for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select last offset line to give wall thickness And click on right.
Type ”O” for offset in command box and press enter.
Specify offset distance as 2550 and press enter.
Select the last vertical offset line And click on right.
Type ”O” for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Type ”O" for offset in command box and press enter.
Specify offset distance as 2550 and press enter.
Select the last vertical offset line and click on right.
Type ”O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select last offset to give wall thickness and click on right
Type ”O" for offset in command box and press enter.
Specify offset distance as 1250 and press enter.
Select the last vertical offset line and click on right.
Type ”O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select last offset to give wall thickness and click on right
Type ”O" for offset in command box and press enter.
Specify offset distance as 1250 and press enter.
Select the last vertical offset line and click on right.
Type ”O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select last offset to give wall thickness and click on right
Type ”O" for offset in command box and press enter.
Specify offset distance as 3000 and press enter.
Select the last vertical offset line and click on right.
Type ”O" for offset in command box and press enter.
Specify offset distance as 250 and press enter
Select last offset line to give wall thickness and click on right.
Type IR- in command box for Trim command and trim the outer portions and extra lines.
Type -O" for offset in command box and press enter.
Specify offset distance as 3100 and press enter.
Select the horizontal offset x line of wall thickness and click on bottom.
Type "O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select horizontal offset x line to give wall thickness and click on bottom.
Type -O" for offset in command box and press enter.
Specify offset distance as 3300 and press enter.
Select the last offset line of wall thickness and click an bottom.
Type -O" for offset in command box and press enter.
Specify offset distance as 250 and press enter.
Select last offset line to give wall thickness and click on bottom.
Type "L" for line command and Draw a line connecting the two bathrooms.
Type -O" for offset in command box and press enter.
Specify offset distance as 2400 and press enter.
Select the line drawn above of wall thickness and click on bottom.
Type -O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select last offset line to give wall thickness and click on bottom.
Type "O" for offset in command box and press enter.
Specify offset distance as 3775 and press enter.
Select the last offset line of wall thickness and click at bottom.
Type -O" for offset in command box and press enter.
Specify offset distance as 250 and press enter.
select the last offset line and give wall thickness and click on bottom.
Type -EX" for extend line command in the command box and extend the last 2 offset lines to left wall edge. Type -O" for offset in command box and press enter.
Specify offset distance as 3225 and press enter. Select the line drawn earlier and click on bottom.
Type "O" for offset in command box and press enter. Specify offset distance as 135 and press enter. Select the last offset line and click on bottom.
Type -O" for offset in command box and press enter. Specify offset distance as 2950 and press enter. Select the last offset line and click on bottom.
Type "O" for offset in command box and press enter. Specify offset distance as 4475 and press enter.
Select the left edge of the living room in flat C and click on right.
Adjust the right wall of flat C living room as shown in question.
Creating stairs
Type "O" for offset in command box and press enter. Specify offset distance as 2400 and press enter.
Select the bottom outer wall edge of flat D and click an bottom
Type -O" for offset in command box and press enter. Specify offset distance as 250 and press enter. Select the last offset line and click on bottom
Type "L" for line command and draw lines connecting the edges of columns.
Type ”O" for offset in command box and press enter.
Specify offset distance as 1200 and press enter.
Select the line drawn earlier and click on left
Type ”O" for offset in command box and press enter.
Specify offset distance as 2000 and press enter.
Select the line drawn earlier and click on left
Type ”O" for offset in command box and press enter.
Specify offset distance as 250 and press enter.
Select the last offset line and click on right.
Select the last offset line and click on right.
Select the last offset line and click on right.
Select the last offset line and click on right.
Select the last offset line and click on right.
Select the last offset line and click on right.
Select the last offset line and click on right.
Select the last offset line and click on right.
Type ”L" for line command and draw line connecting mid points of the stairs
Type ”L" for line command and draw left wall with reference of stairs
Type ”L" for line command and draw the top wall of flat B starting from the middle of stairway.
Type ”O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select top wall of the bedroom of flat B and click at bottom.
Type ”O" for offset in command box and press enter.
Specify offset distance as 3050 and press enter.
Specify offset distance as 125 and press enter.
Select the last offset line and click on bottom.
Type -O" for offset in command box and press enter. Specify offset distance as 2863 and press enter. Select the last offset line and click on bottom.
Type -O" for offset in command box and press enter.
Specify offset distance as 135 and press enter.
Select the last offset line and click on bottom.
Type -L™ for line command and draw a line at the right wall edge of top bed room of flat B on vertical x line Type -O" for offset in command box and press enter.
Specify offset distance as 3225 and press enter.
Select the line drawn earlier at right wall and click on left.
Type -O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select the last offset line and click on left
Type -O" for offset in command box and press enter.
Specify offset distance as 2563 and press enter.
Select the bottom edge of stair way and click on bottom. Type -O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select the last offset line and click on bottom.
Type -O" for offset in command box and press enter.
Specify offset distance as 3000 and press enter.
Select the bottom edge of stair way and click on bottom.
Type -O" for offset in command box and press enter.
Specify offset distance as 250 and press enter.
specify offset distance as 2550 and press enter.
select the bottom edge of wall left of stairway and click an bottom.
Type -O™ for offset in command box and press enter. Specify offset distance as 125 and press enter.
select the last offset line and click on bottom.
Type -TR- in command box for Trim command and trim the extra portions. Type –o for offset in command box and press enter.
specify offset distance as 1225 and press enter.
Select the lost offset line and click on bottom.
Type -0" for offset in command box and press enter.
specify offset distance as 125 and press enter.
select the last offset line and click on bottom.
Type -0" for offset in command box and press enter. Specify offset distance as 2888 and press enter.
Select the lost offset line and click on bottom.
Type -O™ for offset in command box and press enter.
Specify offset distance as 250 and press enter.
select the last offset line and click on bottom.
Type OR- in command box for Trim command and trim the extra portions of x lines drawn at different points.
Type -L" in command box for line command and press enter.
Draw line at the left inner wall edge of flat A.
Type -O™ for offset in command box and press enter.
Specify offset distance as 2275 and press enter. Select the line drown earlier and click on right.
Type -O™ for offset in command box and press enter.
specify offset distance as 125 and press enter.
Specify offset distance as 3300 and press enter.
Select the line drawn earlier and click on right.
Type "O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select the lost offset line and click on right.
Type IR- in command box for Trim command and trim the extra portions.
Type "O" for offset in command box and press enter.
Specify offset distance as 1250 and press enter.
Select the line drawn earlier and click on left.
Type -O" for offset in command box and press enter.
Specify offset distance as 125 and press enter.
Select the lost offset line and click on left.
Type "L” in command box for line command and press enter.
Draw line at the top edge of bathroom above.
Type "O" for offset in command box and press enter.
Specify offset distance as 2150 and press enter.
Select the line drawn earlier and click on left.
Type -O" for offset in command box and press enter.
Specify offset distance as 250 and press enter.
Select the lost offset line and click on left.
Type "L” in command box for line command and press enter.
Draw balcony using line command.
Type IR- in command box for Trim command and trim the extra portions.
Creating Layers
Type "LA” - in the command box and press enter.
In Layer properties manager, create new layers by clicking on new layer icon.
Define different layers and assign different colour and line type to them as follow:—
Creating Doors :-
Create the door openings as per the dimensions assumed and Assign layers accordingly. Type -L" in command box for line command and press enter.
Using line command, draw a line across the wall where door openings ore created.
Door Lines are created as per dimension assumed earlier of D1=800, D2=1000, D=900.
Creating Windows:-
Create window openings as per dimensions assumed and Assign layers accordingly.
Type -L" in command box for line command and press enter.
Using line command, draw a line across the wall Offset the line through a distance of
W1=900,
W2=1200,
W3=1400,
W4=600.
Using line command, draw two lines connecting the above drawn lines at the middle.
All windows are created with same procedure and position is specified in the question figure.

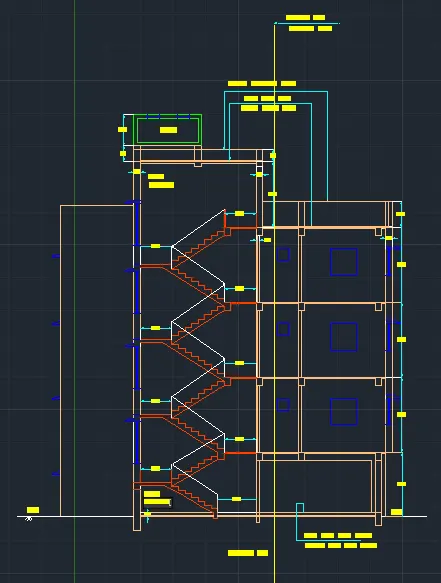

Crating Section View A-A
Type -XL" in command box and press enter.
Click on "vertical" in command box.
Select the points required to take the projection for Section A—A.
Draw a Horizontal line for Ground level which cuts all vertical line projections.
Now, type "Breakpoint- in the command box and break all the vertical projection lines from the point of
Intersection with horizontal line.
Type -E" for erase command and press enter.
Select all the vertical line below the horizontal line and press enter. Type "O" for offset in command box and press enter.
Specify offset distance as 150 and press enter.
Select the horizontal line drawn earlier and click at top.
Type "O" for offset in command box and press enter.
Specify offset distance as 5O and press enter.
Select the horizontal line drawn earlier and click at bottom.
Type -O" for offset in command box and press enter. Specify offset distance as 25 and press enter. Select the top offset line and click on bottom.
Type -O" for offset in command box and press enter. Specify offset distance as 100 and press enter. Select the top offset line and click on bottom.
Type -O" for offset in command box and press enter. Specify offset distance as 2450 and press enter.
Select the horizontal line drawn at the beginning and click on top.
Type –O for offset in command box and press enter.
Specify offset distance as 2850 and press enter.
Select the last offset line and click on top.
Select the last offset line and click on top.
Select the last offset line and click on top.
Type -O™ for offset in command box and press enter. Specify offset distance as 125 and press enter.
Select each floors line and give the slab thickness offset in bottom.
Type TR- in command box for Trim command and trim the extra portions.
Change the current layer to window layer.
Type -L" in the command box and press enter.
Draw a line connecting two window line projections at the first floor level.
Type -O™ for offset in command box and press enter. Specify offset distance as 800 and press enter.
Select the last line drawn and click on top.
Type -rectangle" in the command box and press enter.
Draw a window with 1200X14O0 as per W2 dimensions.
Again draw a window with 600X700 as per W4 dimensions.
Copy the rectangles to all the floors as shown in question figure.
Type OR- in command box for Trim command and trim the extra portions.
Change the layer to stairs.
Draw on offset point of 1450mm from the right edge of stair way for the ground floor stairs.
Draw on offset point of 1200mm from the left edge of stair way for the ground floor stairs. Type "L" in command box and press enter.
Turn on OSNAPS and Ortho Mode.
Specify first paint and click on the bottom point of the offset line drawn at 1450 from the right edge.
Specify next paint and Keep curser to top and type 143.75 and press enter.
Specify next point: Keep curser to left and type 250 and press enter.
repeat the steps till the floor reaches.
For the rest floors specify riser height as 158.33.
repeat the same process until landing is reached Drawn land slab.
Type "rectangle" in the command box and press enter.
Draw door of flat -D- at each floor entrance as shown in the question figure above.
Type -O™ for offset in command box and press enter.
Specify offset distance as 75 and press enter.
Select the top edge and click on top.
Type -O for offset in command box and press enter.
Specify offset distance as 1000 and press enter.
Select the top edge and click on top.
Type -O for offset in command box and press enter.
Specify offset distance as 2500 and press enter.
Select the top edge and click on top.
Type "O for offset in command box and press enter.
Specify offset distance as 450 and press enter.
Select the lost offset line and click on top.
Type TR" in command box for Trim command and trim the extra portions.
Type -rectangle" in the command box and press enter.
Draw the top tank using rectangle command.
Creation of layout
- Open the AutoCAD
- Go to application menu, select the open option and open the challenge 7
- Type Layout in command box, press
- Select template option from command box, select Tutorial-m Arch dwt template, select open, select layout name as ISOA1 layout and select
- Go to the layout from layout tab and right click on it and select page setup manager
- Select the layout and choose modify option and modify settings from page setup dialog box as shown below and select ok and

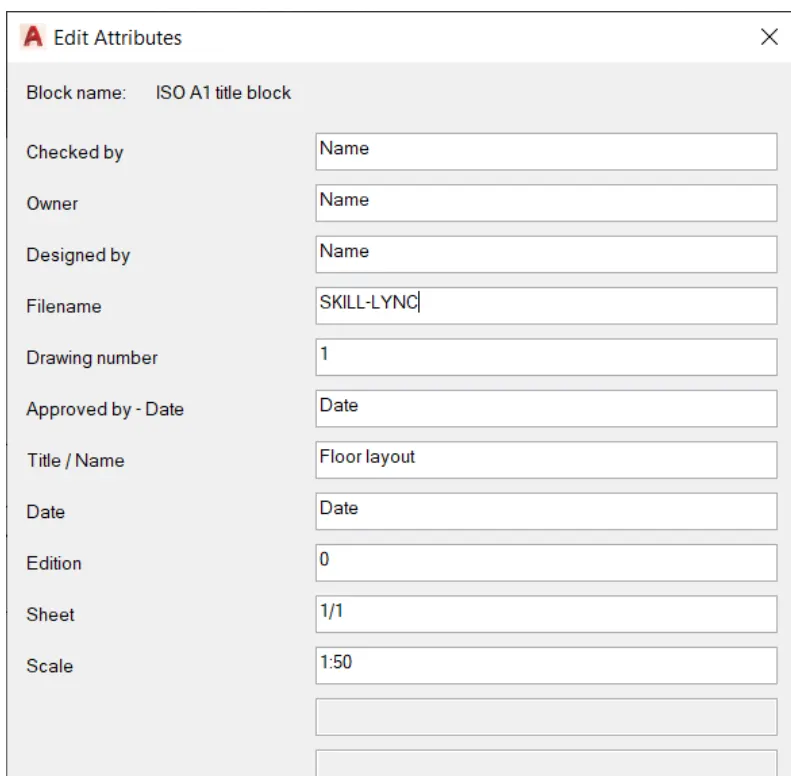

- Type ATTEDIT in command box and press enter, select the template box and edit the attributes as per required
content.
- Type rec in command box, specify the first corner point , select the dimension option from command box, specify the length as 400 and width as 455, press enter, and draw the
- Similarly draw the rectangle of size 375 x 455 beside the just drawn rectangle using the rectangle
- In model space type V in command box, press enter, select the new option from view manager dialogue box, give the name to view as Plan and select Saline window option and in model space and define the view of floor plan of challenge 7 using the window.
- Similarly create the view naming Section for section AA by selecting new option from view manager dialog box and select
- Go to layout from layout tab type MV in commoner box, press enter, select the object option from command
box, press enter, select the first rectangle.
- Type V In command box, select the Plan modal view from view manager dialog box, select sat current and
- Select the standard scale as 1:50 from scale tab of status
- Type PAN in command box, press enter, and adjust the view such that it fit inside the viewport
- Type PS in command box, select the view port, right click go to properties option once lock the
- Again, type MV in command box, press enter, select the object option from command box, press enter, select the second
- Type MS in command box, press enter, select the second rectangular viewport
- Type V in command box, select the Plan modal view from view manager dialog box, select set current and
- Select the standard scale as 1:50 from scale tab of status
- Type PAN in command box, press enter, and adjust the
- Type PS in command box, select the view port, right click go to properties option and lock the
- Type ST in command box, press enter, select the font name Arial with the height as 0 units and select
- Type DT in command box, press enter, specify first corner type SPACETRANS in command box, press enter, select the viewport, specify rotation angle as 0 and type text as ’SCALE — 1 : 50'.
- Type DIMLIN in command box, press enter and give dimensions to the

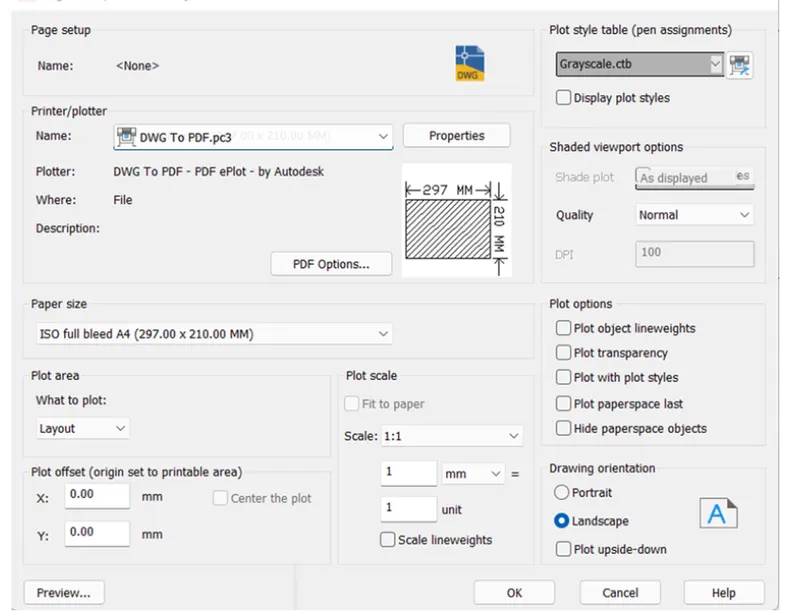

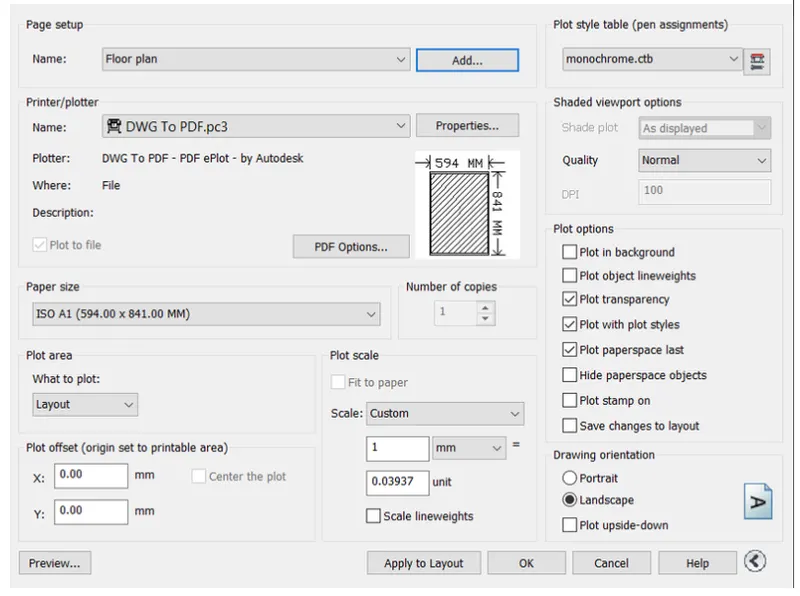

- Go to layout tab, right click on layout tab and select the plot option, select continue to plot single sheet, check the settings and select the preview option and see the
- Right click on preview and select the plot option, give the file name and save it in folder
- Create a layout of kitchen drawing from challenge 9 and use scale as shown and also use A4 size paper for the layout.

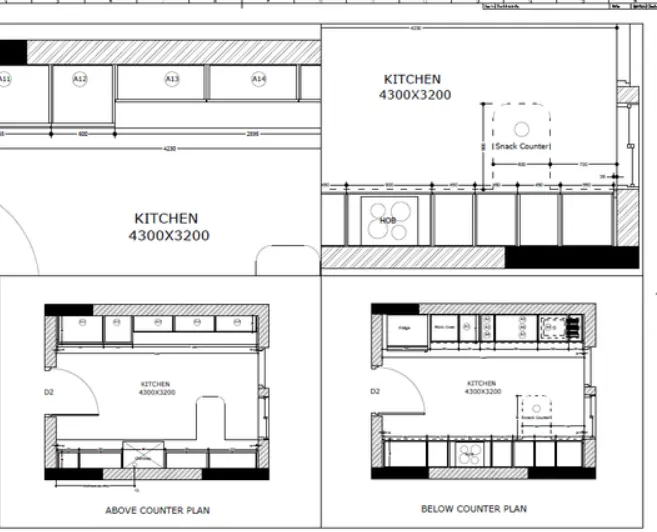

KITCHEN LAYOUT
- Aim :- To create the kitchen layout as shown below dig by using AutoCAD Software
Procedure :-
o Click on AutoCAD application and open this application
o Type QNEW in command bar and enter
o Select default setting as Metric
o In default setting click on use a wizard and in that adva nce setting and set unit as decimal and precision as 0 and press Next
o Set Angle as Decimal Degree and precision as 0 and click next
, In default setting click on use a wizard and in that advance setting and set unit as decimal mid precision as 0 and press Next
, Set Angle as Decimal Degree and precision as 0 and click next
,;, Set Angle Measure as EAST and press NEXT
Set Angle Direction as Counter- Clockwise and press NEXT
,;, Set Area by providing length as 100 and width as 100
<:> Press finish
,;, Keep ortho , Object snap >ON
,;, Keep Snap and Grid } Off
,;, Un + enter
,;, Type > Decimal, Precision > 0
,;, U its to scale inserted content > milimeter
enter

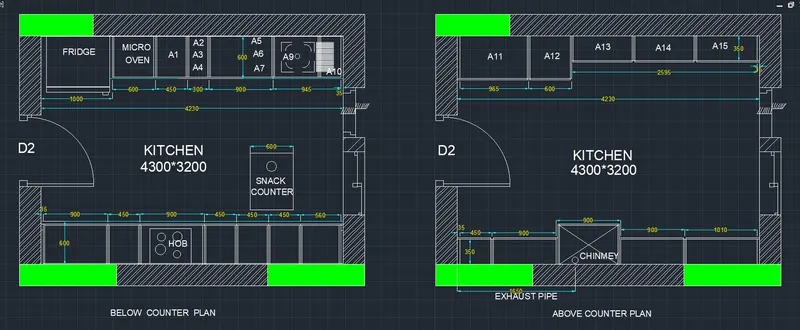

- Below Counter ,Plan :
,;, Take x line command
,;, Put x line horizontal and x line vertical
,;, Trim the negative coordinates
,;, Take offset of both lines at 230mm distance
,;, Take offset command
Select distance as 4230 and select object as vertical inner wall line
,;, Again take offset command
,;, Offset the last object at a distance of 230
,;, Trim the un wanted lines
,;, Take offset command
o offset distance > 3200
o Select object > Click on Horizontal line
o Again take the offset to last object at 230
o Trim the un wanted lines
o from Properties tab
o Click on drop down
o Other > Load
0 Select AC AD IS0 02W 100 ) OK
o Set Global Scale Factor as 10
o Provide the dotted line at 600 distance as shown below
o Assume the door size as 1000
o leave the space for door as shown below
o Now to create offsets for fridge, microwave and all
o Offset the Short vertical wall at a distance of 1000, 1600, 2050, 2350, 3250, 419 5 as show n below
o Take a dotted line
o Provide it at a height of 600 from upper horizontal line
o Trim the projection lines
o Assume the thickness as 12
o Take offset command and provide the thickness as given below
o Assume the size of Window as 800 and door near that window size is 800
o From the draw panel
o Click on hatch
o Select ANS l32 hatching
o Select the area where to provide that hatch
o Enter
o Take proper ties of hatching system
o Take scale as 300
o From the draw panel
o Click on hatch
o Select Solid hatching
o Select the area where to provide that hatch
o Enter
o To create the text
o Click. On Annotation tab > Multi- line
o Manage t ext ile > New
o style name as> NEW > OK
o font Name > Arial
◊ font Style > Bold
o Height > 150
o And press set current
o Use Multiline, text
o And f ill the required text as kitchen
o To create the text
o Click on Annotation tab > Multi- line
o Manage t ext ile > New
o Style name as > Ot,her > OK
o Font Nam e > Arial
o font Style >, Regular
Height - 150
o And press set current
o Use Multiline text
o And f ill the required text as shown below
o Use circle command to show the synking hole
o Use the line command, Circle command to show the door as show n below
Above Counter Plan
o Take construction line command
o Take offset of both lines at 230mm distance
o Take offset command
o Select distance as 4230 and select object as vertical inner wall line
o Again take offset command
o Offset the last object at a distance of 230
o Trim the un w an ted line s
o Take offset com m a n d
o offset distance > 3200
o Select object > Click on Horizontal line
o Again take the offset to last object at 230
o Trim the un wanted line s
o Provide the offset at 350mm
o Assume the door size as 1000
o Leave the space for door as shown below
o Take offset command
o Offset the Short vertical wall at a distance of 35, 965, shown below
o Assume the thickness as 12
o Take offset command and provide the thickness as given below
o Use the circle command in chimney to show the exhaust pipe
o Assume the size of Window as 800 and door near that window size 800
o From the draw panel
o Click on hatch
o Select Solid hatching
o Select the area where to provide that hatch
o Enter
o Click on Annotation
o Modify dimension style
o Select arrow size > 50
o Arrow, Dimension line and extension line colour > Yellow
o Text size > 80
o Text c o lour > cyan
o Enter
o Take line a r dimension command
o Provide it to show the 35mm dimension
o Then use continuous dimension Command
o Provide the dimensions
o To opposite side repeat the procedure
o To create t he t ext
o Click on Annotation tab > Multi - line
o Manage textile > New
o Style name as > NEW > OK
o Font Name > Aria l
0 Font Style > Bold
o Height > 150
o And press set current
Creation of layout
- Open the AutoCAD
- Go to application menu, select the open option and open the kitchen drawing of challenge 9
- Go to the layout from layout tab and rename the layout as ’kitchen
- Go to layout tab, right click and select page setup
- In page setup manager, select the kitchen layout, select the mortify option, and modify the setting as shown below.
- Type MV in command box, press enter, select the 4 option from command box option. specify first point
- In modal space, type V in command box, press enter, select the new option from view manager dialog box, give the name to view as V1 and select define window option and in modal space define the view using the
- Similarly create the view naming V2, V3 and V4 by following the come
- Go to the paper space, type MS in command box press enter, select the first viewport and type V in command box and press
- Select the VI view from modal space, sat current and select
- Select the standard scale from scale of status bar such that view fit inside the viewport
- Type PAN in command box, press enter and adjust the view such that it fit inside the viewport
- Type PS in command box, press enter, select the viewport, right click and lock the
- type MS in command box press enter, select the second viewport and type V in command box and press
- Select the V2 view from model space, set current and select ok.
- Select the standard scale from scale of status bar such that view fit inside the viewport
- Type PAN in command box, press enter once adjust the view such that it fit inside the viewport
- YP PS in command box, press enter, select the viewport, right click, and lock the display.
- type MS in command box press enter, select the third viewport and type V in
- command box and press
- Select the V3 view from modal space, sat current and select
- Select the standard scale from scale of status bar such that view fit inside the viewport
- Type PAN in command box, press enter and adjust the view such that it fit inside the viewport
- Type PS in command box, press enter, select the viewport, right and lock the dispIay.
- type MS in command box press enter, select the fourth viewport and type V in command box and press
- Select the V4 view from model space, set current and select ok.
- Select the standard scale from scale of status bar such that view fit inside the viewport
- Type PAN in command box, press enter and adjust the view such that it fit inside the viewport
- Type PS in command box, press enter, select the viewport, right click, and lock the
- Type ST in command box, press enter, select the font name Arial with the height as 0 units and select
- Type DT in command box, press enter, specify text height as 3 units, specify rotation angle as O and type the text as per required content as SCALE —1:1.
- Type CO in command box, press enter, select the just written text, press enter, select the base point and copy it to the required
- Type ED in command box, press enter, select the text required to edit and edit it as per required
- Go to layout tab, right click on layout tab and select the plot option, select continue to plot single sheaf, check the settings and select the preview option and see the preview. -
- Right click on previewand select the plot option and give the file name and cove it in laptop

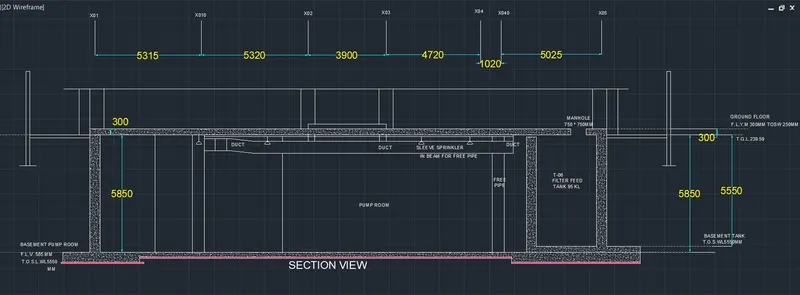

- Create a layout of a section created in challenge 9. Use scale as mentioned in the figure. Also use MV command and create multiple viewports.
Procedure –
Type l for line command and draw a horizontal line.
Type o for offset command and draw an offset of 5850 mm at upper side of line.
Again take offset command and draw a horizontal line of 300 mm at upper side of the upmost line.
Type l for line command and draw a vertical line on the left side crossing 3 horizontal line.
Type o for offset command and draw a vertical offset at a distance of 5315 mm from the vertical line on the right side.
Type o for offset command and draw a vertical offset at a distance of 5320 mm from the vertical line on the right side.
Type o for offset command and draw a vertical offset at a distance of 3900 mm from the vertical line on the right side.
Type o for offset command and draw a vertical offset at a distance of 4720 mm from the vertical line on the right side.
Type o for offset command and draw a vertical offset at a distance of 1020 mm from the vertical line on the right side.
Type o for offset command and draw a vertical offset at a distance of 5025 mm from the vertical line on the right side.
Type tr for trim command and erase all the unnecessary lines from the drawing.
As per the given design draw a wall of required sizes from all necessary places.
At the bottom line of the drawing leave 50mm distance and draw 3 horizontal lines which looks as a border lines of the drawing.
Leave a particular space and create a duct and also create a free pipe in the design.
At a section of 3900mm rectangle create a small rectangle at the bottom of the wall and draw 2 vertical lines.
Type l for line command and draw all the necessary lines which are given in the design as per proper spaces.
Type tr for trim command and remove all unnecessary lines from the drawing.
Dimensions –
Type un for units and select the decimal in units and take precision of 0.
And click on the mili meter.
Also choose the proper size of the arrow and texts.
And give the proper suitable colour to the text and lines.
Press ok.
Give dimensions wherever required.
Hatching –
Type H for hatch command and 1 dialogue box will shown.
Select the pattern of AR-CONC and select the scale no is 1.
Also select the colour no 9.
Click on the boundaries and click on “ add pick points “.
Click on all walls and enter.
Type H for hatch command and 1 dialogue box will shown.
Select the pattern of SOLID and select the scale no is 1.
Also select the colour no 240.
Click on the boundaries and click on “ add pick points “.
Click on lowest 3 border type rectangles and enter.
Preass ok.
And select the area and click on it.
Type on text – single line text and give the text wherever required.
Give the diagram name as SECTION VIEW.
Creation of layout
- Open the AutoCAD
- Go to application menu, select the open option and open the challenge 9
- Go to the layout from layout tab and rename the layout as ’challenge 9'.

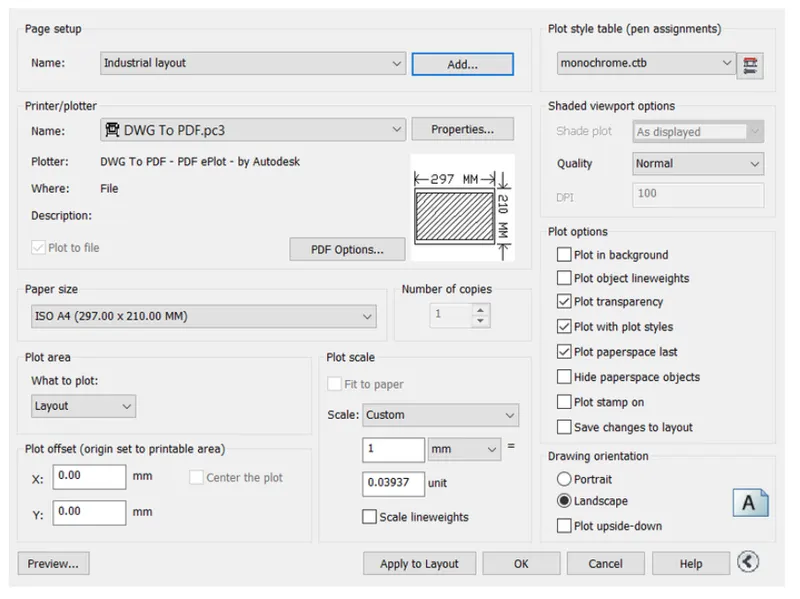

- Go to layout tab, right click, and select the page setup
- In page setup manager, select the Iayout name, select the modify option, and mollify the setting as shown below.

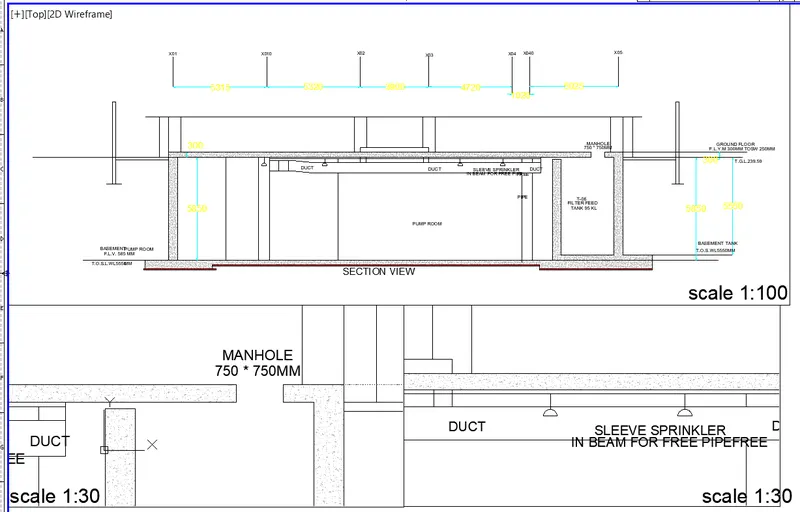

- Type MV in command box, press enter, select the 3 option from command box, select the above option specify first point and second
- In modal space type V in command box and press enter, select the new option from view manager dialog box, give
the name to view as VI and select define window option and in modal space define
the view using the window.
- Similarly create the view naming V2 and V3 by following the some
- Go to the paper space, type MS in command box press enter, seIect the first viewport and type V in command box and press
- Select the VI view from model space, sat current and select ok.
- Select the standard scale from custom scale as 1:100.
- Type PAN in command box, press enter and adjust the view such that it fit inside the viewport
- Type PS in command box, press enter, select the viewport, right click, and lock the
- type MS in command box press enter, select the second viewport and type V in command box and press
- Select the V2 view from model space, set current and select
- Select the standard scale from custom scale as 1:30.
- Type PAN in command box, press enter and adjust the view such that it fit inside the viewport
- Type PS in command box, press enter, select the viewport, right click and lock the
- type MS in command boxPress enter, select the third viewport and type V In command box and Press enter.
- Select the V3 view from modal space, set current and select
- Select the standard scale from custom scale as 1:30.
- Type PAN in command box, press enter and adjust the view such that it fit inside the viewport
- Type PS in command box, press enter, select the viewport, right click and lock the
- Type ST in command box, press enter, select the font name Arial with the height as 0 units and select
- Type DT in command box, press enter, specify text height as 5 units, specify rotation angle as 0 and type the text as per required content as SCALE — 1:100.
- Type CO in command box, press enter, select the just written text, press enter, select the base point and copy it to the required
- Type ED in command box, press enter, select the text required to edit and edit it as per required
- Go to layout tab, right click on layout tab and select the plot option, select continue to plot single sheet, check the settings and select the preview option and see the
- Right click on preview and select the plot option, give the file name and save it in laptop
