Creation of geometries by Coordinate system methods using AutoCad

(A) Create the geometries from Pl to P2 using all the coordinates system methods. And we need to use line tool, and find the missing dimensions.

Absolute cooardinate system:

P-1 drawing:

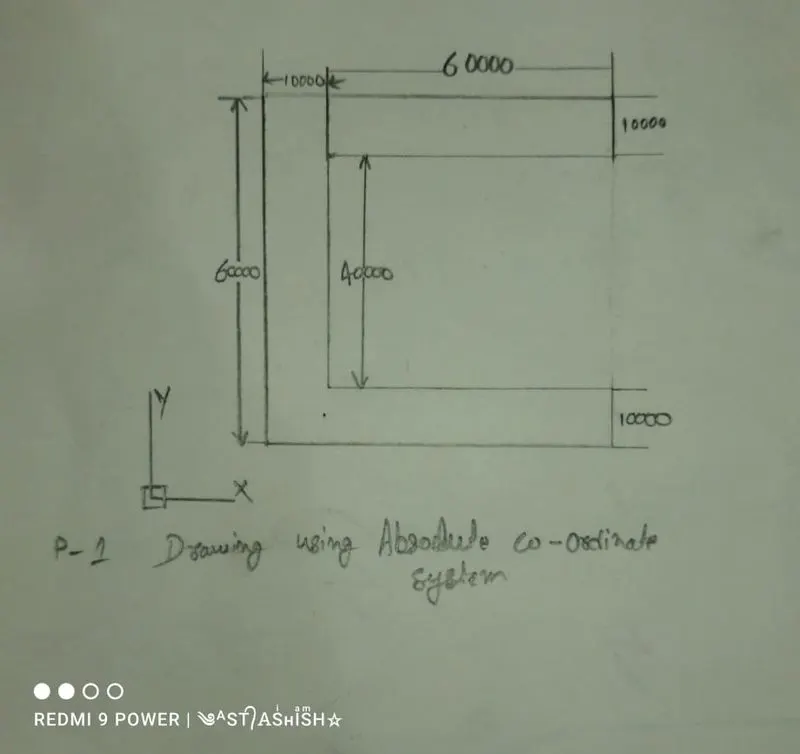

Below we have drawn the P-1 drawing using the absolute coordinate system,Relative rectangular coordinate system:

P-1 drawing:

Here Below we have drawn the P-1 drawing using the

Relative rectangular coordinate system,

The co-ordinates are (2,1) (@6,0) (@0,1) (@-5,0) (@0,4) (@5,0) (@0,1) (@-6,0)

P-2 drawing:

Here Below we have drawn the P-2

drawing using the Relative rectangular coordinate system,

The co-ordinates are (2,1) (@3,0) (@0,4) (@1,0) (@0,-4) (@3,0) (@-2,7) (@-3,0)

(@-2,-7)

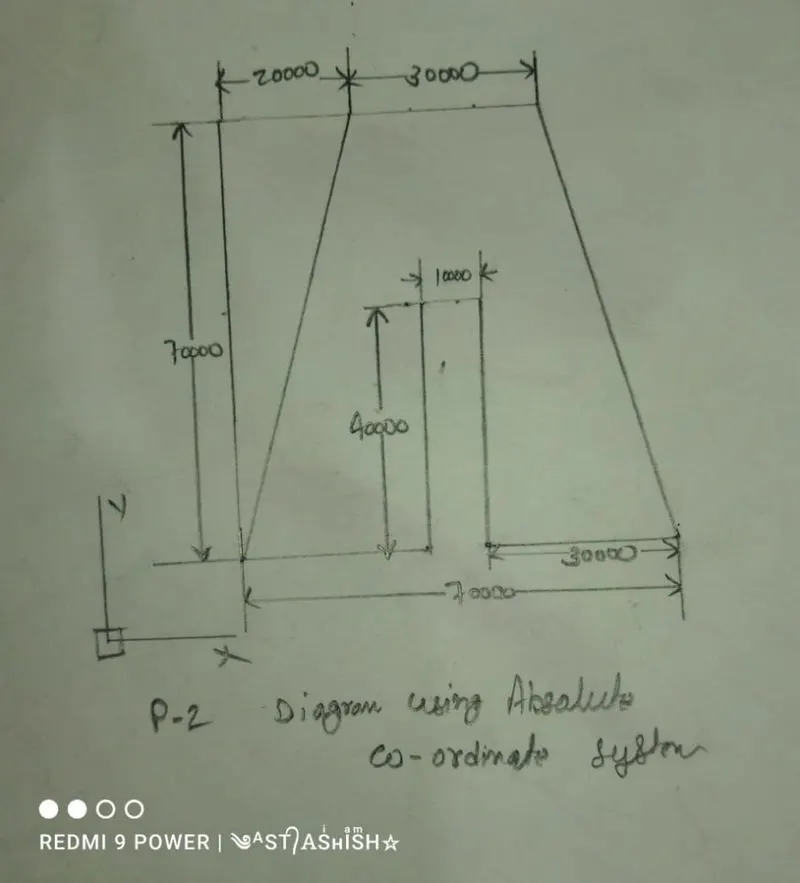

Below we have drawn the P-2 drawing using the absolute coordinate system,

P-3 drawing:

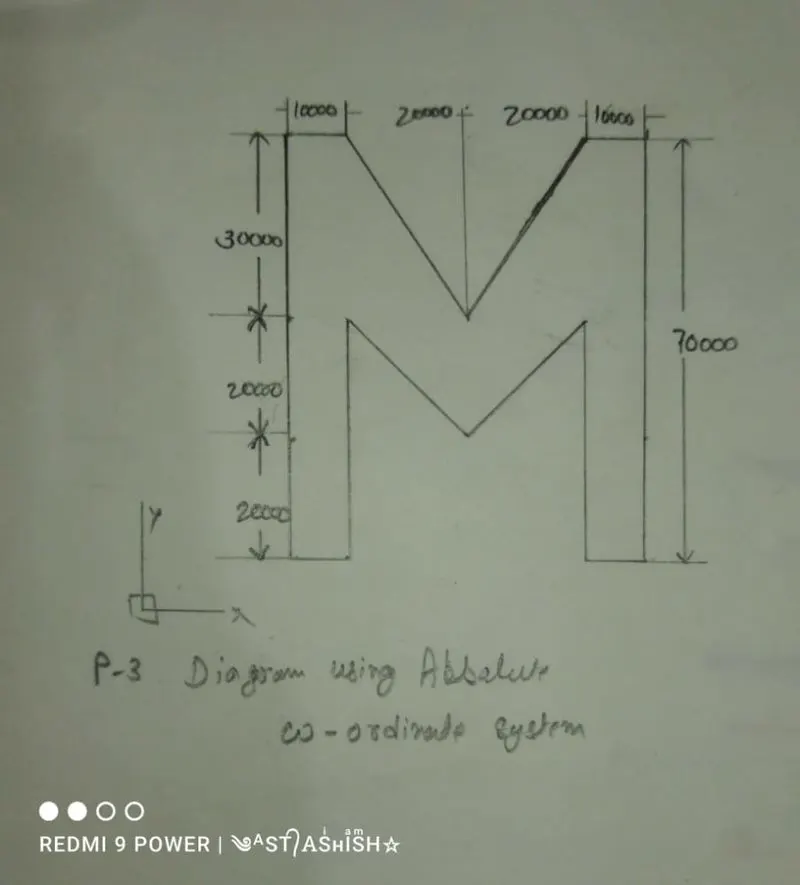

Below we have drawn the P-3 drawing using the absolute coordinate system,

Below we have drawn the P-3 drawing using the Relative rectangular coordinate system,

The co-ordinates are (2,1) (@1,0) (@0,4) (@2,-2) (@2,2) (@0,-4) (@1,0) (@0,7) (@-2,-3) (@2,-3) (@-1,0) (@0,-7)

P-4 drawing:

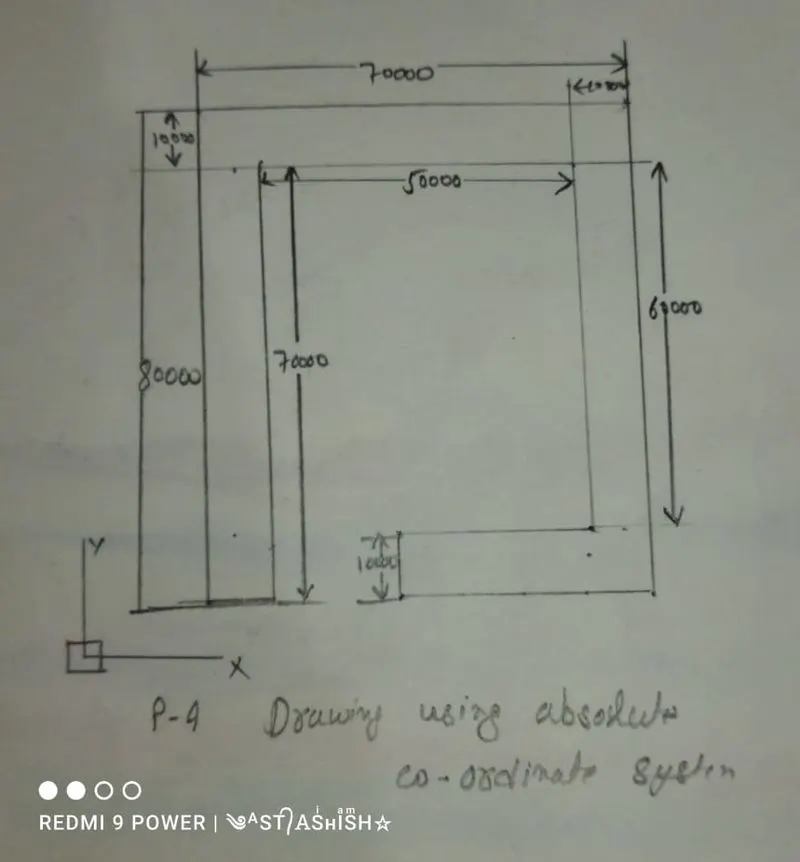

Below we have drawn the P-4 drawing using the absolute coordinate system,

Below we have drawn the P-4 drawing using the Relative rectangular coordinate system,

The co-ordinates are (2,1) (@1,0) (@0,7) (@5,0) (@0,-6) (@-3,0) (@0,-1) (@4,0) (@0,8) (@-7,0) (@0,-8)

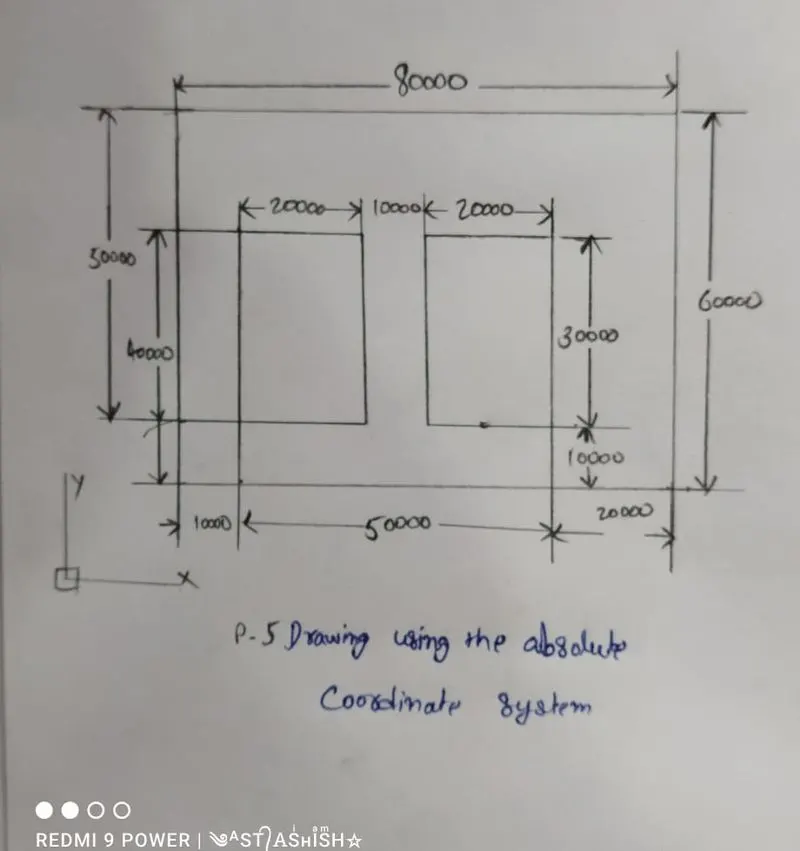

P-5 drawing:

Below we have drawn the P-5 drawing using the Relative rectangular coordinate system,

The co-ordinates are {(2,1) (@8,0) (@0,6) (@-8,0) (@0,-6) (3,5) (@2,0) (@0,-3) (@-2,0) (@0,3) (6,5) (@2,0) (@0,-3) (@-2,0) (@0,3)} in the sequence.

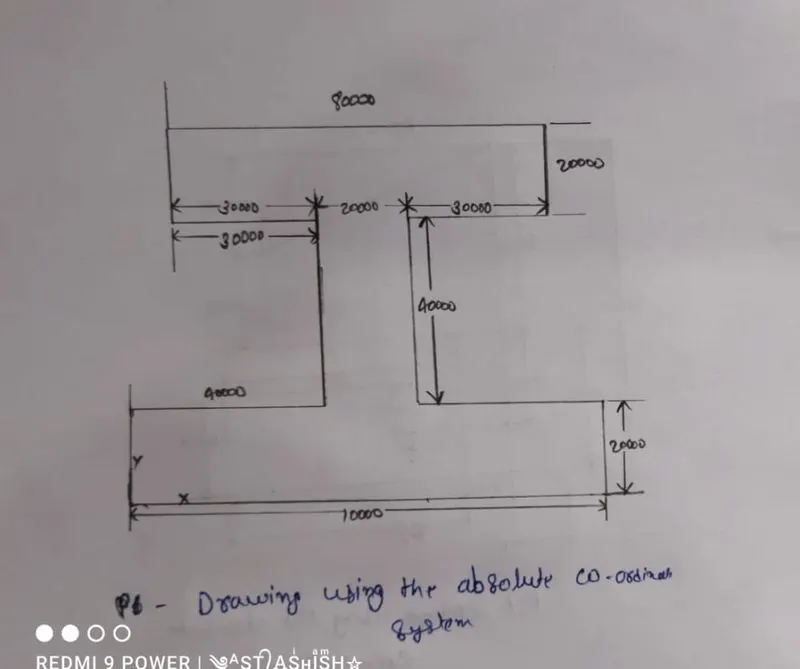

P-6 drawing:

Below we have drawn the P-6 drawing using the Relative rectangular coordinate system,

The co-ordinates are {(0,0) (@0,2) (@4,0) (@0,4) (@-3,0) (0,2) (@8,0) (@0,-2) (@-3,0) (@0,-4) (4,0) (@0,-2) (@-10,0)} in the sequence

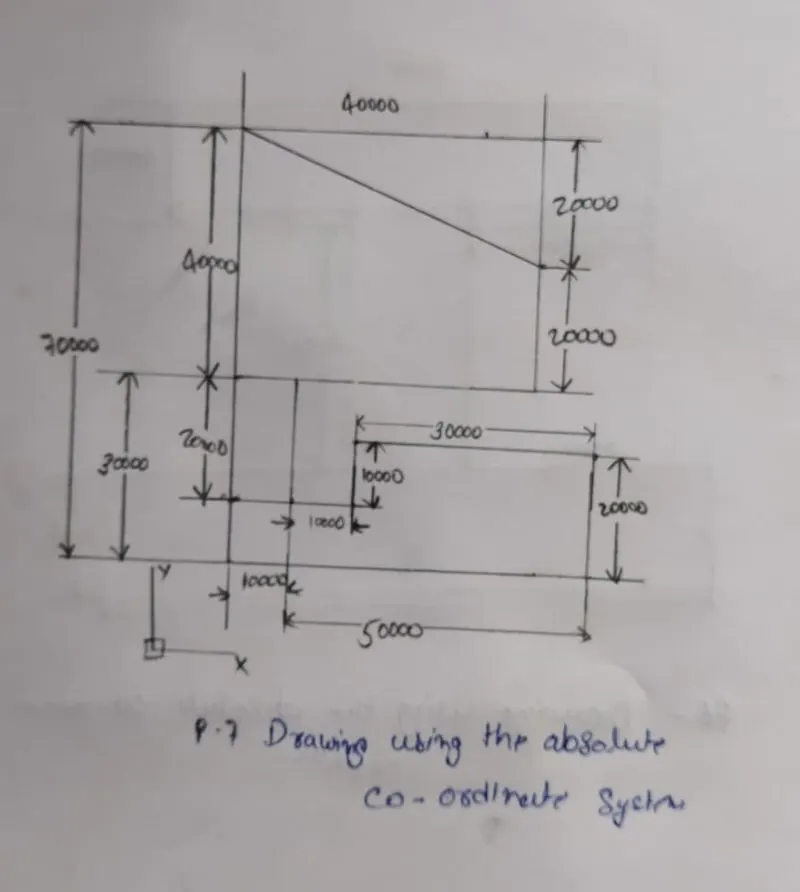

.P-7 drawing:

Below we have drawn the P-7 drawing using the Relative rectangular coordinate system,

The co-ordinates are {(1,1) (@5,0) (@0,2) (@-3,0) (@0,-1) (-1,0) (@0,2) (@3,0) (@0,2) (@-4,2) (@0,-7)} in the sequence.

P-8 drawing:

Below we have drawn the P-8 drawing using the Relative rectangular coordinate system,

The co-ordinates are {(1,1) (@2,0) (@0,3) (@3,0) (@0,4) (-5,0) (@0,-7) (@2,7) (@3,0) (@0,-2) (@-3,0) (@0,2)} in the sequence.

Civil related problems- Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references.

• Now we draw the given diagrams using Absolute coordinate system method.

Profile wood:
