Creation of Column Schedule and Drawing Template using AutoCad
AIM:

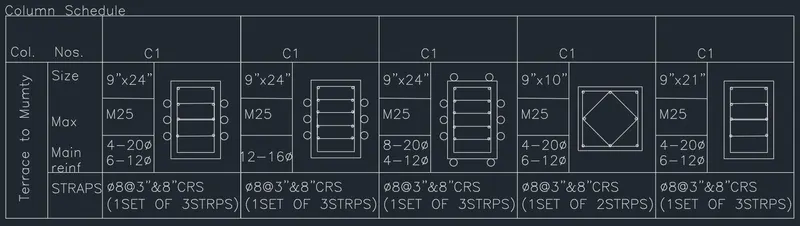

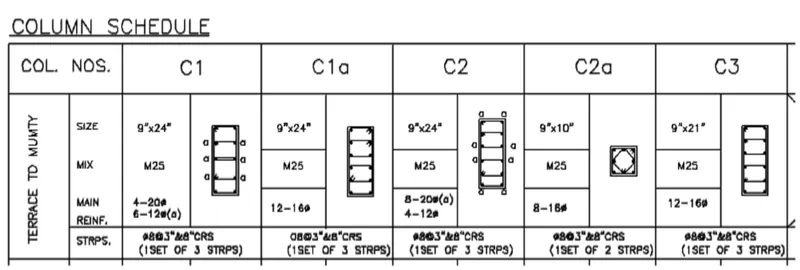

To Create a column schedule as shown in the figure:
PROCEDURE:
STEP1
- In the command prompt type line to create tables
- In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left (justify)
- In the command prompt type text to text the given text in the drawing
- In the command prompt type MTEXT (multiline text) > symbols > to get diameter symbol.
RESULT:
2)
AIM:

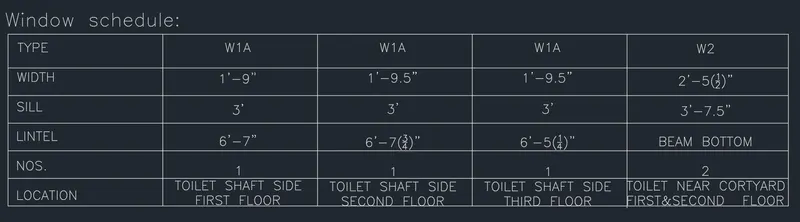

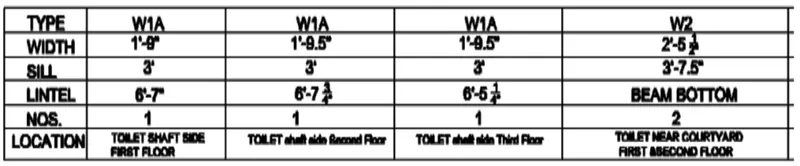

To Create a window schedule as shown in the figure:
PROCEDURE:
STEP 1:
- In the command prompt type line to create tables
- In the command prompt type ST (text style ) > romans.shx (font name ) > 8" (height ) > center(justify )
- In the command prompt type text to text the given text in the drawing
RESULT:
3)
AIM:

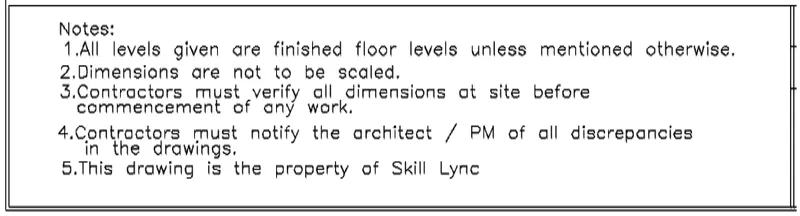

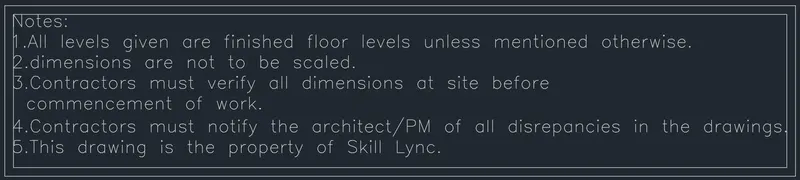

To Create the drawing template as shown in the figure:
PROCEDURE:
- In the command prompt type line to create tables .
- In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify).
- In the command prompt type text to text the given text in the drawing .
RESULT:
4)
AIM:

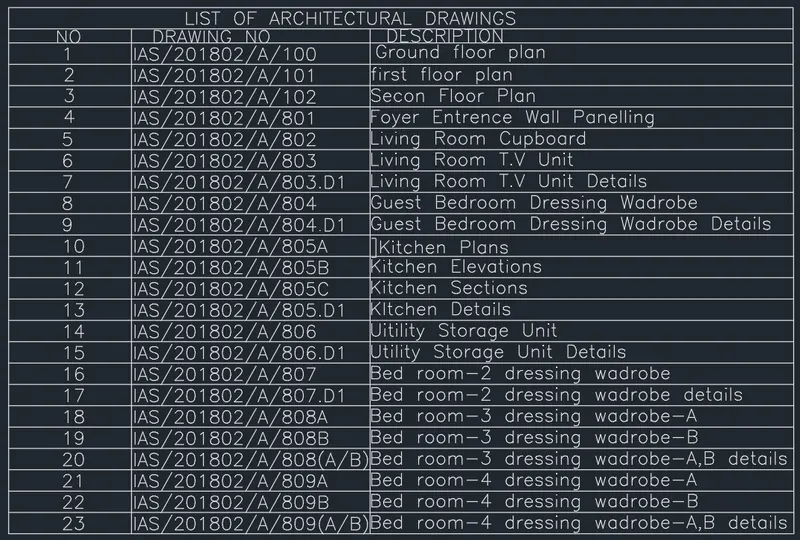

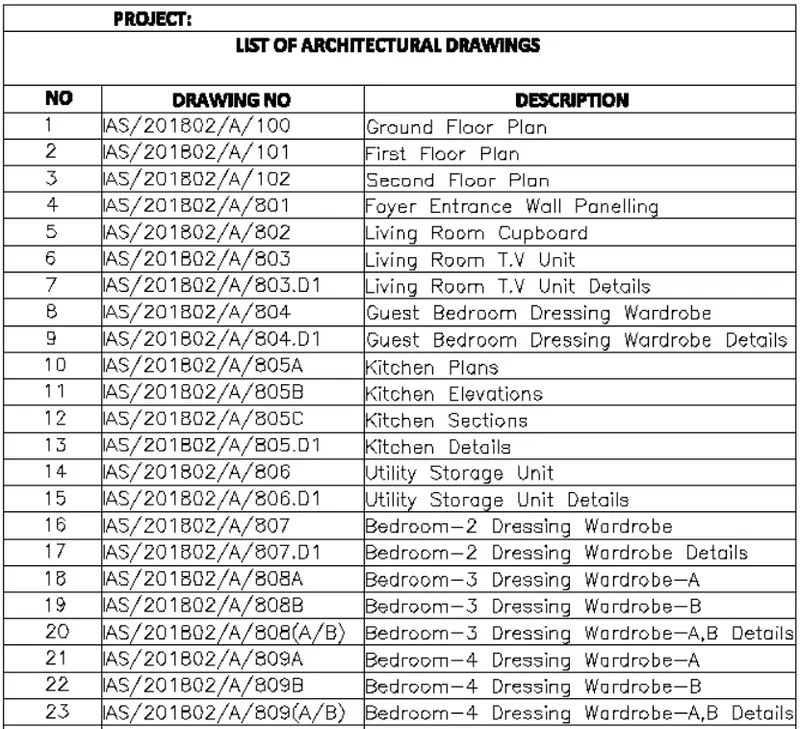

To Create the list of drawing schedule as shown in the figure:
PROCEDURE:
- In the command prompt type line to create tables .
- In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify) .
- In the command prompt type text to text the given text in the drawing .
RESULT:
5)
AIM:

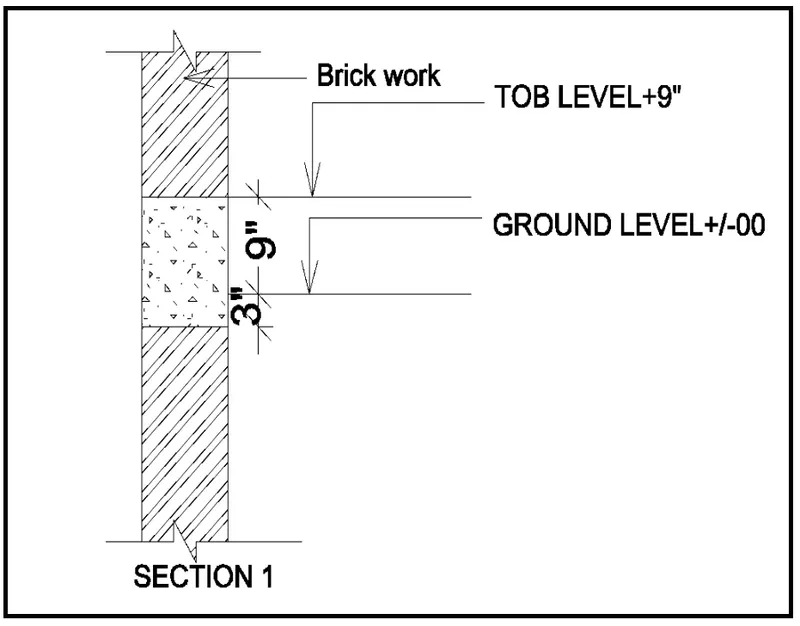

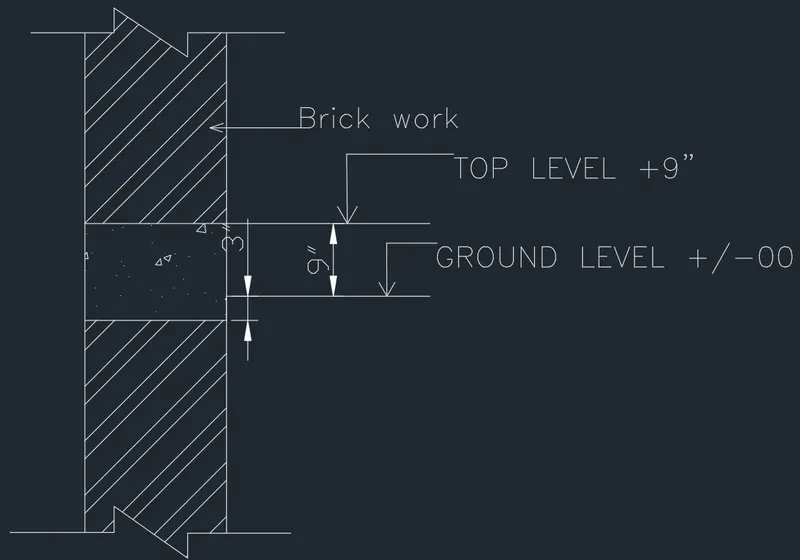

To Create the beam detail as shown in the figure:
PROCEDURE:
STEP 1:
- In the command prompt type UNITS > Engineering> Inches .
STEP 2:
- In the command prompt type Line (to create the column) .
- In the command prompt type Text to text the given drawings .
- In the command prompt type HATCH to hatch the given drawings .
RESULT:
