Creating Walls, Partition walls and Floors for a residential layout using REVIT
Ans1. Aim- Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2

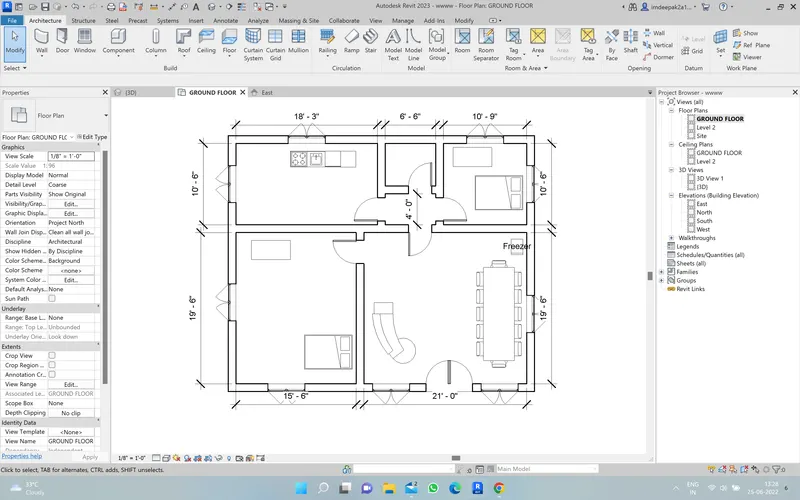

1. Set the templete in architecture and then creat the floor plan
select the wall from the architecture and select the wall types then creat the wall after creating the wall add the window and doors and for the window and doors go to architecture and select the doors and windows.
then add the material like bed and chair for bed and chair go to componenet and select place component and load the family.
and show the all dimension for the dimension go to the annotate and select aligned.
Then add the floor select the floor and then go to architecture ald select floor and select pick line then go to plan and select the ages of the plan then click yes mark

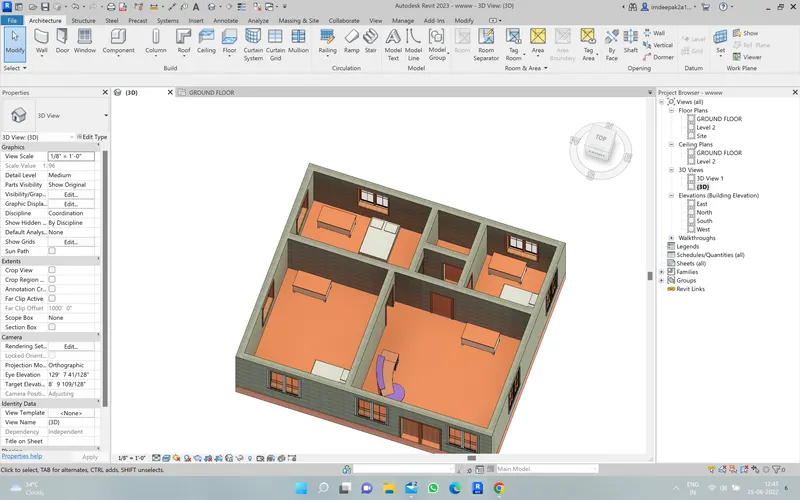

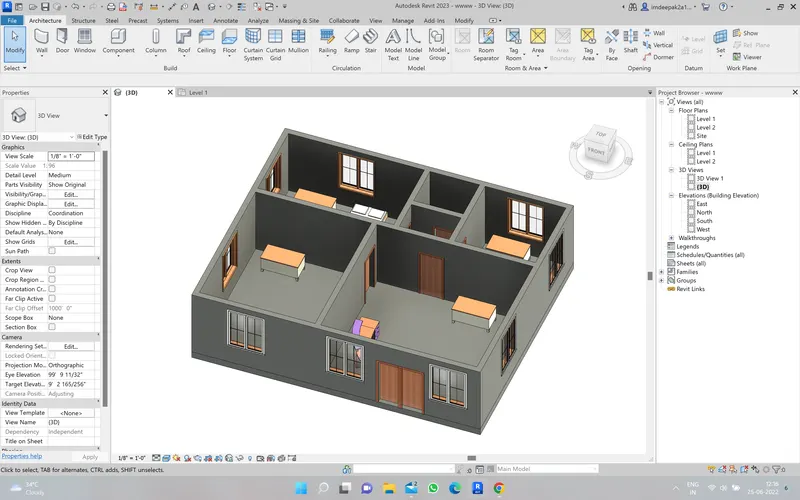

for add the material go to 3D view and select the floor then go to property and click on the edit type and edit then select the any material and ok ,ok ,and apply and ok
if you want to change the thikness of floor then select the floorthen go to property and click on the edit type and edit then set the thikness any one like 2' enter and ok ,ok ,and apply and ok

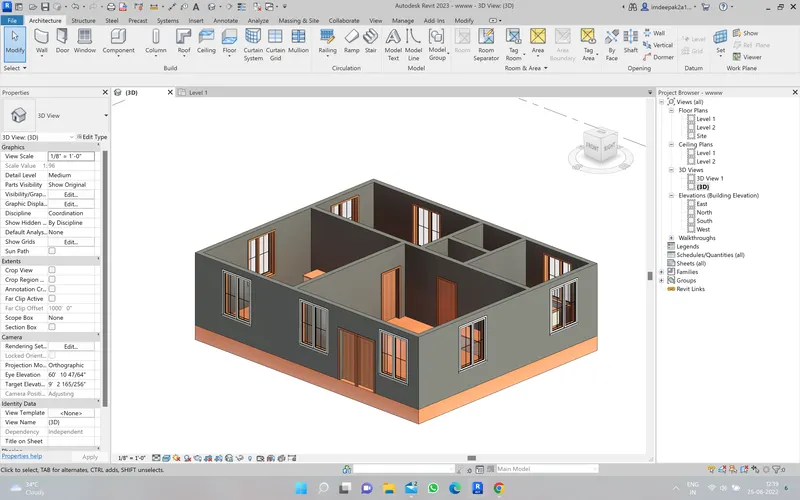

Ans2. Aim-Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
1. Set the templete in architecture and then creat the floor plan
select the wall from the architecture and select the wall types then creat the wall after creating the wall add the window and doors and for the window and doors go to architecture and select the doors and windows.
then add the material like bed and chair for bed and chair go to componenet and select place component and load the family.
and show the all dimension for the dimension go to the annotate and select aligned.
Then add the floor select the floor and then go to architecture ald select floor and select pick line then go to plan and select the ages of the plan then click yes mark

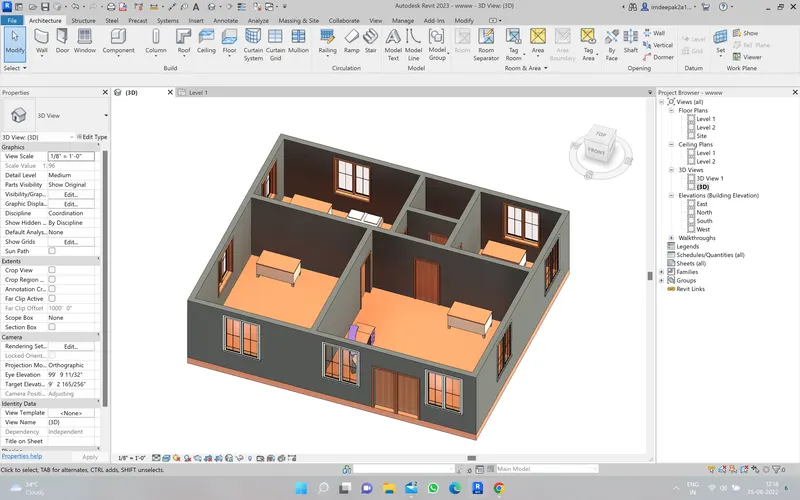

if you want to add material in the wall the select the wall and go to property and click on the edit type and then click edit and select the material like concrete and any then and click ok again ok and apply and ok
For the edit the thikness of wall
1. select the wall and go to the property
2. and click on the edit type
3. and the click on the edit and edit the thikness of wall then and click ok again ok and apply and ok

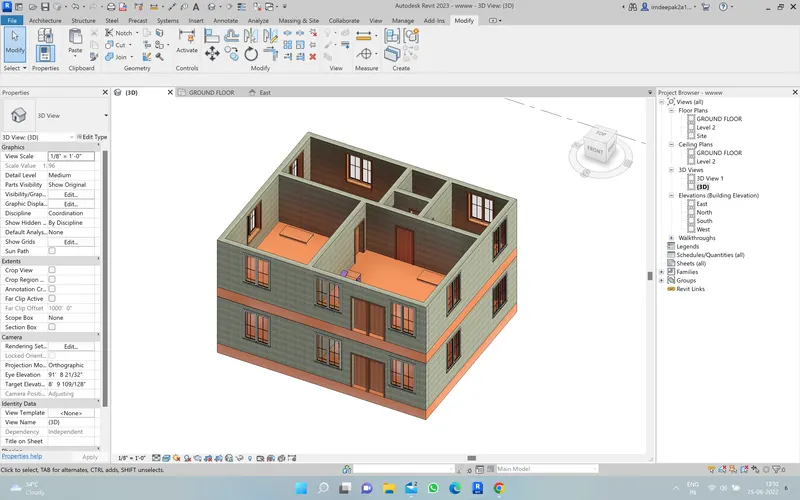

Ans3. Aim-Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level

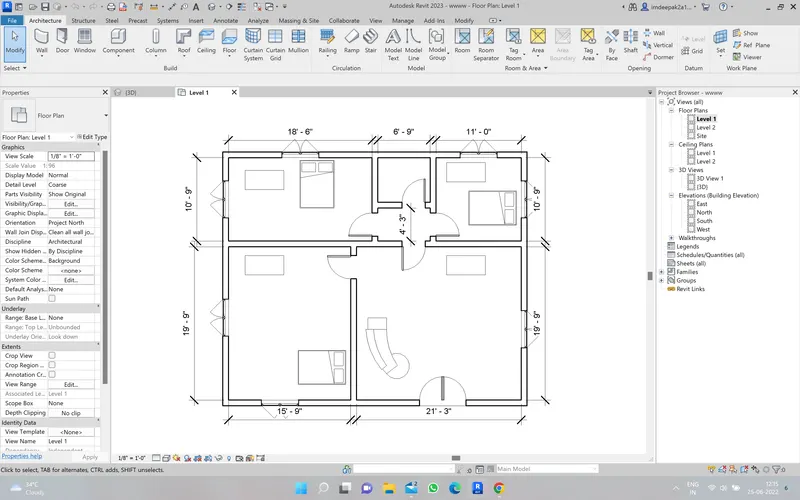

1. select the floor plan and then go to the upper bar and select the copy to clip bord and go to the pest and select the Aligend to select level then select the level and ok
Ans4. Aim-Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

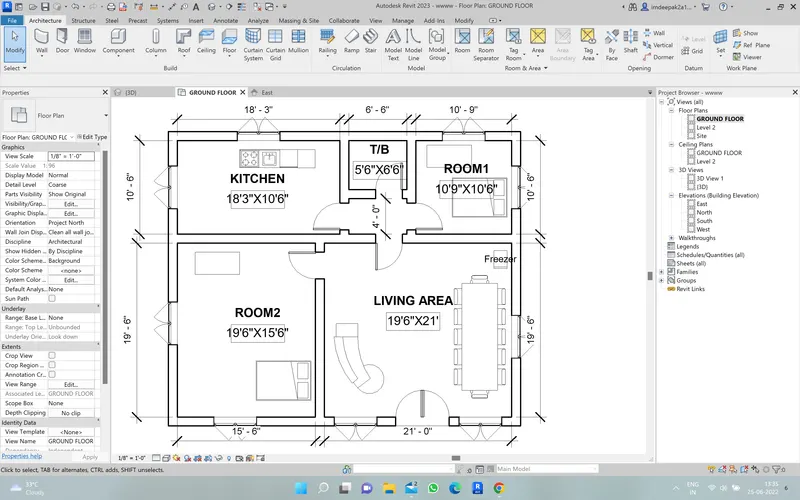

1. for the room area go to the architecture and select the room and then click the every room and then edit the room name and area
Ans5. Aim-
Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model
a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes
All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model

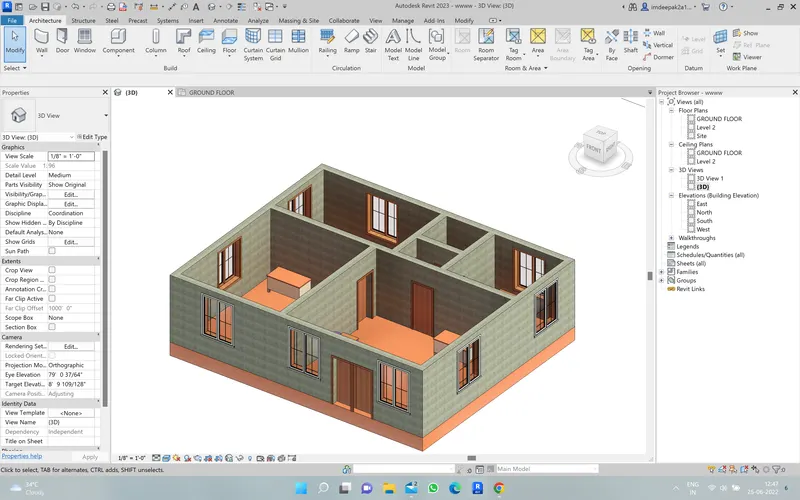

for the mension the table and etc all family to go architecture and select the component and then click on the place a componenet
and go to the load family and select the what you want and impliment on the floor plan
