Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

DDiptadip Ray24 Aug 2022

Aim: To create a set of sinusoidal points and create a curve and create a surface out of the curve. by using Dynamo

Procedure:

Open Revit software

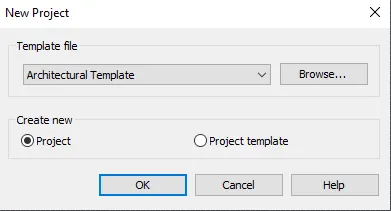

Open architecture template

Now we get Revit workspace
Now go to the Manage tab and select Dynamo

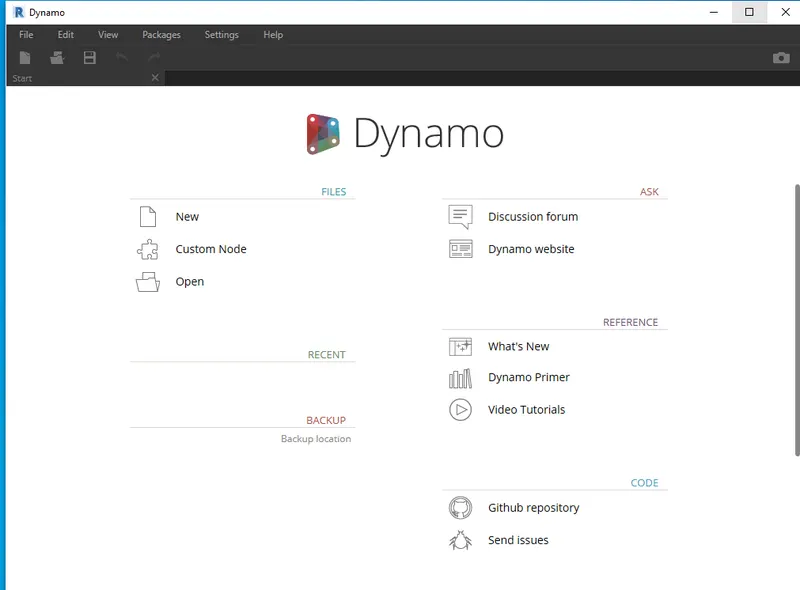

Now we get Dynamo window

Now select new
We get Dynamo workspace

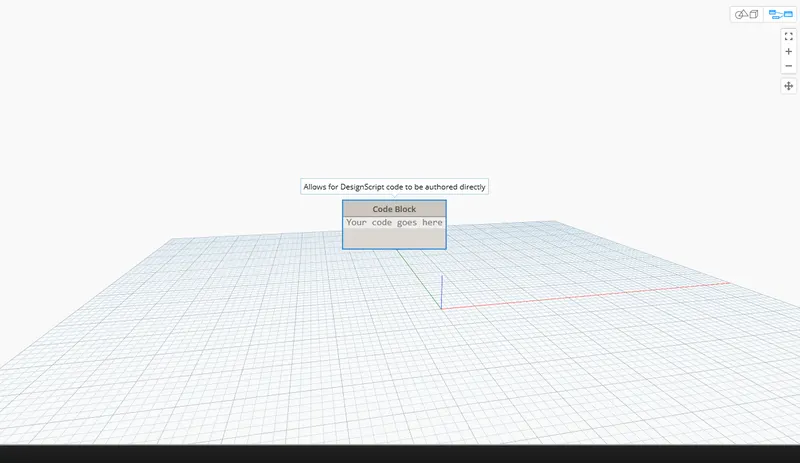

Double click anywhere to get code block

Now insert 3 code blocks by double-clicking on workspace and rename the code block to start, End, Step
Now insert (Range) and (Points by coordinates) from the library

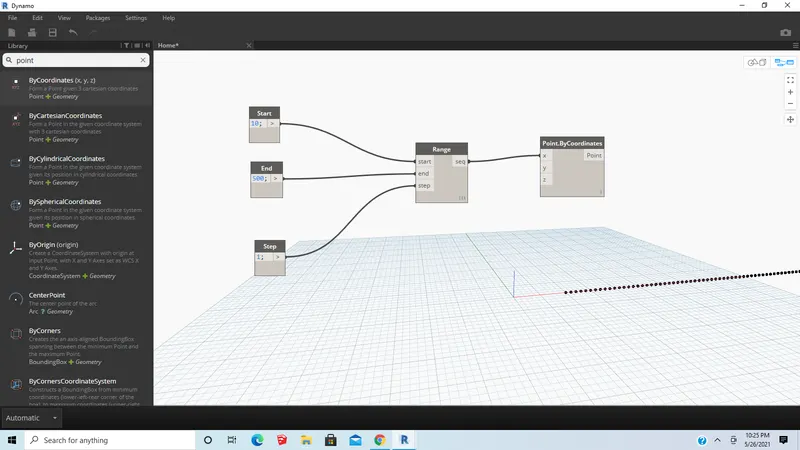

Now connect the blocks as shown
Now we get the Sinusoidal points

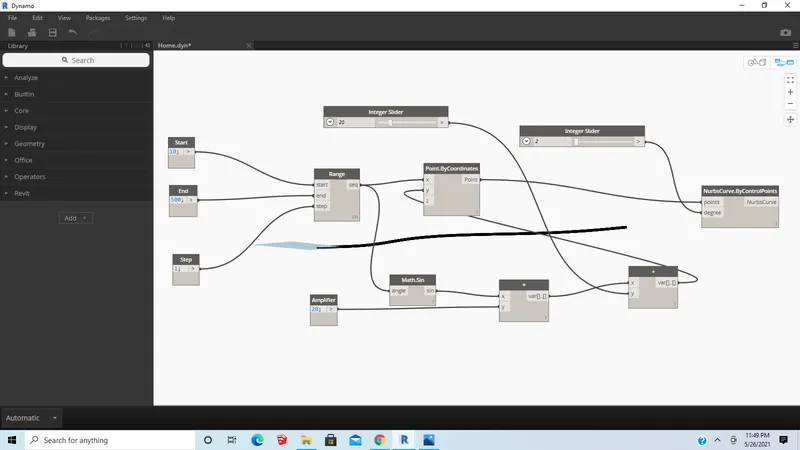

Now insert (2 Integer slides),(point by coordinates),(+),(*),(mathsin),(nurbscurve by control points) from library
Now insert code block and rename it as Amplifier
Now connect all blocks as shown

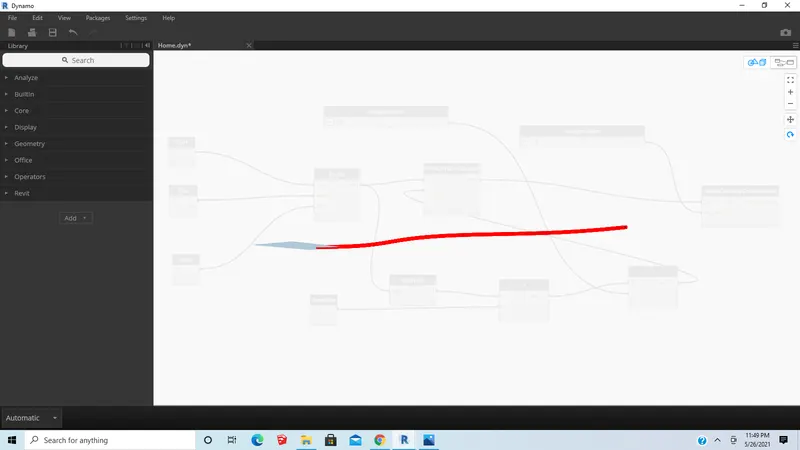

Now we get a curve as shown

Now copy all the codes and paste them 3 times
Now set the integer sliders with different values

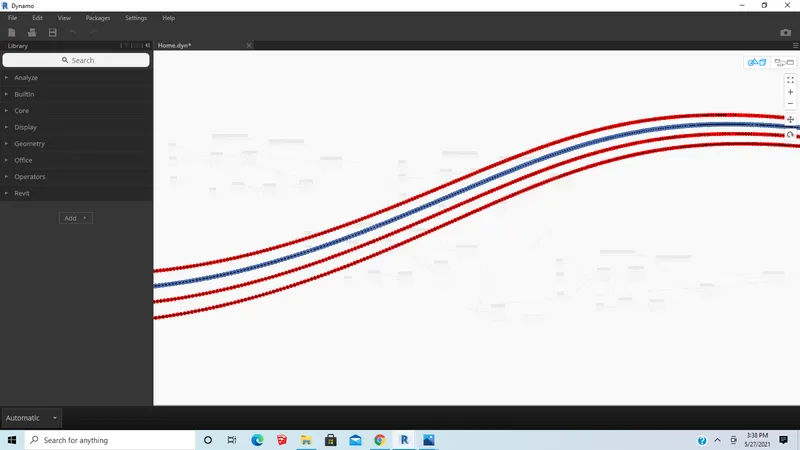

Now we get the four curves as shown

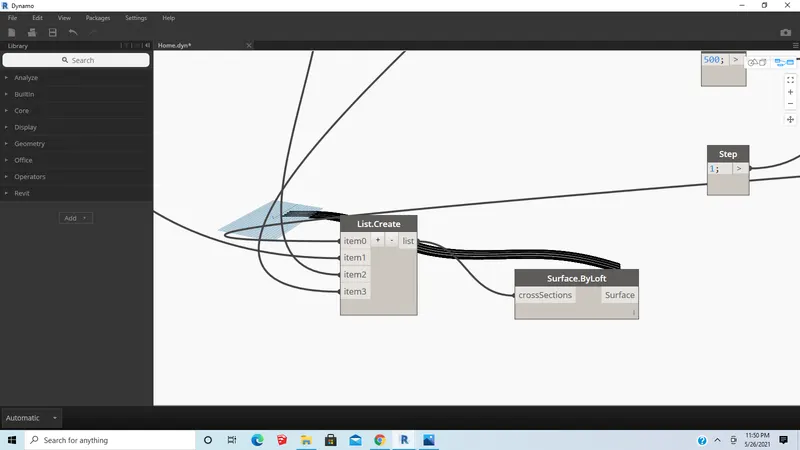

Now to add surface to the curves we have to insert (list create) and (surface Byloft)
Now connect all blocks as shown

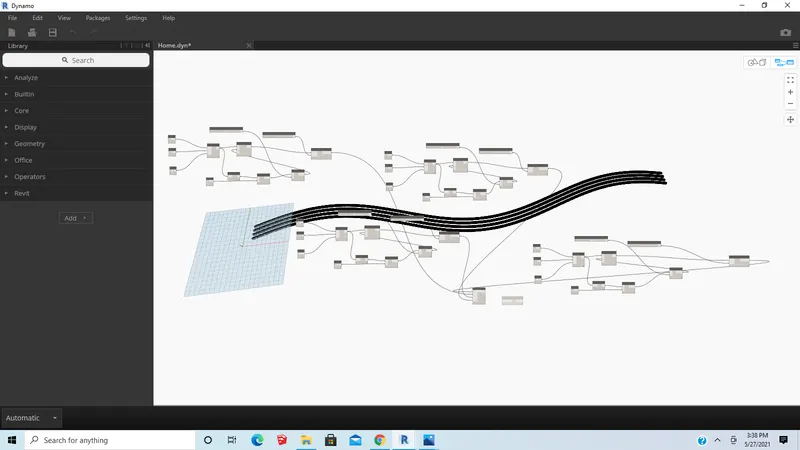

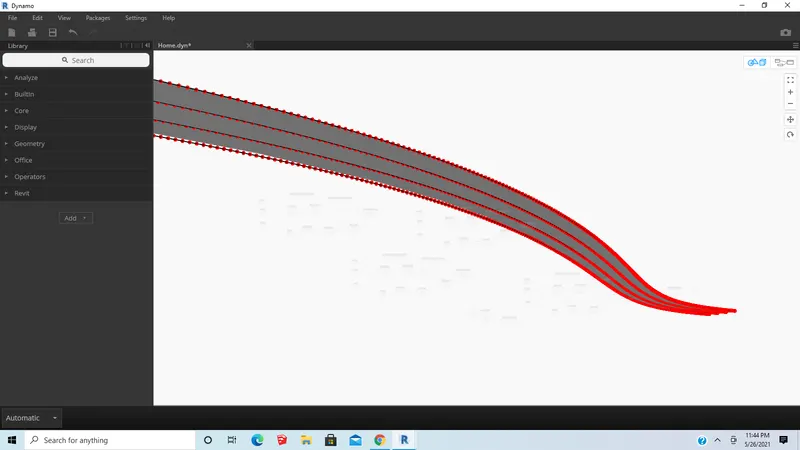

Now we get the surface as shown

Result: The given task has been completed successfully

2 ans:

Aim: To create a conceptual layout of the floor plan in dynamo

Procedure:

Open Revit software
Open architecture template

Now we get Revit workspace
Now go to the Manage tab and select Dynamo

Now we get Dynamo window

Now select new
We get Dynamo workspace

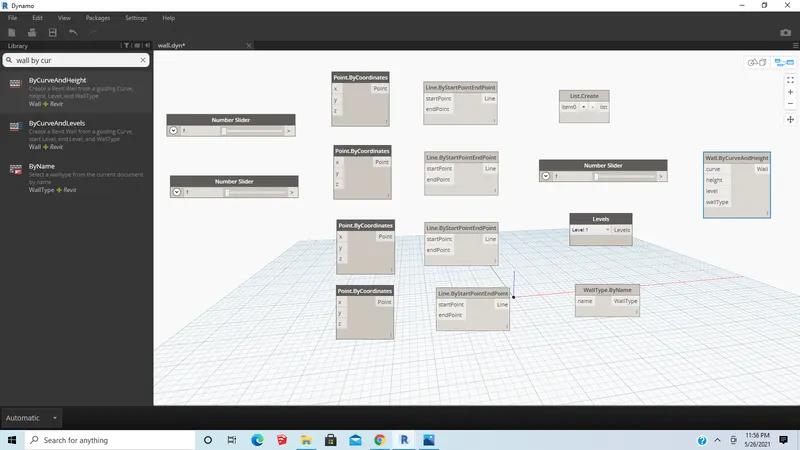

Now insert (3 Number sliders),(4 Point by coordinates),(4 Line by startpointEndpoint),(List create),(Levels)(wall type. Byname),(Wall by curve and height) from the library as shown

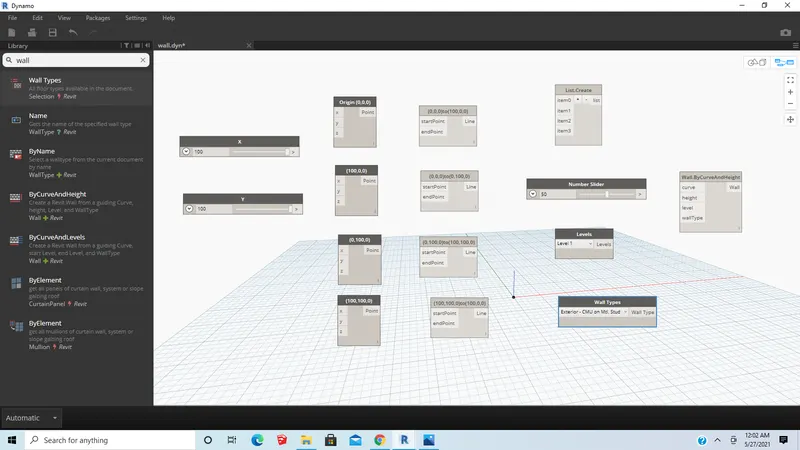

Now rename the blocks by clicking the name tag of a block as shown

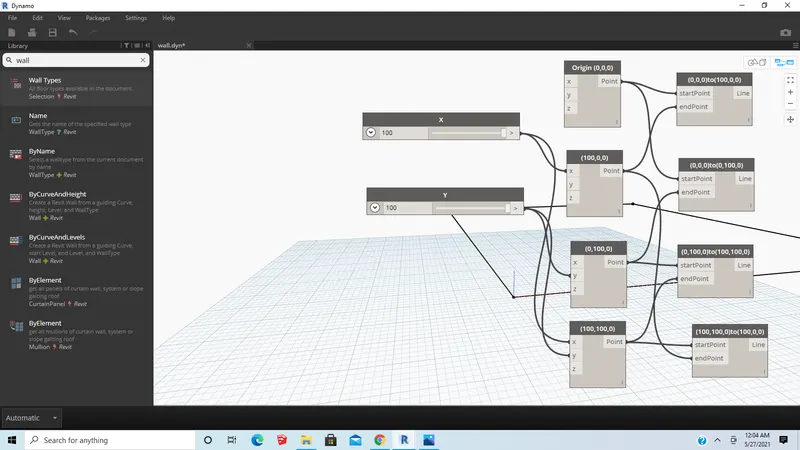

Now connect all the blocks as shown

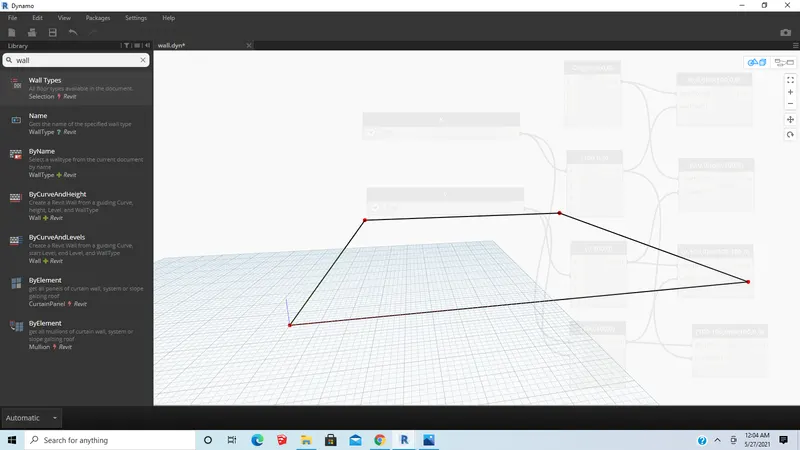

We get the rectangle

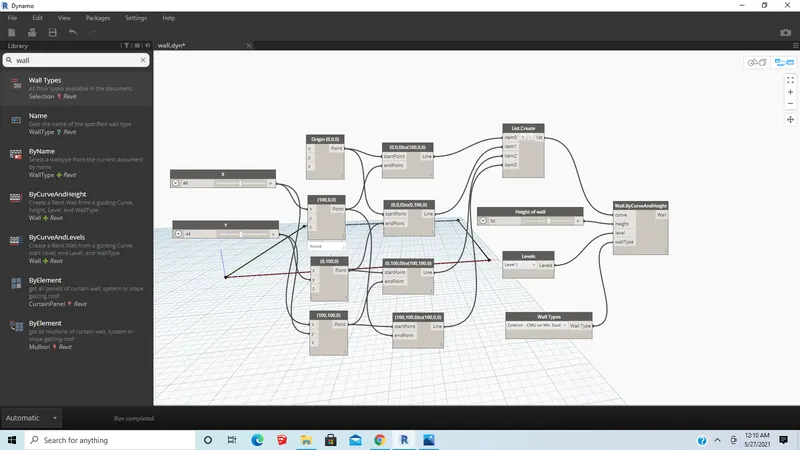

Now join all the blocks as shown

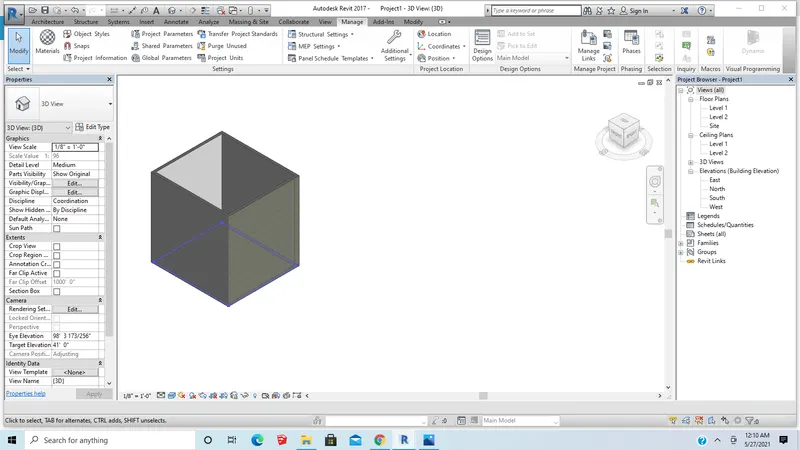

We get the outer walls as shown

If we want to change the wall length and breadth we should increase the x and y values in slider

Result: The given task has been completed successfully

3 ans:

Aim: To create an array of model elements in Revit. Using dynamo to vary the properties of model elements by using the slider or code block

Procedure:

Open Revit software
Open architecture template

Now we get Revit workspace

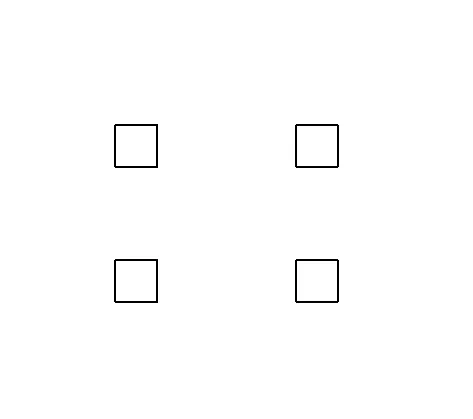

Now goto architecture tab and select column and insert four columns as shown or insert one column and make copy-paste as shown

Now go to the Manage tab and select Dynamo

Now we get Dynamo window
Now select new

Now we get Dynamo workspace

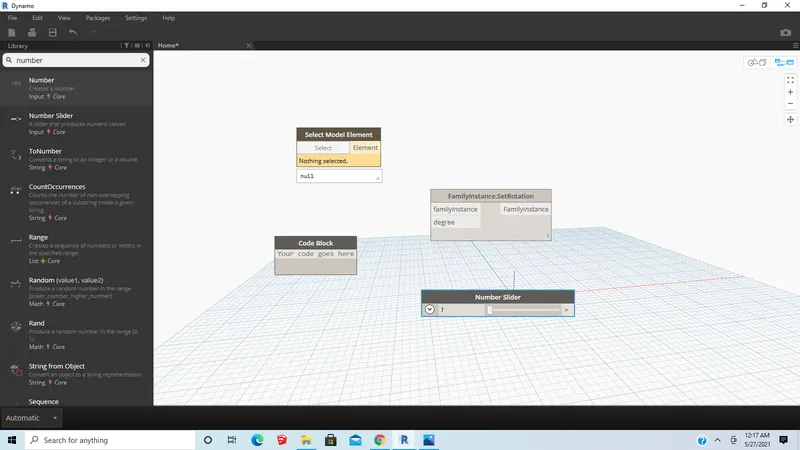

Now insert (Select model Element),(Familyinstance set rotation),(Number slider)
Now insert code block by double-clicking

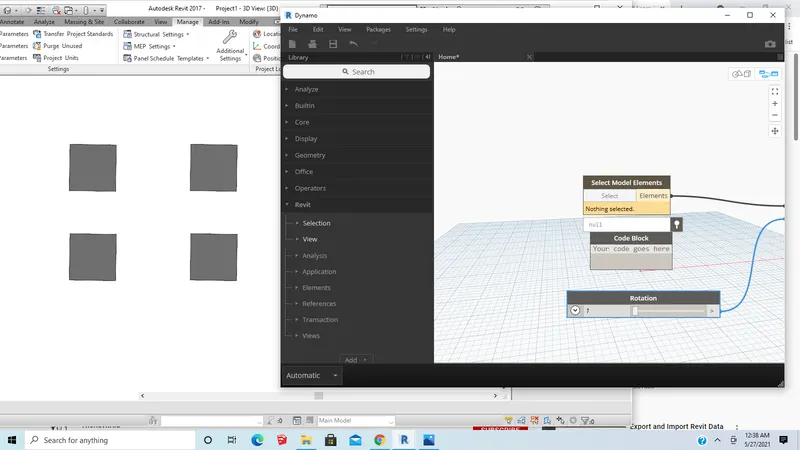

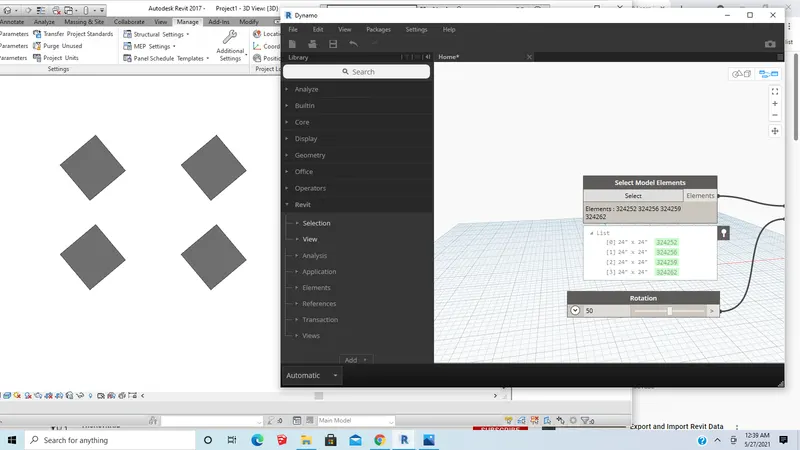

Now click on the Dynamo restore button and make Revit and Dynamo windows side by side as shown

Now select columns in Revit and click on select in select model Elements
And Now change the rotation value to rotate the columns as shown

Result: The task has been completed successfully

4 ans:

Aim:To Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply concepts similar to those used in parametric walkway modeling.

Procedure:

Open Revit software
Now select New in familes
Now we get a window

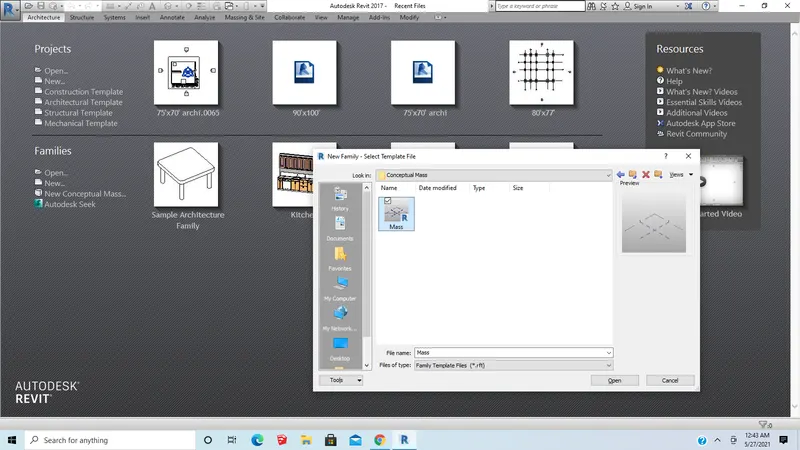

Now open conceptual mass and select mass as shown

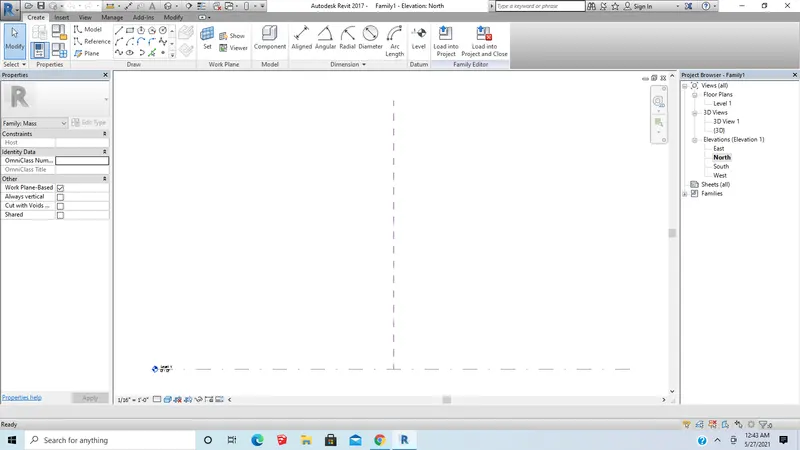

Now we get a work space and keep it in North view

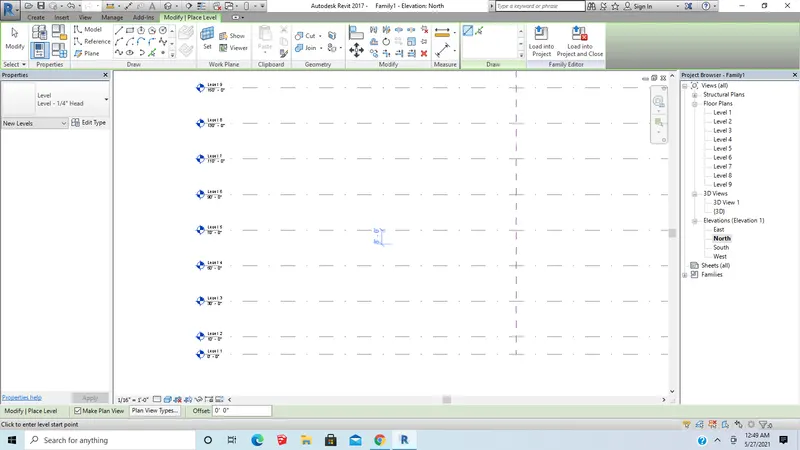

Now create levels as shown

Now keep it in level 1 and draw a rectangle or square

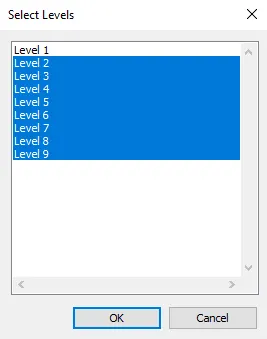

Now copy the square and paste it in all levels as shown

Now we the squares in each level

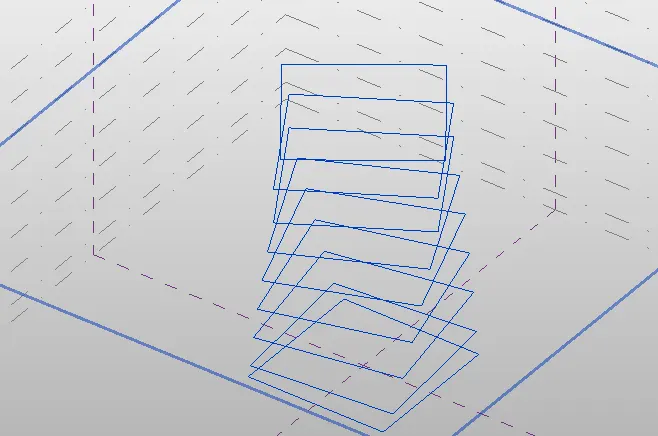

Now select each level and rotate it each square by 5 or 10
Now keep it in 3d view.We get the model as shown

Now select all the squares and click on create form as shown

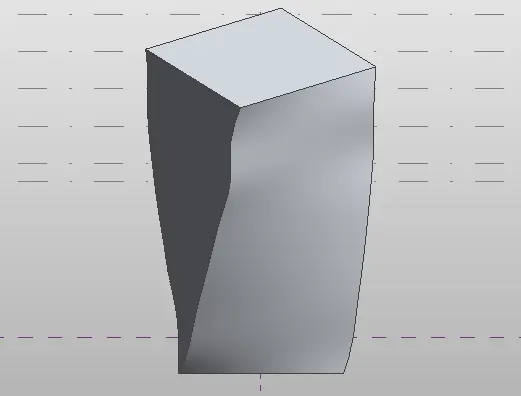

Now we get the model as shown

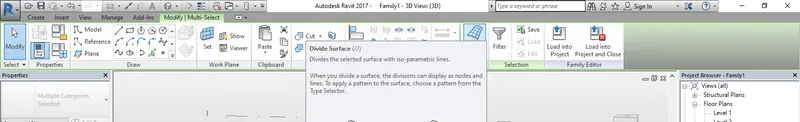

Now select the model and click on divide surface

Now we get divided surface for model

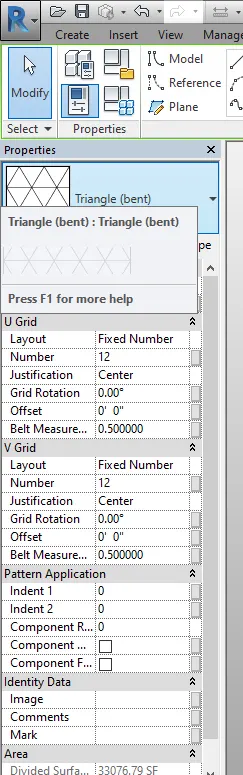

Now select model and in properties tab change it to triangle bents

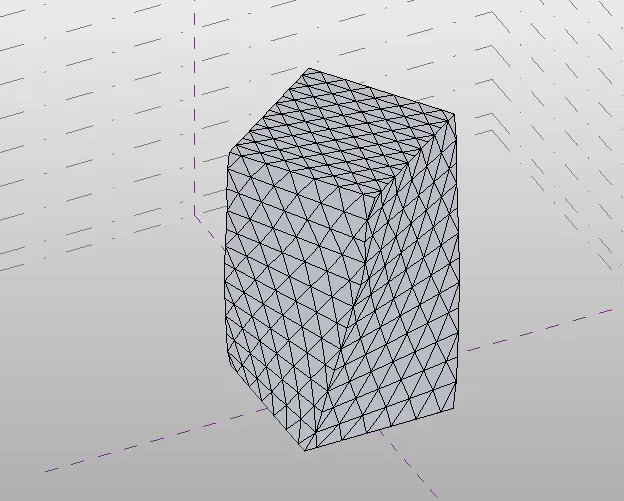

Now the surface has changed to triangle bents as shown

Result:The given task has been completed successfully

5 ans:

Aim: To Use Dynamo to work on developing a Parametric Stadium.

Procedure:

Open Revit software
Open architecture template

Now we get Revit workspace
Now go to the Manage tab and select Dynamo

Now we get Dynamo window

Now select new
We get Dynamo workspace

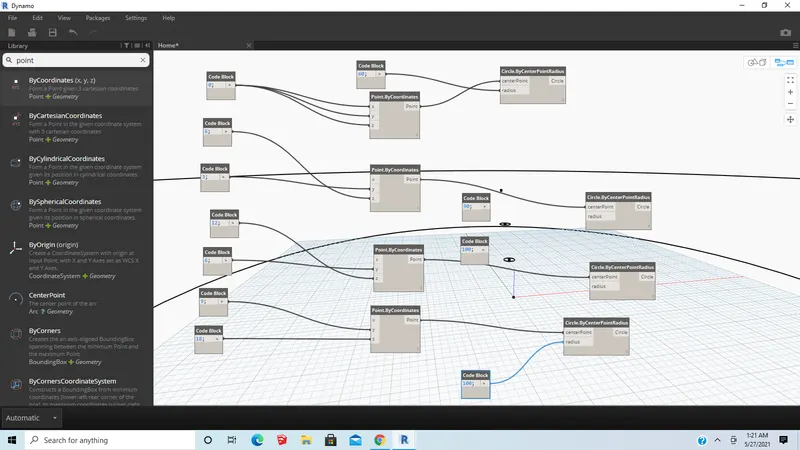

Now insert (4 point.By coordinates),(4 circle by centerpointradius) from the library
Now insert 11 code blocks and give values
Now connect all as shown

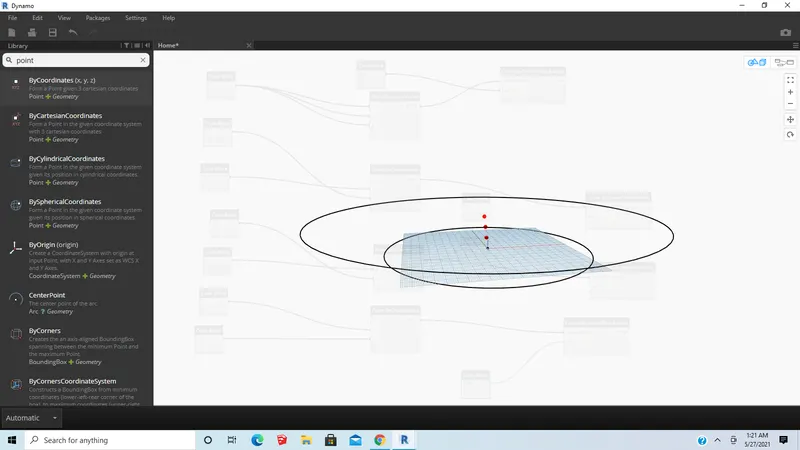

Now we get the model as shown

Now insert again (4 point.By coordinates),(4 circle by centerpointradius) and (listcreate),(surfaceByloft) from the library
Now insert 13 code blocks more

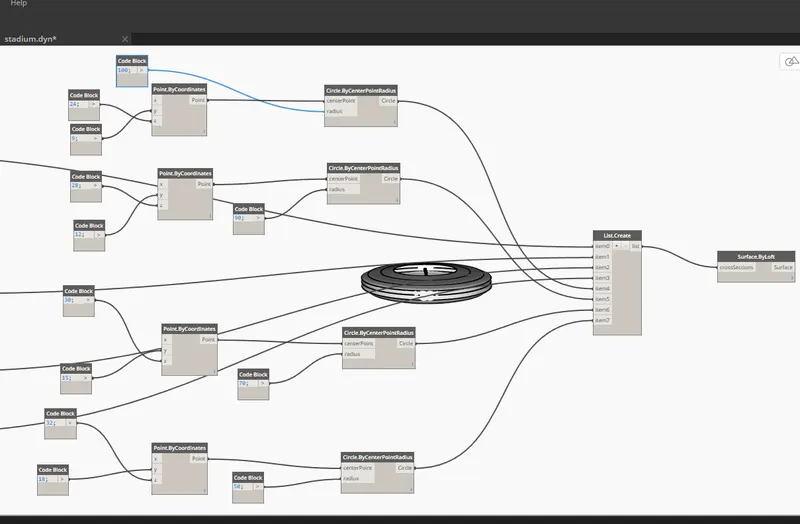

Now connect all as shown

Connect all previous and which are inserted now as shown

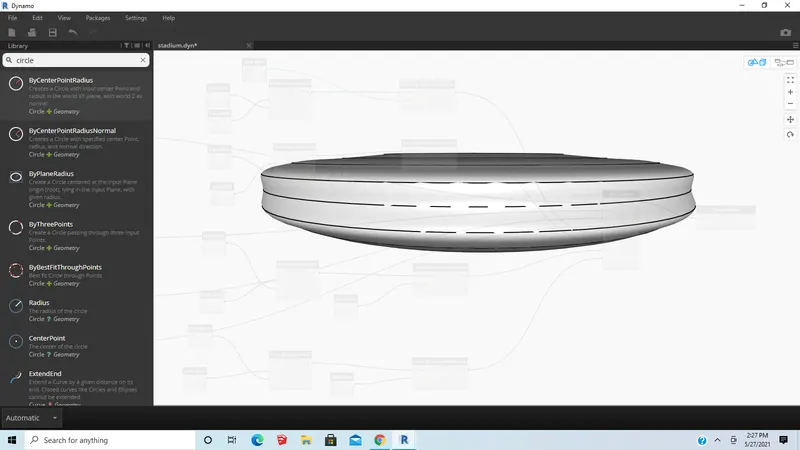

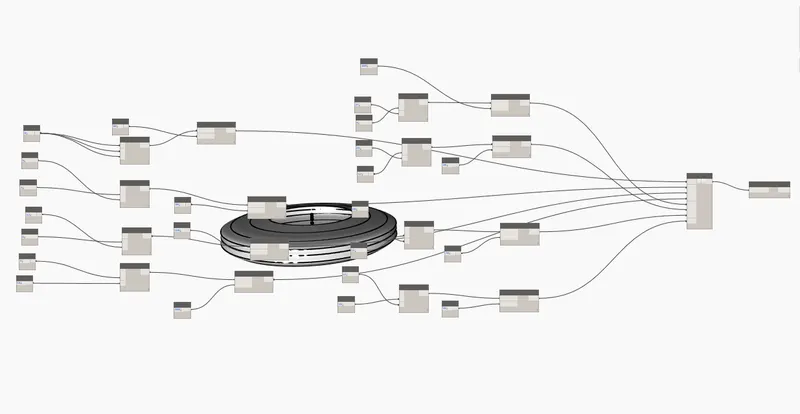

Now we get the model as shown

Result:The task has been completed successfully
