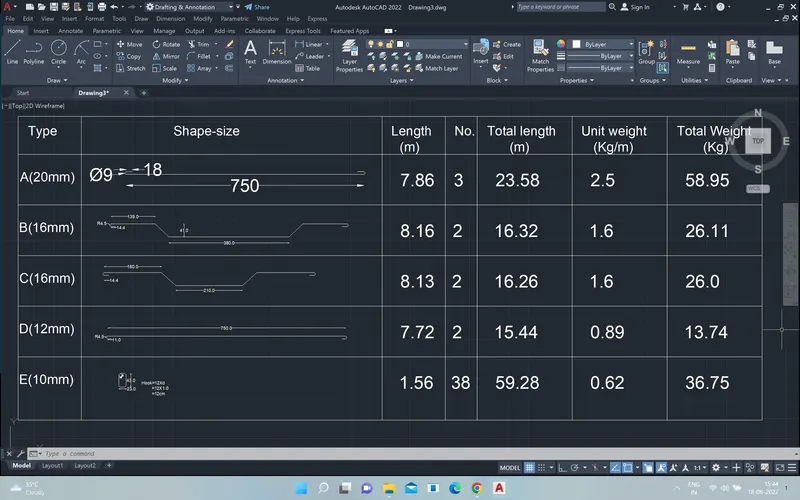

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

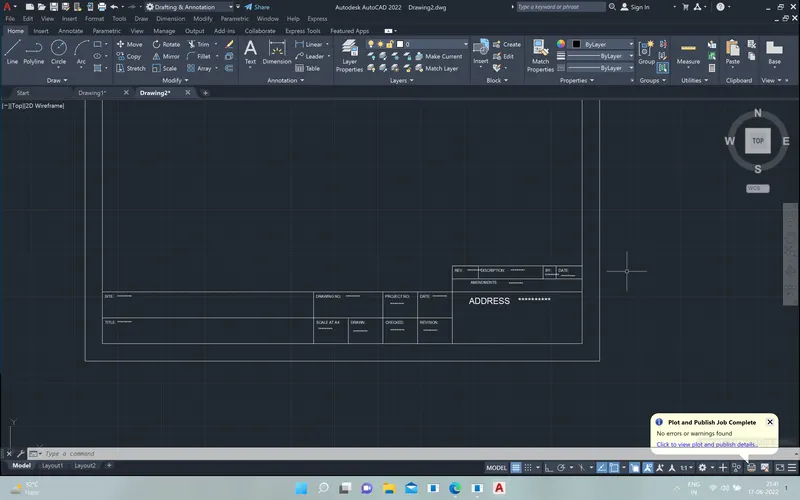

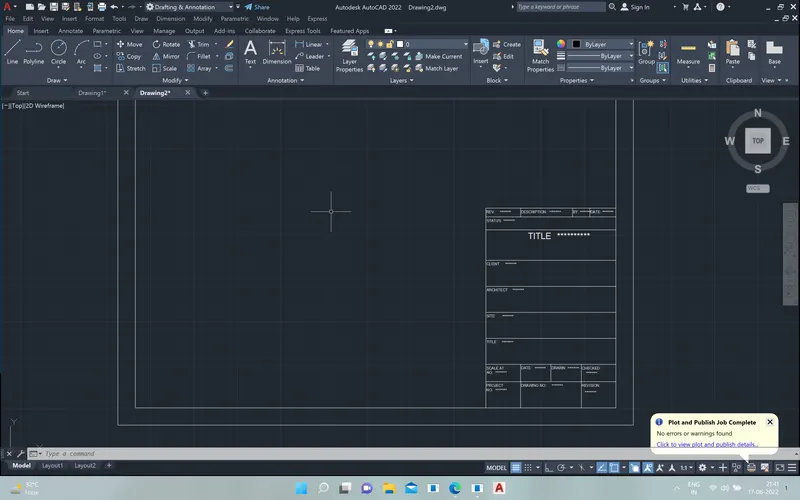

Ans1. Aim-Create the templates. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names.

1. set the unit using command UN enter

select the decimal and set the scale in mm

and select the paper size A2 594x420 in mm

ans assume trhe all C and R

As show in figure

using command offect commanf and line command

and add the attribute using command att enter

later size is 3 and 7 also

same prosess use in the second templat

using A2 paper size and assume the size of C and R

and add the all attribute using command ATT enter

latter size also 3 and 7

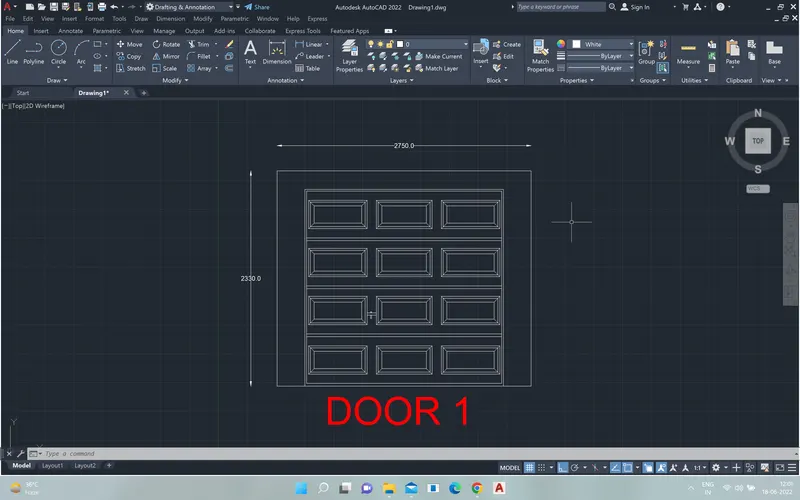

Ans2. Aim-Create the doors type for warehouse .. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them.

12. craet a squar of standard size

and the creat the block of the door

using command B enter then select the object enter and the pik point for creat the block ane check the open in block editor

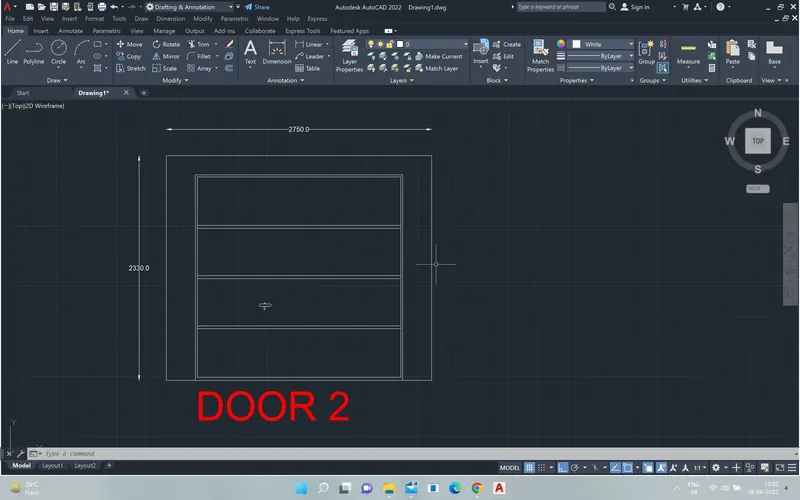

same process in the second image.

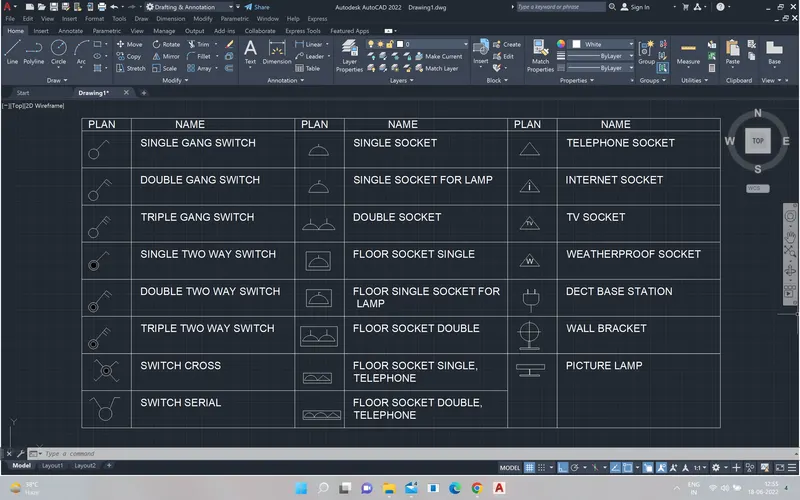

Ans 3.Aim-Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.

set the unit in mm

using command UN enter

1. frist creat the row and column and of a standard size

the fill the sambles and its name

the later size is 30

and the creat the block

using command B enter and select the object ant pik point and check open in block editor

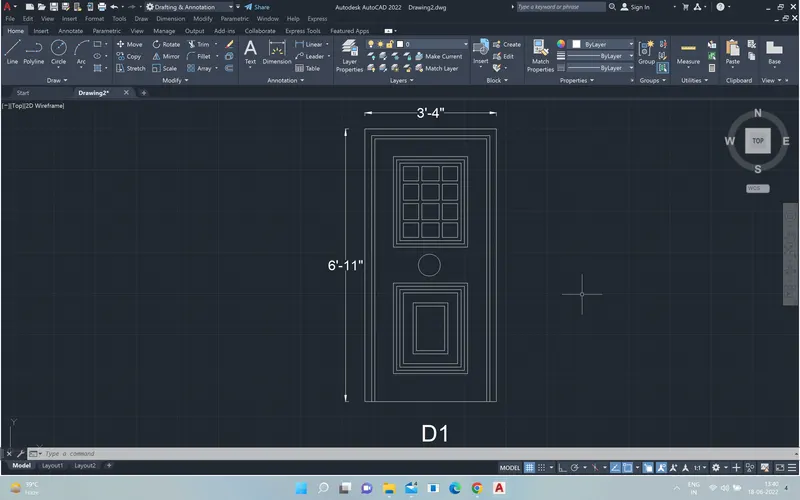

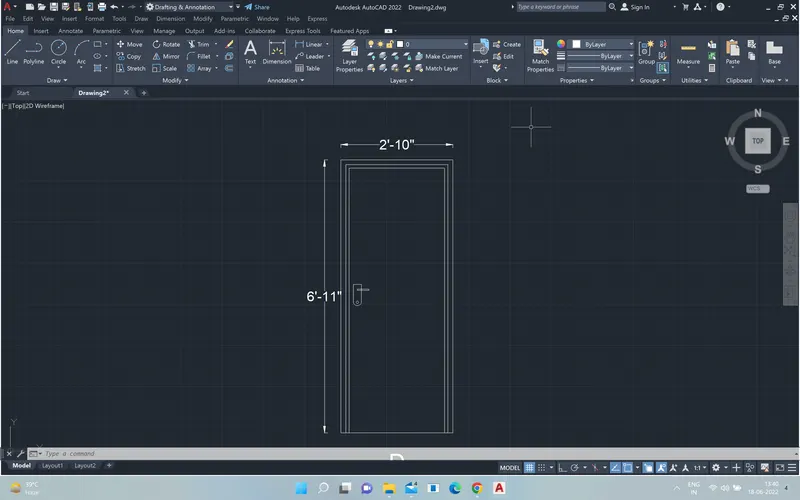

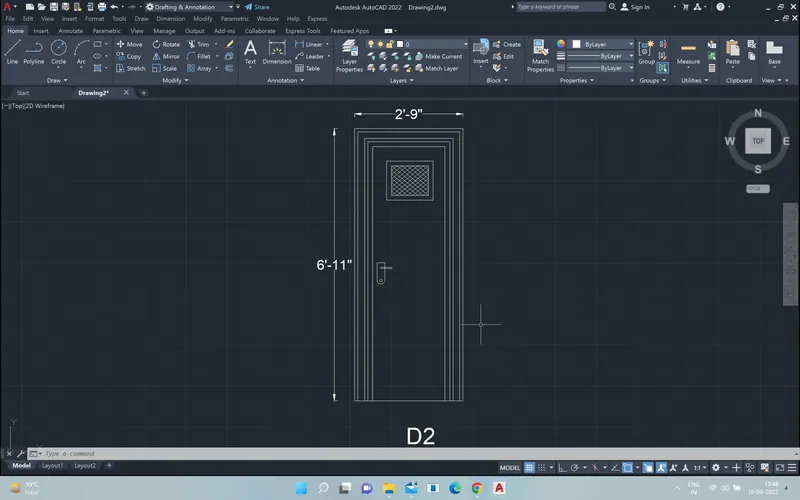

Ans3. Aim- Create the door type for residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.

1. set the unit and in inches

and the creat the doors using the line command and offset command and circle command

after creating the door the creat the block

using command B enter ane give the a name like door1 and sekect the object and enter and pick point and check in open in block editor for trhe creating the block

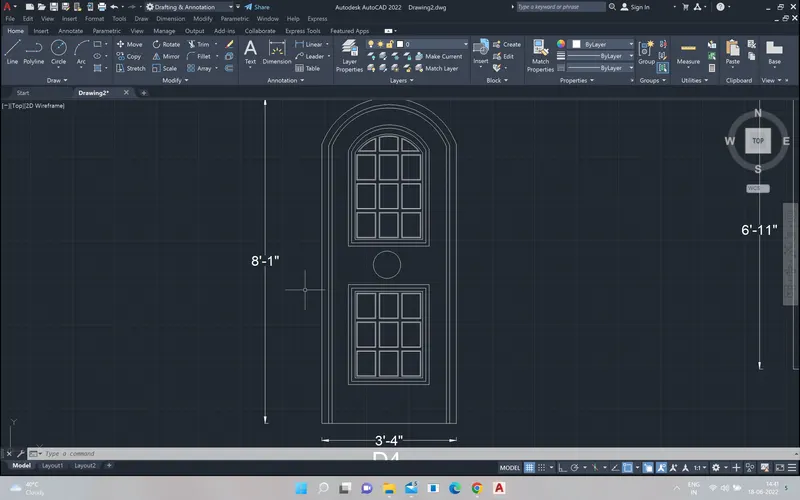

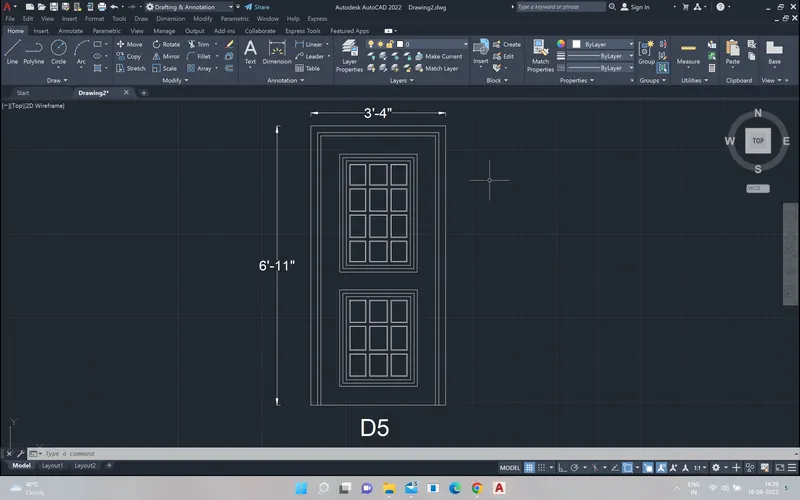

im creating three doors using arrey and offset command and other command is also same

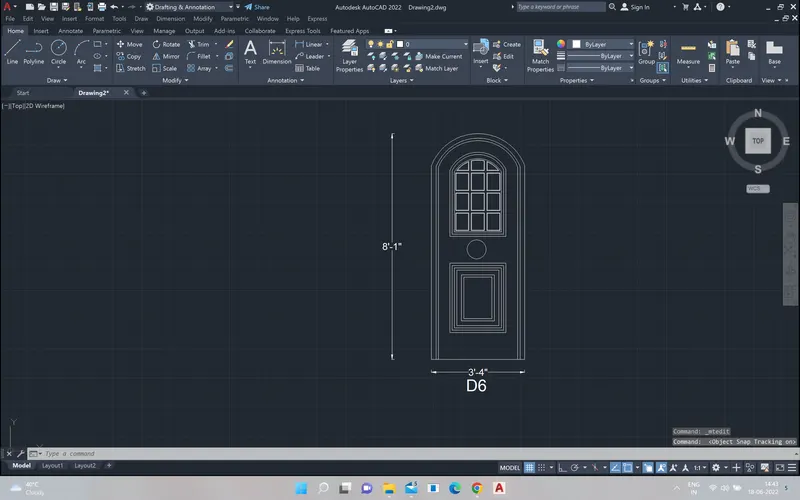

IM CREAT 3 MORE DOORS USING COMMAND

arrey and offset and line command and arc command and creat doors

then creat the block using command B enter

and spesifiy the block name and select the object and enter and peak point and check in open in block editor

Ans5. Aim- Create each shape as a block. Save the block and insert them on the table as shown in the Figure.

set the unit in mm

then creat the figure as show in figure

after creat the figure creat the block

using command B enter

and select the object enter and pick point and check in open in block editor

then inseart the block in the table

using the command ins enter then hold the block and relised the block in the column
