Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

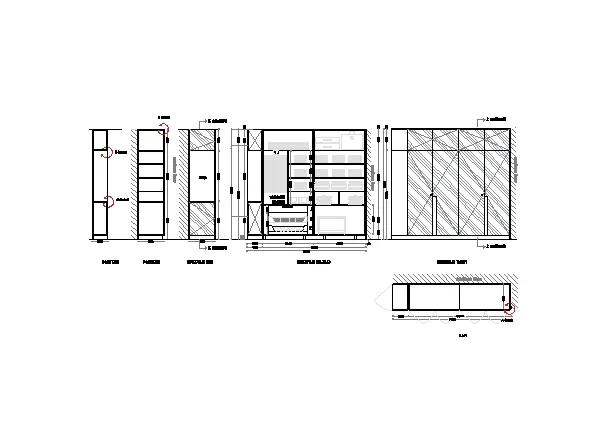

- AIM:
To draw the elevation and details of a wardrobe as shown in the figure. After sketching, you need to provide the dimensions and text with the use of layers.
PROCEDURE:
STEP 1:
Units are set to mm
Limits and limax are also set
Zoom command is also used
STEP 2:
In the command line type rec > 2800,2600
In the command line type offset
Offset from the top of the dimensions 12mm and 488mm
Step 3:
In the command line type offset
Create the offset from the side at the distance of 608.75 and 365
Step 4:
In the command line type l and by increasing the transperacy to create wall surface
In the command line type qleader to mention the annotations
Step 5:
In the command line type rec > 630 x 2800
In the command line type qleader to mention the annotations
In the command line type rec > 2800 x 2600
With the help of line command drawers and cabinet are created
Step 6:
In the command prompt type rectangle and dimensions of 520 x 630 , 1180 x 630 , 900 x 630 repeated two times
Using the command the next of lines are drawn
FINAL RESULT
- 2.

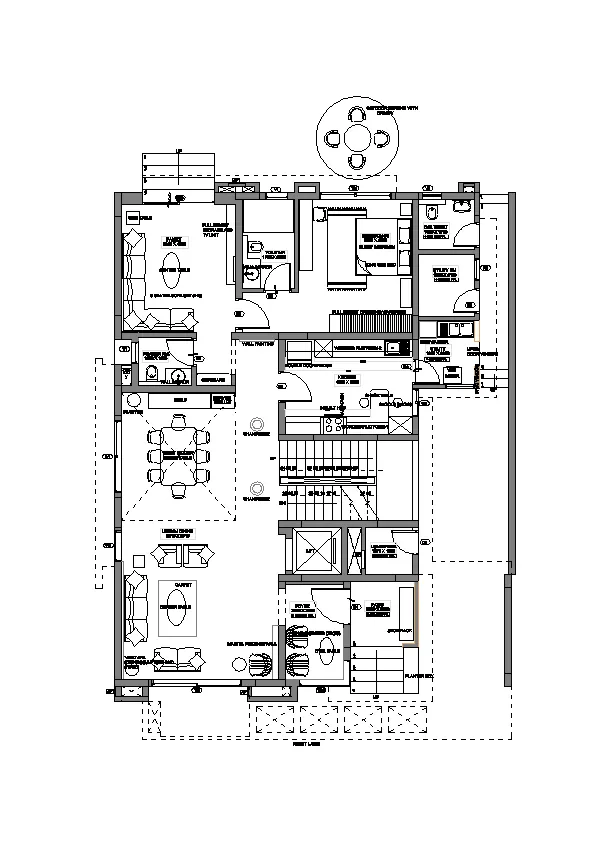

AIM:
To draw the given floor plan
Procedure:
Step 1:
Units are set to mm
Limit and limax are also set
Zoom command is also used
Step 2:
In the command prompt type XL to draw the infinite lines
In the command prompt type offset the line for a particular distance
Using arc command doors are also created
Step 3:
In the command line “adc” is typed to get components of the plan
In the command line “ line type “ is typed to get the dotted lines
In the command line “ text “ is typed to get the dimensions and annotations of the plan
To draw canopy:
Circle:
In the menu bar click on circle> center, radius
Specify the center point as 10,10 and radius 452
In the menu bar click on circle > center, radius
Specify the center point same as the previous circle and radius 1398
SEATS:
In the menu bar click on rectangle or in the command prompt type rec specify the length of the rectangle as 662.3
Specify the width of the rectangle as 298.0
In the command prompt type FILLET > RADIUS > 100
In the menu bar > circle > 2 point
In the menu bar > circle > center, diameter
Center is the midpoint of the line diameter is 777.2
Now extend the center line and trim the extras
In the menu bar click fillet > blend curves > and select the arc
FINAL RESULT:
- 3.

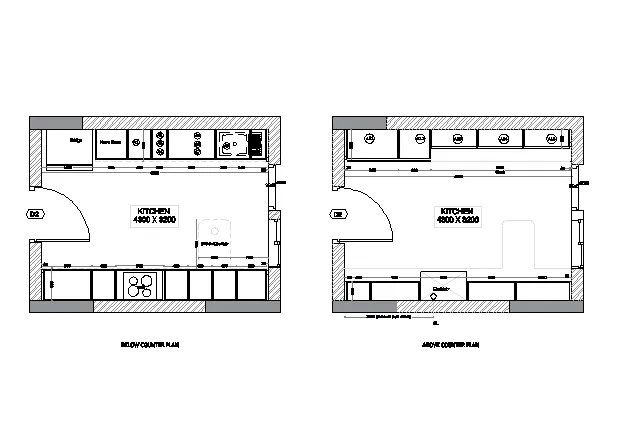

AIM:
To create the kitchen layout and to also, use proper dimensions techniques to dimensions the kitchen layout. Also insert text where ever required. All dimensions are in mm
PROCEDURE :
Step 1:
Units are set to mm
Limit and limax are also set
Zoom command is also used
Step 2:
In the command prompt type rec and the dimensions are 4734 x 3688mm
In the command prompt type offset and offset it to the distance of 230mm
Using the arc and lines the door is drawn
In the command prompt type hatch the model
In the command prompt type rec > dimensions to do the fridge
In the command prompt tyoe offset and offset it to desired distance to get the micro oven
In the command prompt type trim to trim extra lines
In the command prompt type offset it to the horizontal distance of 350, 450, 900, 450, 450, and 560
In the command prompt type type trim to trim the extra lines
In the command prompt type even the leader command is used to name the dimensions
FINAL RESULT:
- 4.

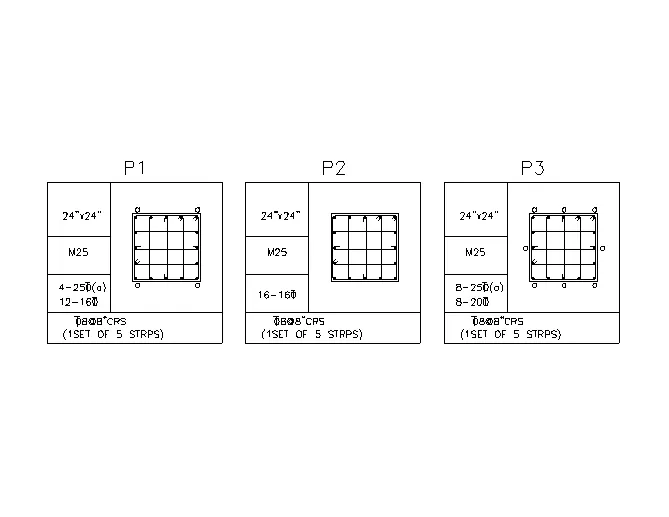

AIM:
Sketch the column details as shown in the figure. Insert dimensions and text in the figure. Refer to the bar size from the schedule.
8mm------0.31 inches
25mm------1 inch
16mm--------0.62 inches
PROCEDURE:
Step 1:
Units are set to mm
Limit and limax are also set
Zoom command is also used
Step 2:
Using rec and line command the tables are drawn
Usin the text command the text are given
Using the command the text are given
In the command prompt type line to draw the reinforcement
Type circle in the command prompt to draw reinforcement
Draw the raft layout as shown in the figure. Assume the coloumn size as per requirement.
remaining P2 AND P3 columns are same as the P1 COLUMN
FINAL RESULT
5.

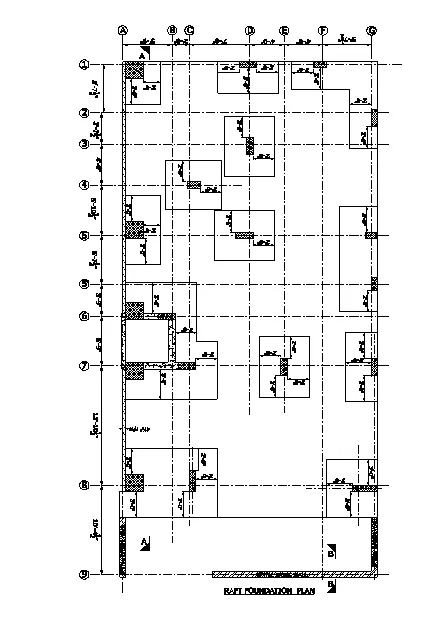

AIM :
To draw the raft layout
PROCEDURE:
Step 1:
Units are set to Engineering > inches
Limit and limax are also set
Zoom command is also used
Step 2:
In the command prompt type rec > dimensions are 29’-7” and 60’
To get dotted lines click on the line type and load the dotted lines> current
With the help of dotted lines and offset command the grids are drawn
In the command prompt offset the distance to 4”
In the command line type rec> 2’ x 2’
In the ribbon bar select hatch > ANS137
In the ribbon tab> annotate > text > m text to text the given annotations
In the ribbon tab > dimensions > to give the dimensions
FINAL RESULT:
