Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

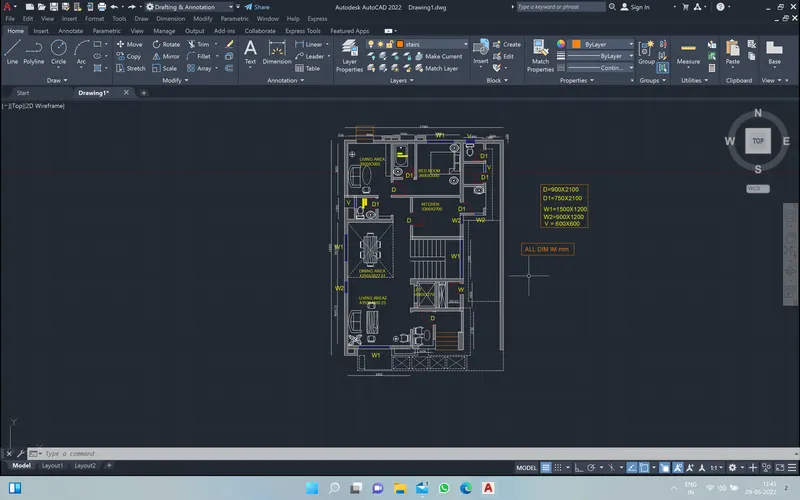

Ans2. Aim- Draw a floor plan use the proper drafting tool to sketch the plan. do not hatch or draw the furniture. need to draw the floor plan

1. Walls (Exterir and Interior)

Wall Thikness: Exterir wall-230mm , Interior wall-150mm

2. Stairs: Tread-300mm, riser-150mm

PROCEDURE-

1. set the unit

UN enter and select types decimal and select precision 0.00 and scale in mm

2. and set the dimension style

using command d enter

3. creat the layer

using command layer enter and craet a layer

like window , doors , stairs , etc.

4. then the use the line command L enter and draw the floor plan

4. creat the outer wall for 230mm thik using offset command

of enter 230 enter or space

5.craet a room 3600 x 3000mm

the creat the bath room 2350x1500mm

the creat the living area and give the dimension

6. using offset and line command to creat kitchen and t&b , and dining area and stairs etc

usind dass line for the chhajja and dining area

when exteirer wall and intrior wall complete

then fix the doors and windows and ventilater for the proper dimension

using circle command to make the doors

using command c enter and gove the radious length

After the completion of floor plan

mwntion the all dim of the floor plan

and dinoted the door and window size

7. used the hatch property

using command hatch enter and select the solid and hatch the inner and outer wall

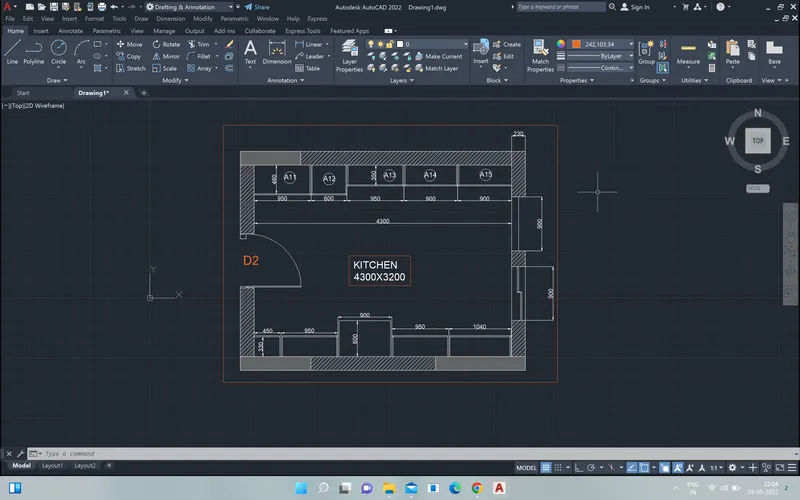

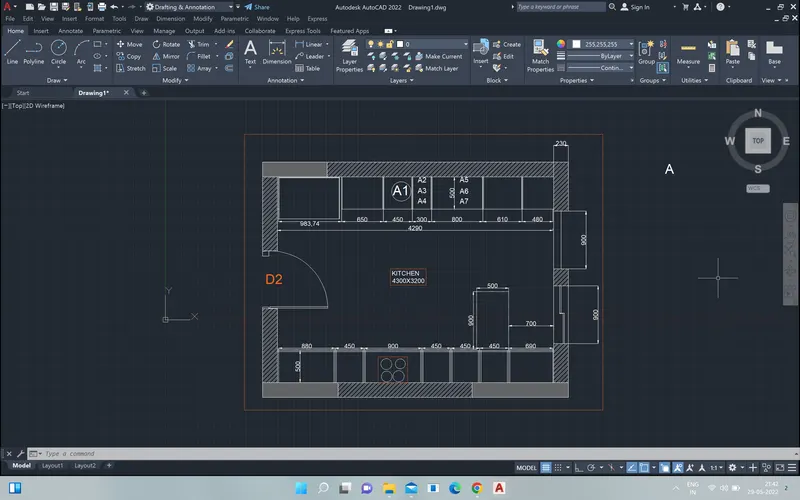

Ans3. Aim- Creat the kitchen Layout . Also, use proper dimention techniques to dimentions the kitchen layout. Also, insert text wherever required. All dimension are in mm.

Procedure-The same procedure use in the Q2 as Q3 all dimention in mm

Same procedure in fig 2 all dim in mm

Ans.4 Aim-

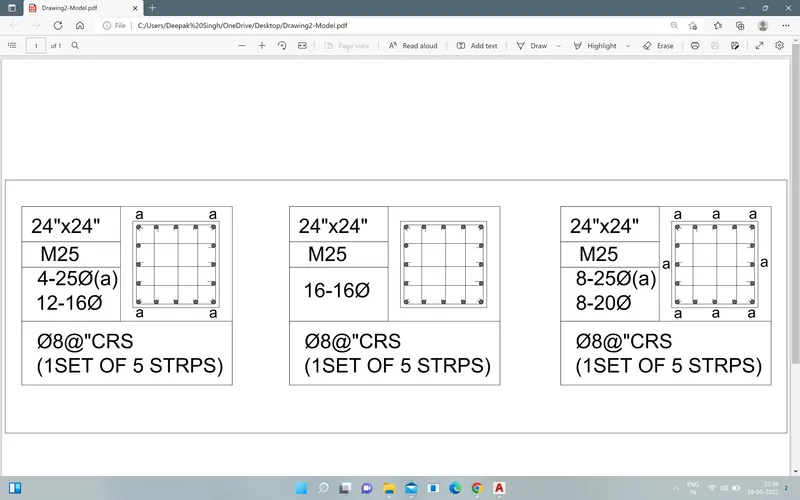

Sketch the column details. Insert dimensions and text in the figure. Refer to the bar sizes from the schedule.

All unit architectural scale in inches

using the line command ant text

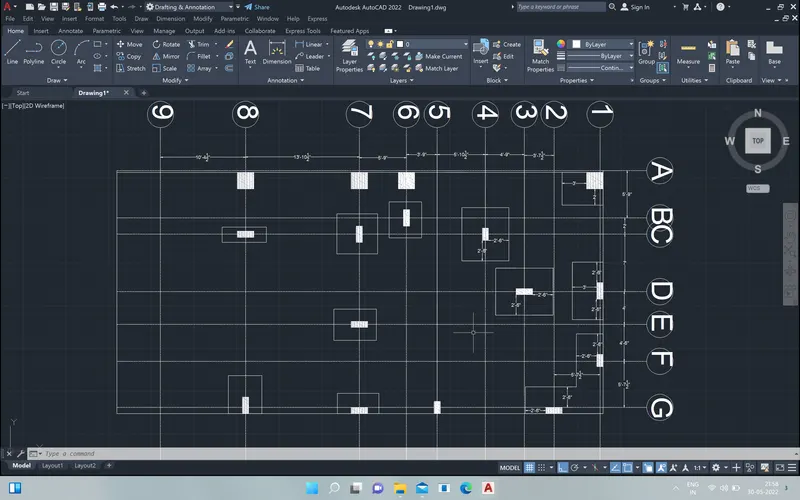

Ans5. Draw the raft layout Assume the column size as per your knowledge. You can take the sizes as: 24”x24”, 9” x 24”, 9” x 18”, and 9’ x 24”. You can import the raft_foundation.pdf to ensure the missing dimensions.
