Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

PLAN -1

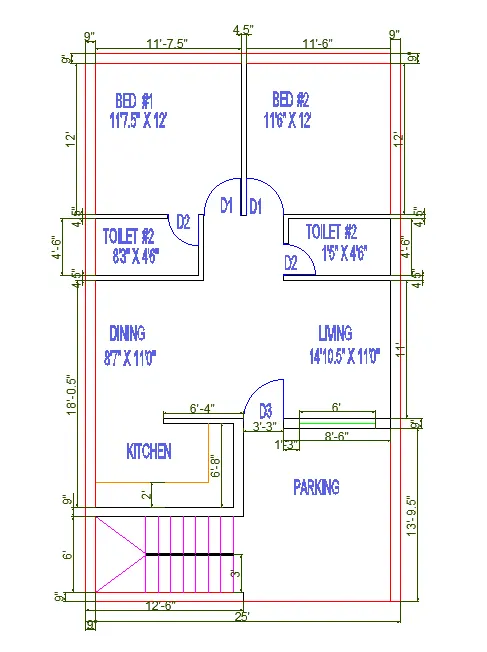

Sketch the layout of a residence as shown in the Figure 1. Consider all dimensions as reference to sketch the unit plan. Also the text in the layout are only for reference. Assume the missing dimensions. Also, refer the schedule for size of the doors.

AIM:Sketch the residence layout with the help of Autocad essentials.

STEPS-

• 1. In command prompt type (startup:1)
• II. Then file>new
• III. Then create new drawing window select metric in default settings
• IV. In advanced setup in units check on the architectural, angle in degrees, then ok
• V. In command prompt type (xl enter h enter v) construction line horizontal and vertical respectively is obtained
• VI. Next, In command prompt typelo and specify distance of offset as 9") and offset the horizontal line to top
• VII. Next, In command prompt typelo and specify distance of offset as 6'9") and offset the horizontal line to top
• VIII. Next, In command prompt typelo and specify distance of offset as 9") and offset the horizontal line to top
• IX. Next, In command prompt typelo and specify distance of offset as 18'0.5") and offset the horizontal line to top
• X. Next, In command prompt type(o and specify distance of offset as 4.5") and offset the horizontal line to top
• XI. Next, In command prompt typelo and specify distance of offset as 4'6") and offset the horizontal line to top
• XII. Next, In command prompt typelo and specify distance of offset as 4.5") and offset the horizontal line to top
• XIII. Next, In command prompt typelo and specify distance of offset as 12") and offset the horizontal line to top
• XIV. Next, In command prompt typelo and specify distance of offset as 9") and offset the horizontal line to top
• XV. Next, In command prompt typelo and specify distance of offset as 9") and offset the vertical line to right
• XVI. Next, In command prompt typelo and specify distance of offset as 11'7.5") and offset the vertical line to top
• XVII. Next, In command prompt typelo and specify distance of offset as 4.5") and offset the vertical line to top
• XVIII. Next, In command prompt typelo and specify distance of offset as 11'6") and offset the vertical line to top
• XIX. Next, In command prompt typelo and specify distance of offset as 9") and offset the vertical line to top
• XX. Next, In command prompt typelo and specify distance of offset as 12'6") and offset the vertical line to top
• XXI. Now select all created objects and in command prompt type tr and then trim all the unwanted lines
• XXII. And by typing ex in command prompt extend all the required lines
• XXIII. Staircase: draw the 3' line vertical and copy it with co command and array it with 9 objects in the spacing of the 1'
• XXIV. Next draw live horizontal connecting the all-vertical lines and join this line to corner with snapping command.
• XXV. Select all the created line in the staircase and mirror it with horizontal line as axis with Ml command
• XXVI. Create doors D1, D2,D3 with help of line command and the arc command (start end direction) with ortho on.
• XXVII. And then copy and rotate the doors at the required positions
• XXVIII. With help of the aligned dimensions measure the dimensions of the required and with the help of the text add text to show
• XXIX. Type dims and modify the required settings of the font size arrow size etc.
• XXX. In layer properties add all the required layers and with the QS quick select tools assign the layers for the objects created.
• XXXI. Enter

RESULT-Given Layoutis Drawn in Autocad.

PLAN 2

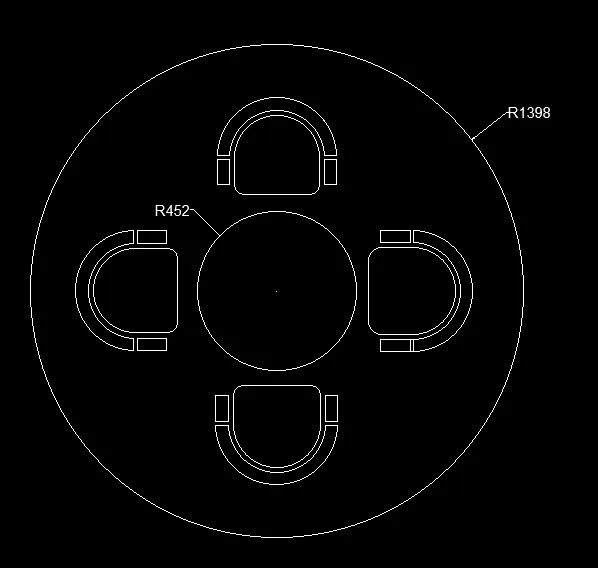

Sketch the seating plan for an outdoor canopy. Assume the dimensions for the seating. Also, consider the dimensions in mm.

AIM-Sletching The Autocad Outdoor Canopy with the help of polar Array tools.

STEPS

• I. In command prompt type (startup:1)
• II. Then file>new
• III. Then create new drawing window select metric in default settings
• IV. In advanced setup in units check on the decimal, angle in degrees, then ok
• V. In command prompt type (CI) where circle command is woken
• VI. In command prompt type (specify centre point: 0,0)
• VII. In command prompt type (radius:452)
• VIII. In command prompt type (CI) where circle command is woken
• IX. In command prompt type (specify centre point: 0,0)
• X. In command prompt type (radius:1398)
• XI. Enter
• XII. With line command create the rectangle of 300*150 and the fillet top corners with the 150radius and then offset them by 50 and offset it again by 50
• XIII. Copy it to between the both circle with help of the snapping and select them and click on circular array with the 4 objects and select the inner circle.
• XIV. Enter

RESULT- Sketch of the seating plan for an outdoor canopy was produced

PLAN 3

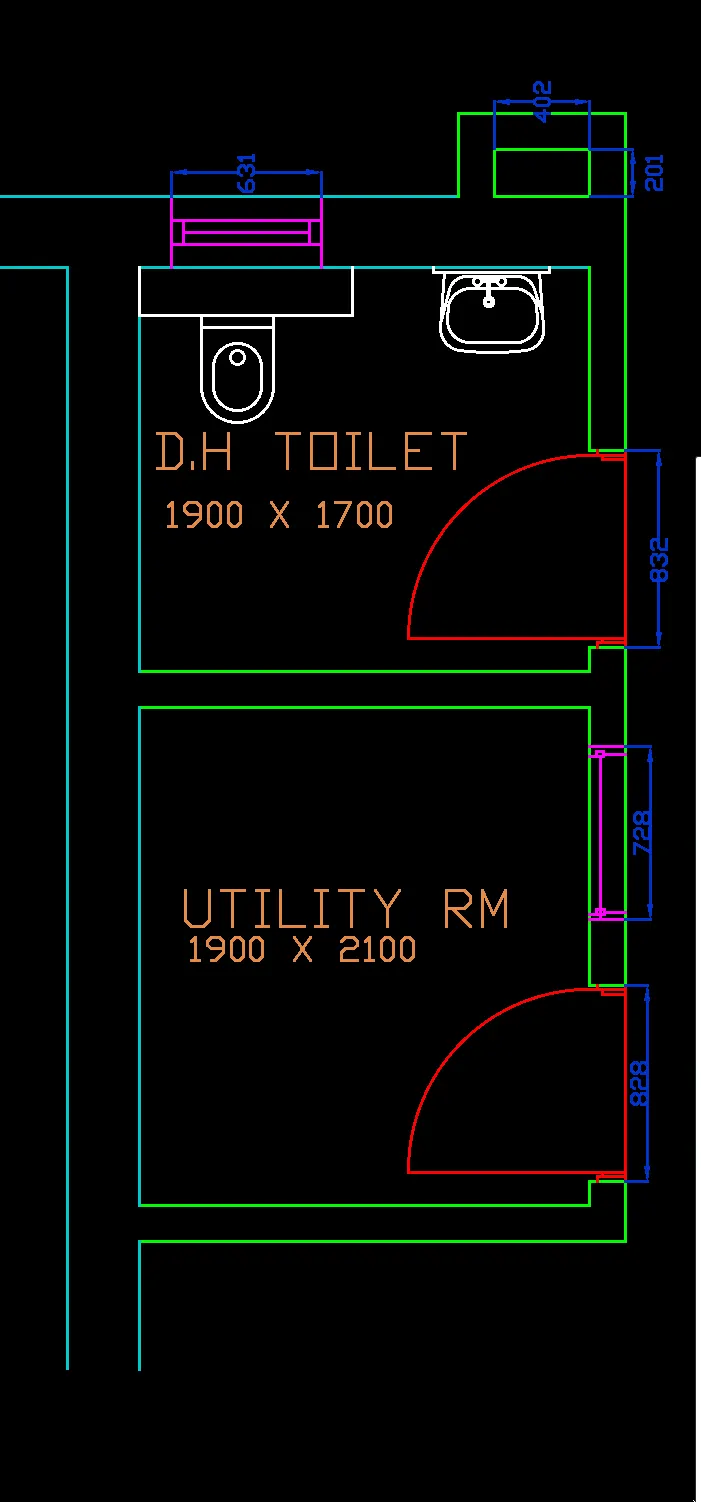

Sketch the part plan for the toilers and utilities room. Consider the outer wall thickness as 300mm and inner wall thickness as 150mm. Also, assume the missing dimension, Texts, dimensions, and hatches are only for references. Also, symbols for toilets and w/c are also for references.

AIM- Sketching the layout in the AutoCAD by assuming some assumptions

STEPS

• I. In command prompt type (startup:1)
• II. Then file>new
• III. Then create new drawing window select metric in default settings
• IV. In advanced setup in units check on the decimal, angle in degrees, then ok
• V. In command prompt type (xl enter h enter v) construction line horizontal and vertical respectively is obtained
• VI. Next, In command prompt typelo and specify distance of offset as 300) and offset the horizontal line to top
• VII. Next, In command prompt typelo and specify distance of offset as 2100) and offset the horizontal line to top
• VIII. Next, In command prompt typelo and specify distance of offset as 150) and offset the horizontal line to top
• IX. Next, In command prompt type(o and specify distance of offset as 1700) and offset the horizontal line to top
• X. Next, In command prompt typelo and specify distance of offset as 300) and offset the horizontal line to top
• XI. Next, In command prompt typelo and specify distance of offset as 210) and offset the horizontal line to top
• XII. Next, In command prompt typelo and specify distance of offset as 150) and offset the horizontal line to top
• XIII. Next, In command prompt type(o and specify distance of offset as 300) and offset the vertical line to right
• XIV. Next, In command prompt typelo and specify distance of offset as 1900) and offset the vertical line to right
• XV. Next, In command prompt typelo and specify distance of offset as 150) and offset the vertical line to right
• XVI. Now select all created objects and in command prompt type tr and then trim all the unwanted lines
• XVII. And by typing ex in command prompt extend all the required lines
• XVIII. Create doors D1, D2,D3 with help of line command and the arc command (start end direction) with ortho on.
• XIX. And then copy and rotate the doors at the required positions
• XX. Enter

RESULT- Required layout was drawn in the autocad.
