Creating 3D Isometric view of various structural elements in AutoCAD
Q1. Create a 3D Isometric View of the building with plan and elevation given.
AIM:- To create a 3D isometric view of the given building with plan and elevation.
INTRODUCTION:
• An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface.
• One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final image is not distorted.
• This is due to the fact that the foreshortening of the axes is equal.
• In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out from this corner point.
• Isometric drawings begin with one vertical line along which two points are defined.
• Any lines set out from these points should be constructed at an angle of 30 degrees.
COMMANDS USED:
- Line command
- Rectangle command
- UCS command
- Dimlinear command
- Region command
- Extrude command
- Substract command
- Box command
- Units command
- Dimstyle command
- 3Dface command
- 3Dorbit command
- Hide command
- Explode command
- Move command
- Copy command
- Dist command
- Solidedit command
- Union command
- Boundary command
- 3Dmirror command
- 3Drotate command
- Erase command
- Plan command
PROCEDURE:
Step:-1
- First we have to open the autocad and the set the maximum limit and minimum limit on the screen.

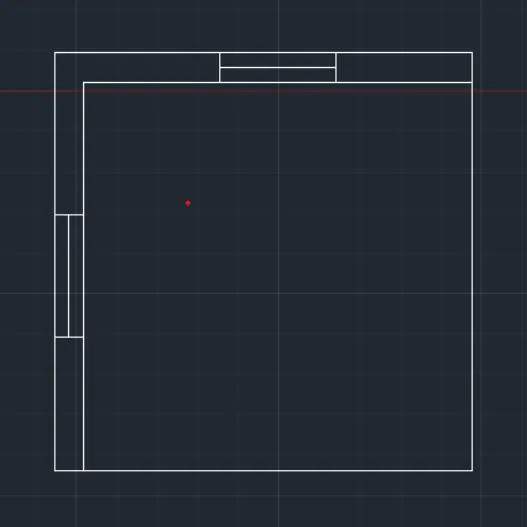

- Here first have to draw the rectangle using the rectangle command, as shown in the figure.
- Next we have to draw the two windows of sizes of 3' x 9" and 9" x 3"-2".
STEP 2:

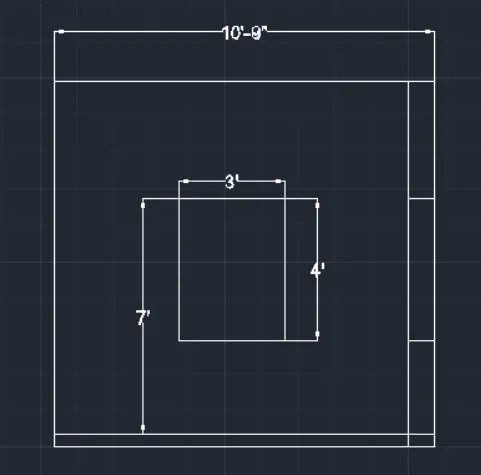

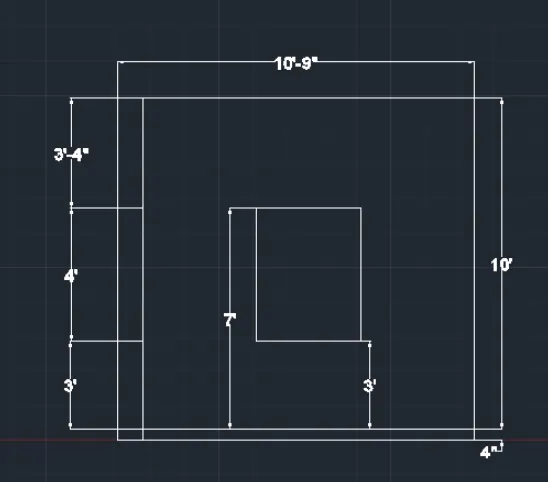

- Now we draw the elevation of A and the elevation of B as shown in the below figures.
- We draw the given elevation using the line command and we put the dimensions using the diameter command.
STEP 3:

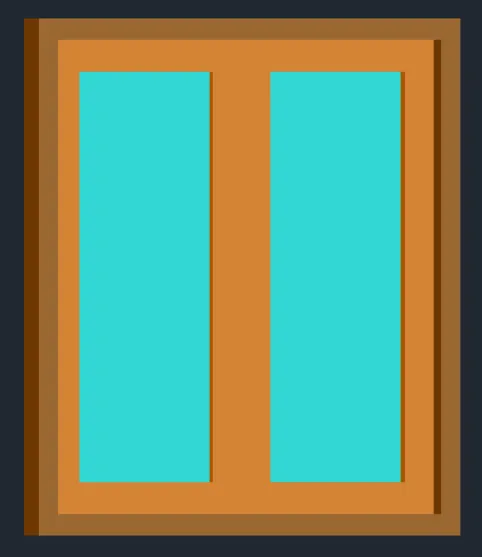

- First we draw the window of the size 3' * 4' as shown in the below fig.
- We draw the this window using the line command and extruded using the extrude command.
STEP 4:
- Next we draw the window of the size 3'2" * 4' as shown in the below fig.
- We draw the this window using the line command and extruded using the extrude command
STEP 5:
- Next we draw the wall using the extrude command as shown in the fig.
- Next we use the layers for providing the colours to them.

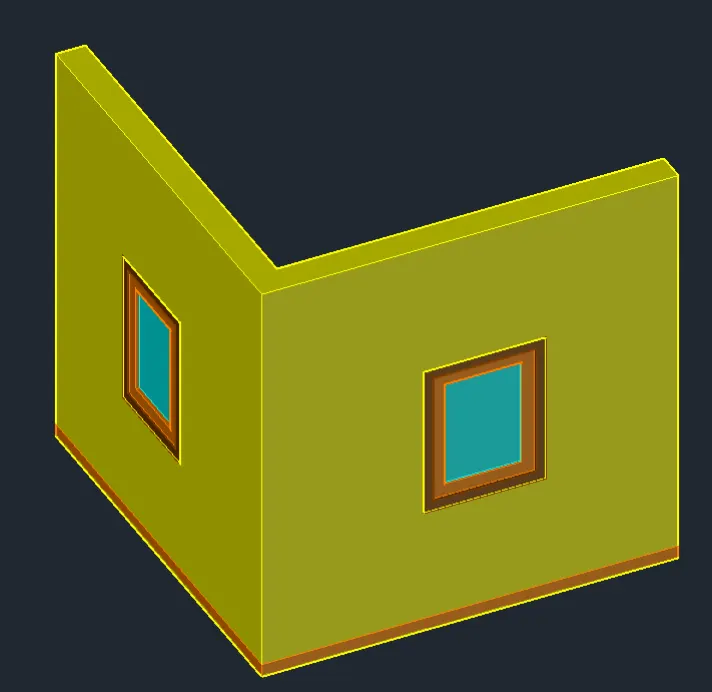

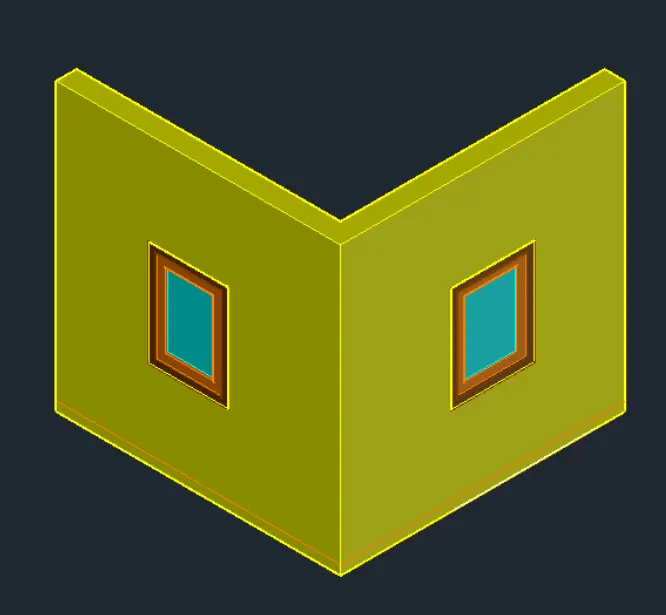

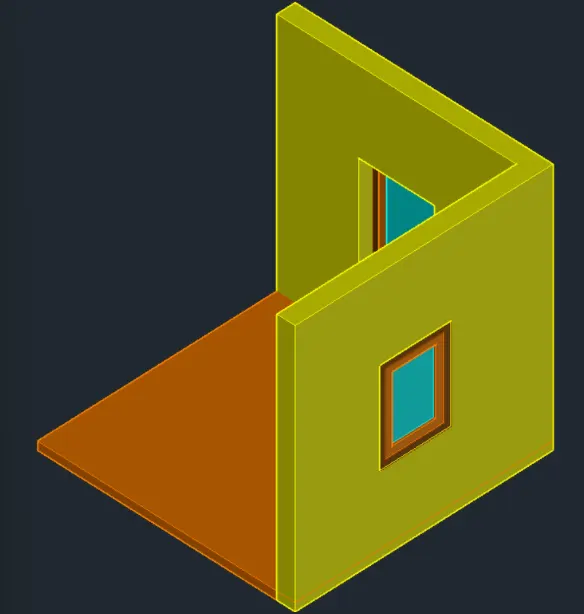

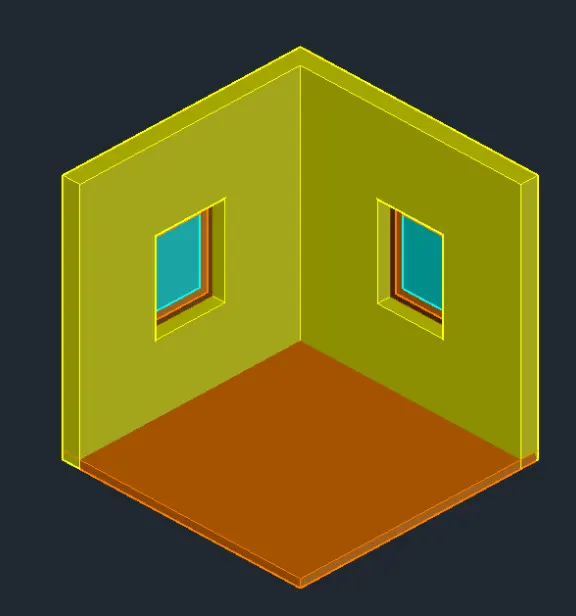

- Next we attach the created windows to the wall show in the below fig.
STEP 6:
Next we use the 3dorbit command to see the diffrenet views of the given fig.
RESULT:
The given 3D isometric view of the building with plan and elevation is drawn successfully in the autocad in detailed manner.
Q2. Create the 3D View of the Building Façade as given in the plan and elevation. Also, see the detail of the window.
AIM:- To Create the 3D View of the Building Facade as given in the plan and elevation and need to create the window using the given dimensions.
INTRODUCTION:
- • An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface.
- • One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final image is not distorted.
- • This is due to the fact that the foreshortening of the axes is equal.
- • In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out from this corner point.
- • Isometric drawings begin with one vertical line along which two points are defined.
COMMANDS USED:
- Line command
- Rectangle command
- UCS command
- Dimlinear command
- Region command
- Extrude command
- Substract command
- Box command
- Units command
- Dimstyle command
- 3Dface command
- 3Dorbit command
- Hide command
- Explode command
- Move command
- Copy command
- Dist command
- Solidedit command
- Union command
- Boundary command
- 3Dmirror command
- 3Drotate command
- Erase command
- Plan command
PROCEDURE:
Step:-1
- First we have to open the autocad and the set the maximum limit and minimum limit on the screen.

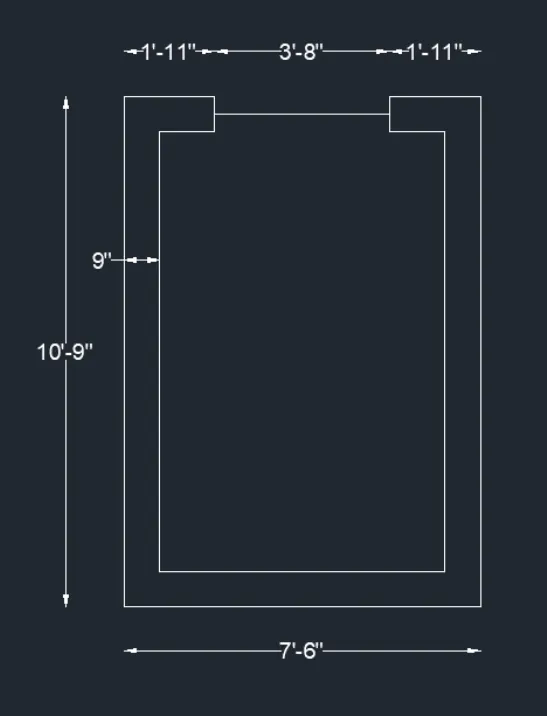

- Here first have to draw the rectangle using the rectangle command, as shown in the figure.
- Next we have to draw the window of size of 3'-2" x 9"
Step:-2
- Next we use the region command and select the objects, then press enter.
- Then after total objects will become the one region.
- Next we need to extrude the plan using the extrude command, with the height of 40'-10".
- Next we need to substract the four window portion vertically in a building facade with the distance 5'-11" with the window size of 3' x 4.
Step:-3
- Next we use the union command and press enter.
- Then after select the total drawing and press enter.

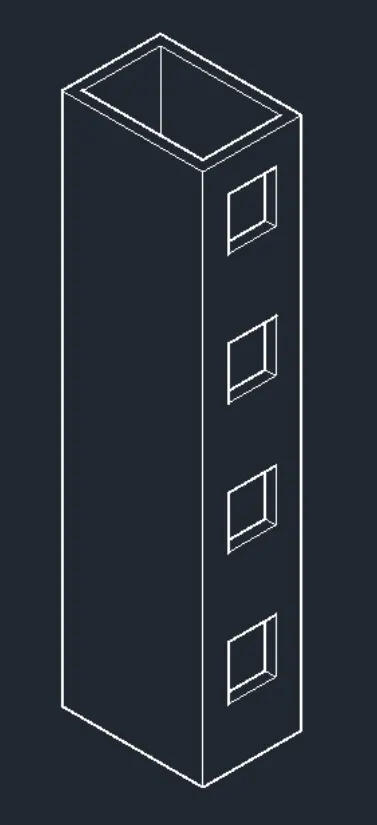

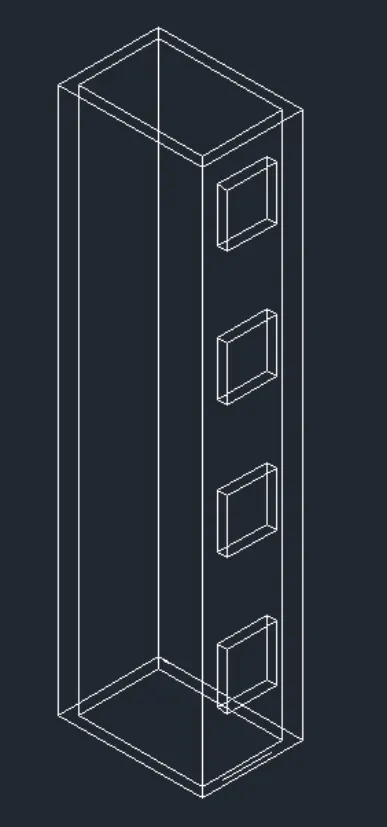

- Next the window portion will be clearly visible in the building facade as shown in the below figure.
STEP 4:
Next we select the custom visual style as shaded with edges, as shown in the below fig.
STEP 5:

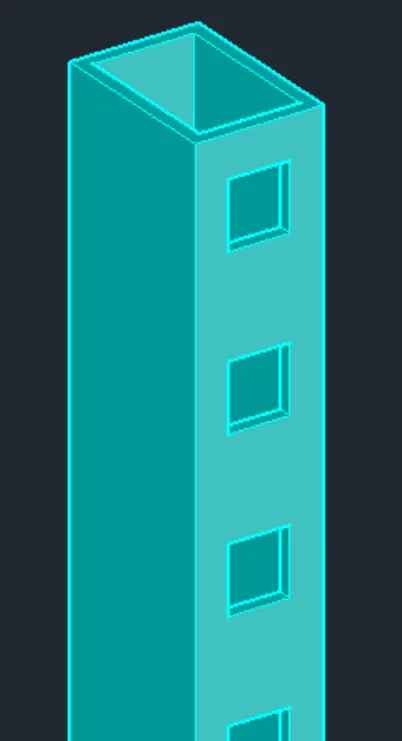

Next provide the layers for the building facade of skyblue colous as shown in the below fig.
STEP 6:
Next we close the top surface of the building facade using the extrude command
STEP 7:

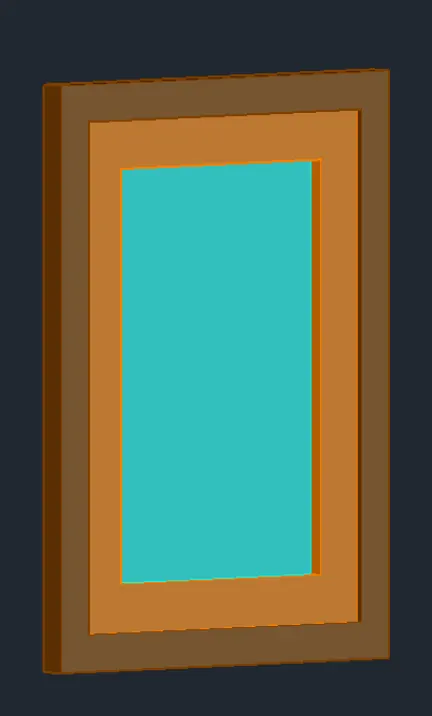

- Next we draw the window of the size 3'-2"*4'
- We draw the this window using the line command and extruded using the extrude command.
STEP 8:

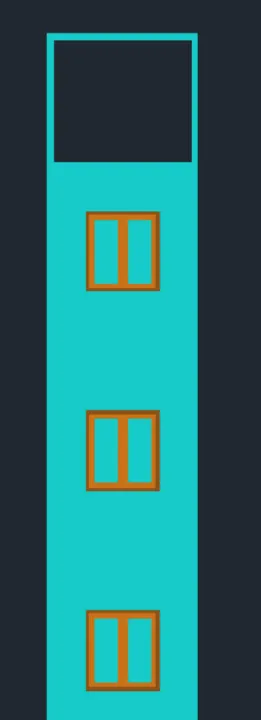

After this, use 3dorbit command to view the front elevation as shown in the above right fig.
STEP 9:

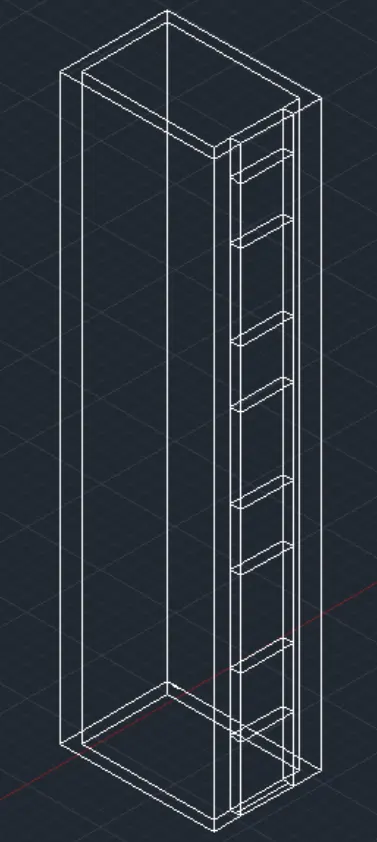

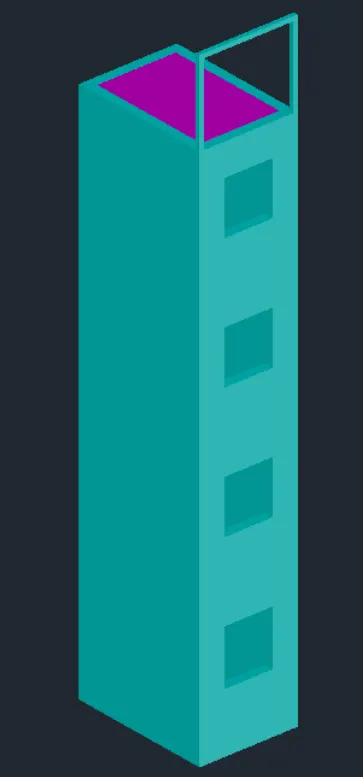

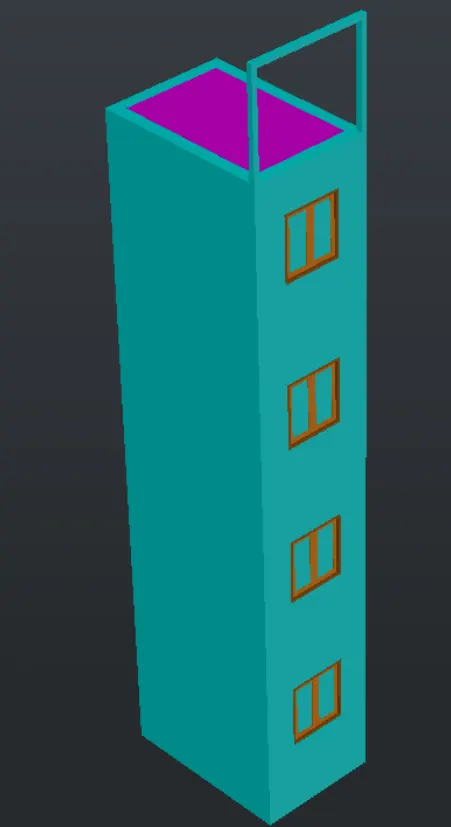

Now put the building facade in the 3D isometric view using 3dorbit command.
RESULT:
The Given 3D isometric view of the building facade is drwn successfully in the autocad in detailed manner.
Q3. Create the ismoteric 3d view of a stair with railing as shown in the plan and elevation. Assume the size of the balustrades and the hand rails.
AIM:- To create the ismoteric 3d view of a stair with railing as shown in the plan and elevation.
INTRODUCTION:
• An isometric drawing is a 3D representation of an object, room, building, stairs or design on a 2D surface. • One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final image is not distorted.
. This is due to the fact that the foreshortening of the axes is equal.
• In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out from this comer point.
• Isometric drawings begin with one vertical line along which two points are defined.
COMMANDS USED:
- Line command
- Rectangle command
- UCS command
- Dimlinear command
- Region command
- Extrude command
- Substract command
- Box command
- Units command
- Dimstyle command
- 3Dface command
- 3Dorbit command
- Hide command
- Explode command
- Move command
- Copy command
- Dist command
- Solidedit command
- Union command
- Boundary command
- 3Dmirror command
- 3Drotate command
- Erase command
- Plan command
- Circle command
- Sweep command
PROCEDURE:
Step:-1
• First we open the autocad and set the maximum limit and minimum limit.
• Next we set the units as architectural and take the precison as O'-0".

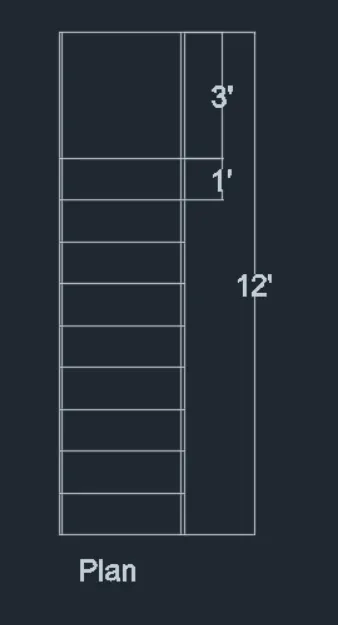

• Next we draw the stairs using the line command.

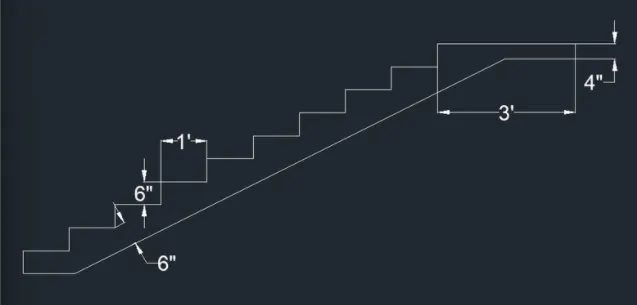

• We draw the stairs with the riser of 6" and tread of 1' as shown in the below figure.
STEP 2:
Next we use the 3drotate to rotate the fig. from the setp1
Next we use the extrude command to extrude the rotated fig. to form the stair in 3Dview.
STEP 3:

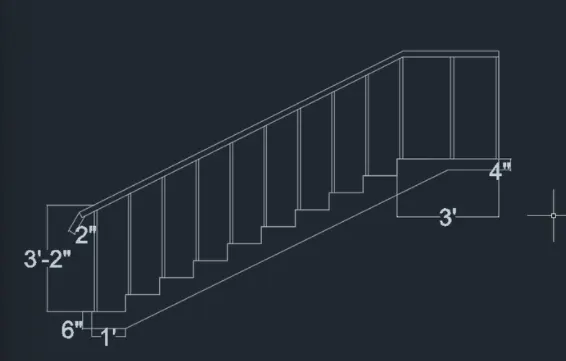

Next we draw the railing using the circle command and sweep command.

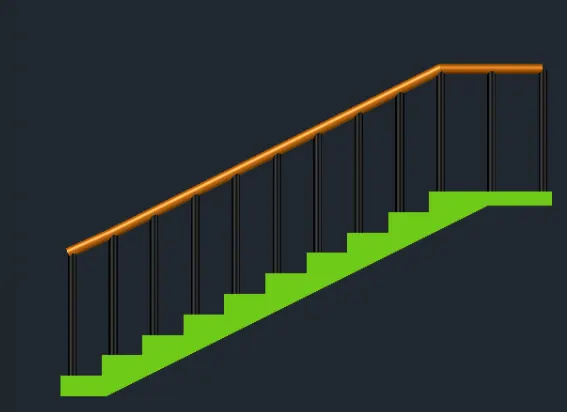

Next we show the side view usis the 3Drotate command as shown in the below left fig.

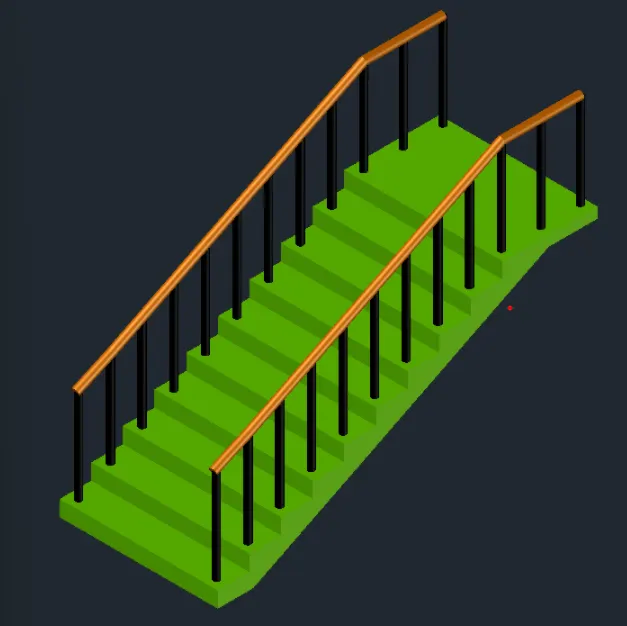

Next put the stair in the 3d isometric view using the 3dorbit command as shown in the below right fig.
RESULT:
The given 3d isometric view of the stair is drawn successfully in the auticad in detailed manner.
Q4. Create the 3D view of a Wall with spread footing . Create the Door opening only. Assume the size of the parpaet and the coping. See the plans and elevation for the details. Also, create a rendered view of the model with materials as of your choice.
AIM:- To create the 3D view of a Wall with spread footing And need to create a rendered view of the model with materials.
INTRODUCTION:
• An isometric drawing is a 3D representation of an object, room, building, stairs or design on a 2D surface.
• One of the defining characteristics of an isometric drawing, compared to other types of 3D representation, is that the final image is not distorted.
• This is due to the fact that the foreshortening of the axes is equal.
• In an isometric drawing, the object appears as if it is being viewed from above from one corner, with the axes being set out from this corner point.
COMMANDS USED:
Line command
Rectangle command
UCS command
Dimlinear command
Region command
Extrude command
Substract command
Box command
Units command.
Dimstyle command
3Dface command
3Dorbit command
Hide command
Explode command
Move command
Copy command
Dist command
Solidedit command
Union command
Boundary command
3Dmirror command
3Drotate command
Erase command
Plan command
PROCEDURE:
Step:-1
• First we open the autocad and set the maximum limit and minimum limit.
• Next we set the units as decimal and take the precision as O.

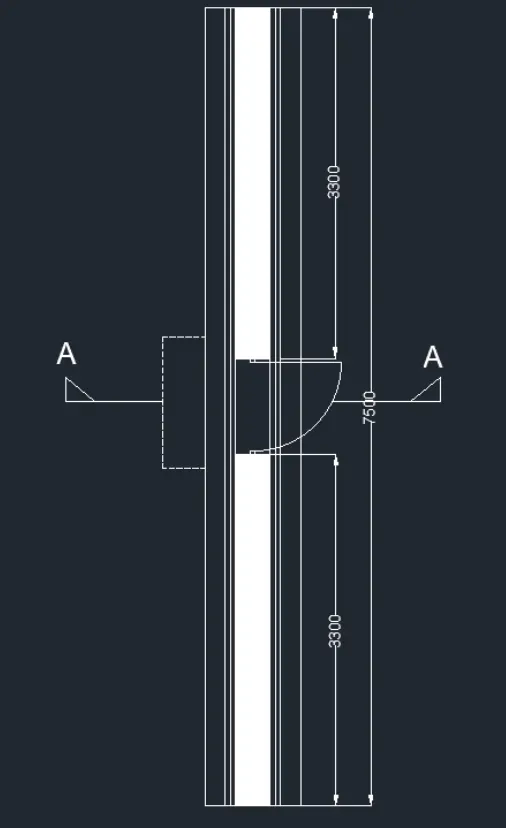

• Next we have to draw plan of wall with spread footing with given dimensions as shown in the below figure.
STEP 2:

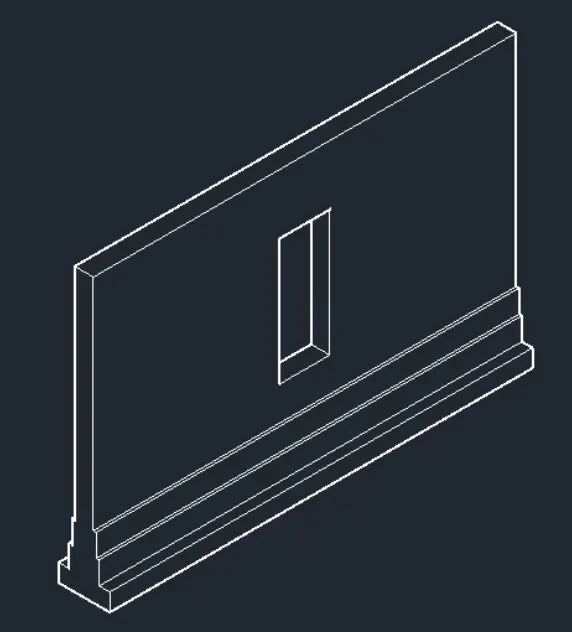

Next we draw the 3d isometric view of the wall with speed footing using the extrude command as shown in the fig below.
STEP 3:
Next provide the layers for the with spread footing with different colours for different parts.

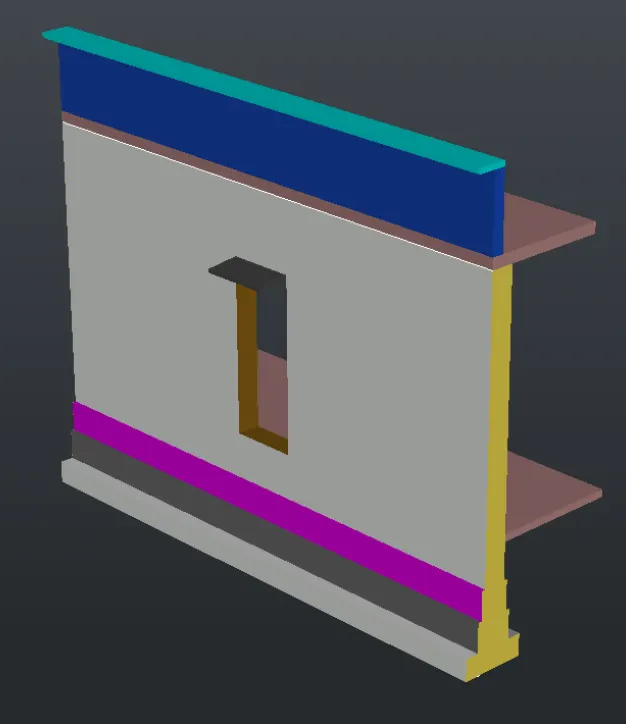

Next we provide the diffrent materials for the wall with spread footing as shown in the fig.
STEP 5:
Place the camera as required position and then press enter.

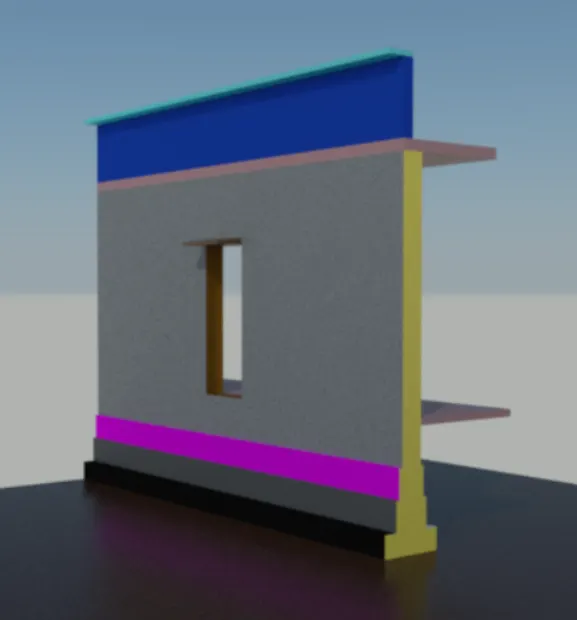

Finally, by selecting render option and then slowly it changes to the rendering view as shown in result.
RESULT:
