Challenge

Creating 3D Isometric view of various structural elements in AutoCAD

GGowtham Raja5 May 2023

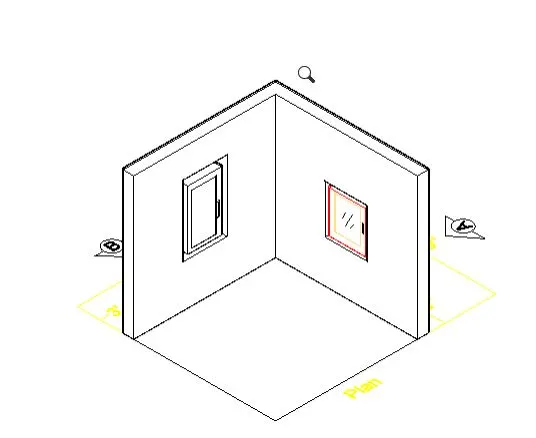

1. Create a 3D Isometric View of the building with plan and elevation given.

AIM:

To Create a 3D isometric view of the the building with plan and elevation using Autocad

PROCEDURE:

In the command prompt type units >engineering>0'-0"
In the command prompt type limmax>100',100'
In the command prompt type limits >0',0'
In the command prompt type zoom > a

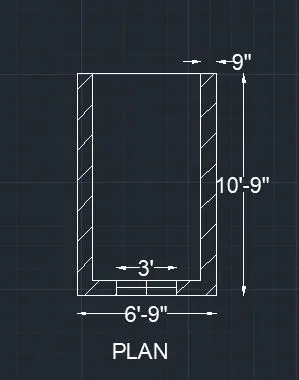

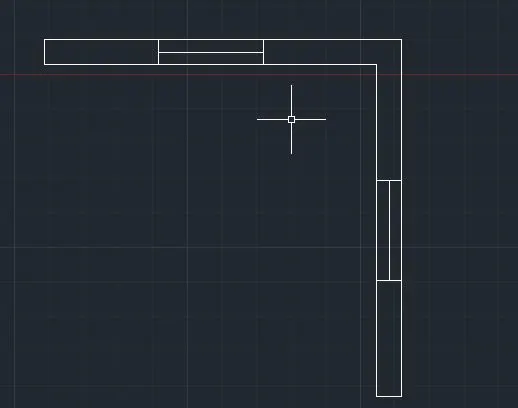

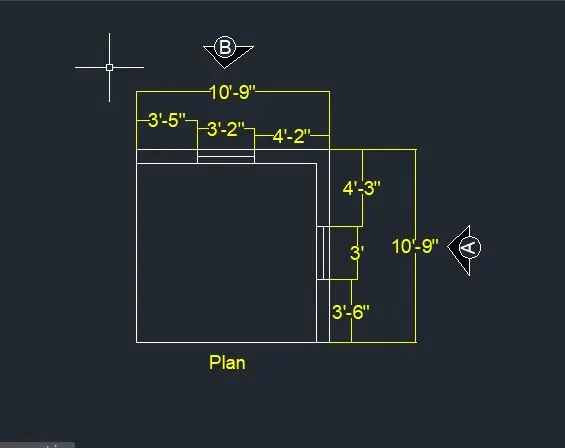

Go to the top view

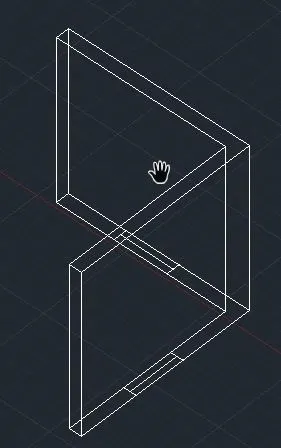

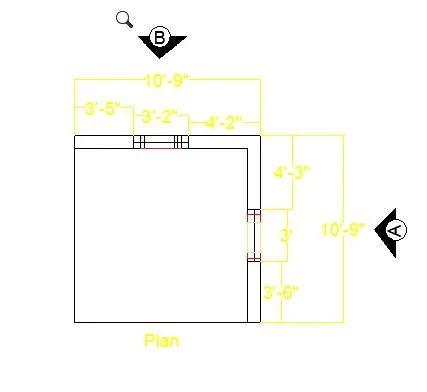

In the command prompt type l to draw the lines of distance 10'-9" , 3',3-2" and thickness of 9"

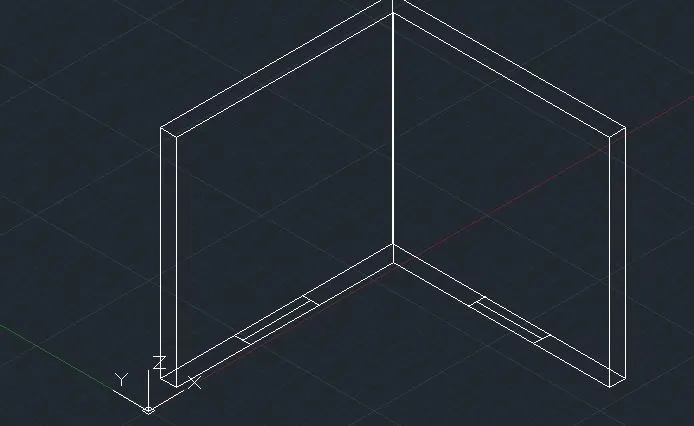

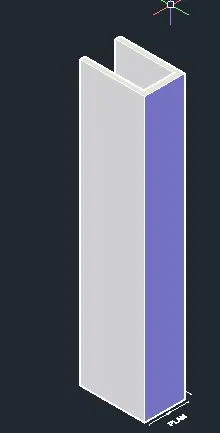

Now go to south west isometric view and
In the command prompt type reg to region the object
In the command prompt type extrude to extrude the object

In the command prompt type dim to give the dimensions

Go to right view and draft the rectangle using rec command
Then go south west isometric view and extrude it to 9"
Using sub command subtract the windows
In the command prompt type h to hatch the windows

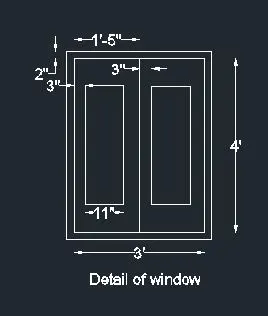

In the command prompt type rec anld l to give the window detailing

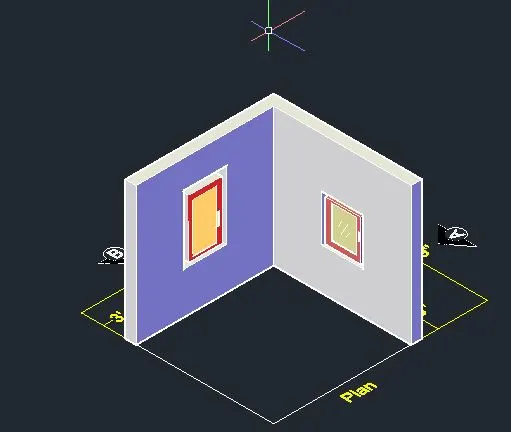

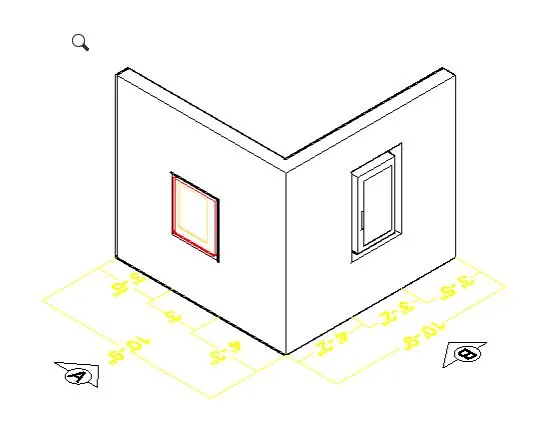

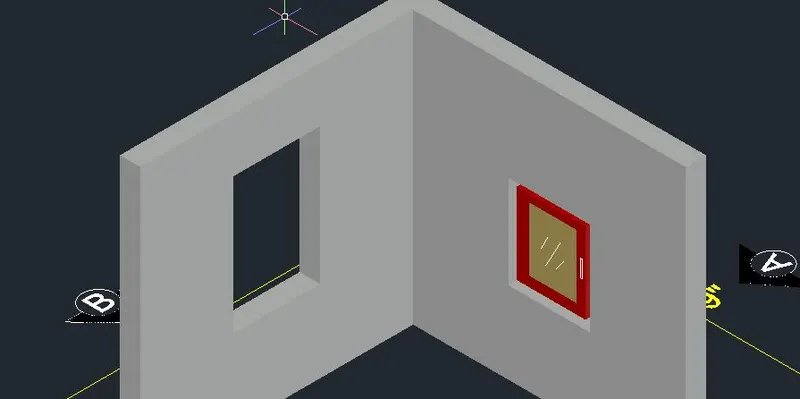

In south west isometric view:

RESULT:

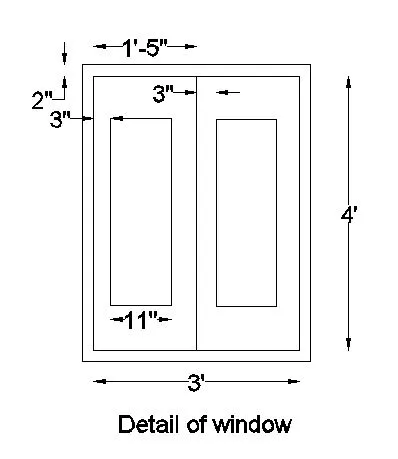

2. Create the 3D View of the Building Façade as given in the plan and elevation. Also, see the detail of
the window.

AIM:

To Create the 3D view of the Building facade as given in the plan and elevation

PROCEDURE:

In the command prompt type units >engineering >0'-0"
In the command prompt type limmax >100'.100'
In the command prompt type limits >0',0'

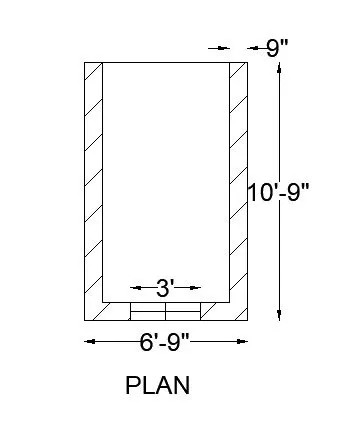

Go to the top view
In the command prompt type l and draft the desired lines

In the command prompt type h to hatch the plan
In the command prompt type dim to give the dimensions
In the command prompt type mt to give the text

now go to south isometric view
In the command prompt type reg to region the plan
In the command prompt type extrude to extrude the plan

In the right view the window is drafted usings lines and rectangle commands

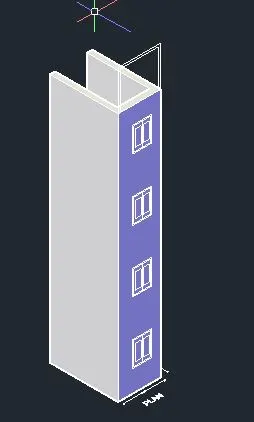

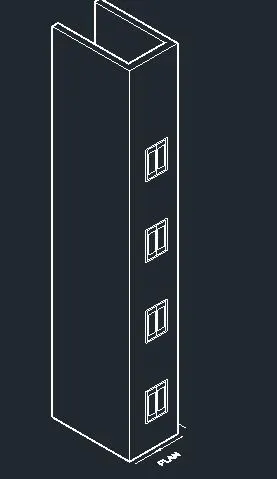

These windows are added to the wall in outh west isometric view

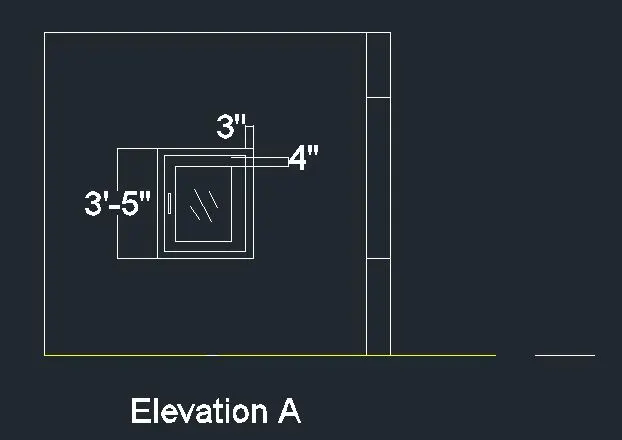

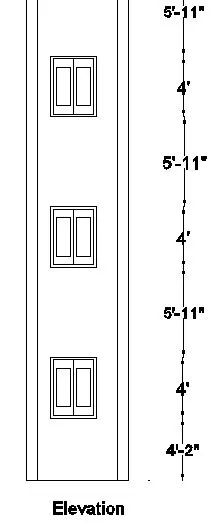

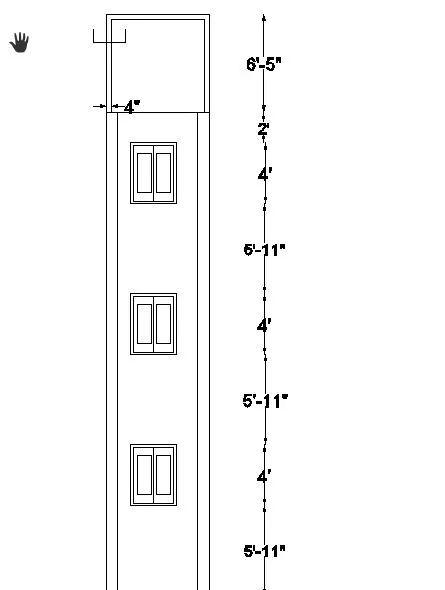

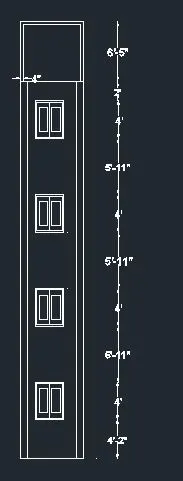

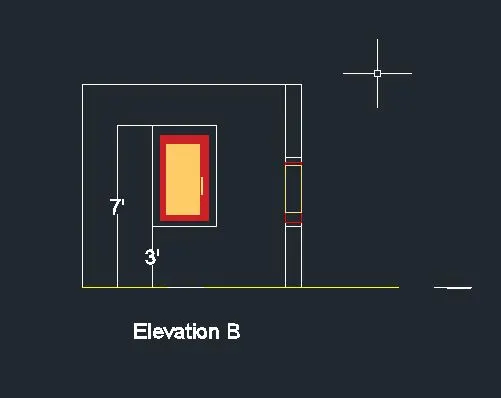

The front view of the elevation is shown in the front view
In command prompt type dim to give the dimensions

RESULT:

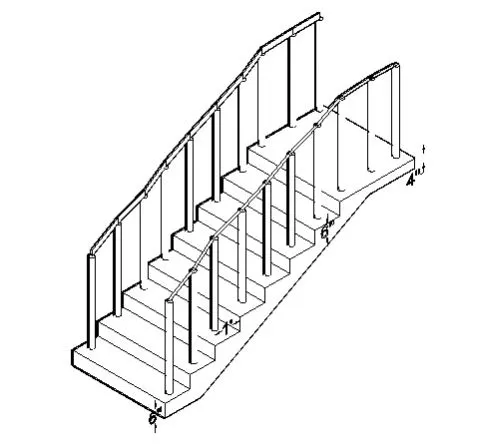

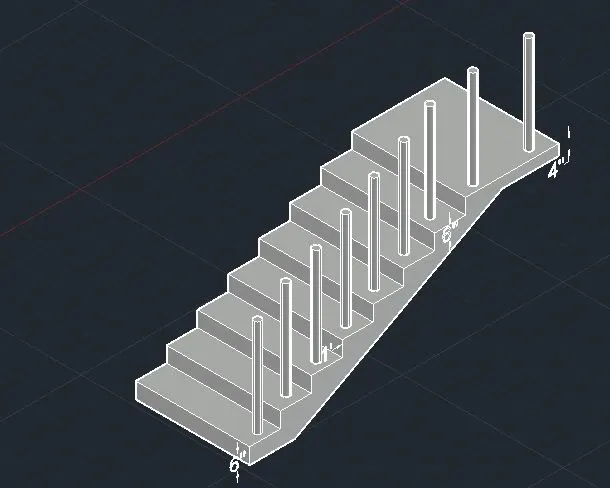

3. Create the ismoteric 3d view of a stair with railing as shown in the plan and elevation. Assume the
size of the balustrades and the hand rails.

AIM:

To create the isometric 3d view of a stair with railing as shown in the plan and elevation using 3D autocad software

PROCEDURE:

In the command prompt type units >engineering >0'-0"
In the command prompt type limmax >100'.100'
In the command prompt type limits >0',0'
Go to the top view
In the command prompt type l and draft the desired lines

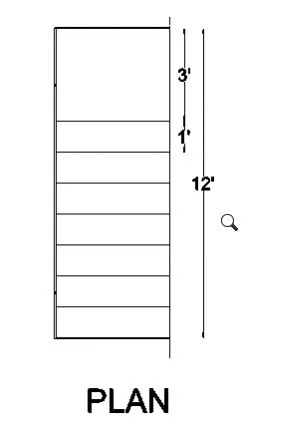

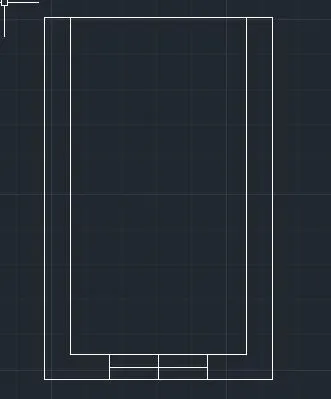

In the top view the plan is created

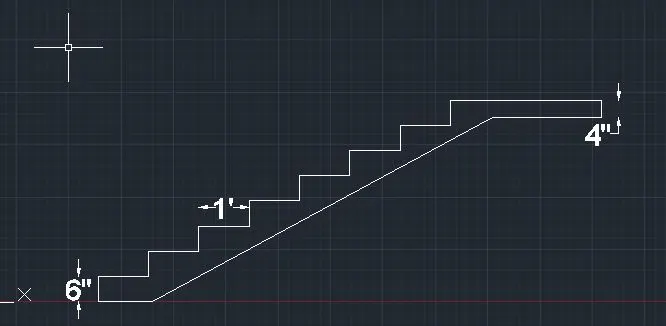

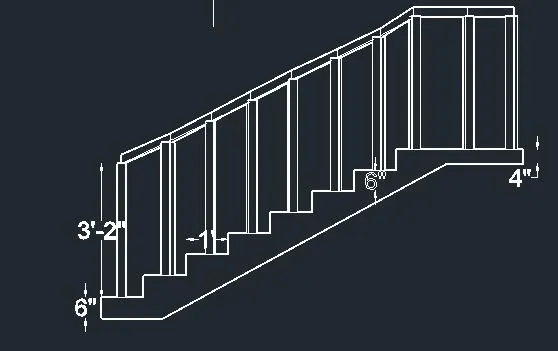

Go to the front view and create tread and riser with the help l (lines) command
In the command prompt type dim to give the dimensions

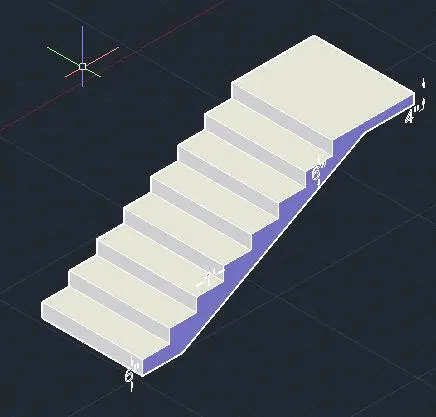

Now go to the south west isometric view
In the command prompt type region to give the region
In the command prompt type extrude to extrude the staircase

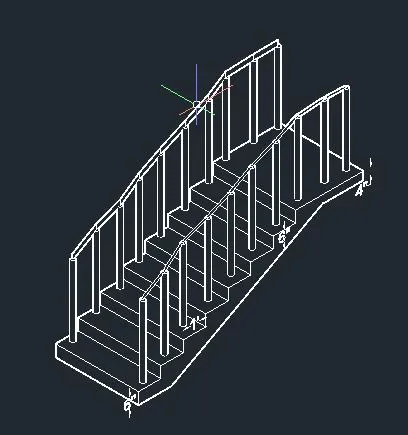

In the command prompt type circle of diameter 2"
exturde to a distance of 3'-2"
In the command prompt type l and join the ralings

RESULT:

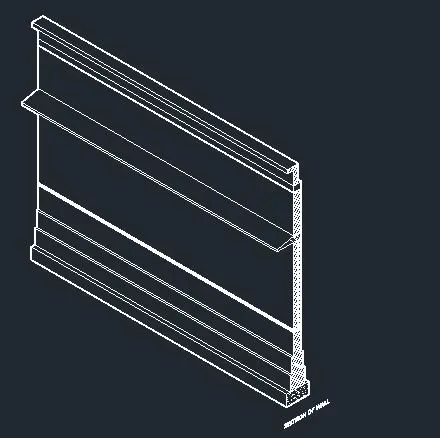

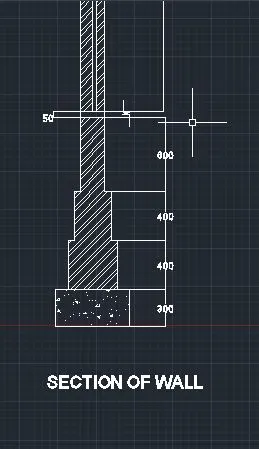

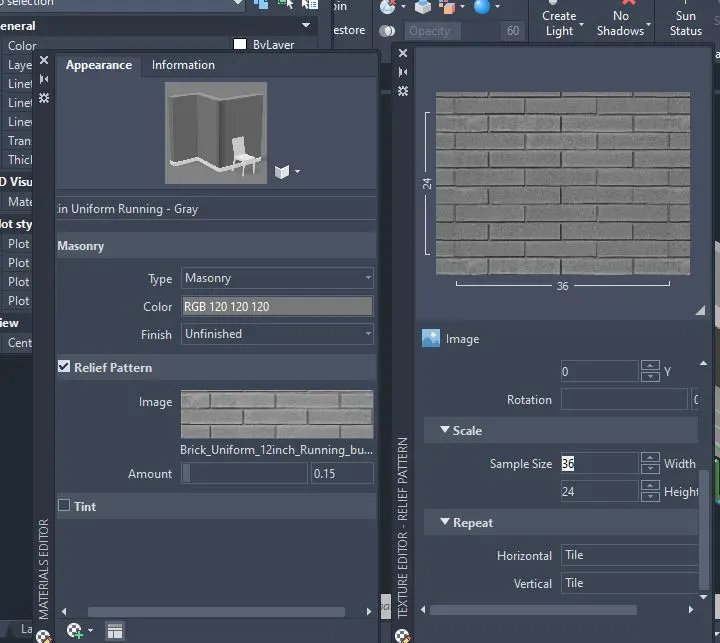

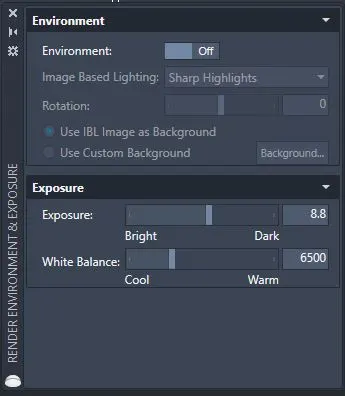

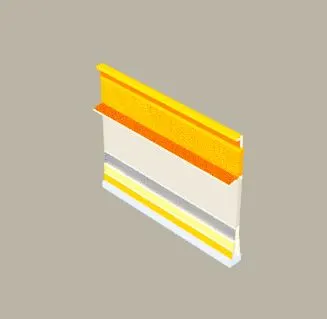

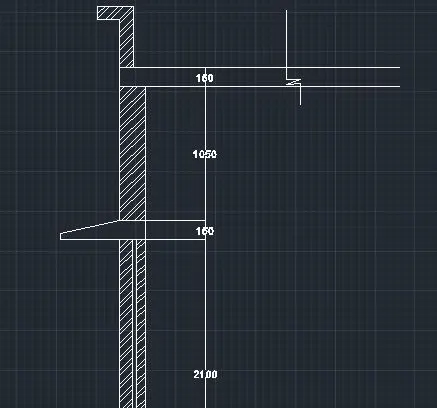

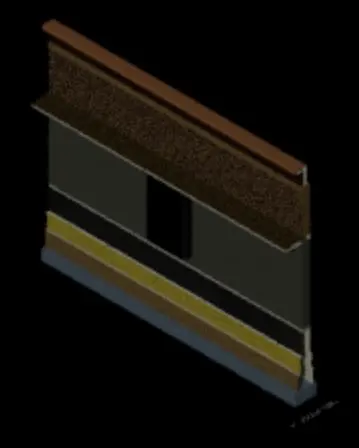

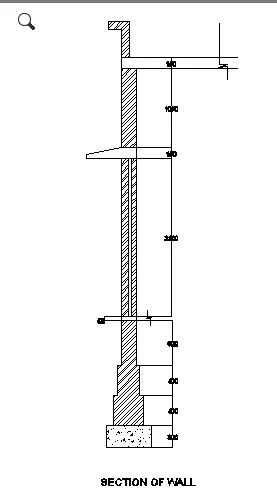

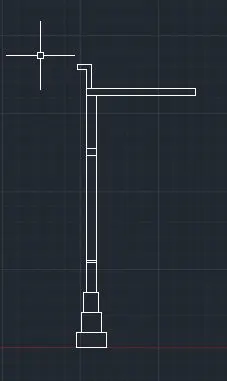

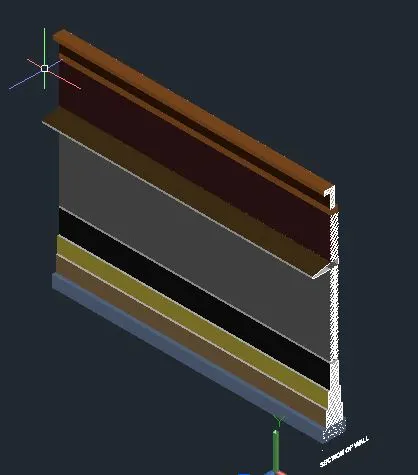

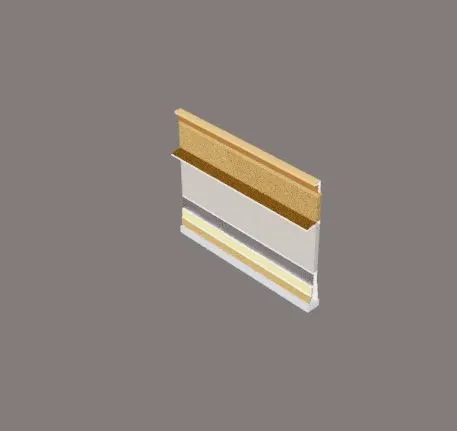

4. Create the 3D view of a Wall with spread footing . Create the Door opening only. Assume the size of

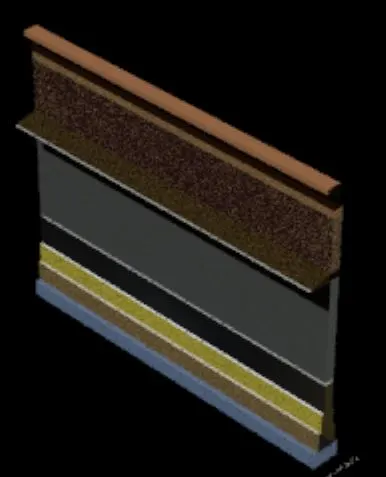

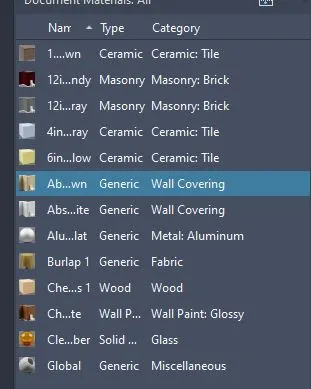

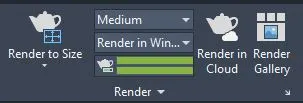

the parpaet and the coping. See the plans and elevation for the details. Also, create a rendered view of
the model with materials as of your choice.

AIM:

To Create the 3D view of a wall with spread footing and to also create a door opening using autocad

PROCEDURE:
