Aim : To prepare a longitudinal model of I-girder and analyse for all the loads in Staad Pro
Introduction:
Given data of girder are
Grillage model of 4 I-girders with span length of 27.0m.
Having supports at 0.700m from both ends.
Having following geometrical properties:
End Section: Area = 1.218m2
Iy = 0.32541m4
Iz = 0.05129m4
Mid Section: Area = 0.87702m2
Iy = 0.27835m4
Iz = 0.02622m4
4. Having material properties: Concrete, M60 grade
Others data's are assumed
Procedure: Preparation of Staad model
Open Staad pro and create 1st node at 0,0,0 (X,Y,Z = Longitudinal,Vertical,Transverse)

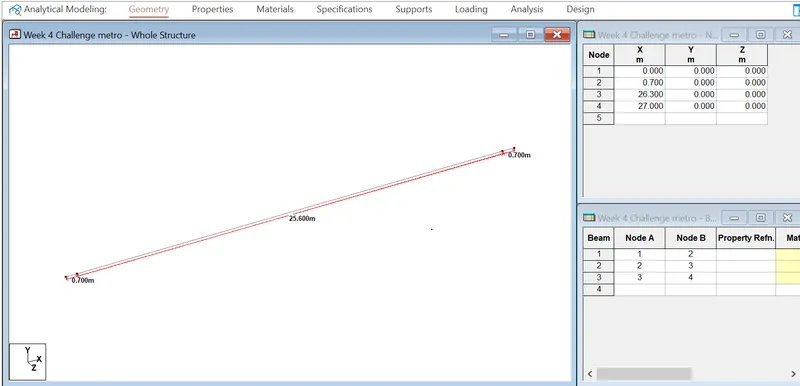

Since the support is at 0.7m from both ends, nodes are created as at respective nodes and last node at 27m as span length is 27m

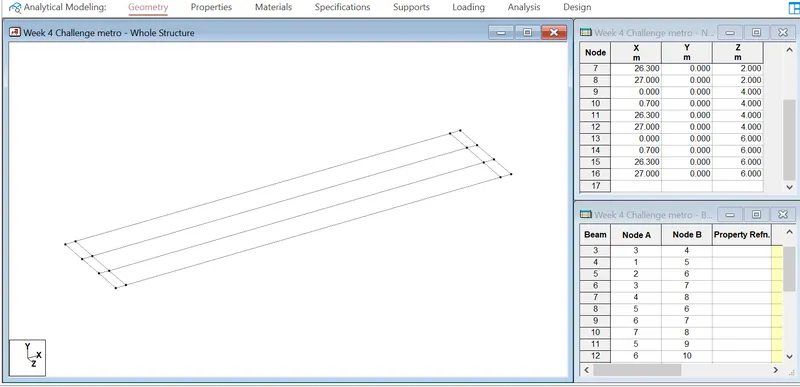

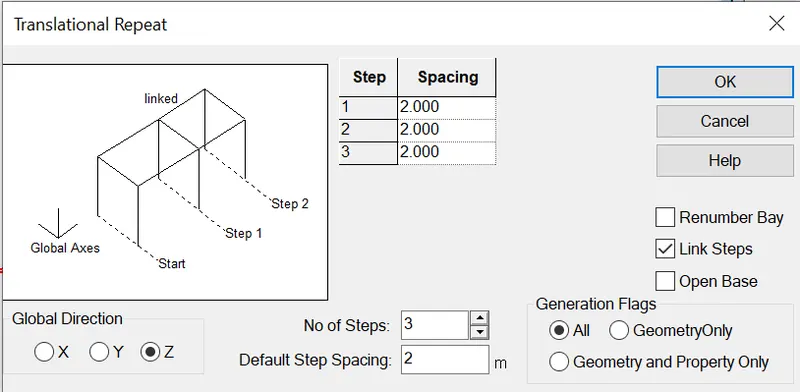

Now for creating 4girders translation repeat is used in Z direction
c/c spacing of girder = 2m(assumed)

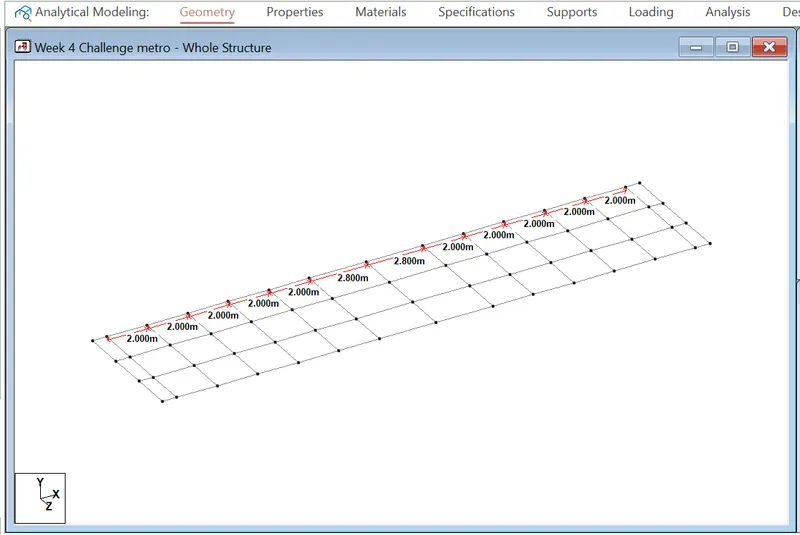

Now we create internal diaphragms at 2m distance in X direction

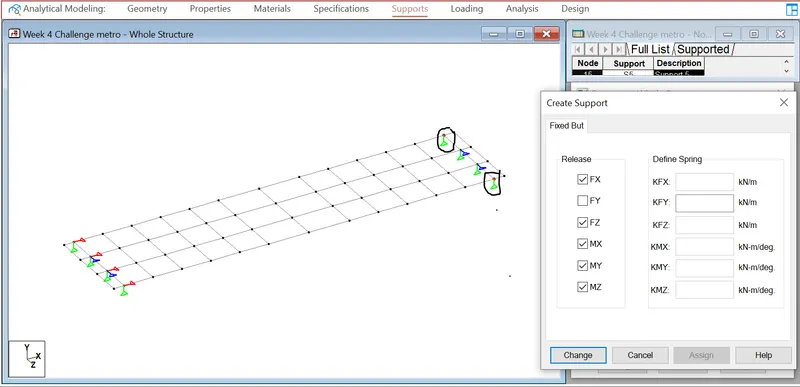

Now lets assign supports

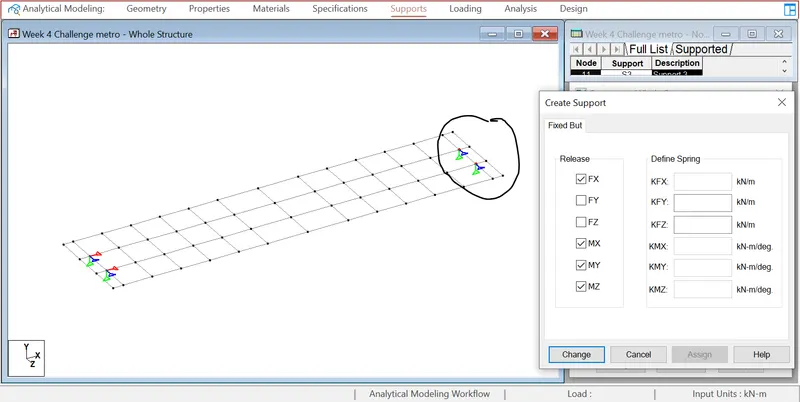

To allow longitudinal movement we release FX in next support

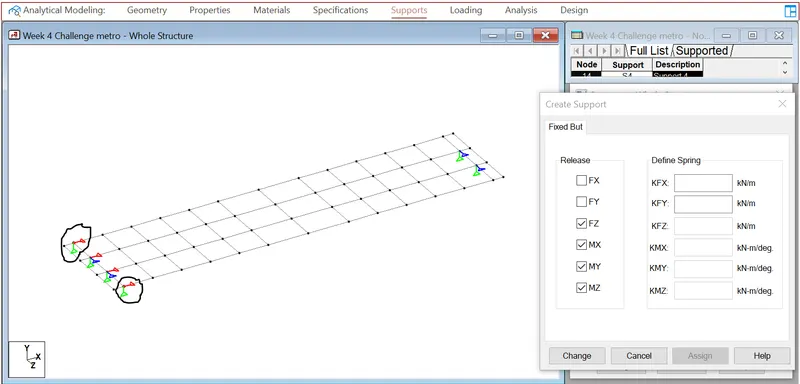

To allow transverse movement we release FZ in next support
Now assigning roller support for free movement in X-Z plane

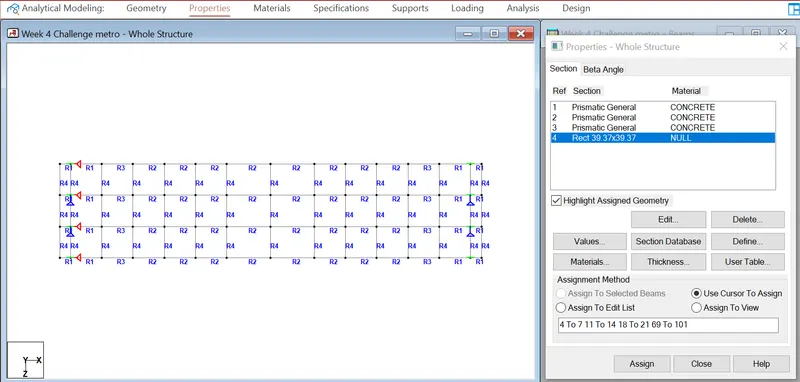

Now creating properties of the girder and diaphragm

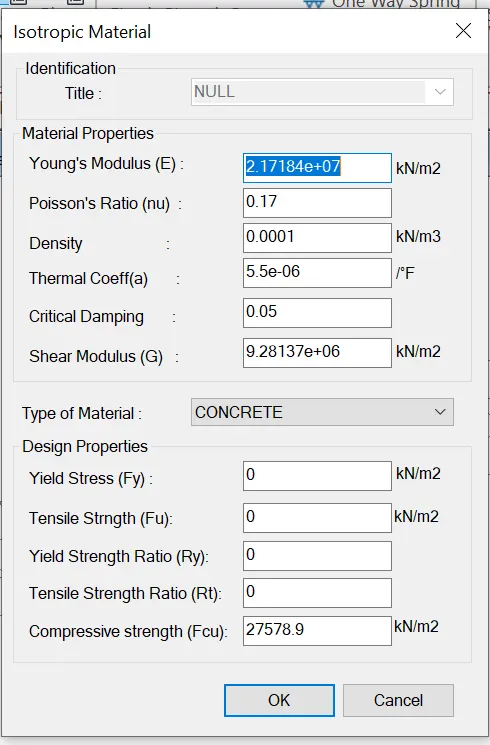

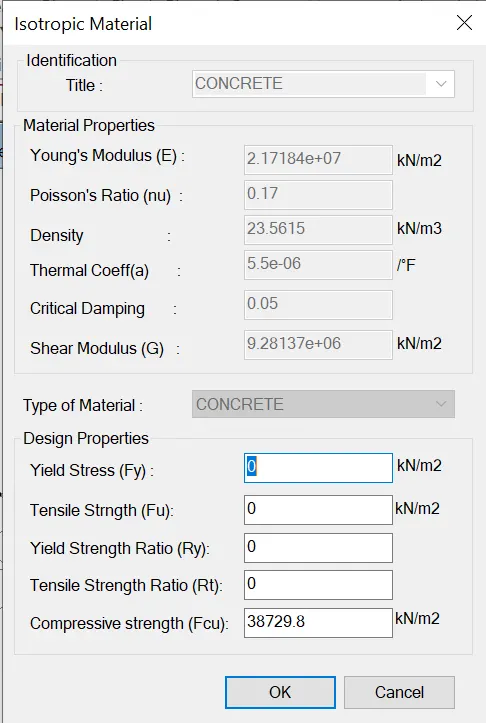

Concrete is of M60, therefore compressive strength = 5000(fck)^0.5 = 5000(60)^0.5= 38729.83 MPa

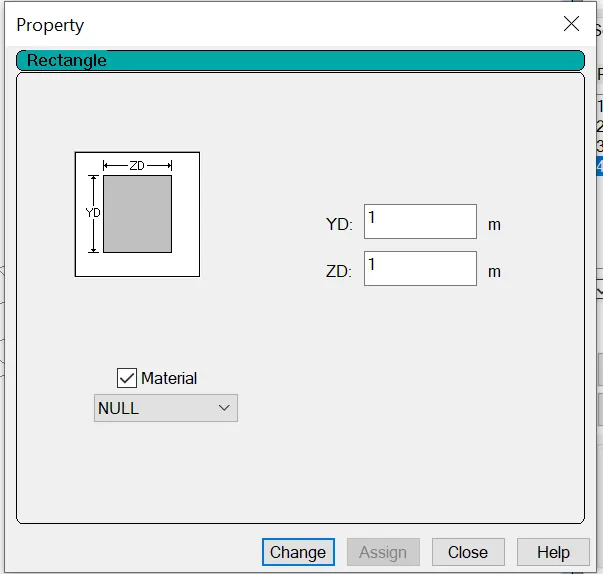

Creating Null property for diaphragms as these are to be modelled for as only connecting members and not of structural importance

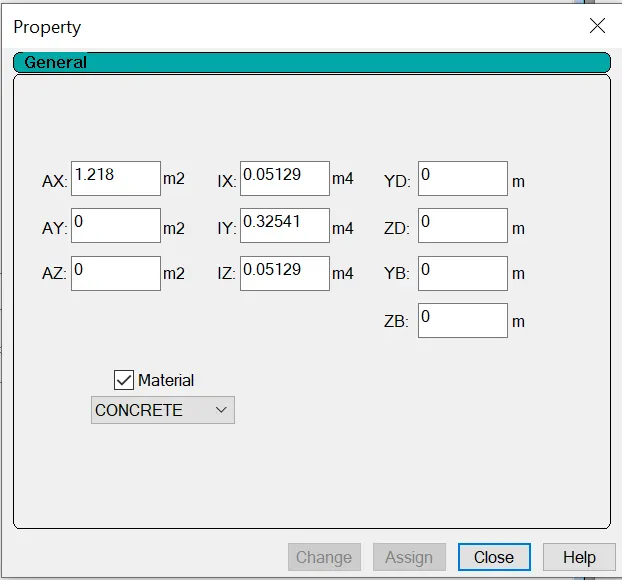

End Girder property

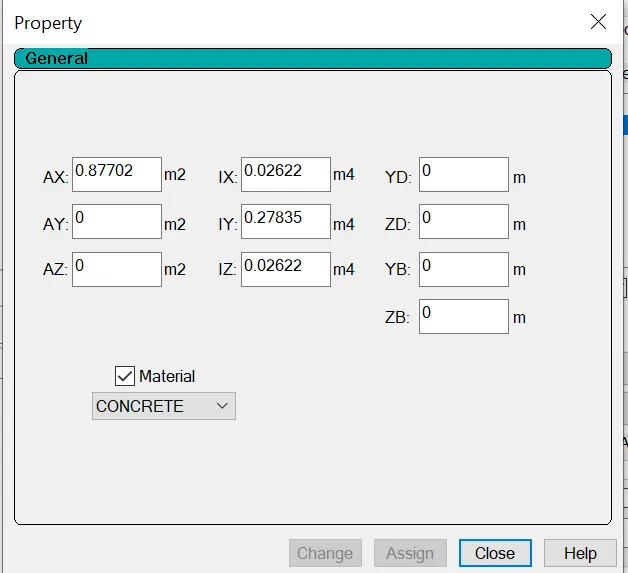

Mid girder property

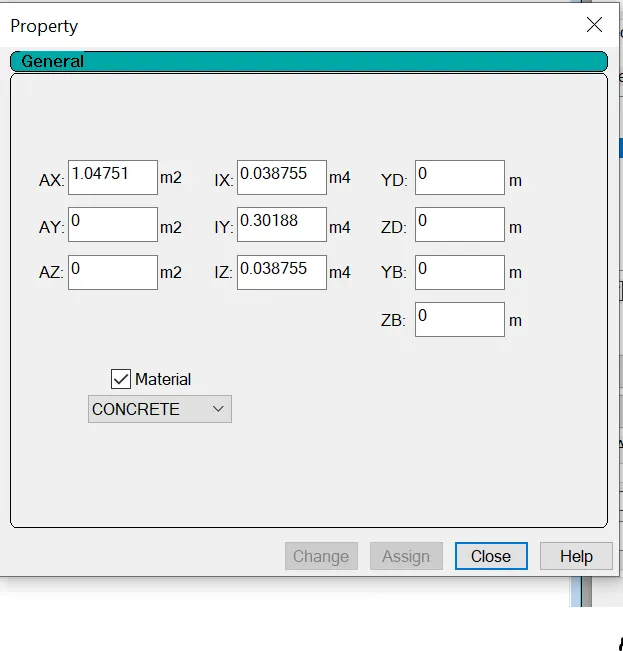

Tapering section property b/w end and mid girder(Average of both)
Diaphragm property
Now calculating and assigning loads to the girder

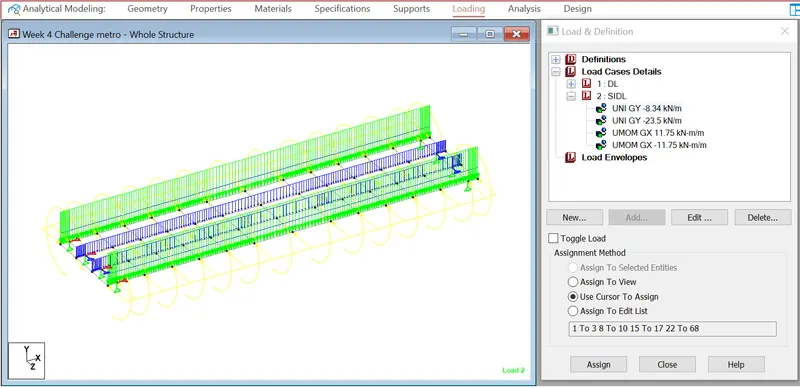

DEAD LOAD
It is assigned as self weight with factor Y -1 as we have given properties to the girder.
SIDL
Applied as 8.34kN/m - Load of plinth/deck, rails & rail pad
23.5 kN/m - Load of parapet
As parapet is in end, we take into consideration moment generated due to parapet - Cg of parapet = 0.5m Therefore moment = 23.5*0.5=11.75kNm

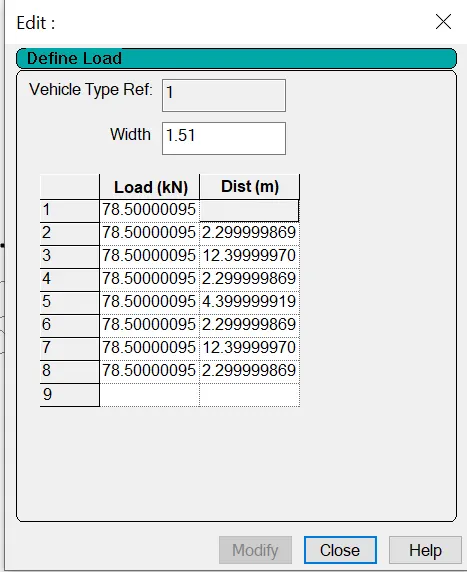

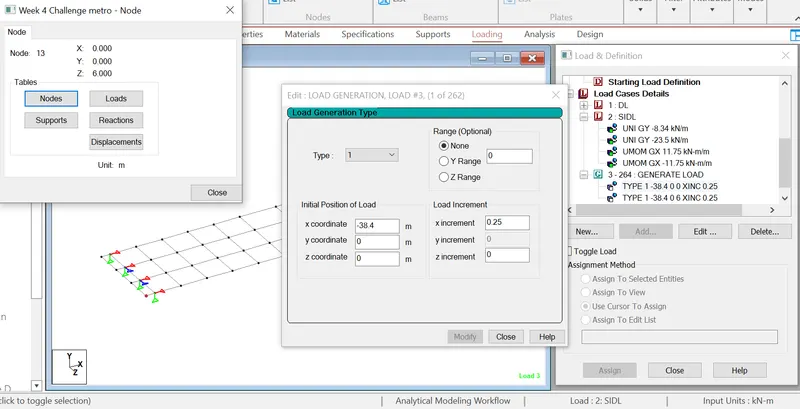

For Live Load we first define vehicle of metro, since span is 27m we define 2 bogies

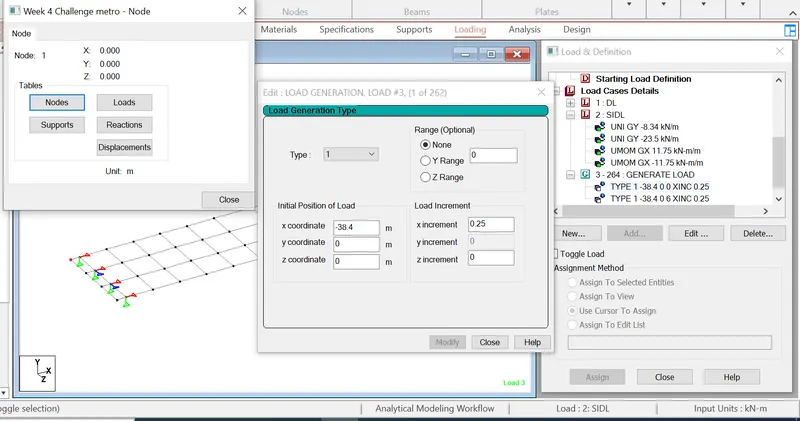

Now generating moving load

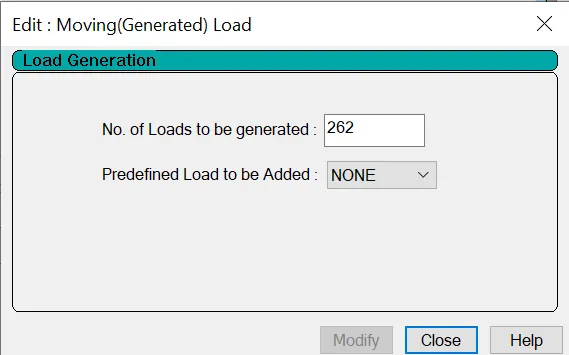

No.of Load generations = (Length of vehicle + Length of span) /increment = (2.3+12.4+2.3+4.4+2.3+12.4+2.3 + 27)/0.25=261.2
Two trains are running one on left side and one on right side
Now run analysis
Results:
As the girder is simply supported beam, maximum bending moment will be at the centre of beam
Considering 1st girder beam No.60(centralbeam for design)

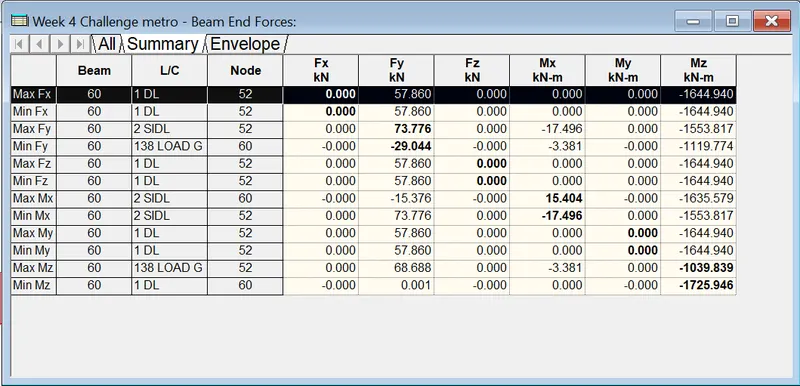

Summary of forces

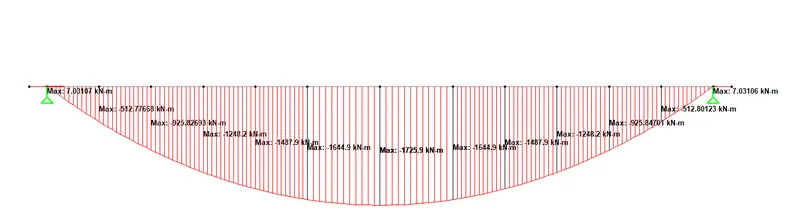

Bending moment for DL

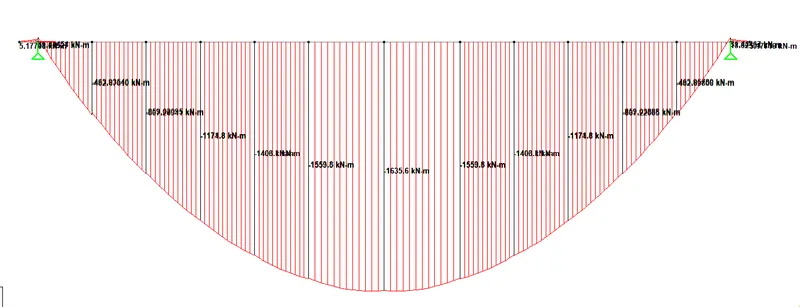

Bending moment for SIDL

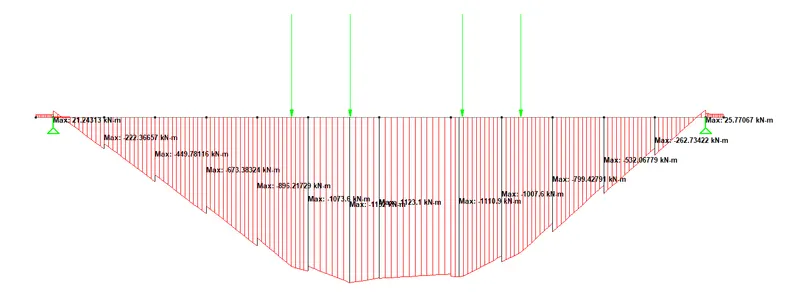

Bending moment for LL
SLS LOAD COMBINATION = DL+1.2*SIDL+1.1*LL*I
I=Impact factor
Impact factor CDA as per IRS bridge rules will be 0.15+8/(6+L) = 0.15+8/(6+25.6) = 0.403.
Now this CDA is for broad guage as per IRS we have to calculate it for metro.
Speed for metro is 90km/hr whereas for Broadguage it is 116 km/hr
Therefore impact factor will be 0.403x(90/116)=0.313
Impact factor x Live load factor = 1.313 x 1.1 = 1.45 = factor for live load in SLS combination
Moment = 1725.9+1.2*1635.6+1.45*1152 = 5359.02 kNm
This moment is used for design
Prestress design
No.of cables =4
No.of strands (n) = (7 strands in 3 cable + 8 strands in 1 cable)= 7*3+8=29
Prestressing force applied (P) = 0.765fpu x As x n x (1-loss) / 1000 kN
fpu = Nominal ultimate stress = 1860 MPa
Maximum jacking stress = 0.765 fpu = 0.765 x 1860 = 1422.9 MPa
As = Area of strand = 140mm2
Assume loss of 17.5%
Prestressing force (P) = 4766 kN
Stress @ bottom of girder = Compressive stress due to tendons - tensile stress due to external loading
= ( P/A + P.e/Z) - (M/Z)
Z = I/y = 1.24m3
A = Sectional Area of girder = 1.04 m2 (Average)
P = 4766 kN as calculated above
e = centre of gravity of girder section @ bottom of girder- centre of gravity of tendon @ bottom of girder = 0.454m
M = moment of SLS combination from longitudinal analysis for DL, SIDL & LL combination = 5359.02 kNm
Therefore, Stress @ bottom of girder = 1.97 n/mm2 (Since the resultant stress is positive it is compressive, as to avoid tension we are providing tendons)
