Challenge 2- Comparing the performance of three types of beams under bending load.

Aim: to perform strength test on the different beams

Introduction: Beams are used to carry loads in different components so i solid works we perform a static test in solid works to get the stress and strain values developed in the beams ,in this challenge we are given with three sectional views of the beams

Basic theory: beams are long rod like structures which are suppoted with joints there several types of beams Mainly beams carry load so in this solidworks we study the load carying capacity of the given sections of beams

Case setup:

1. open solidworks and creare a new file in the part section
2. click on sketch and design the model for the given dimensions
3. then click on simulation study under that static analysis
4. then specify material for the model
5. give the fixwed geometry to the model
6. then give required amount of loasd to the model

mesh the model usoing mesh option and run the study

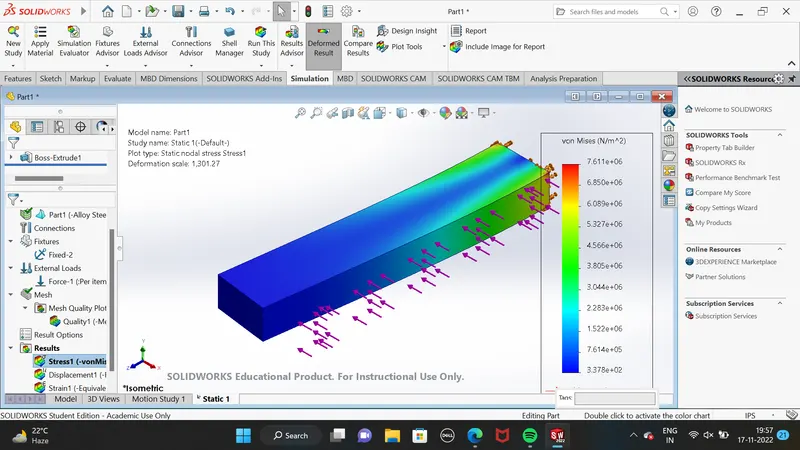

model:
