Assignment 5-RADIOSS Interfaces & Study of Effect of Notches Challenge
Objectives:
To Create the mesh for bumper assembly, mesh size should be 6mm.
To Run the crash tube model as it is.
To Change the Inacti=6 and run.
To Create the type 11 contact and run.
To Remove both notches and remove boundary condition on rigid body node then run.
To Create a new notch in the middle, select the whole section and run.
To Create a new notch with nodes only from opposing 2 faces and run.
Execution procedure:
- Set the mesh size to 6 in 2D->automesh.
- Perform geometric cleanup remove unnecessary free edges.
- Mesh all the components using automesh and check for the mesh connectivity.
Observations and results:
Case 1- Run the crash tube model as it is.

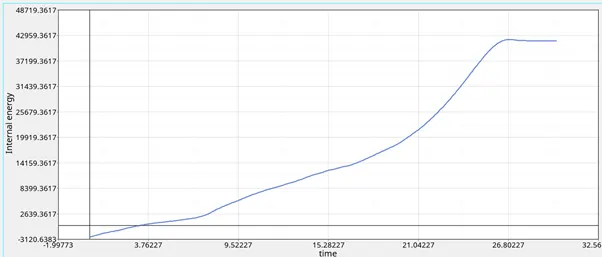

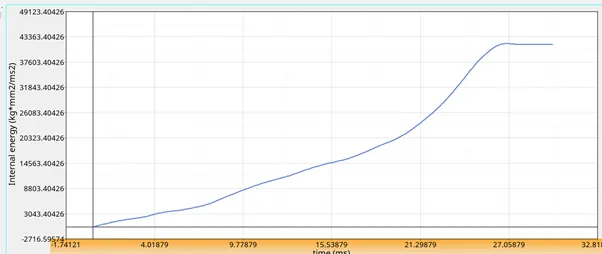

Internal energy plot:

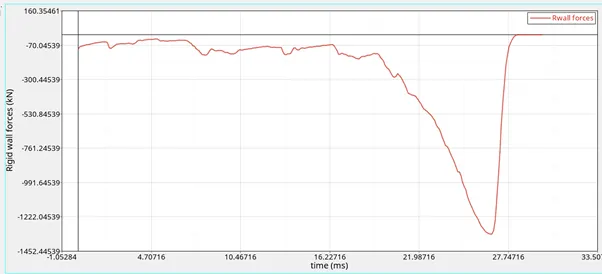

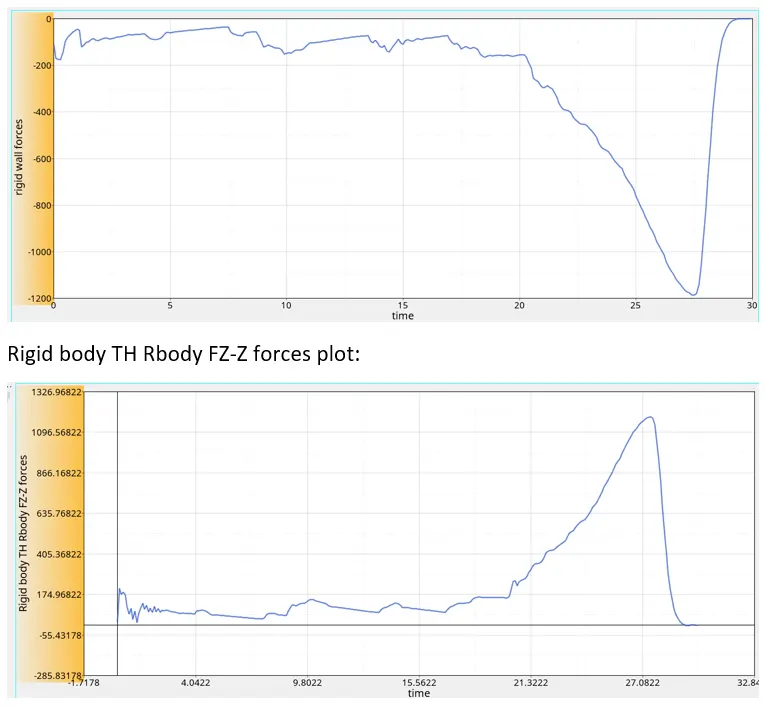

Rigid wall forces plot:

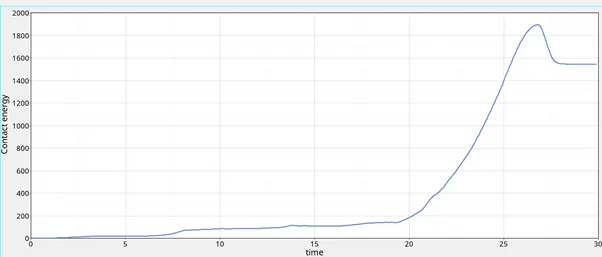

Contact energy plot:

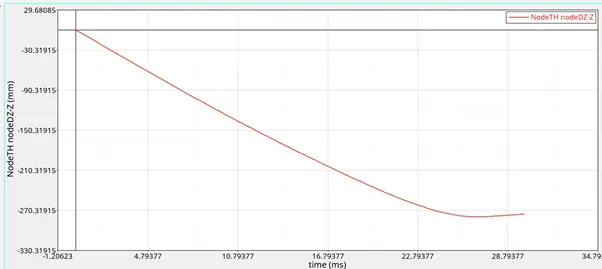

Node TH nodeDZ-Z plot:

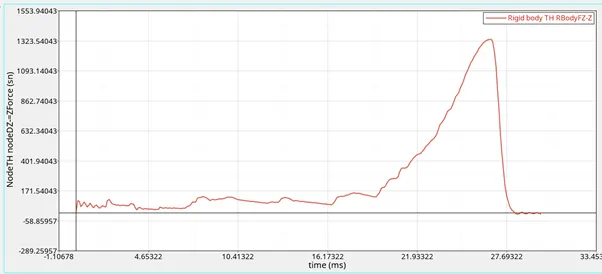

Rigid body TH R Body FZ-Z plot:
Case 2- Change the Inacti=6 and run.

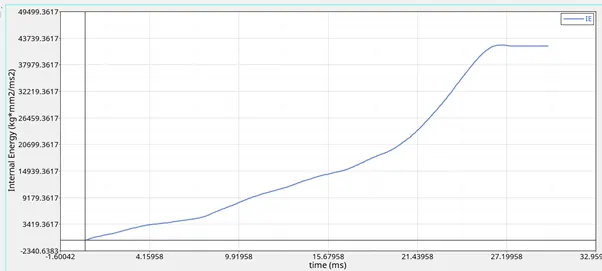

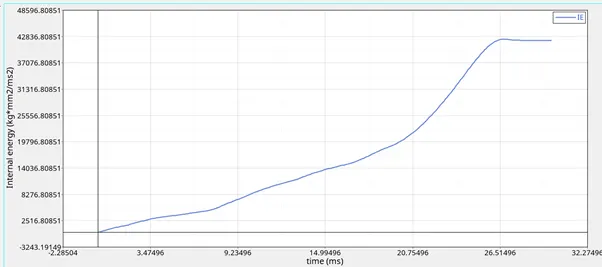

Internal energy plot:

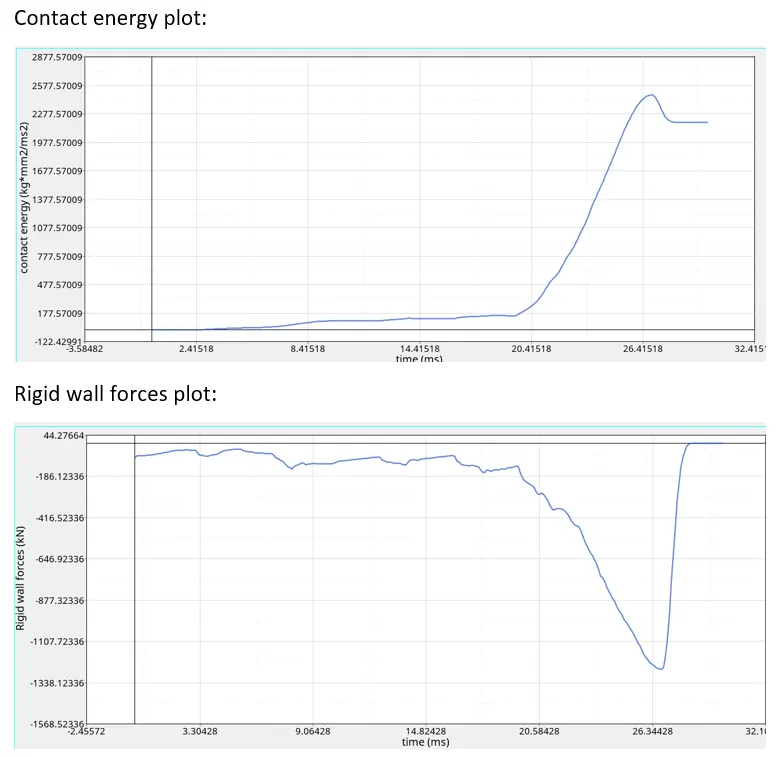

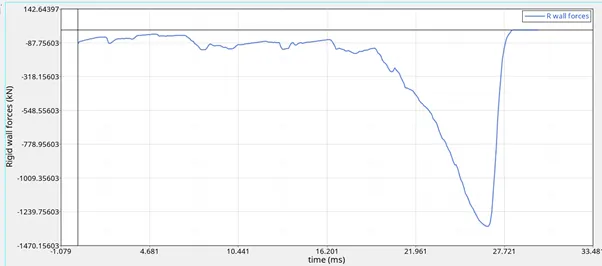

Rigid wall forces plot:

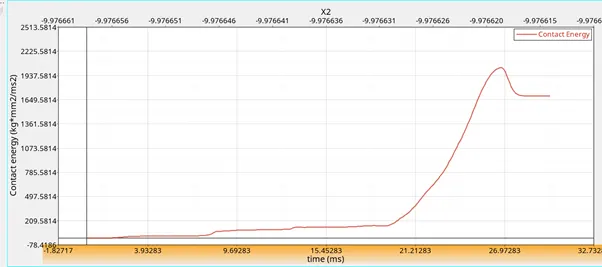

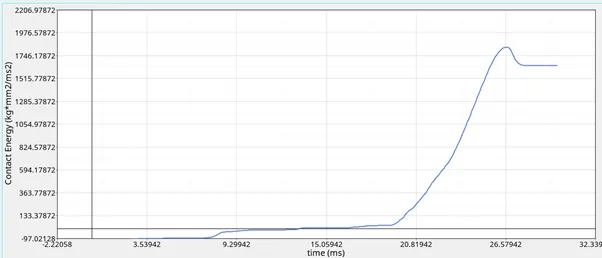

Contact energy plot:

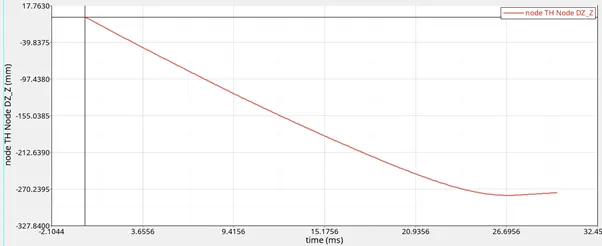

node TH Node DZ_Z plot:

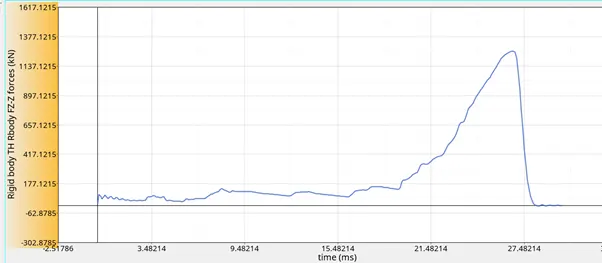

Rigid body TH R Body FZ-Z plot:
Case 3- Create the type 11 contact and run.

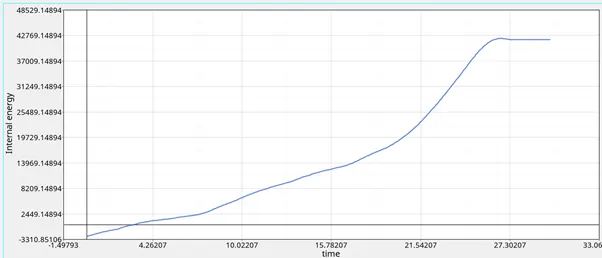

Internal energy plot:
Contact energy plot:

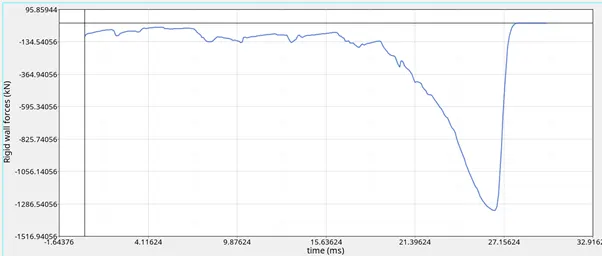

Rigid wall forces plot:

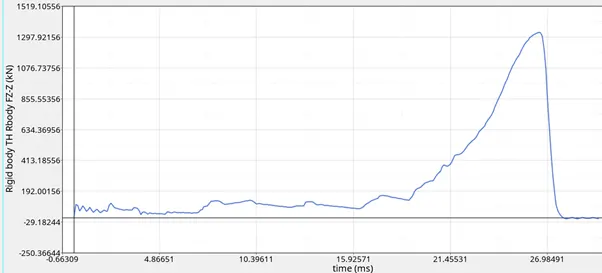

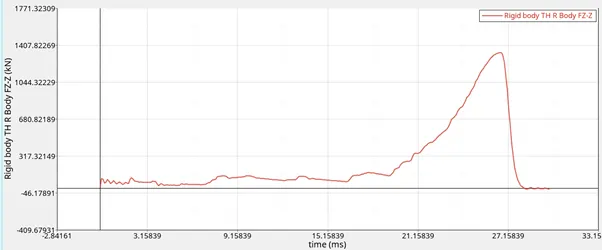

Rigid body TH Rbody FZ-Z forces plot:

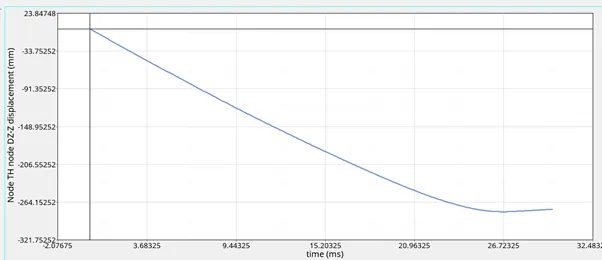

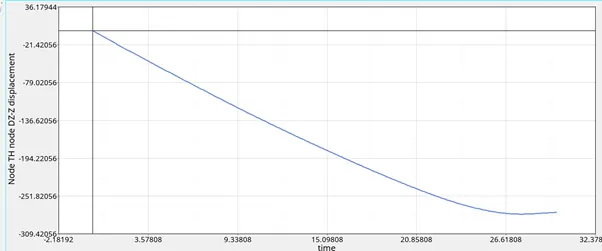

Node TH node DZ-Z displacement plot:
Case 4- Remove both notches and remove boundary condition on rigid body node then run.

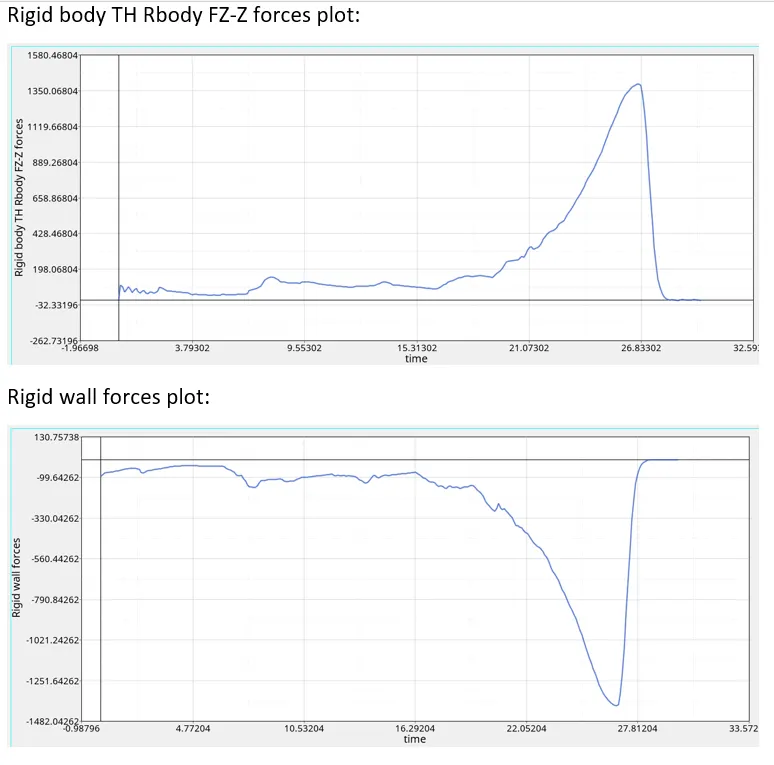

Rigid wall forces plot:
Node TH node DZ-Z displacement plot:
Case 5- Create a new notch in the middle, select the whole section and run.
Internal energy plot:
Rigid body TH Rbody FZ-Z forces plot:
Case 6- Create a new notch with nodes only from opposing 2 faces and run.

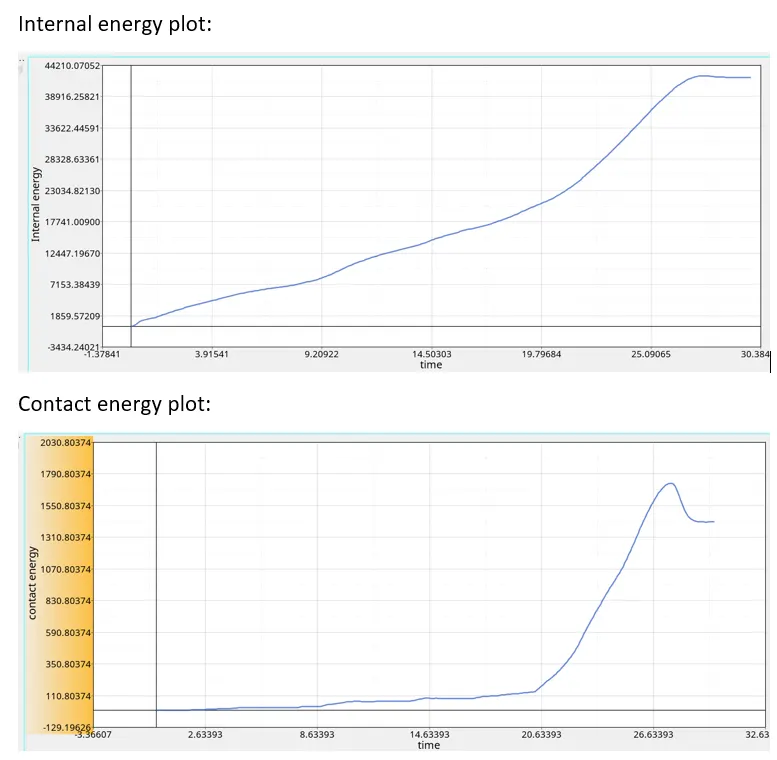

Internal energy plot:

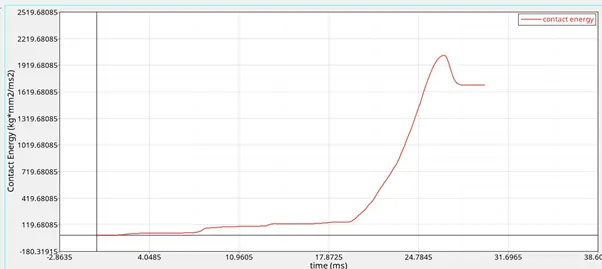

Contact energy plot:
observations:
1. Rigid wall forces plot is different than other cases in case-4.
2. Rigid body TH Rbody FZ-Z forces plot is also different in case-4 than others.
