Assignment 2-RADIOSS Engine File Editing & 3D Meshing Challenge

Please note: Answers' to questions' 1 to 6 can be found in attached excel sheet and engine file.

Answer to question 7 can be found in the attached *.hm files.

Objective: To calculate 1) Velocity of sound in steel rail 2) time for sound wave to travel in steel rail 3) termination time of analysis 4) time for animation output

To change print cycle time to 10

To 3D mesh given components

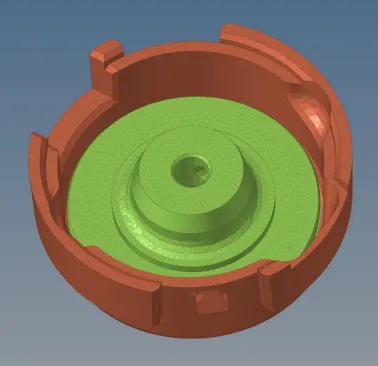

3D meshing - Tetra: In 3D panel, tetramesh option was used to do tetra mesh with tet collapse set to 0.15

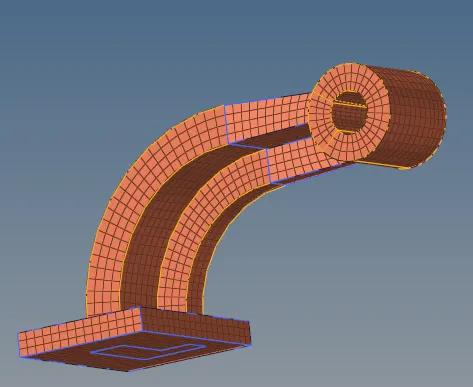

3D meshing - Hex: In 3D panel, solimap option was used to create hex mesh.

Conclusion: All questions were answered. The relevant files have been attached.
