Analysis & Design of RCC shear walls in the model using ETABS

1) To analyse and design the shear wall :

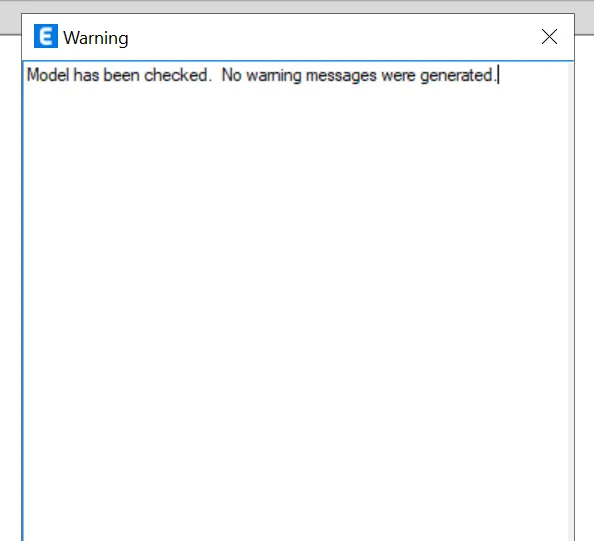

Check the model for errors

Run and analysis the model .

Check whether pier assigned in the model :

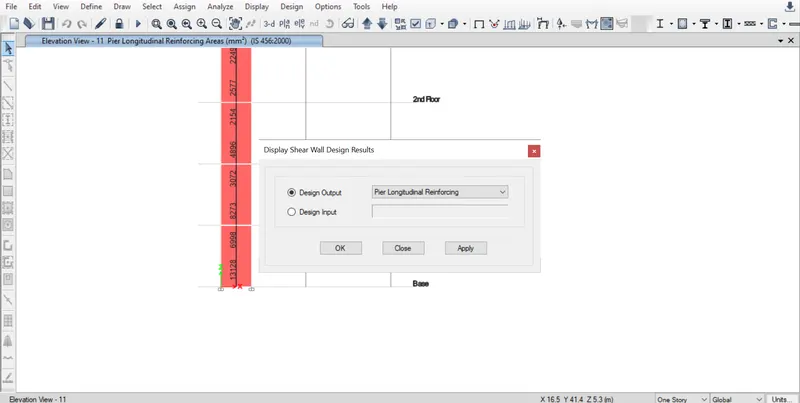

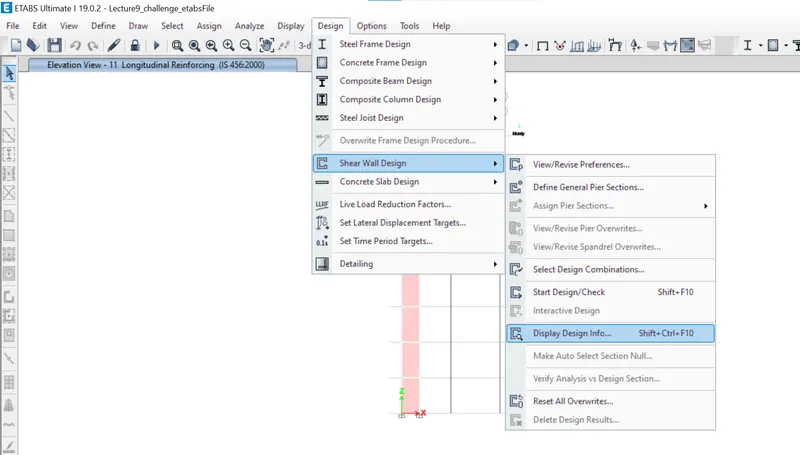

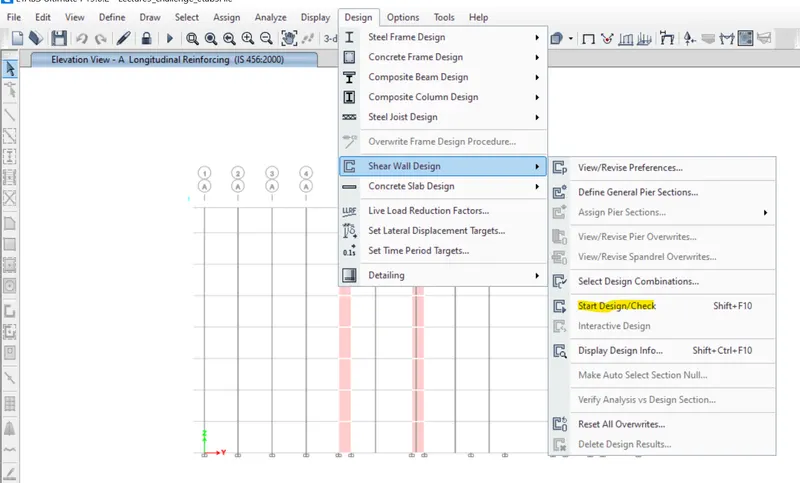

Click the below options for shear wall design:

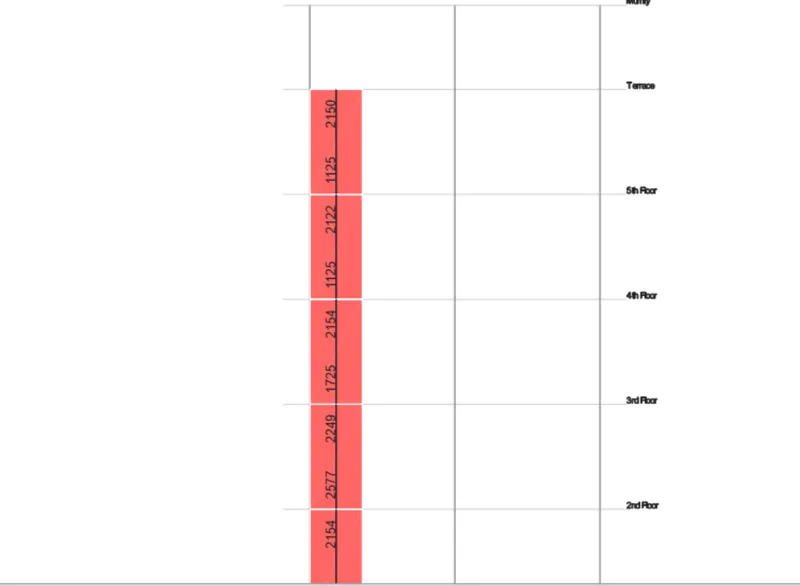

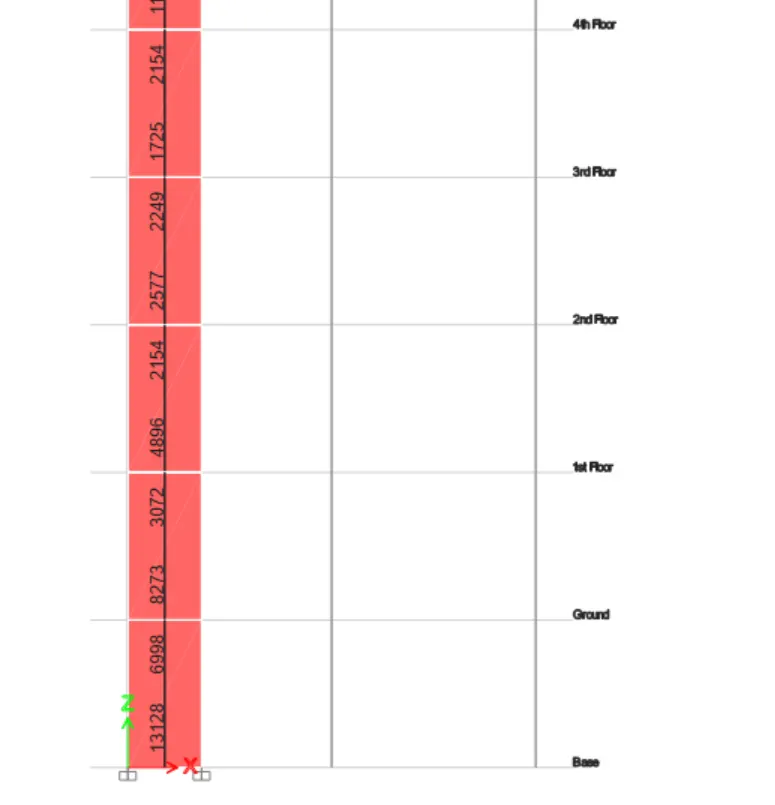

Vertical reinforcement for the shear wall :

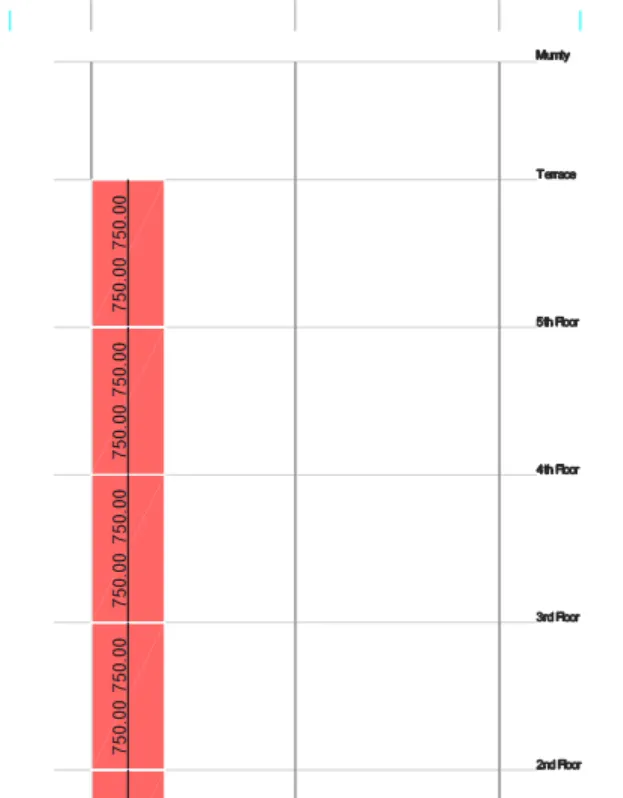

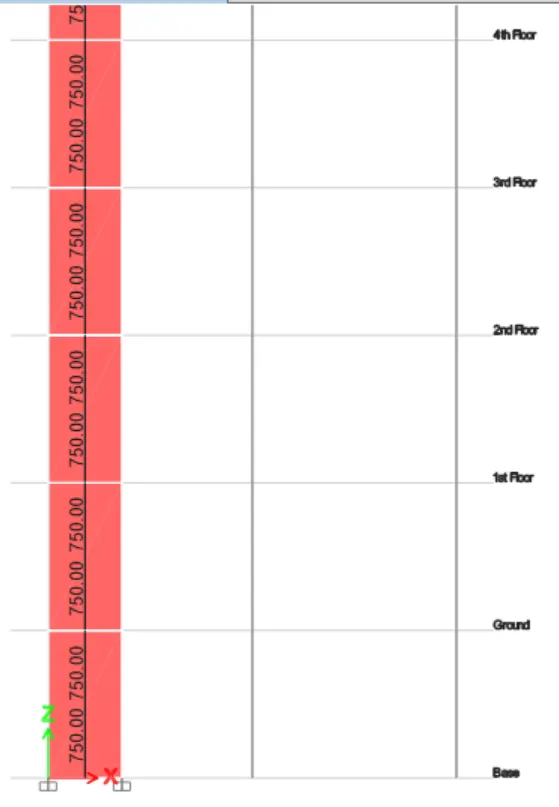

Horizontal reinforcement :

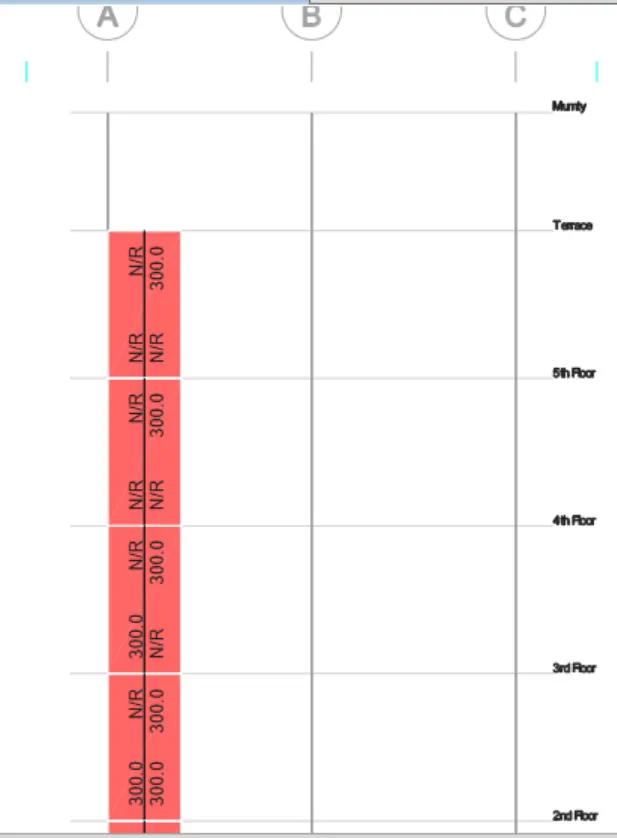

Boundary zone width:

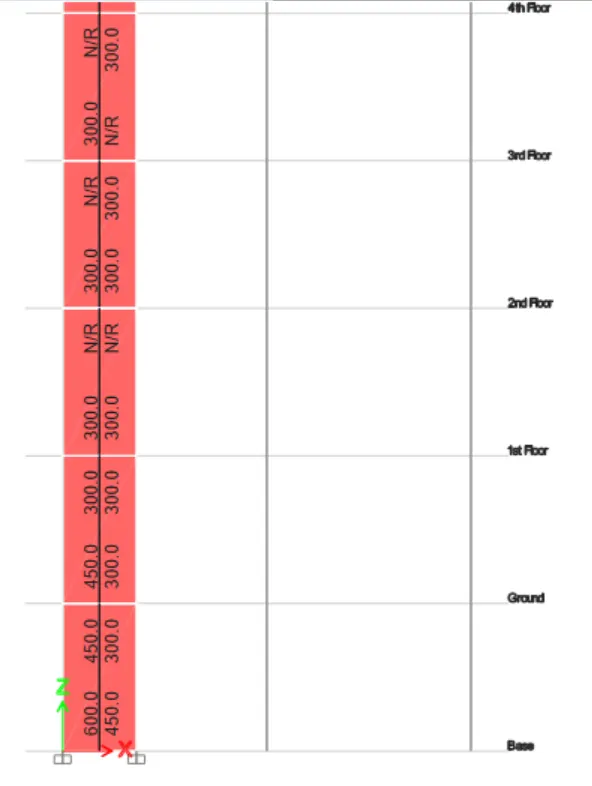

Reinforcement details :

Provide vertical reinforcement H25 @ 175mm C/C.

Horizontal reinforcement H16 @ 100mm C/C.

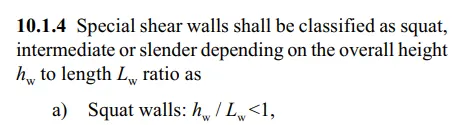

As per IS13920 : 2016 clause 10.1.4

Type of shear wall:

Ratio h/L = 21000/1500 = 14> 2 . hence it is slender shear wall.

(i) The largest diameter used in the shear wall should not exceed 1/10th of the thickness of wall

300/10 = 30mm.

(ii) The maximum spacing of horizontal or vertical reinforcement shall not exceed smaller of

• 1/5th of the horizontal length Lw of wall - 1500/5 = 300mm
• 3 times thickness of web of wall tw - 3 x 300 = 900mm
• 450mm

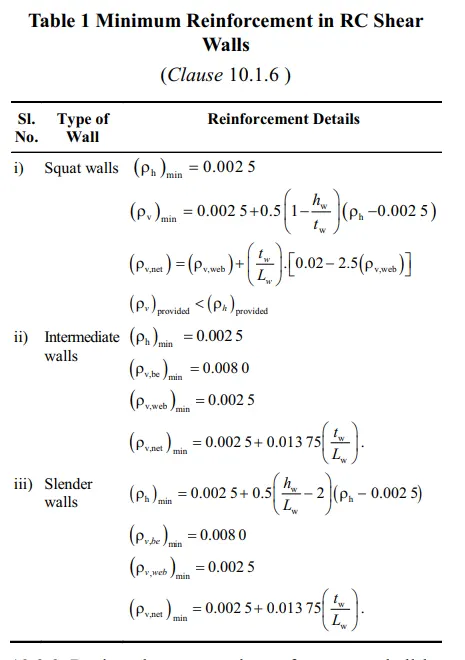

Minimum reinforcement requirement :

Minimum horizontal reinforcement :

= 0.01672 of cross section of RC wall

= 1500 x 300 x 0.01672 = 7524 `mm^2` throughout all the floor.

Area / Total length = 7524/21 = 358 `mm^2`/m height of RC wall.

Provided horizontal reinforcement is sufficient.

Minimum boundary reinforcement:

= 0.008

= x 300 x300 = 720 `mm^2`

Provide 8 number of H12mm dia bar = 8 x 113 = 904`mm^2`

Provided is sufficient.

Minimum web reinforcement :

= 0.0025

= x 900 x 300

= 0.025 x 900 x300 = 675`mm^2`

Provide 8 numbers of H12mm dia bars.

Minimum vertical reinforcement :

= 0.00525 x C.s of wall

= 0.00525 x 1500 x 300 =2363 `mm^2`

Provided reinforcement is H25 @ 175mm C/C =2805`mm^2`

Hence provided is sufficient.

Thus shear wall is designed as per IS13920 codal provisions.
