3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

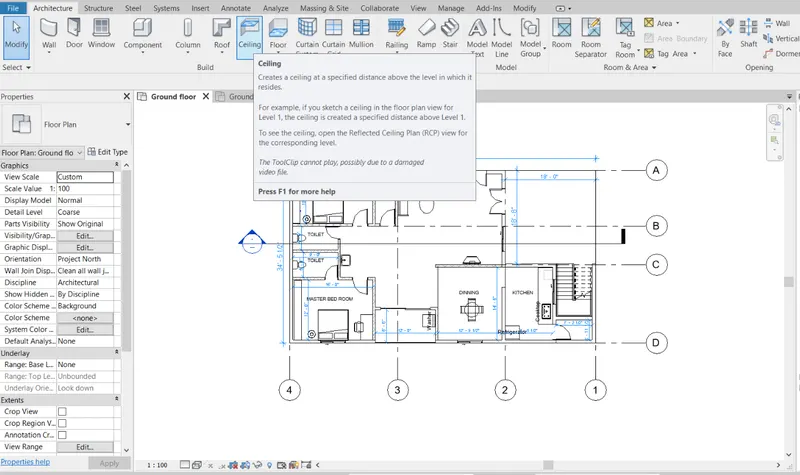

Q.1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

• Model a Ceiling from the architecture tab above the walls at the first-floor level

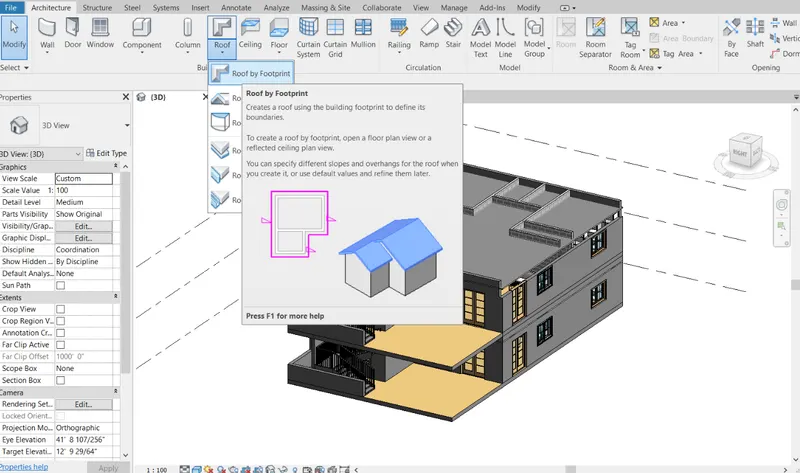

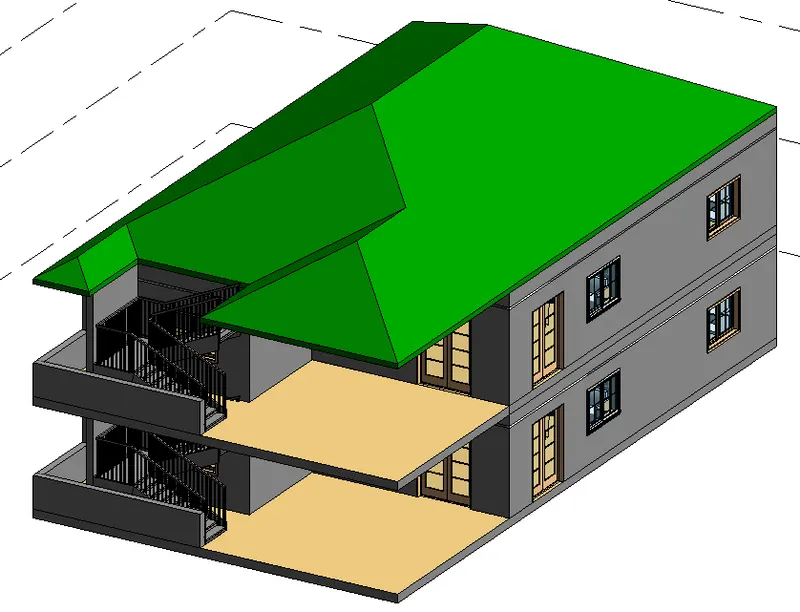

Q. 2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

• Model a roof above the ceiling by selecting the footprints of the ceiling.

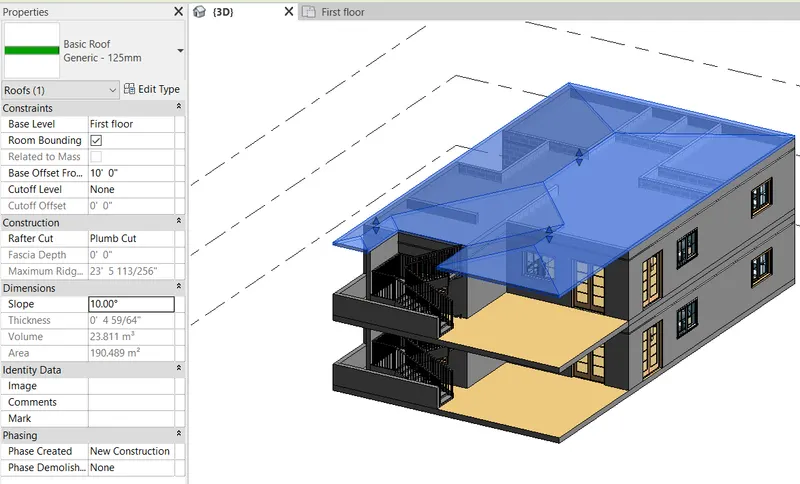

• Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

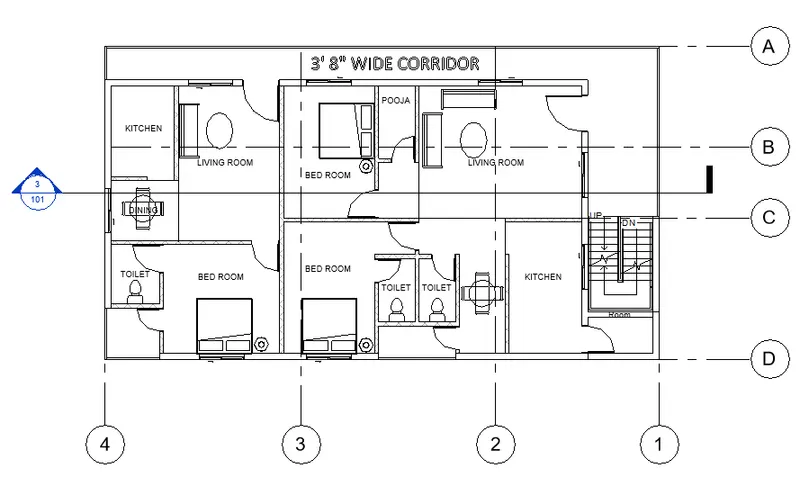

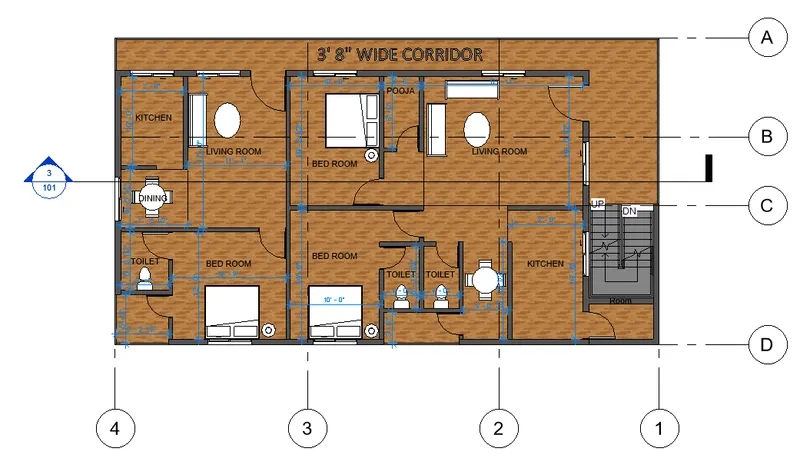

• Architecture Ground floor level

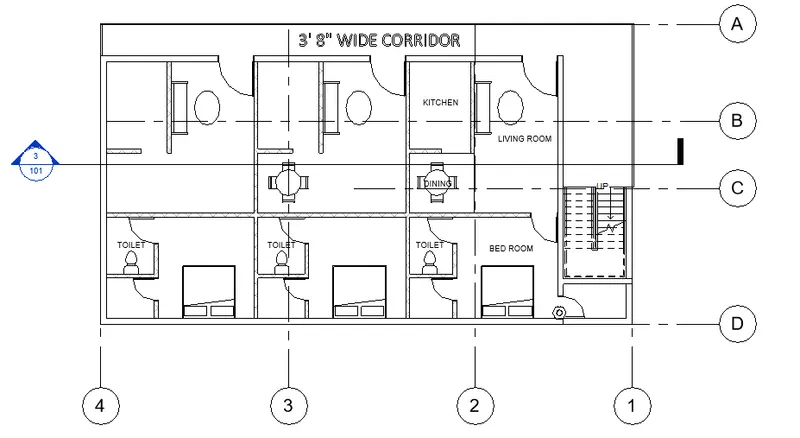

• Architecture First floor level

• Architecture Second floor level

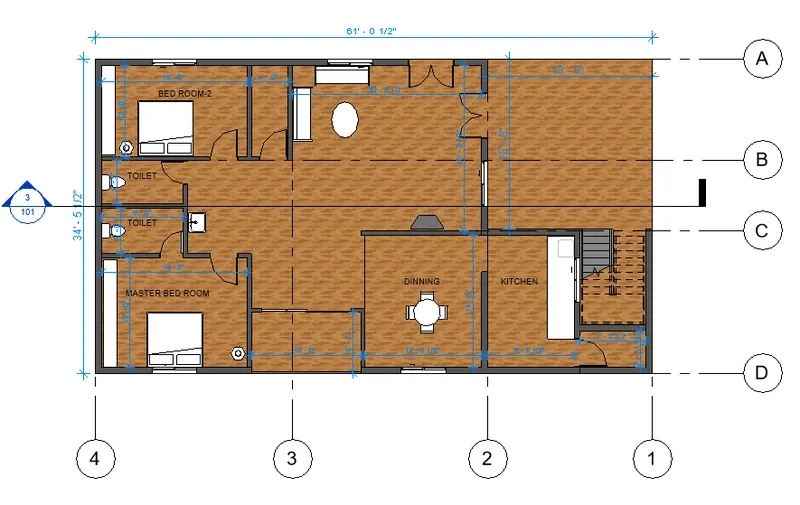

Q. 4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

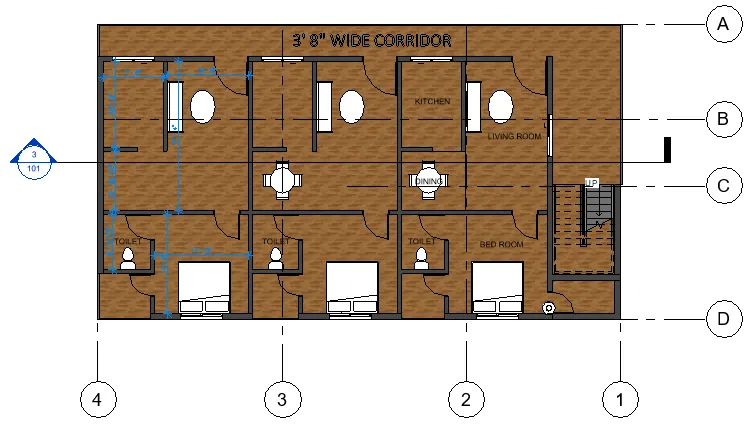

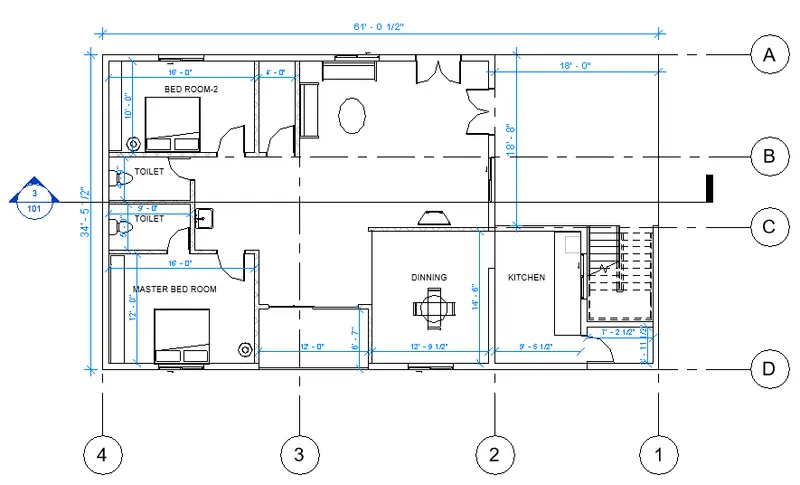

• Ground floor plan with dimensions

• First floor plan with dimensions

• Second floor plan with dimensions

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

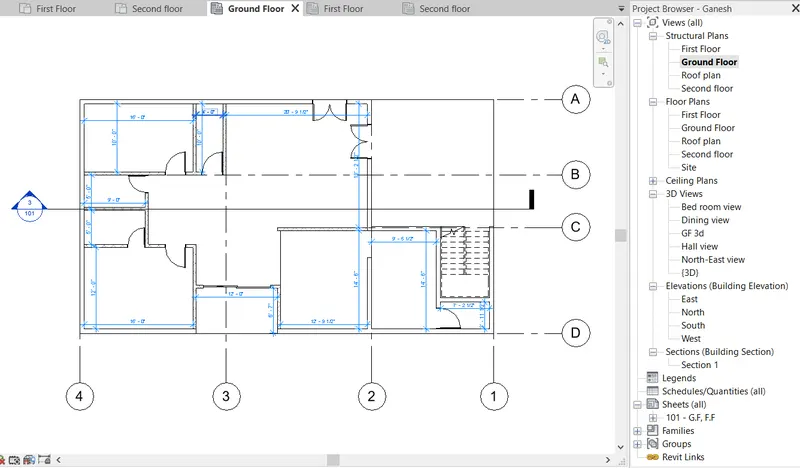

• Structural plan dimensions ground floor

Q. 5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

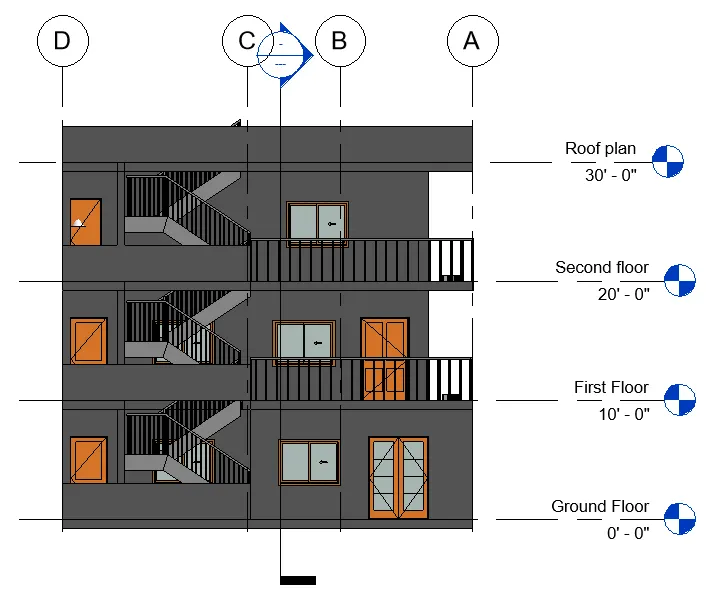

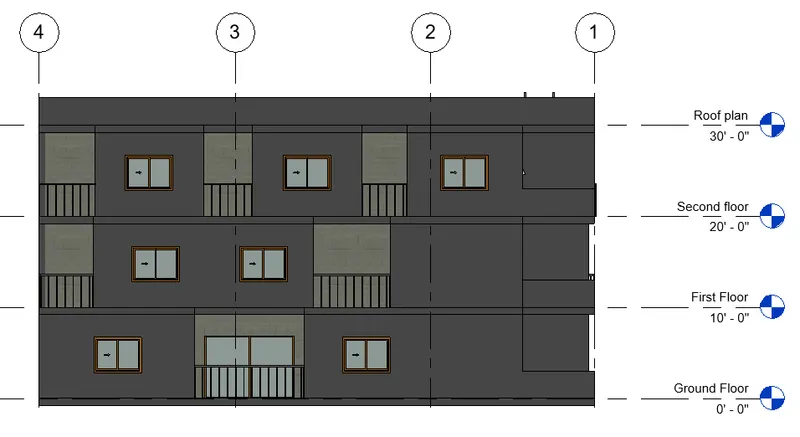

Q. 6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

• East side elevation

• North side elevation

• South side elevation

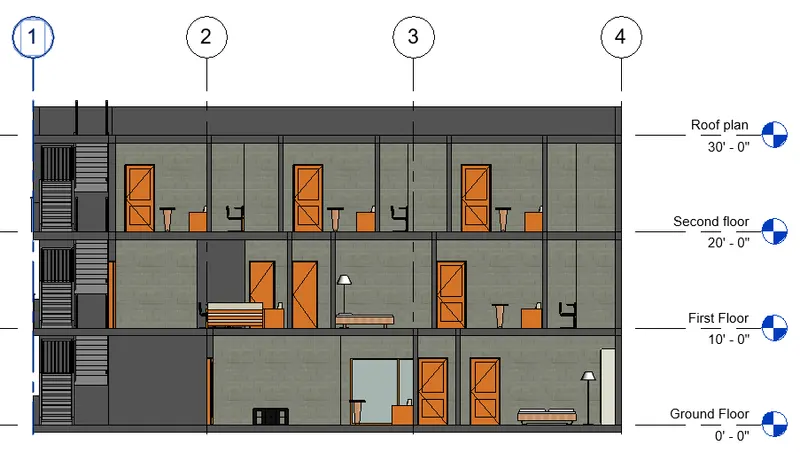

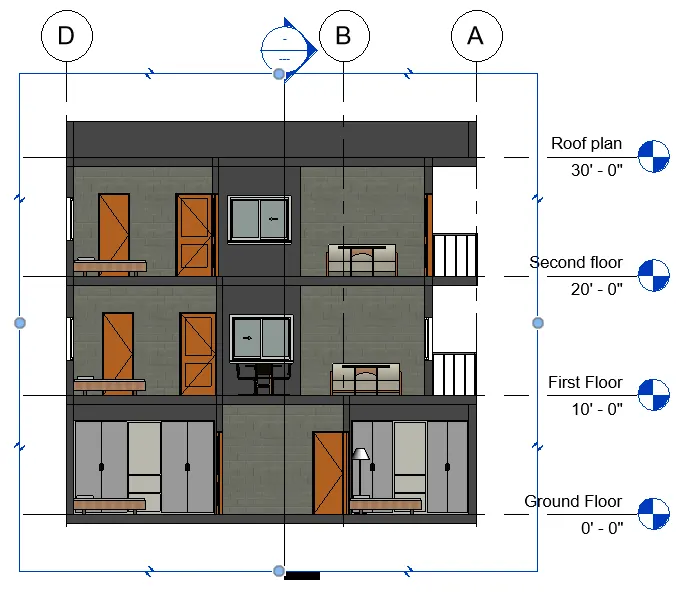

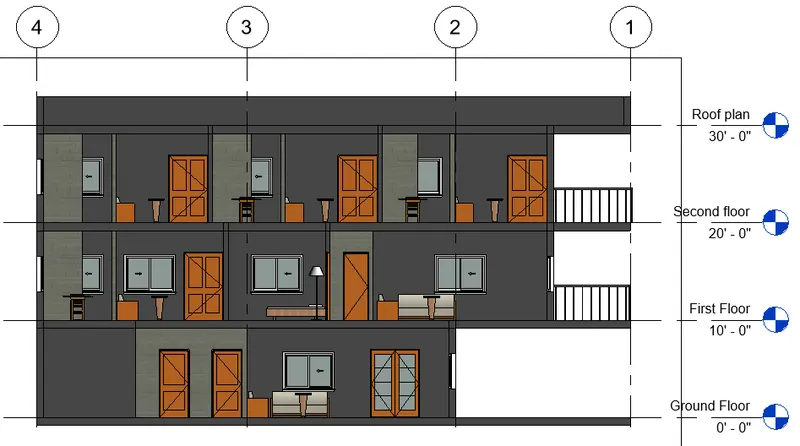

Q. 7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

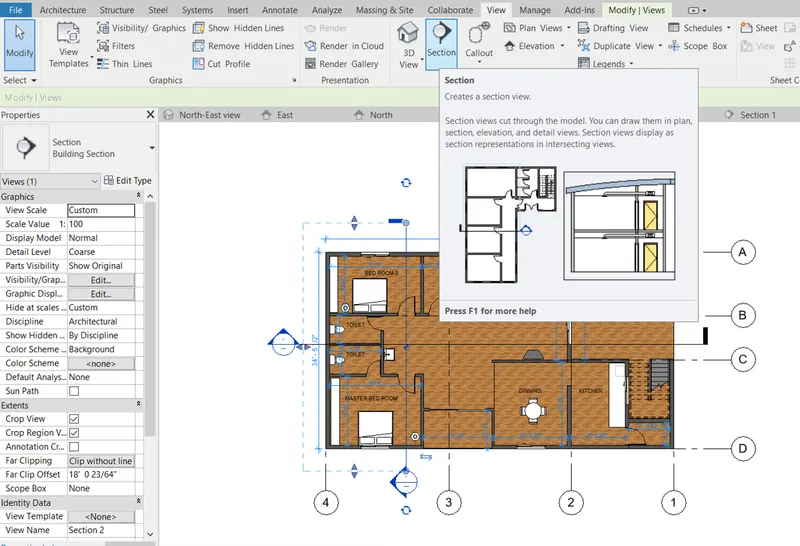

• From the view tab select section option and place in plan view, so section can be viewed in properties browser section option.

• transverse direction

• longitudinal direction

Q. 8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

• Plan Views

• Section Views

• Elevation views

• Structural views

• 3D views

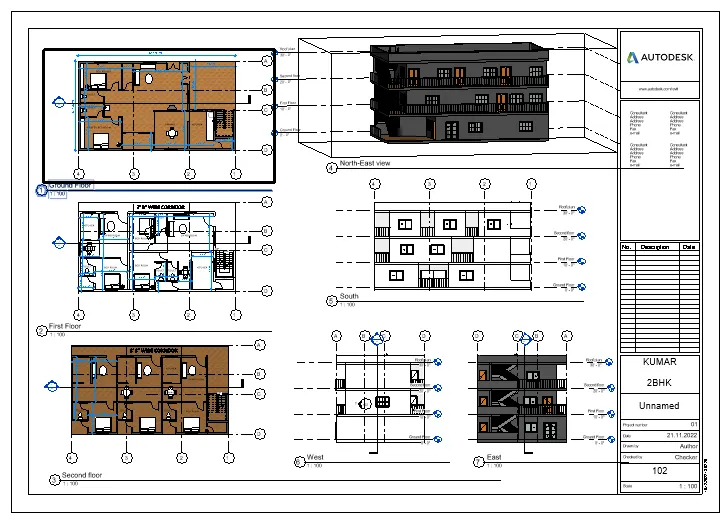

Q. 9) Using the sheet template produced create multiple sheets as follows

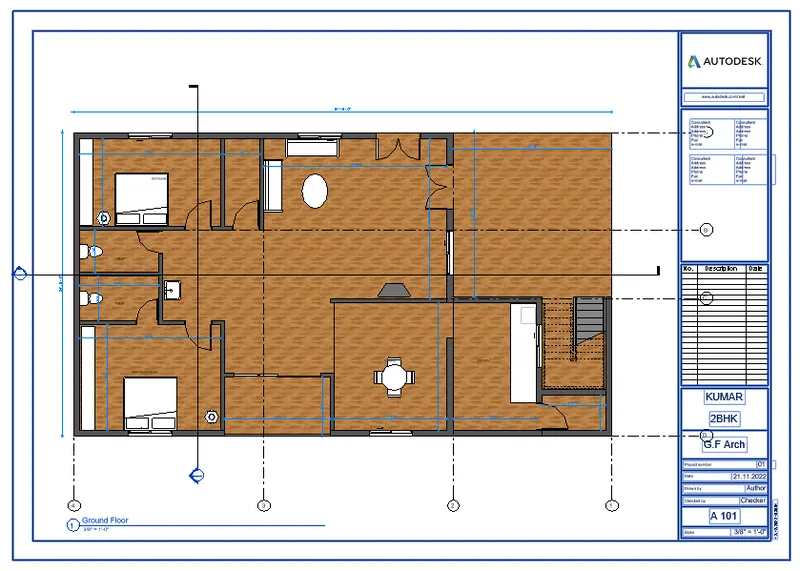

• a. A 101- Ground Floor Architecture Plan

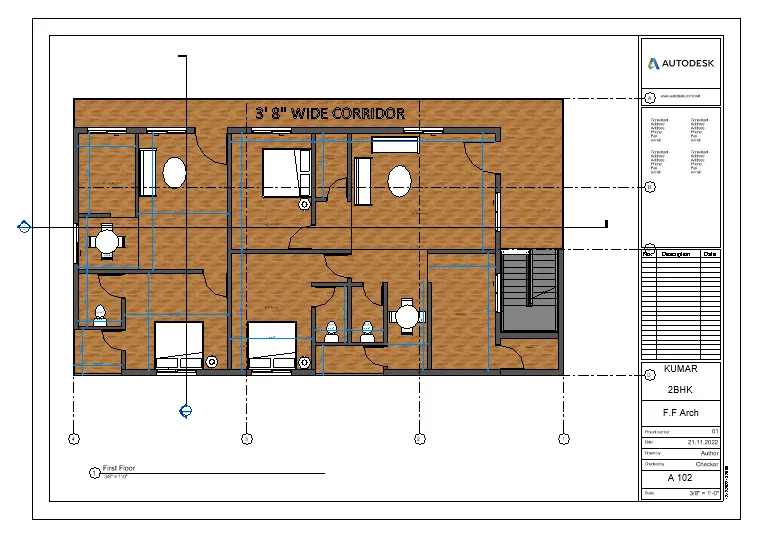

• b. A 102- First Floor Architecture Plan

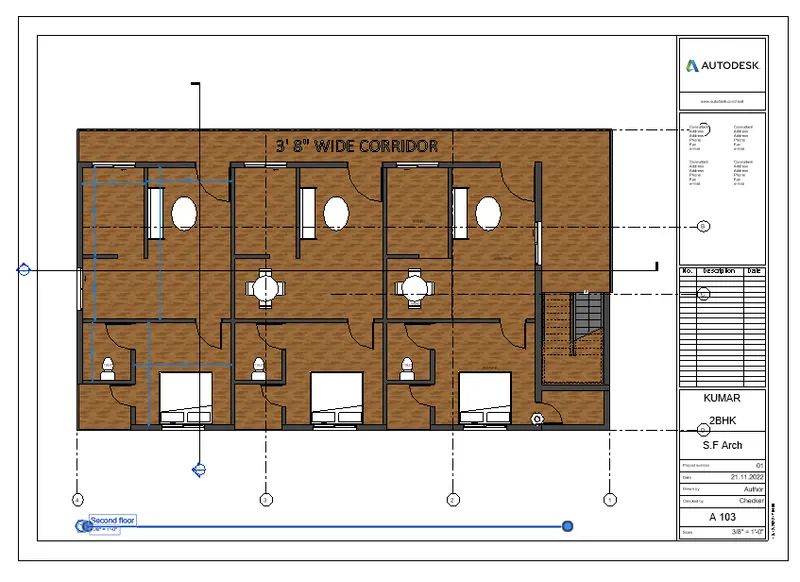

• c. A 103- Second Floor Plan

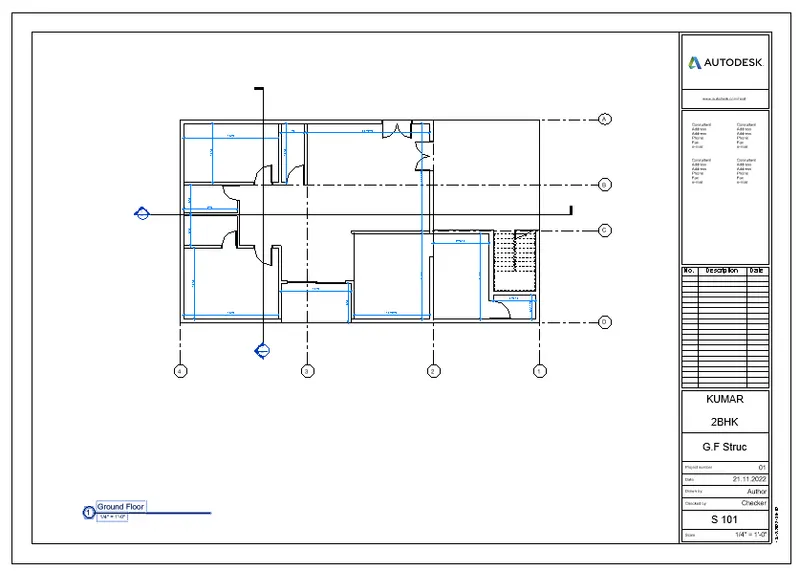

• d. S 101- Ground Floor Structural Plan

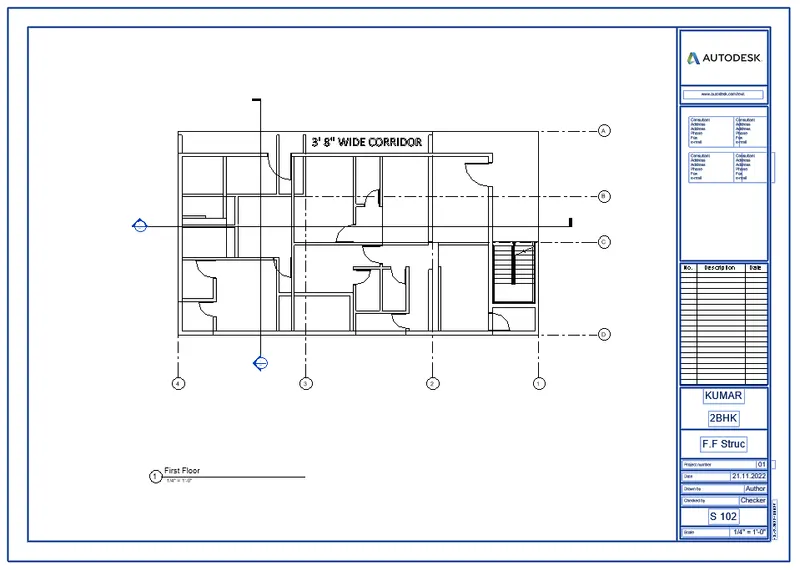

• e. S 102- First Floor Structural Plan

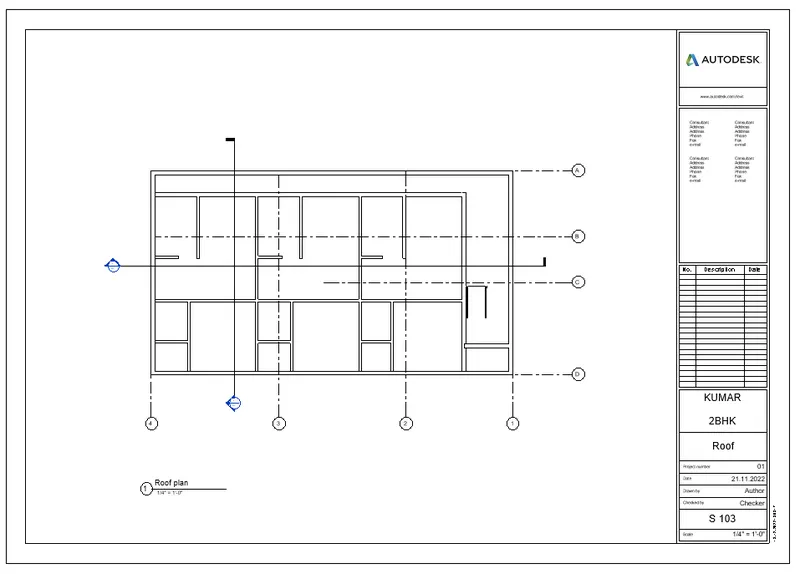

• f. S 103- Roof Framing Plan

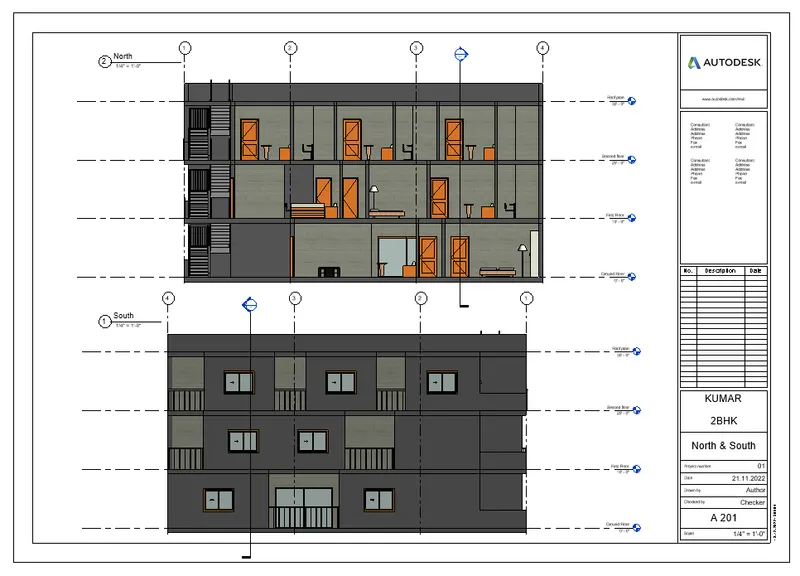

• g. A-201- North-South Elevations

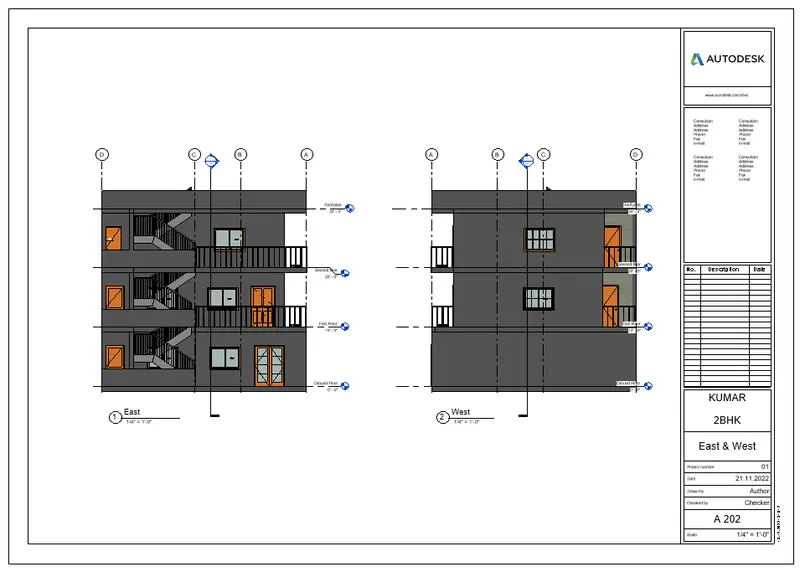

• h. A-202- East-West Elevations

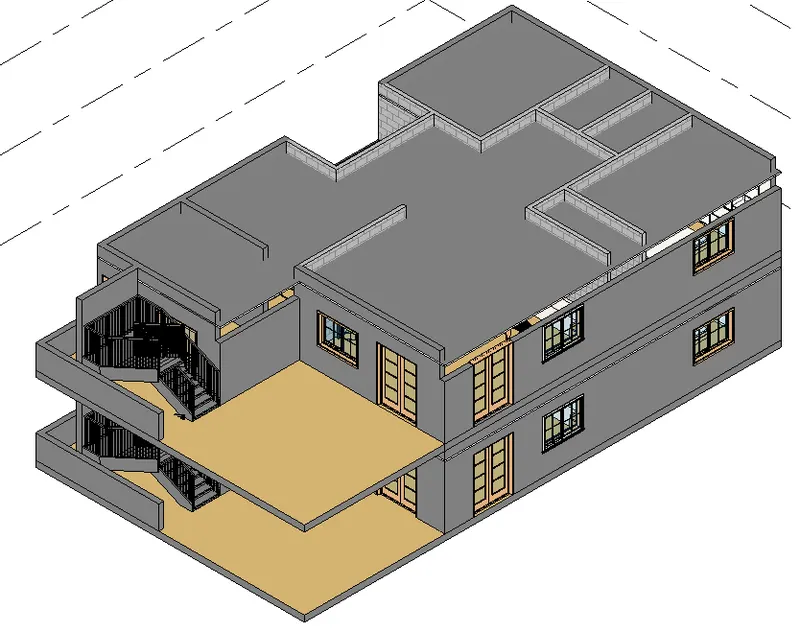

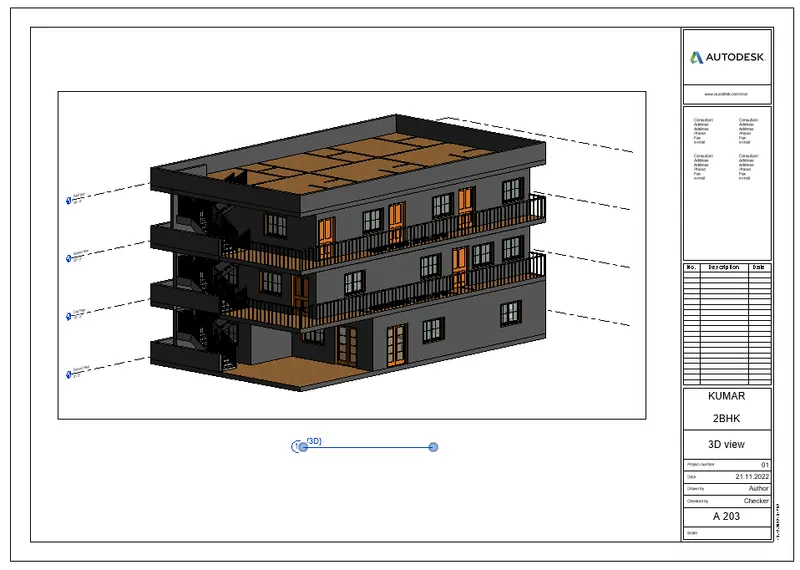

• Overall building 3D view

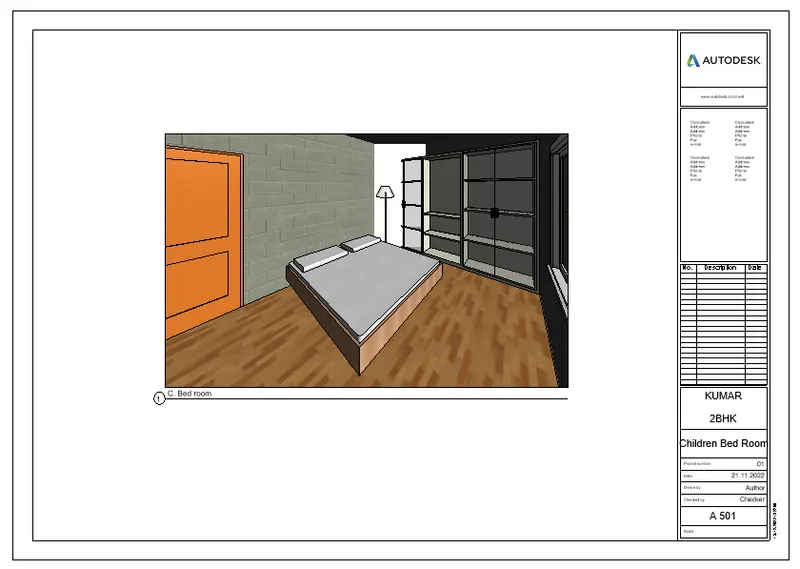

Q. 10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

• Camera-specific view of children bed room

• Camera-specific view of Master bed room

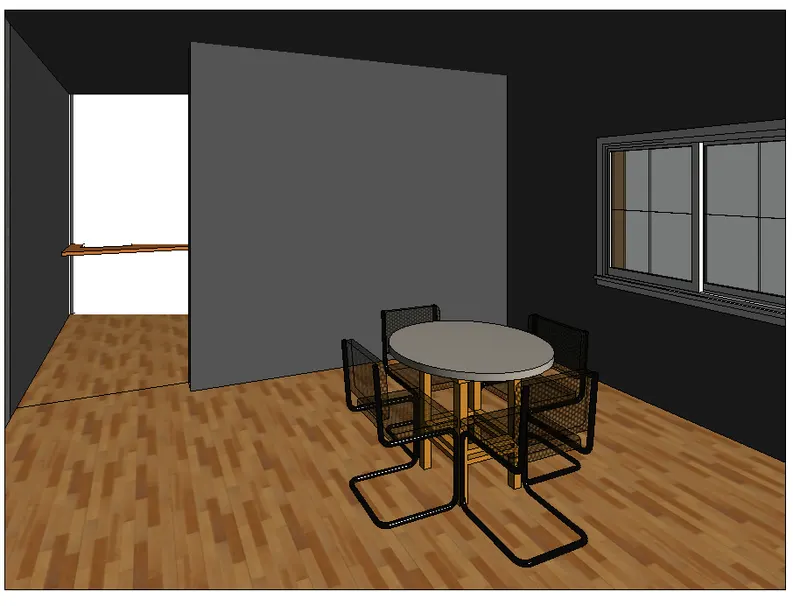

• Camera-specific view of Dinning area

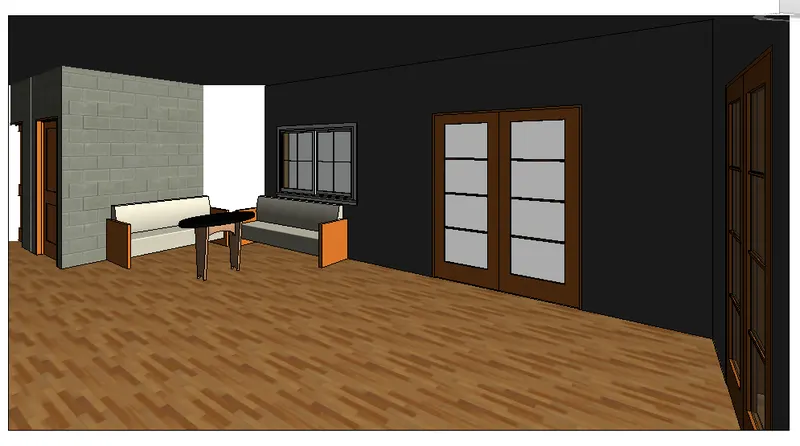

• Camera-specific view of Living area
