3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

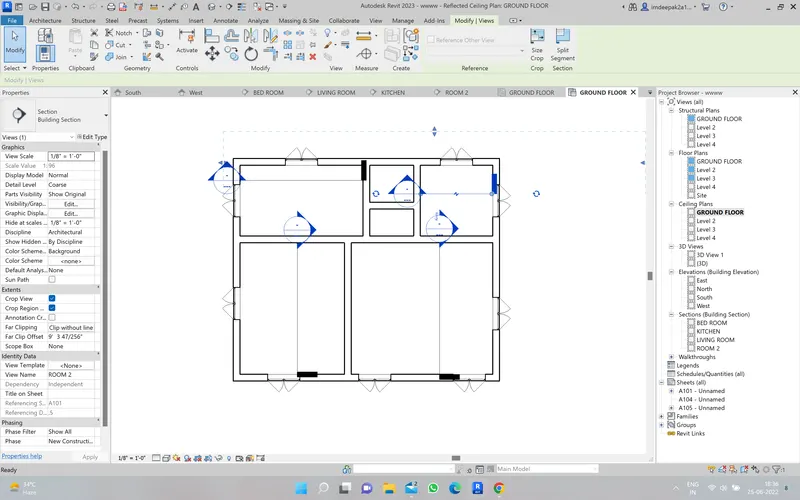

Ans1. Aim-Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
1. open the your revit software and open the week 3 chaillenge floor plan
2. Then go the architecture tab and select the celing and select the pick line
3.select the frist floor
4. then click on the every edges of the plan then click on the check mark

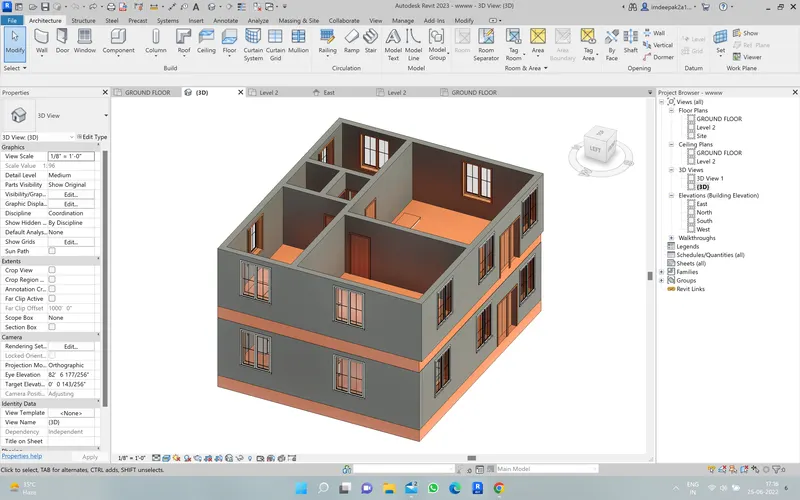

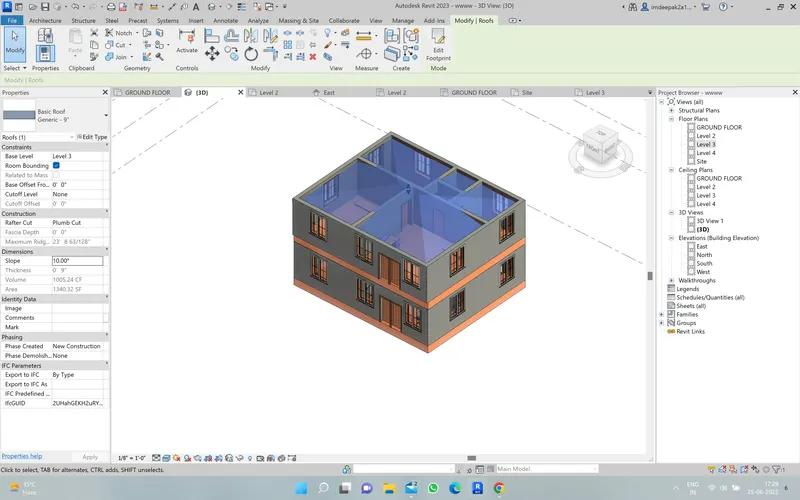

Ans2. Aim- Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
1. open the your revit software and open the week 3 chaillenge floor plan
2. Then go the architecture tab and select the roof by footprint and select the pick line
3.select the frist floor
4. then click on the every edges of the plan then click on the check mark
5. then click on the ok
6. set the slop of roof in degree so use command un and go to slop and edit thi dimension and change dimension in degree
7. then select the roof and go to the property and change the slope of the roof in 10 enter
Ans3. Aim-Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

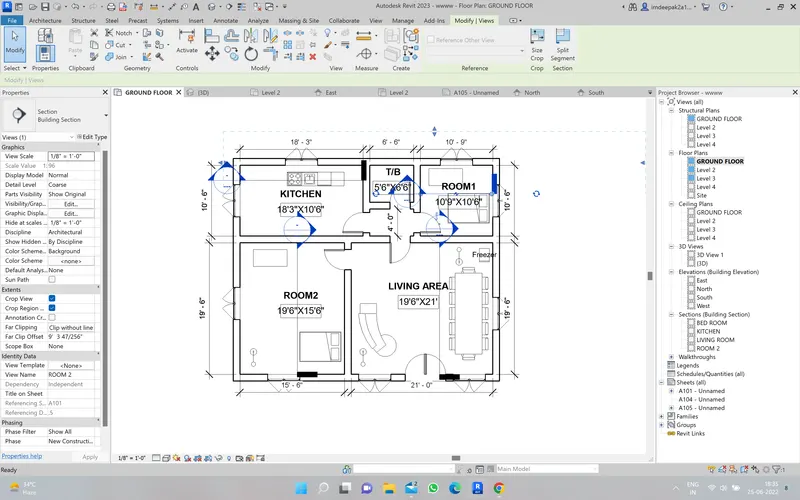

1. you have go to view then go to the plan views drop down then go to the floor plan and click ok

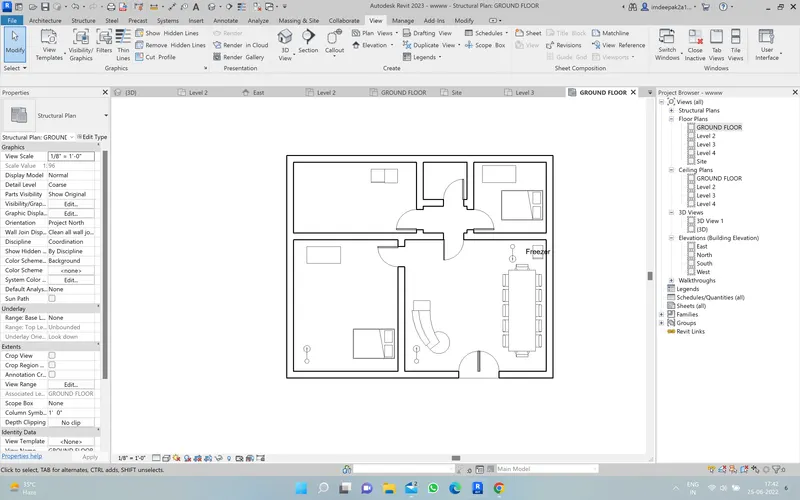

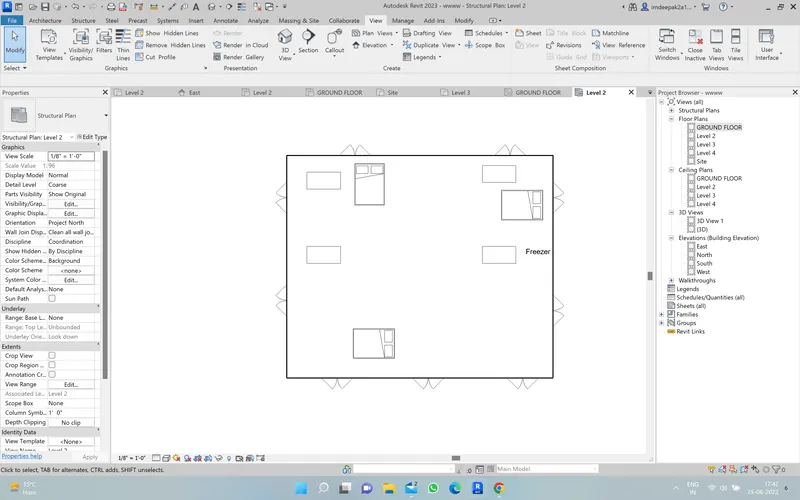

2.if you wand structural plans then go to the view tab then go to the structural plans and select the level then click ok

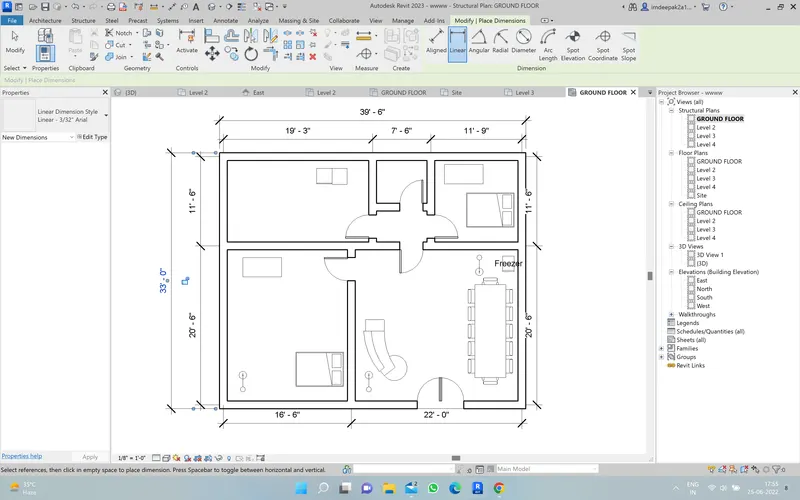

Ans4. Aim-

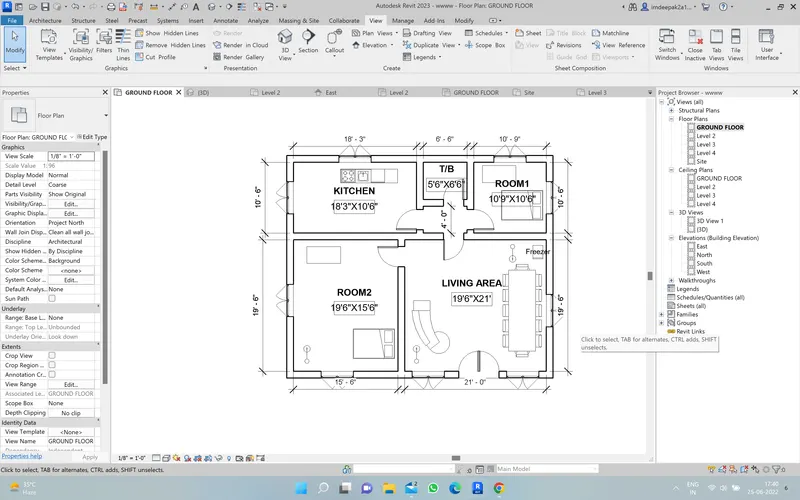

Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

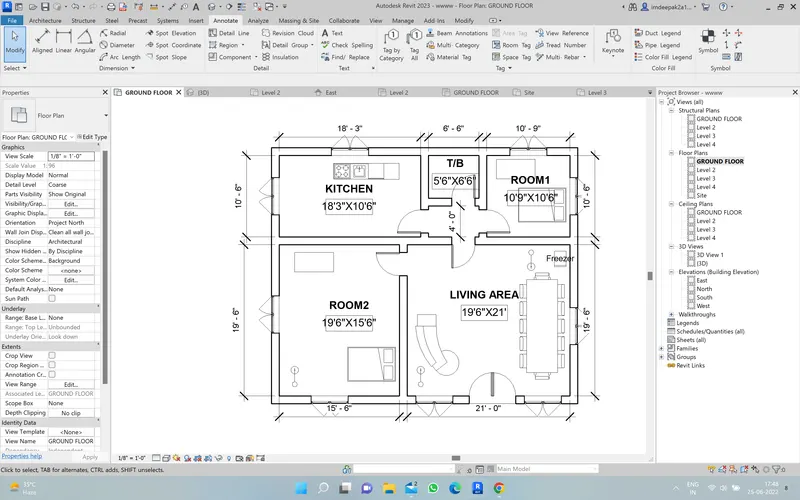

1. frist open your revit software and select your plan then go to the annotate and select the dimension option and mension the all dimension
2. if you want to Structure plan dimensions the select the Structure and select the plan and mension the all dimension and go to the annotate and select the dimension type

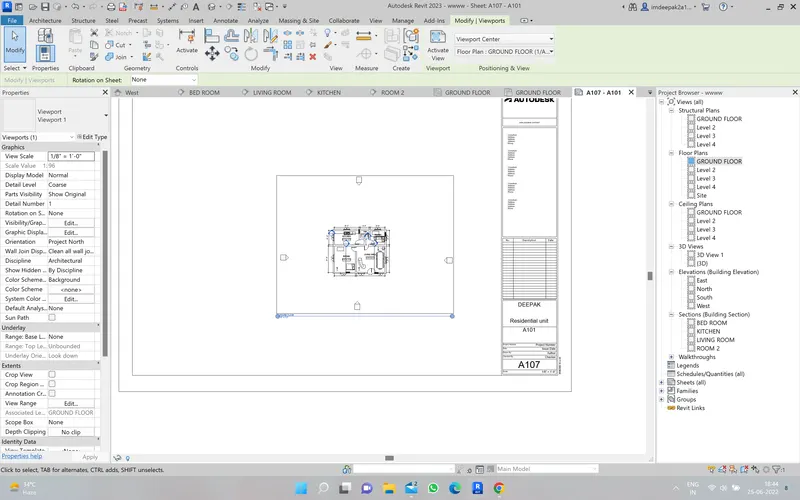

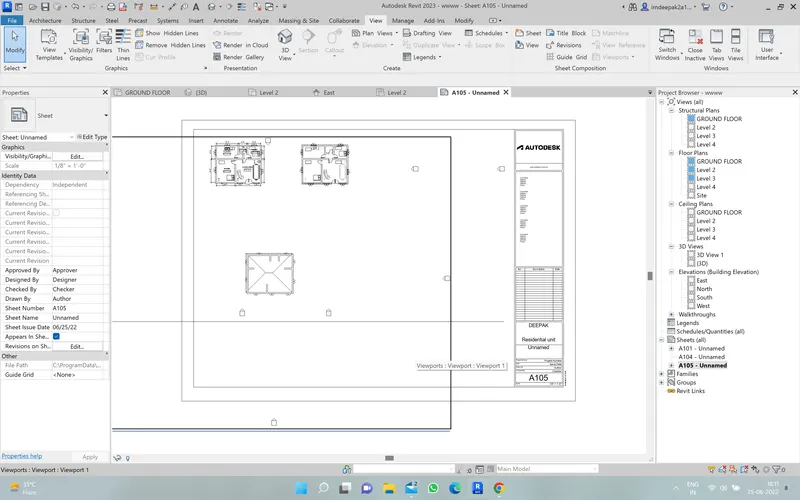

Ans5. Aim-Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
1. frist open your revit software then select the floor plan and go to the bar tool and select the view and the select the seat and select the paper size then go to the floor plan and select the plan and drag it in to the seat

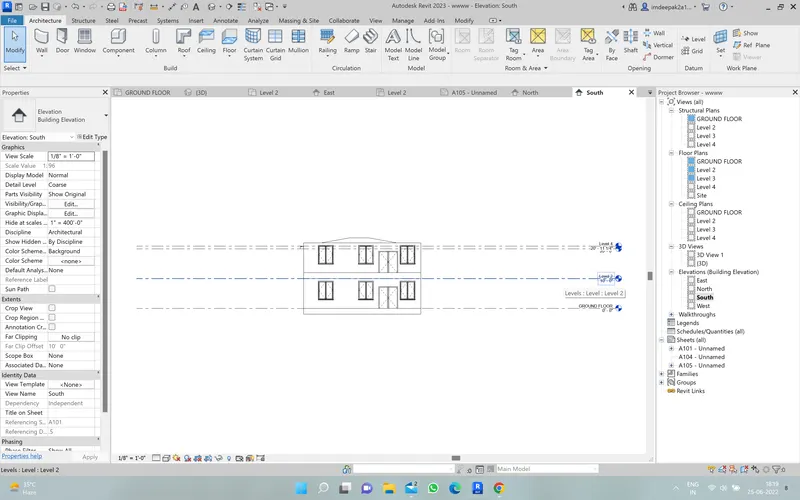

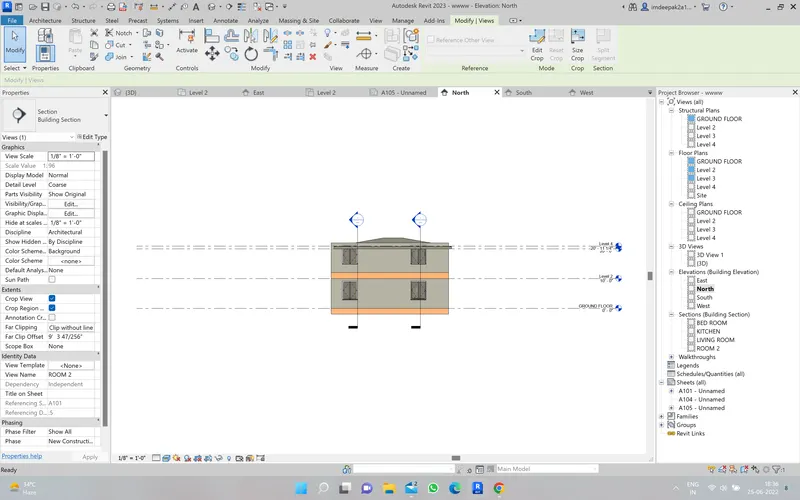

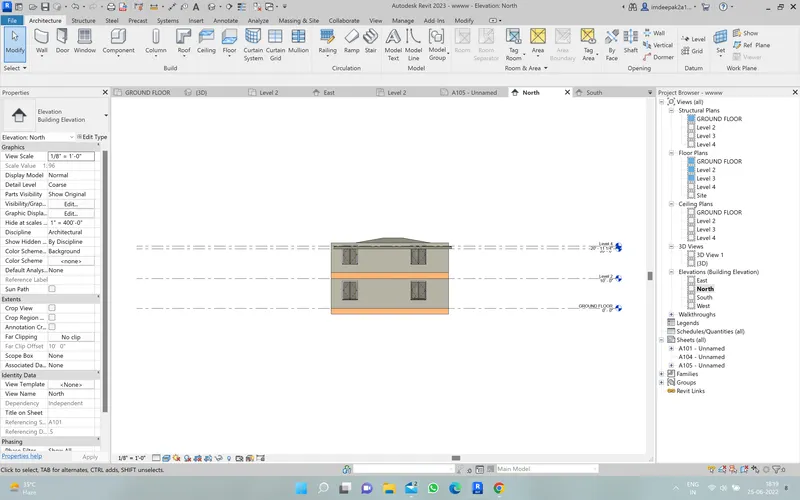

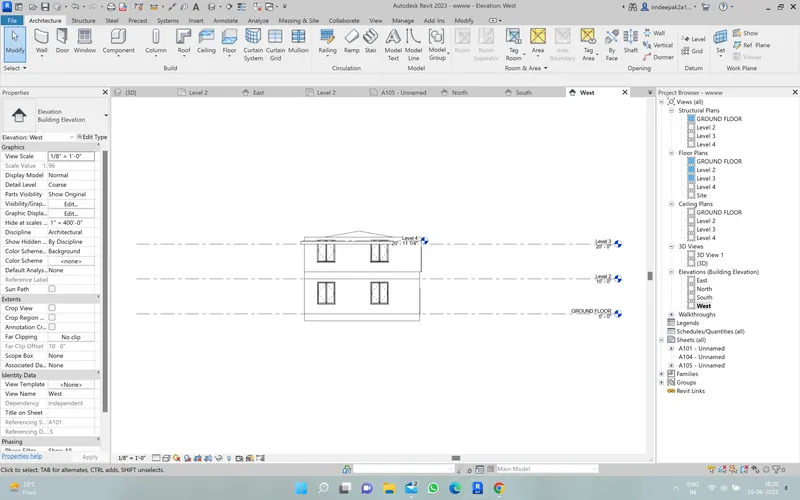

Ans6. Aim- Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
1. frist open your revit software then select the floor plan
then select the elevation
then select the every sides on double click
etc

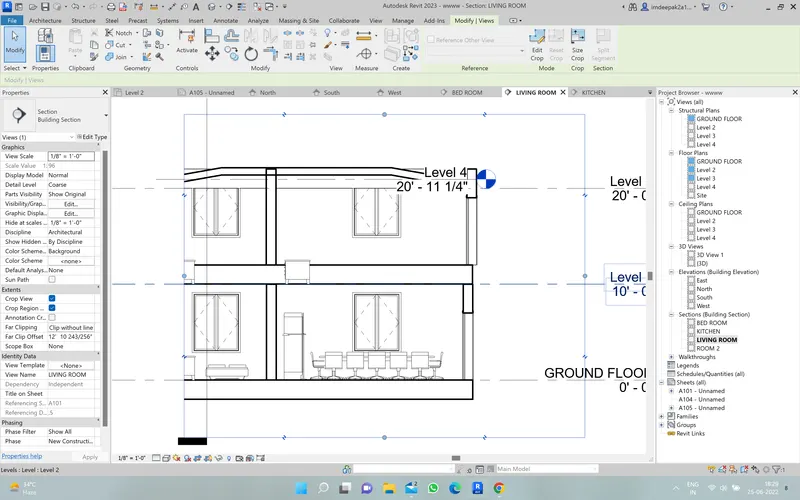

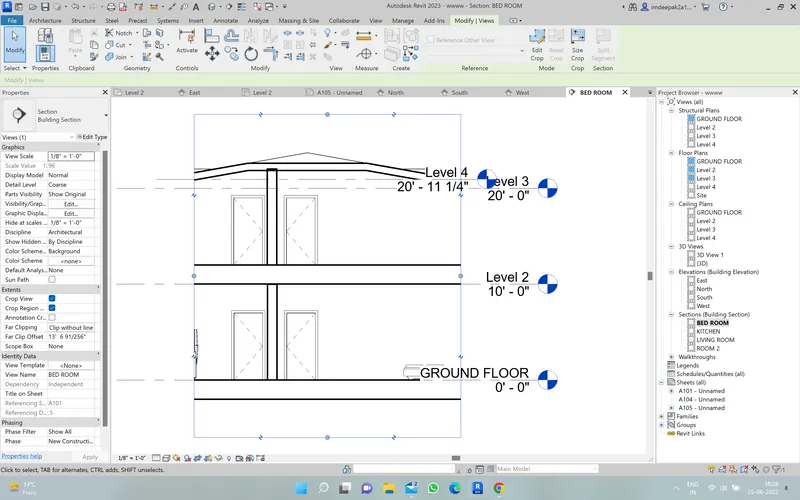

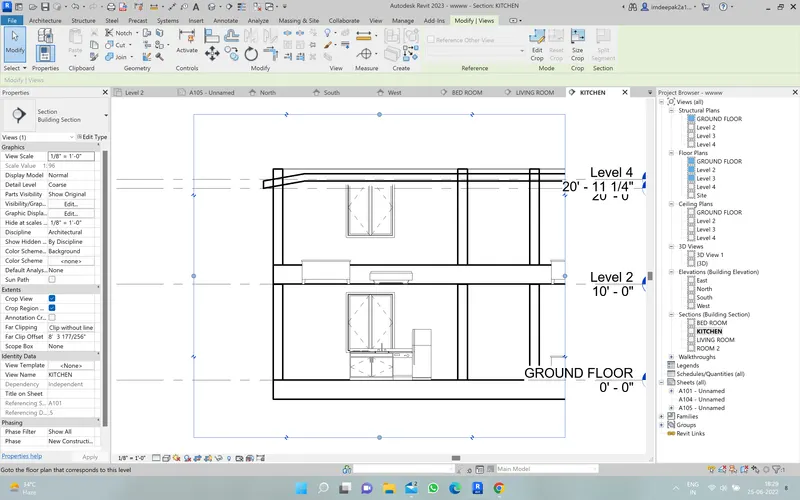

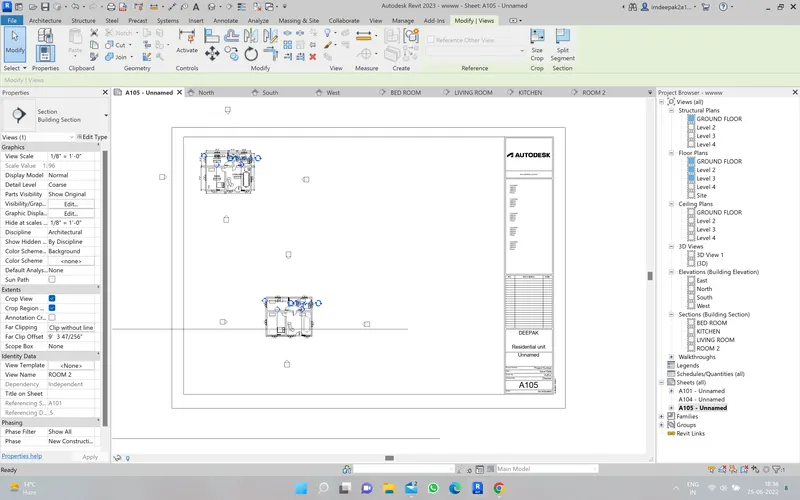

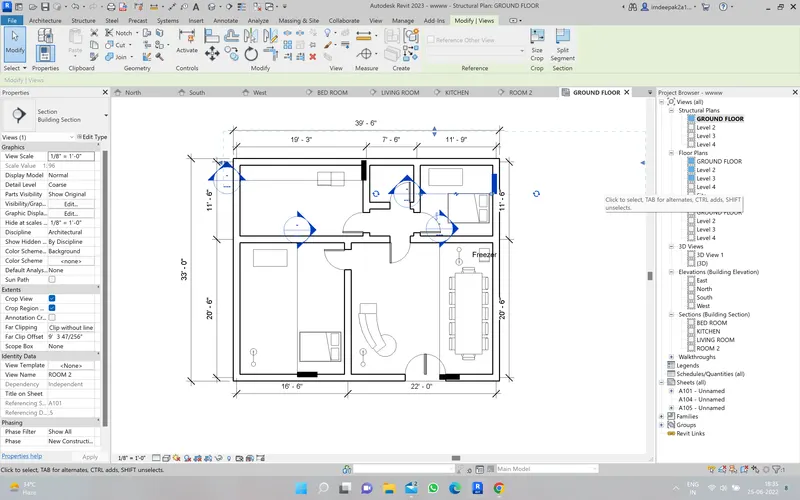

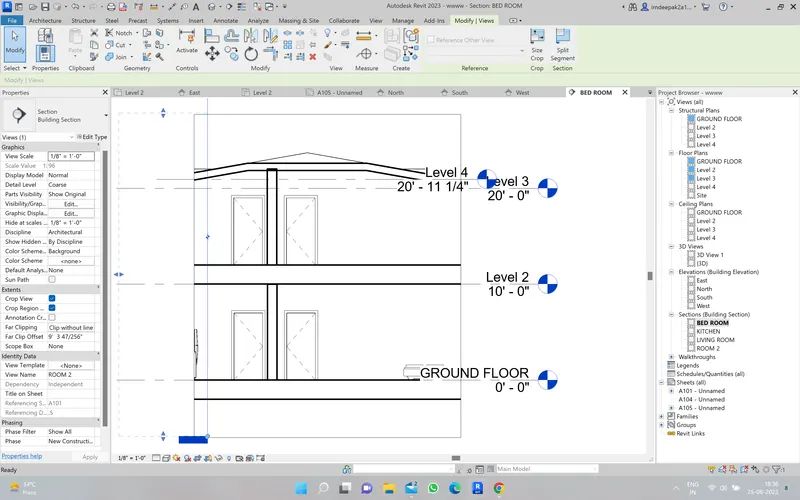

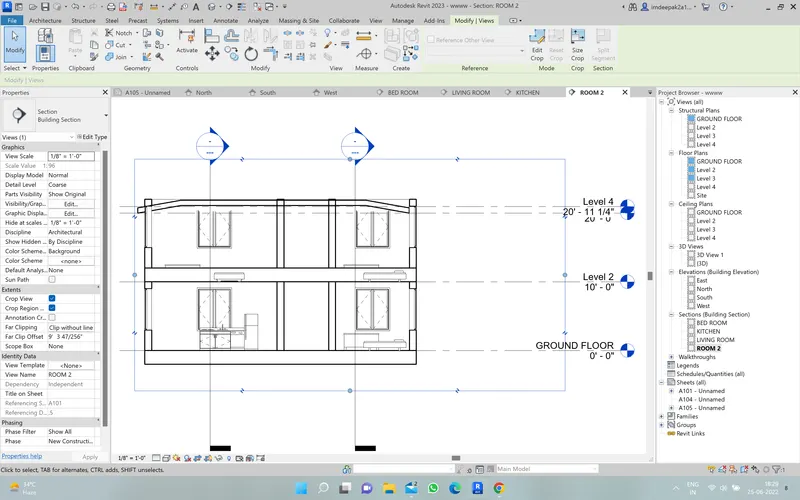

Ans7. Aim-Produce section cut through each room either cutting across longitudinally or in a transverse direction
1. frist open your revit software then select the floor plan
Go to the view you have a section option then click on it then section the every room and edit the every section as your wish
Ans8. Aim- Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

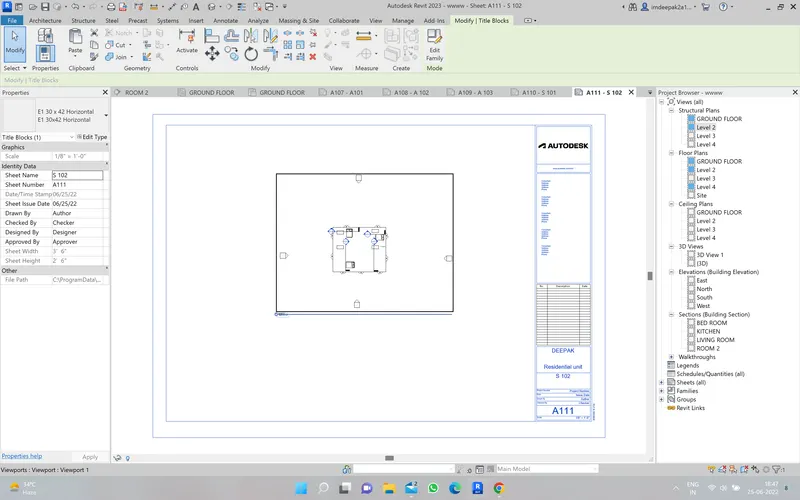

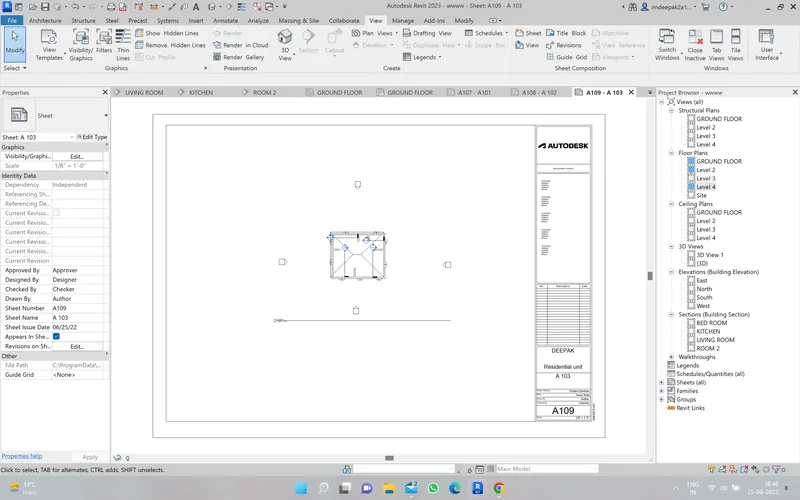

Ans9. Aim-Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan

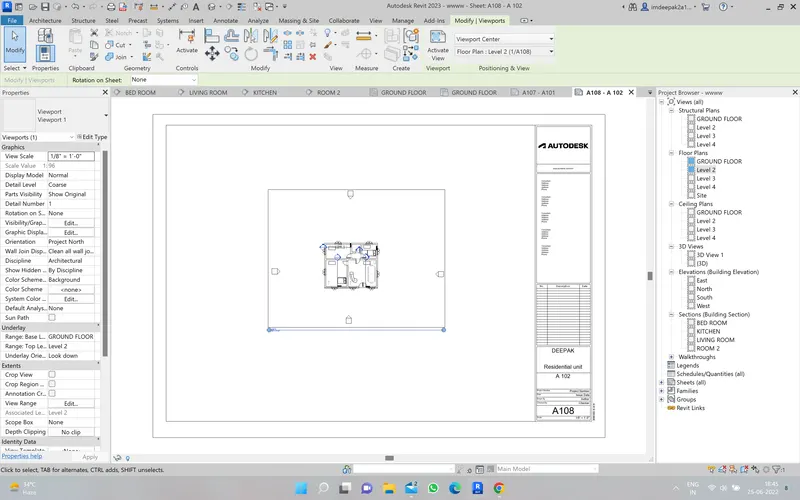

b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan

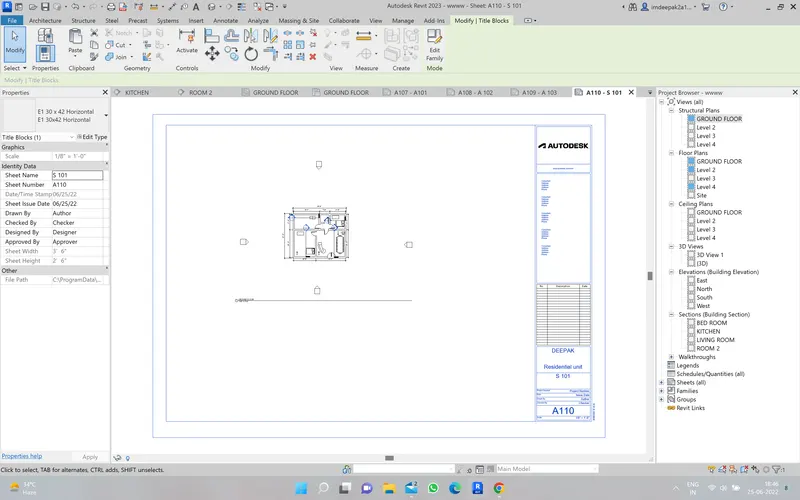

d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan

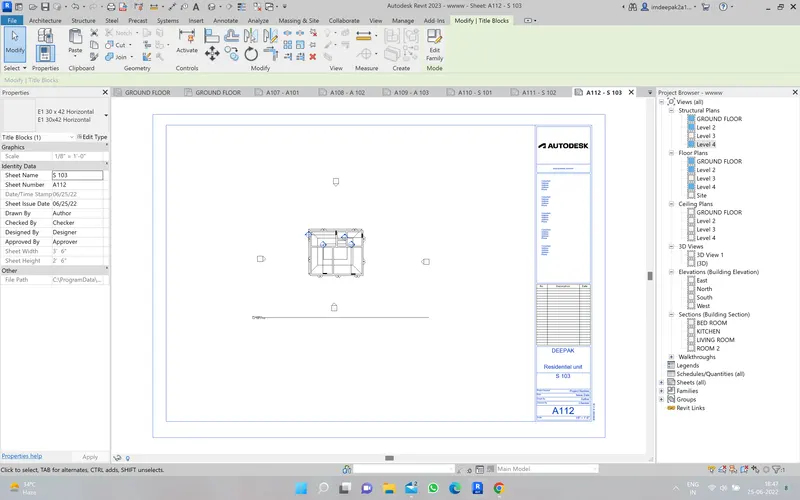

f. S 103- Roof Framing Plan

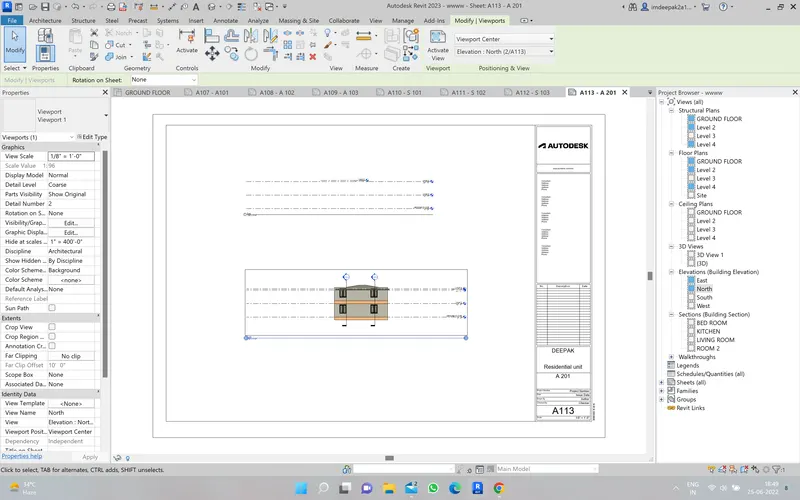

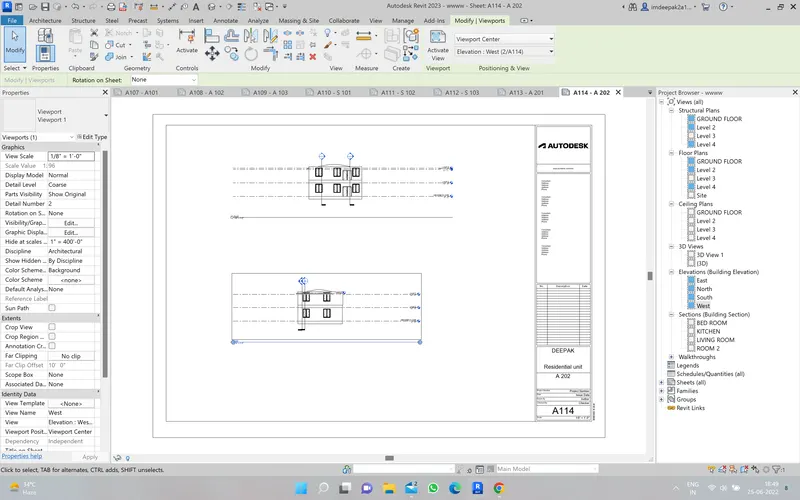

g. A-201- North-South Elevations
h. A-202- East-West Elevations

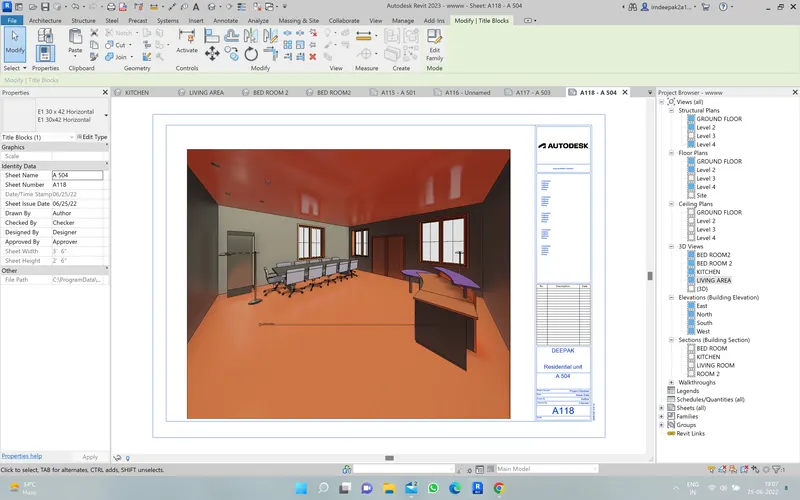

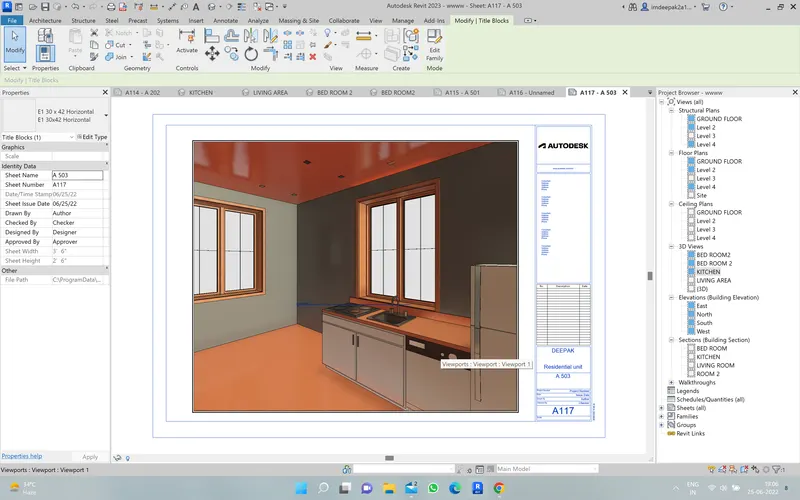

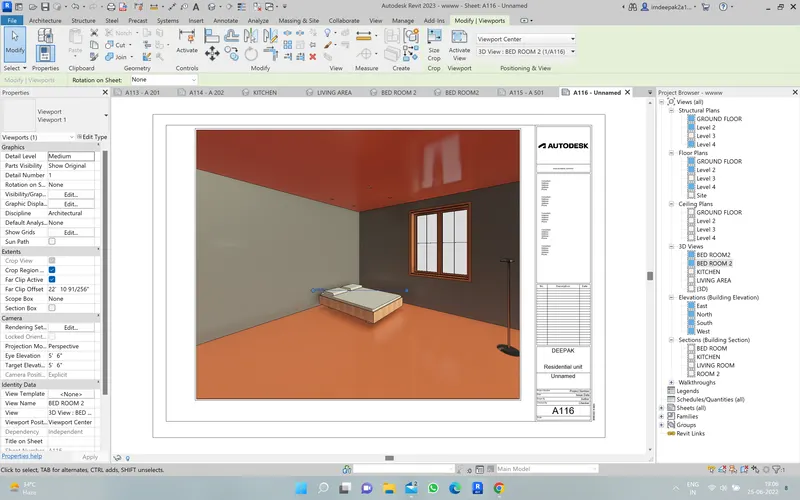

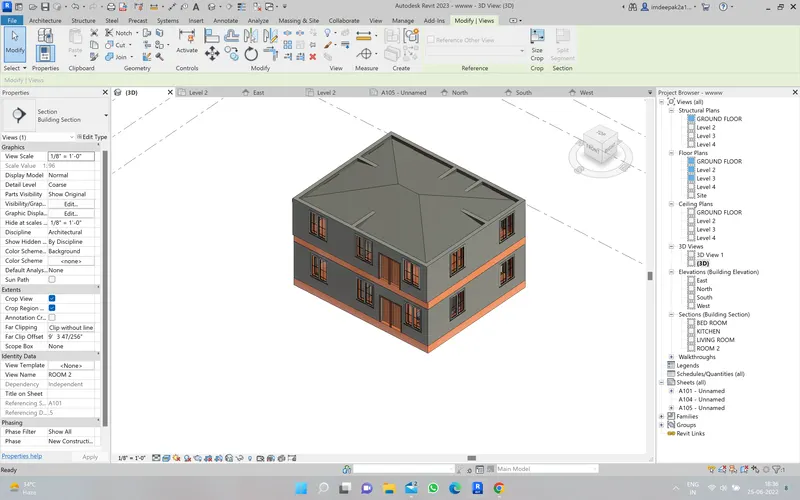

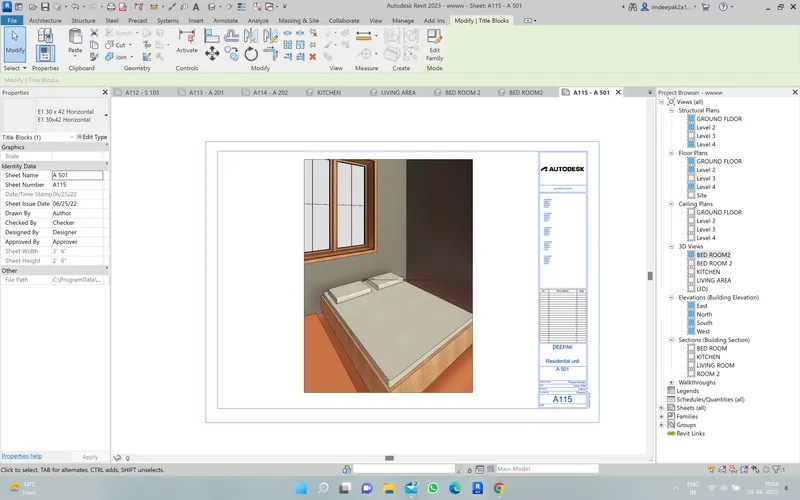

Ans10. Aim- Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
1. select the camera from the top bar and select the all camera in every room and creat the all 3D view and then go to the view and fit the all view in the seat
