3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

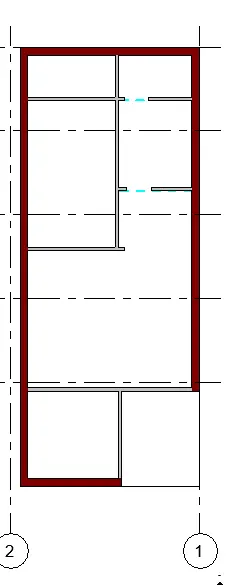

1)Â Â Â AIM:-Â To model a Ceiling from the architecture tab above the walls at the first-floor level.
Procedure:
- Go to the first floor level
- To model ceiling, go to Architecture - ceiling
- Under Modify|Place ceiling - Sketch ceiling
- Then click pick lines to pick the outer boundary of the plan

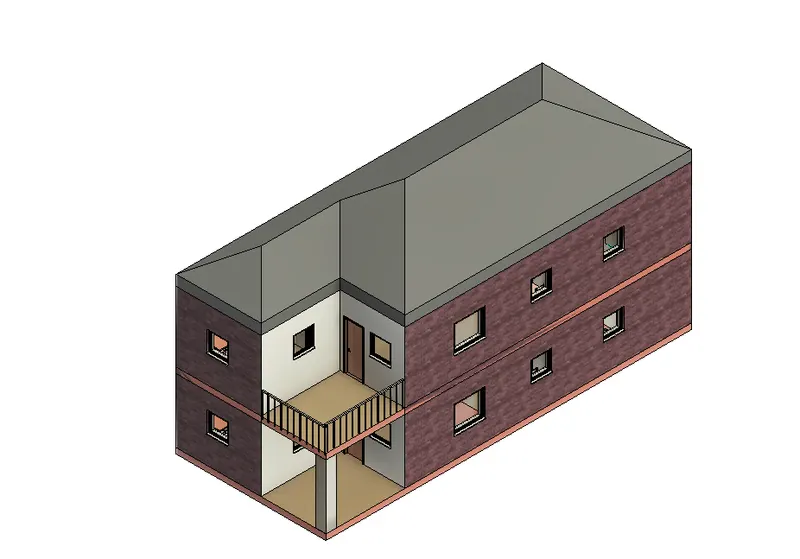

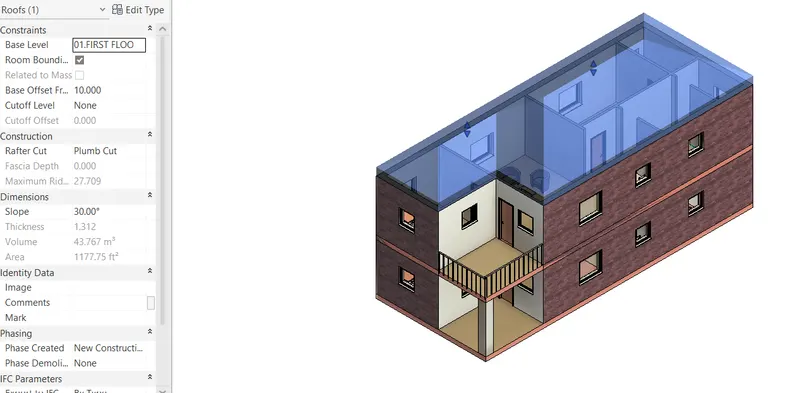

2)Â AIM:

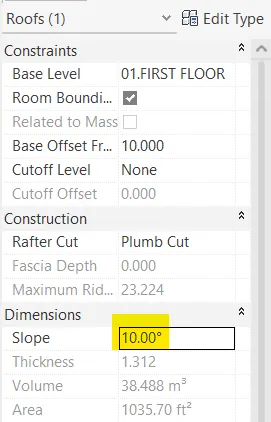

To model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
Procedure:
Go to Architecture - RoofÂ
Modify roof - Pick lines. Pick the outer boundary of the floor
Adjust the base offset as 10'Â
3)Â AIM:
Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

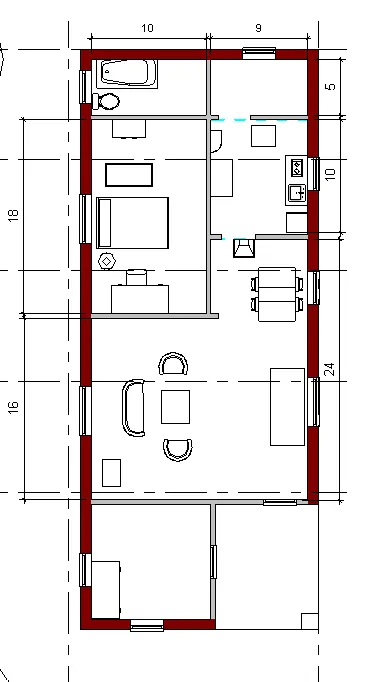

a. Architecture plan must have walls, floors, and all the components placed within the building

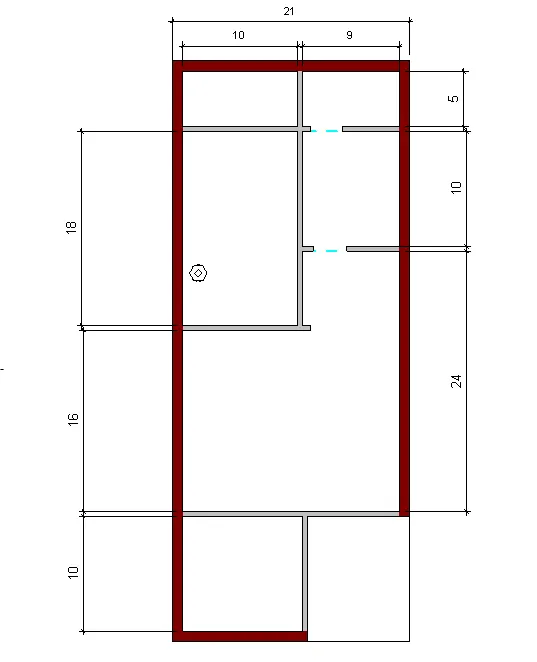

b. Structure plan must have details of only walls, floors, and columns
Procedure:

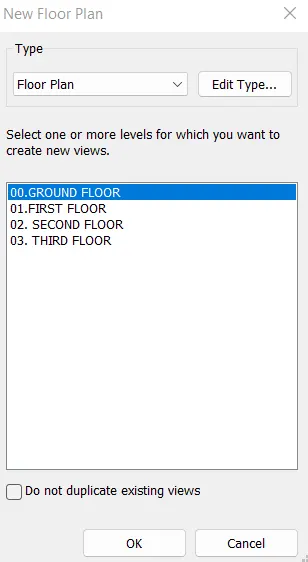

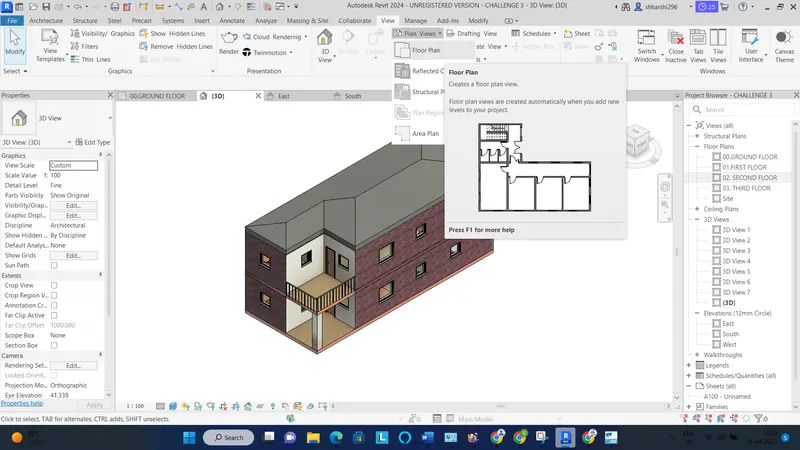

Go to View - Plan views- Floor plans

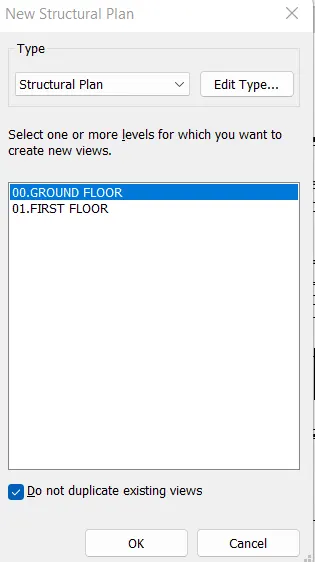

Now go to View - Plan views - Structural Plan
The structural view only contains the structural components
4)Â AIM:
Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
Procedure:
Go to Annotate - Linear to mark the dimensions in the architectural as well as structural plan views
5)Â AIM:

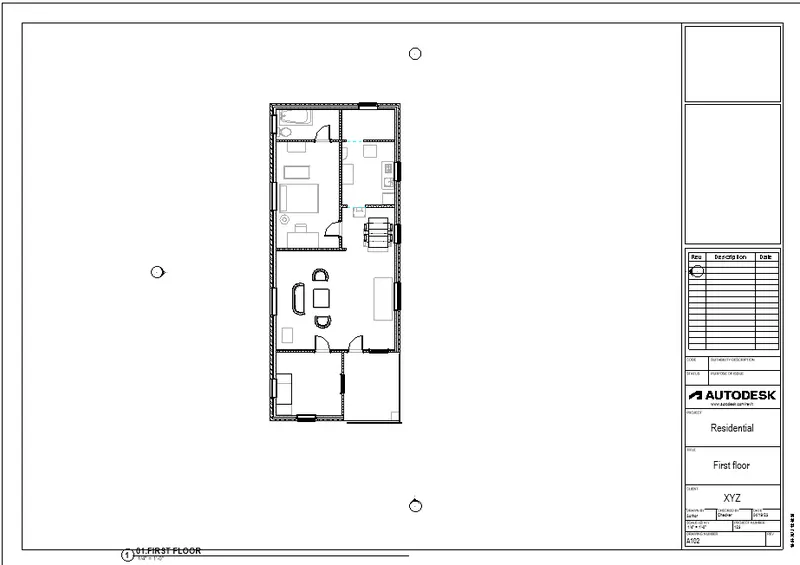

To Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Procedure:

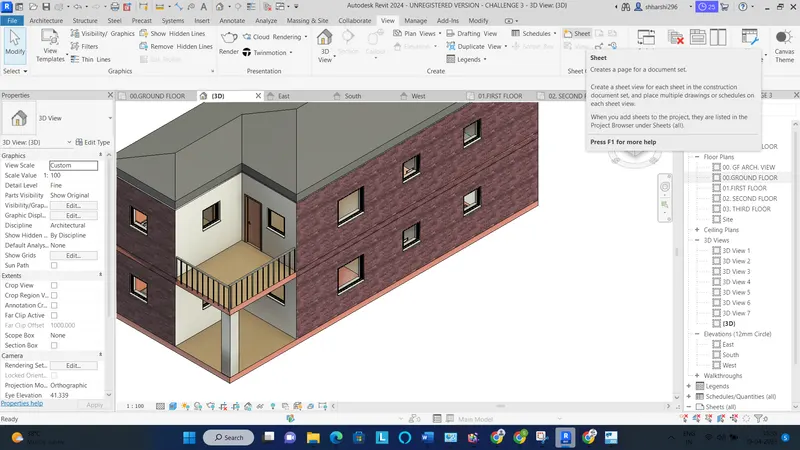

Go to View- Sheets
Now edit the clent name, project name and other details in the sheet. Drag and drop the sheets to the title block created
Repeat the same for first floor too
Â
6)Â AIM:

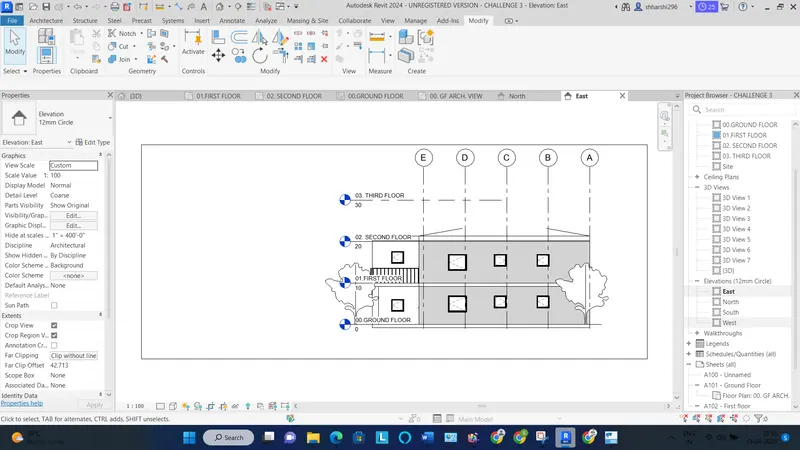

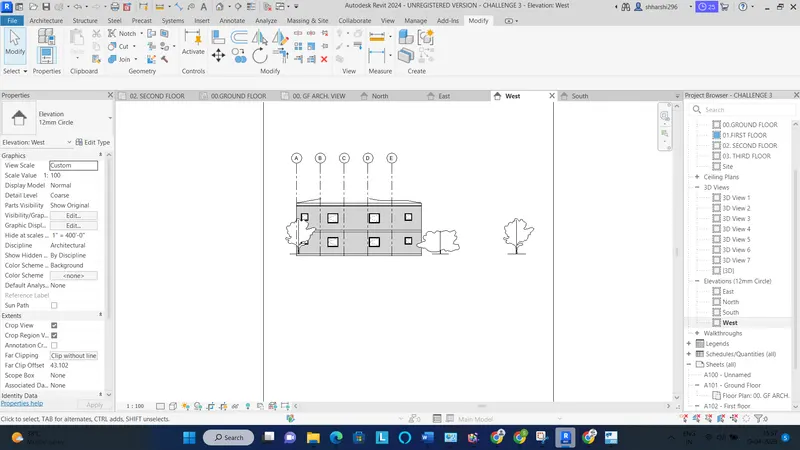

Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
Procedure:

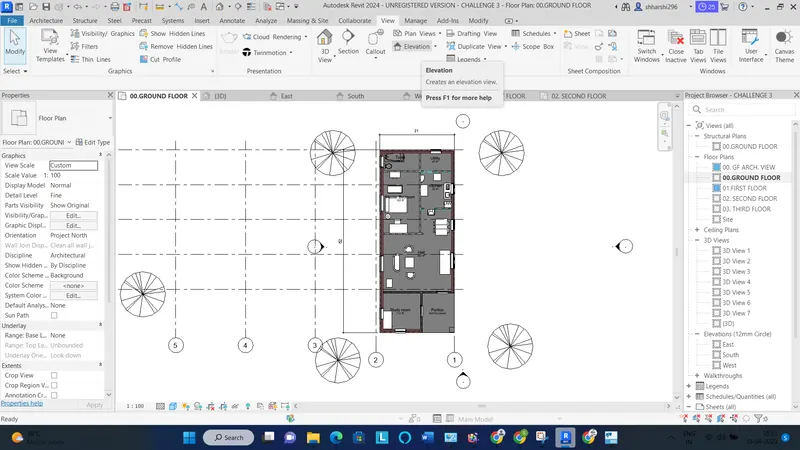

Go to View - Elevation
Place the elevation views on all the 4 sides of your building
Now rename the elevations and click on a particular elevation to view
7)Â AIM:

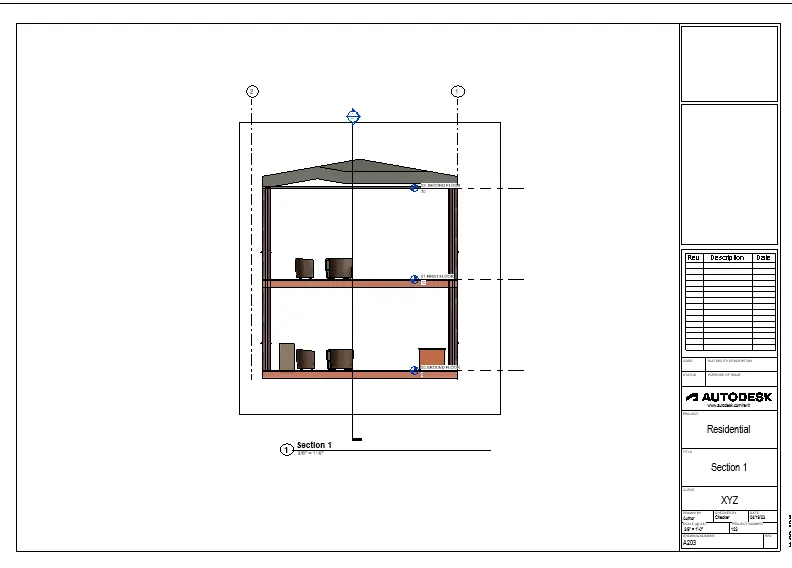

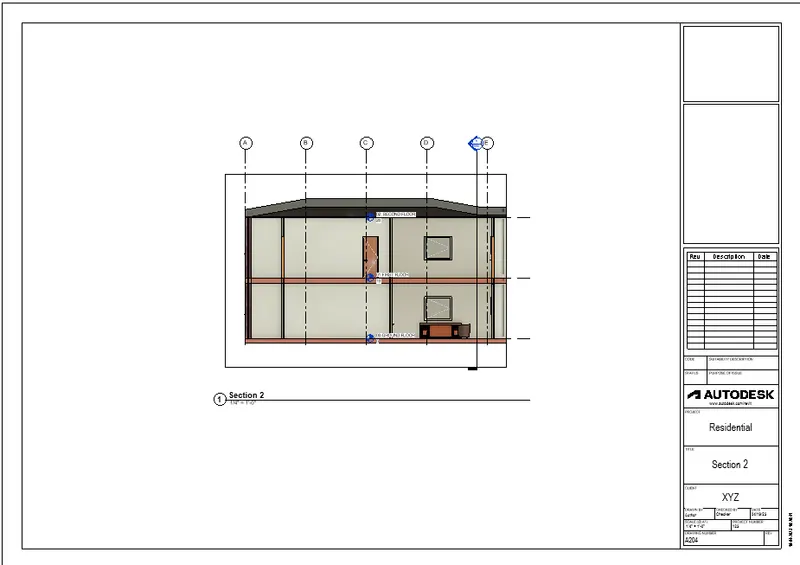

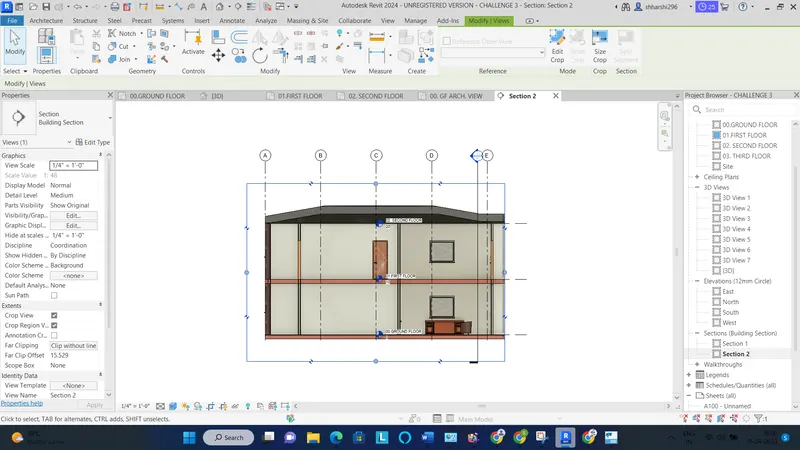

To Produce section cut through each room either cutting across longitudinally or in a transverse direction
Procedure:

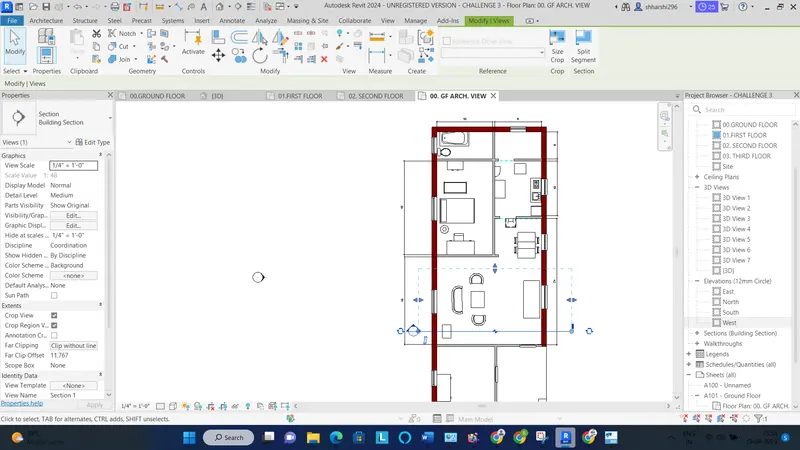

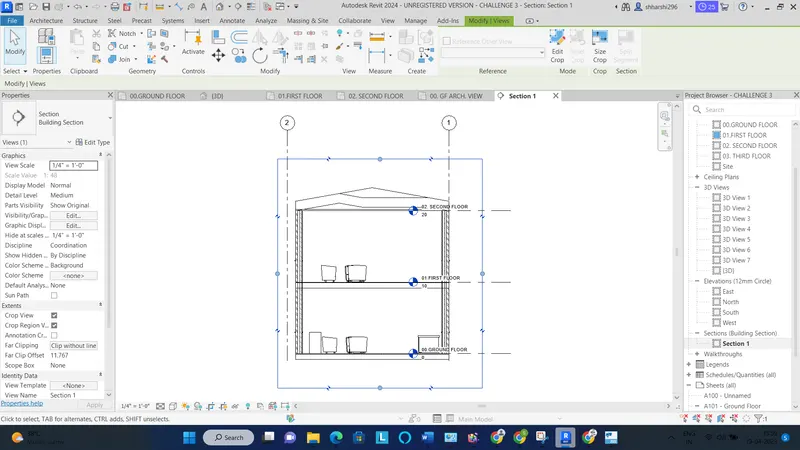

Go to View - Section

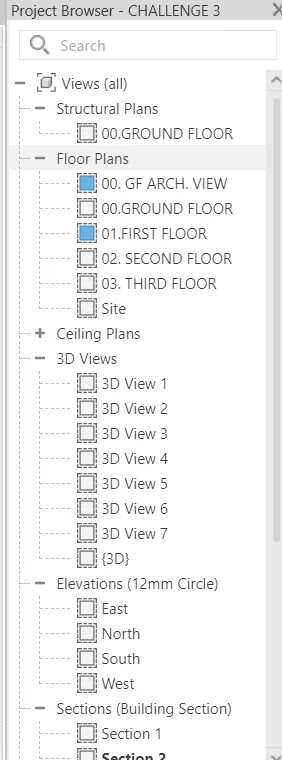

In the Project browser, under the Sections , click to view section
8)Â AIM:
To Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Procedure:
- The structural plan view is the default view when you start a new project suing structural template
- Floor plan view is the default view in a new architectural projects
- Floor plans views are created automatically as you add a new levels to tour project
- Sectional views are used in engineering and architectural drawings.
- They help civil engineers, architects, and airplane designers communicate their ideas to their peers.
- An elevation is a view of a building seen from one side
Â

9)Â AIM:
Using the sheet template produced create multiple sheets as follows

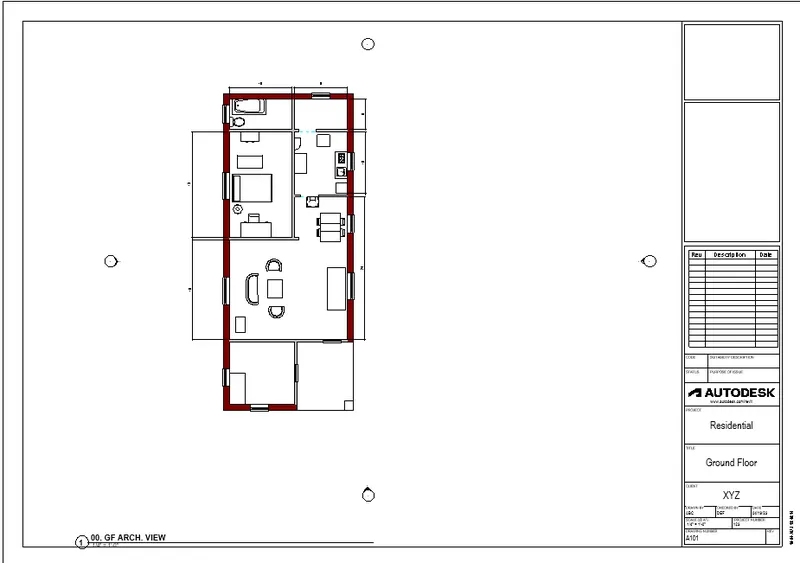

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

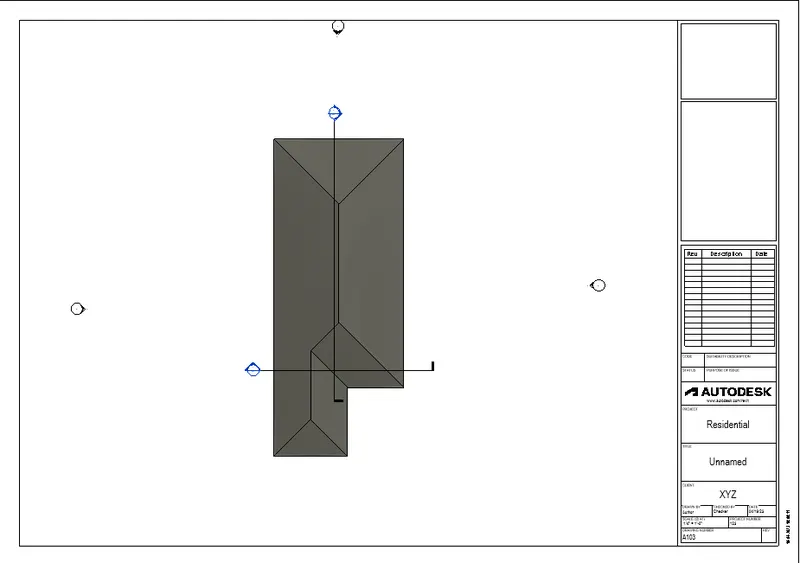

c. A 103- Roof Plan

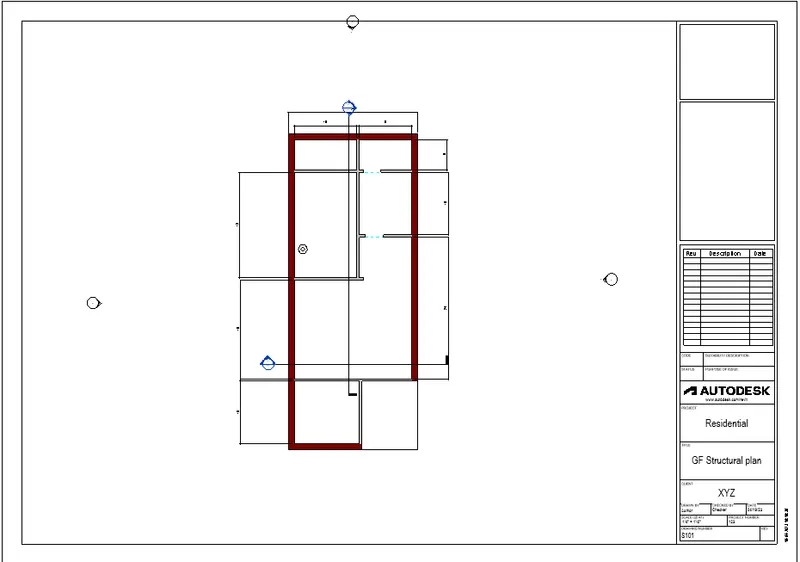

d. S 101- Ground Floor Structural Plan

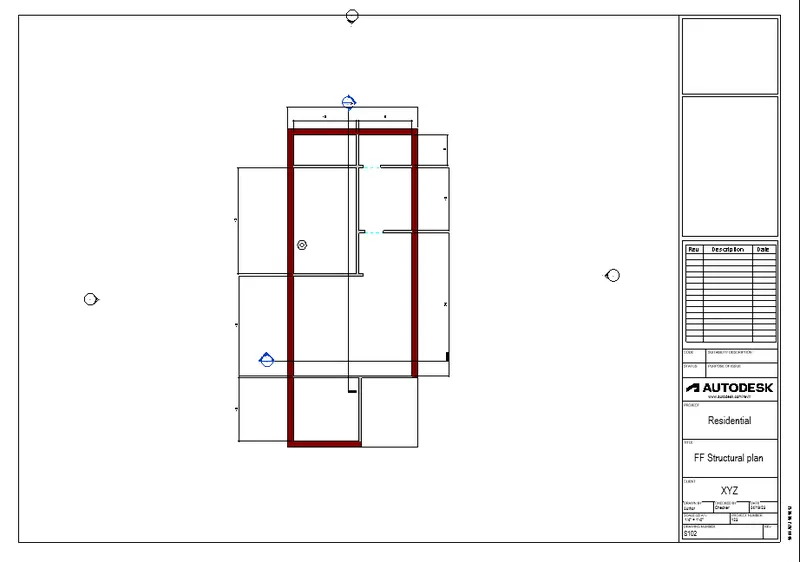

e. S 102- First Floor Structural Plan

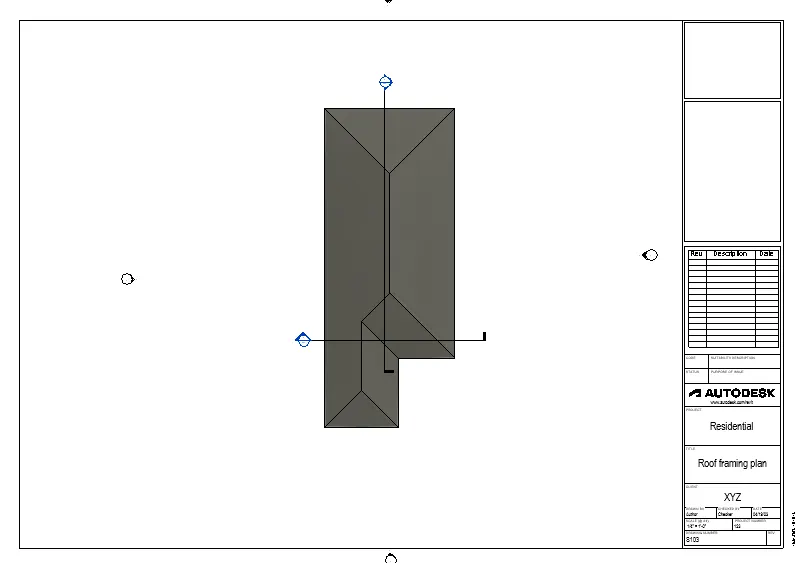

f. S 103- Roof Framing Plan

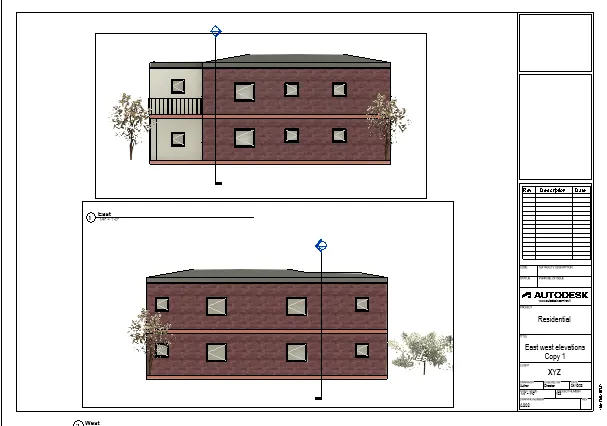

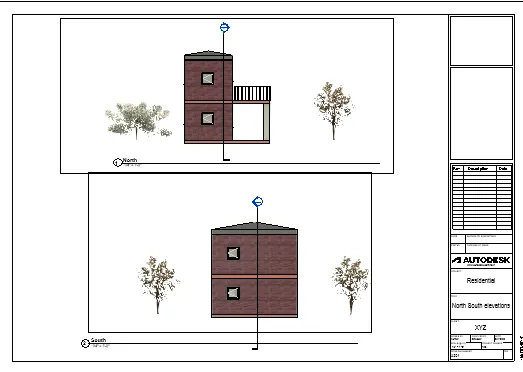

g. A-201- North-South Elevations
h. A-202- East-West Elevations
Procedure:
Â
Â
Â
Â
 10) AIM:

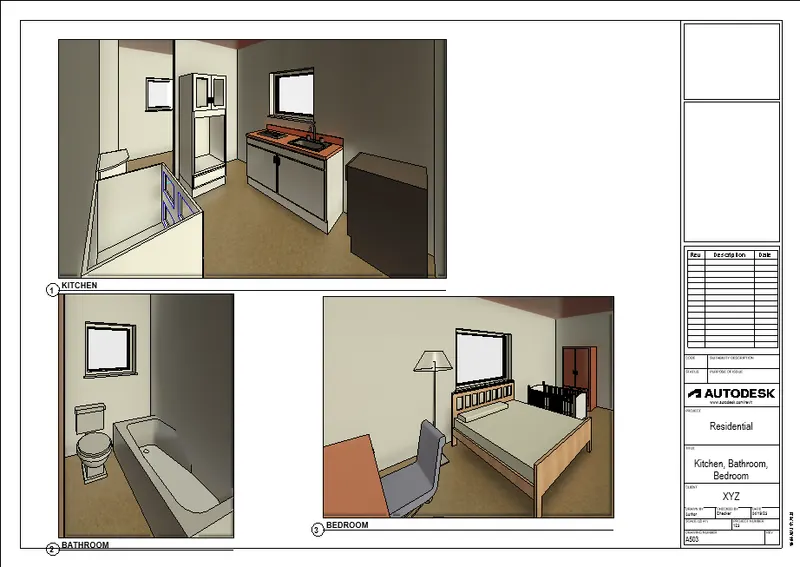

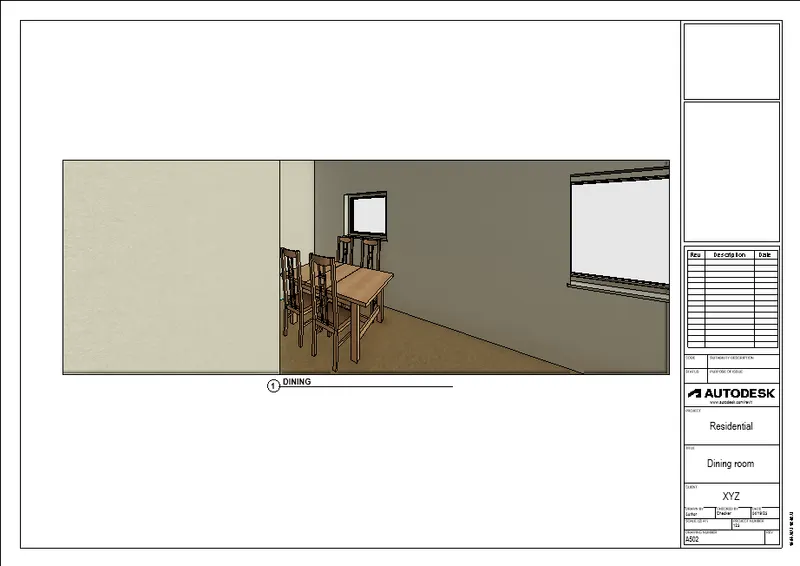

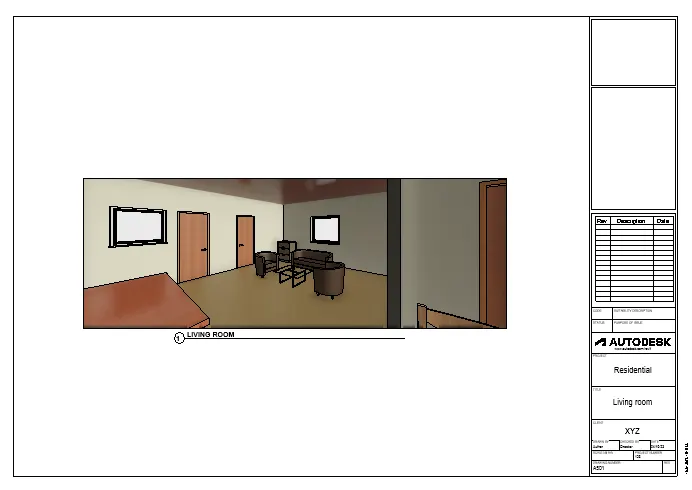

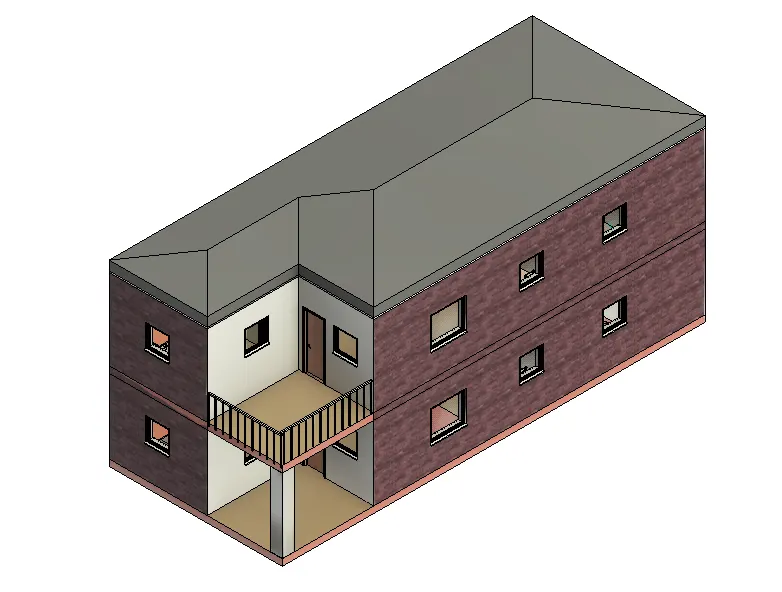

Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
Procedure:
Go to View - Sheets
Name the sheet as given in the question and attach 3D camera views
