Multi-Dimensional Simulation of a Port-Fuel Injection Engine using CONVERGE CFD

In this project, you will be setting up the complicated case for Port Fuel Injection (PFI) engine and will be simulating to capture key events such as injection of spray, spark ignition, flame propagation and finally the emissions.

Duration : 1 Month
Domain : MECHANICAL ENGINEERING AND AUTOMOTIVE ENGINEERING
Benefits : In this project, you will be setting up the complicated case for Port Fuel Injection (PFI) engine and will be simulating to capture key events such as injection of spray, spark ignition, flame propagation and finally the emissions.
Price : 30000

Start project View demo

About Demo Leaderboard

What will you do in this project?

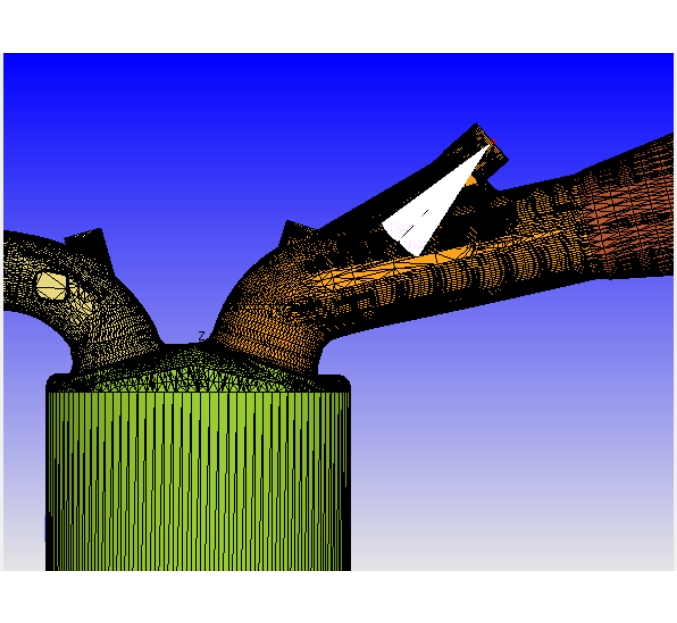

Step 1 - Geometry clean up

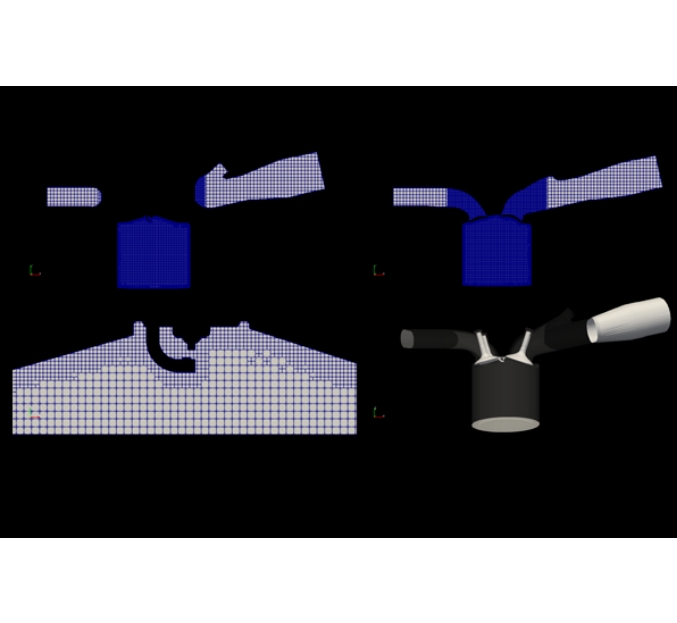

Step 2 - Computational mesh setup

Step 3 - Apply Boundary Conditions and Run the Simulation

In this project, you will work on a Port Fuel Injected (PFI) engine. You will do the following in this project,

Using the provided CAD geometry, you will first perform surface cleanup in Converge CFD software
Setup the case in Converge CFD software
Run the simulation in parallel on command line window (CYGWIN)
Visualize the results in PARAVIEW, make some hand calculations and calculate combustion efficiency, Volumetric efficiency, Compression ratio.
Analyse extremely important plots like HRR, IHR, In-cylinder pressure and temperature

Geometry clean up
Providing boundary conditions and setting up the entire case
Running the simulation in parallel on command line window (CYGWIN)

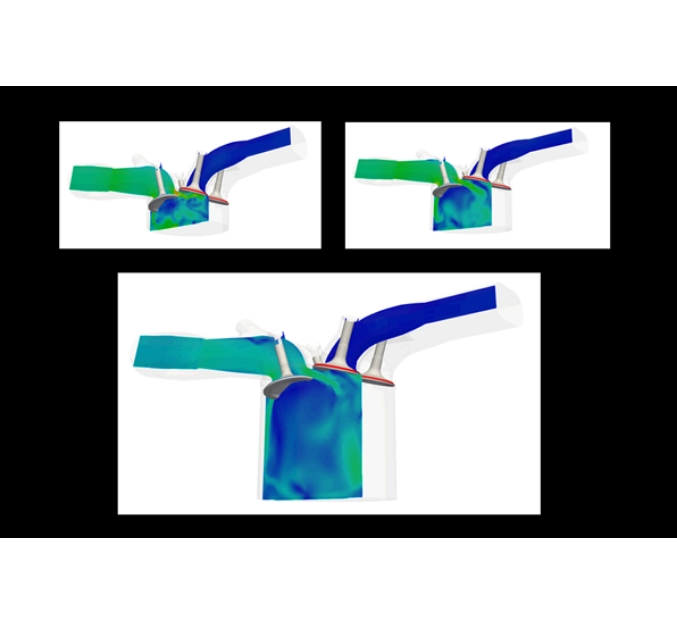

Post-processing using PARAVIEW

Project Highlights

The project is an advanced level project

This project is great for undergraduate students (4th year) and M.Tech or MS students.
If you are a working professional, this project will be helpful to learn CFD for I.C Engines applications.

Pre-requisites

Must be comfortable with CONVERGE.
Need basic background in CFD and Combustion.
Need a basic knowledge on how use command line window.

Work with Multiple Tools

Working on Converge CFD software to setup the case.
Using command line window (CYGWIN) to run simulations.
Post process the results using PARAVIEW.
Use of MS - WORD or GOOGLE DOC to create a report.

Multi-Dimensional Simulation of a Port-Fuel Injection Engine using CONVERGE CFD

In this project, you will be importing the geometry provided to you and clean up the geometry first. Then, you will be setting up the case by providing appropriate boundary conditions. To capture the key events that happens inside an engine i.e spraying of fuel, spark ignition, flame propagation, you will be modeling combustion, turbulence, spark and spray. You will also get an exposure to an extremely strong features of Adaptive Mesh Refinement (AMR), Fixed embedding as these will help you capture the flow physics accurately with optimized cell count. Finally, you will post process the results in PARAVIEW and look for all the key events that happens inside the engine cylinder.

Understanding the No-Hydrodynamic and Full-Hydrodynamic solvers
Understanding the concept of EVENTS and disconnected triangles
Line plotting and Pen & Paper calculations to understand the performance of the engine

FAQ

Frequently Asked Questions

1How is this project going to help me?

SKILL-LYNC projects are mapped closely with what industry expects. When you work on a SKILL-LYNC project and publish it in your profile, recruiters are automatically notified about your profile. Your project submissions are graded so that students can get critical feedback on your work

2Can I add this project in my resume?

You bet!

3What are the pre-requisites for this project?

A few premium projects might require a prior understanding of fundamental concepts
In such a case, you will be given access to appropriate learning materials to first learn those concepts before jumping to the project

Related Projects

See all

Emission characterization on a CAT3410 engine

In this project, you will setup the case for Diesel engine for different piston bowls i.e Open-W and Omega piston using CONVERGE CFD Software. You will be looking for core technical details such as spray penetration length, comparing HIROY SOOT and NOx emissions, flame propagation etc.

Adiabatic flame temperature calculation using Python and Cantera

In this project Adiabatic Flame Temperature(AFT) calculation will be performed using coding language Python and in-build Suite of Cantera. Cantera is an open-source suite of tools for problems involving chemical kinetics, thermodynamics, and transport processes. So, the comparative analysis will be performed to compare the factors like time requirement, accuracy etc. The effect of number of carbon atoms on Adiabatic Flame Temperature will also be discussed.

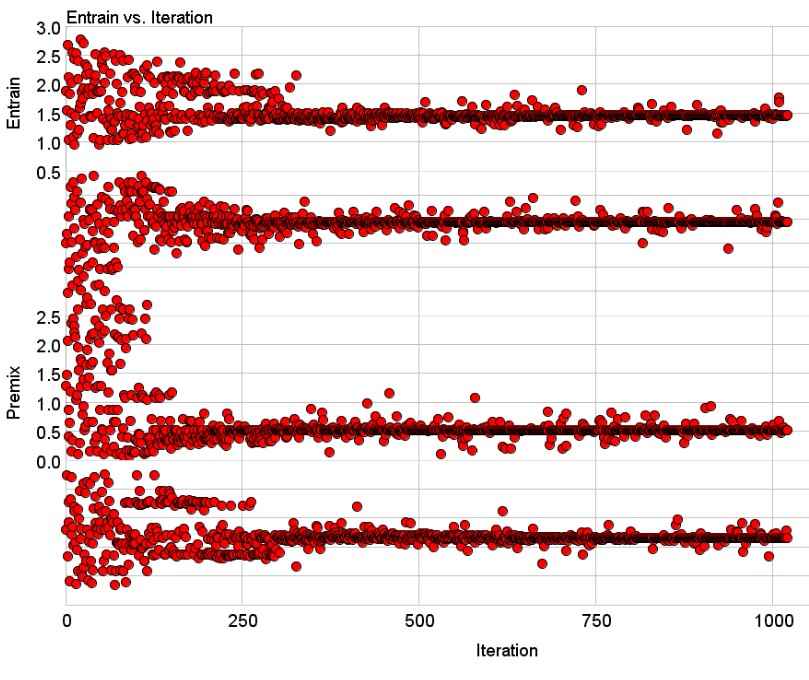

Optimization of IC-Engine using GT-power

In this project, the overview of how trade-off studies are performed in an automotive OEM to benchmark a product against its previous generation or another variant. And you will be using the GT-POWER tools to perform the optimization studies over the engine parameters. And the theory behind this operation is optimization algorithms and the final plots will give you the detailed insight of trade-off studies, which is already in practice in various leading automotive manufacturers

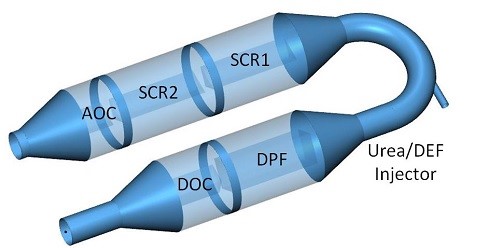

Aftertreatment Modelling for Diesel and Gasoline Engines
