Modelling of an Automotive IP Trim component by using ANSA

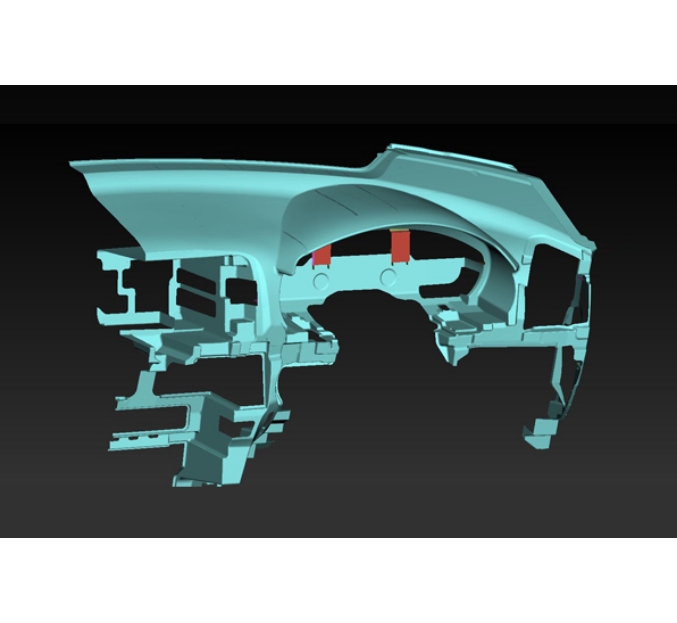

You will be provided with an CAD model of an IP substrate component. Modeling of the same component is to be done by extracting mid surface and meshing the whole component by achieving all the mentioned quality criteria parameters.

Duration : 1 Month
Domain : MECHANICAL, PRODUCTION, FEA, AUTOMOTIVE
Benefits : You will be provided with an CAD model of an IP substrate component. Modeling of the same component is to be done by extracting mid surface and meshing the whole component by achieving all the mentioned quality criteria parameters.
Price : 30000

Start project View demo

About Demo Leaderboard

What will you do in this project?

Step 1 - Geometry Cleanup

Step 2 - Geometry check

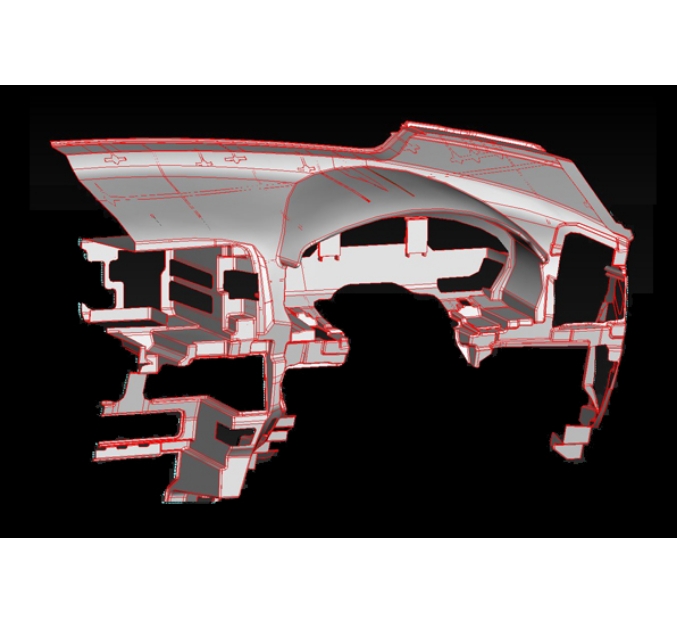

Step 3 - Mid surfacing of an IP

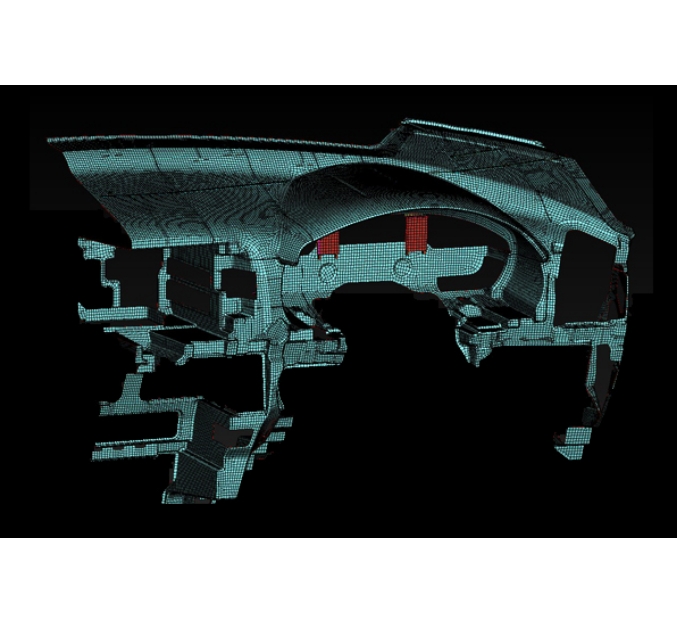

Step 4 - Meshing the Mid surface

Step 5 - Thickness assignment to Shell elements

In this project, you will work on an Automotive IP Substrate. You will learn the following Topics in this project

Geometry cleanup and geometry check for provided CAD
Thickness measurement at various parts and decide the type of the component
Mid surfacing by using various techniques

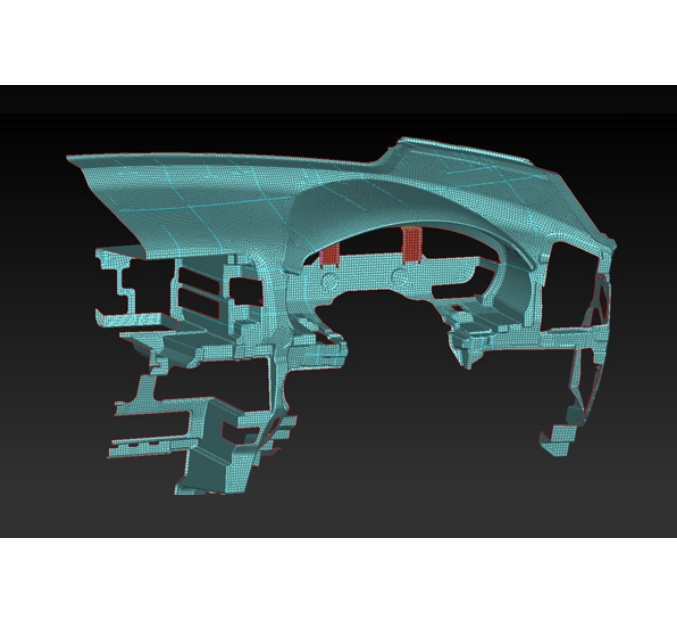

Meshing the Mid surface with provided Quality Criteria
Solving the failed elements by using Mesh improvement tools
Conversion of 2D elements to 3D elements

Geometry Cleanup of an Automotive IP trim part
Mid surfacing by using various techniques
Meshing the Mid surface and solving failed elements
Converting Shell elements to Solid elements
Visual check and confirmation
