Creating Architectural and Structural model with 3D rendering using REVIT

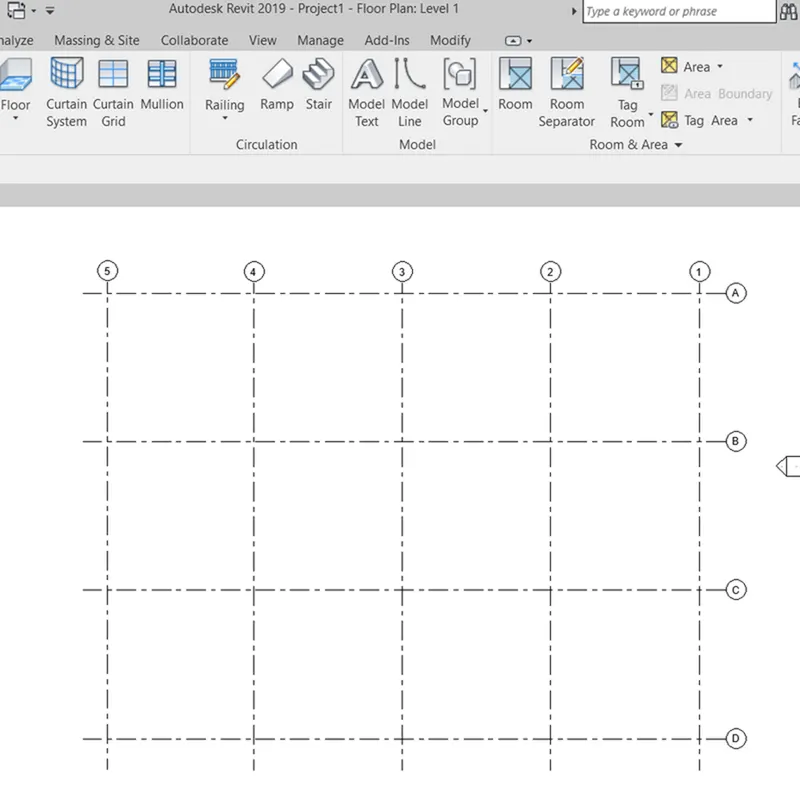

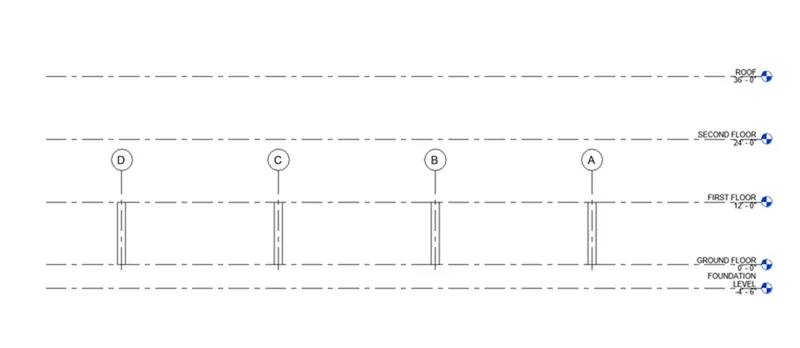

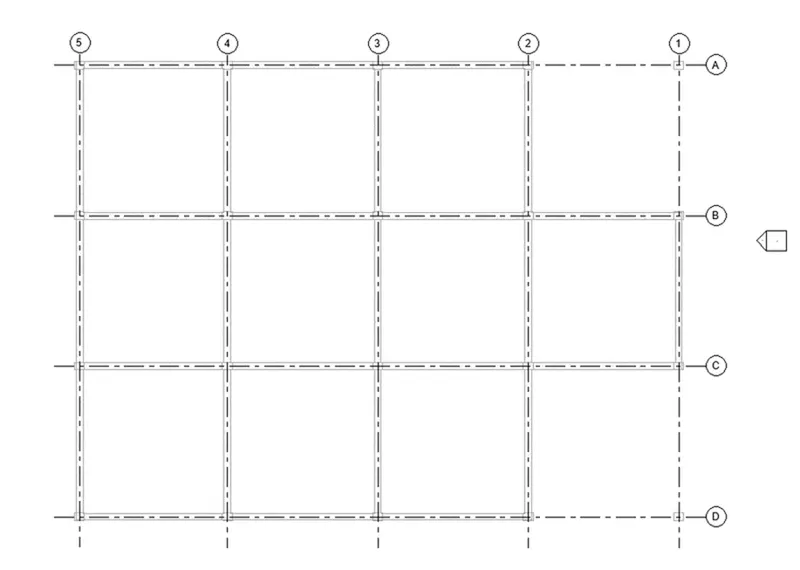

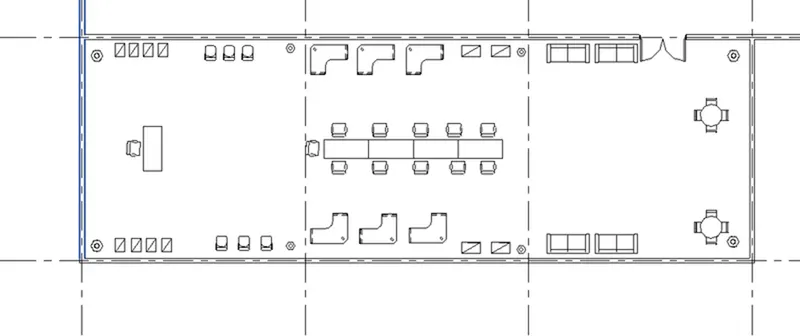

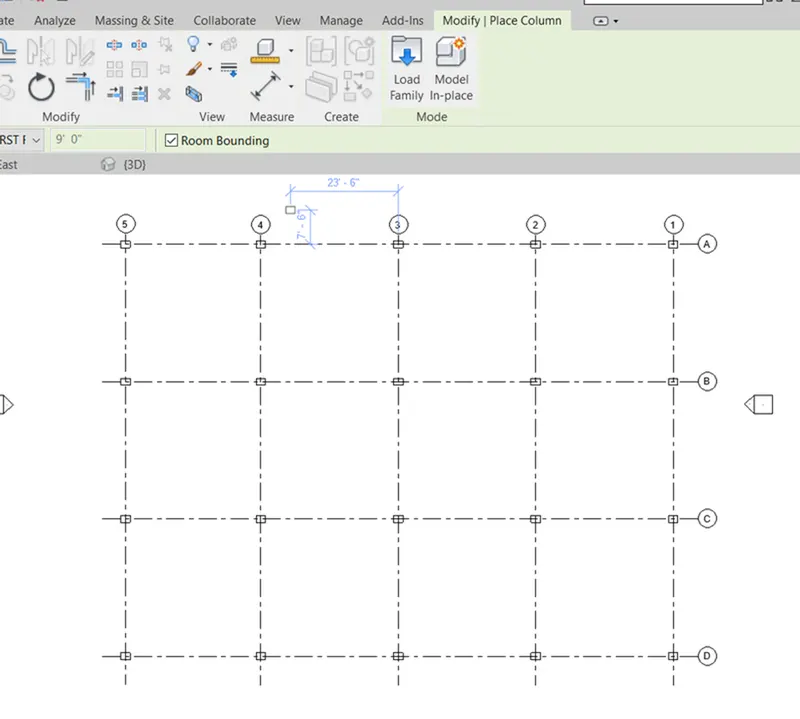

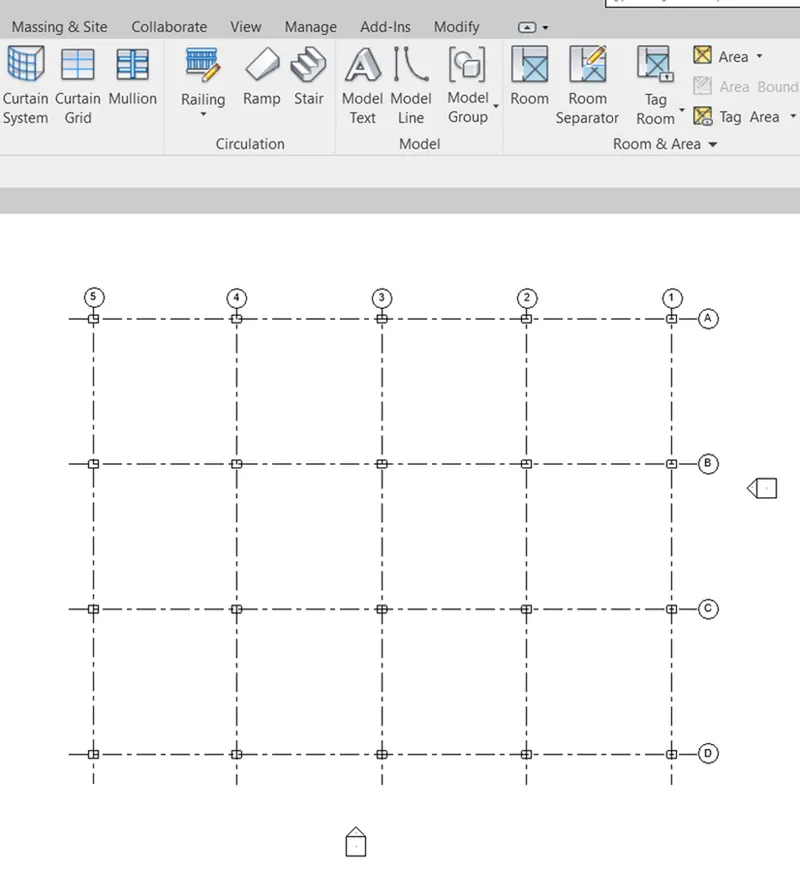

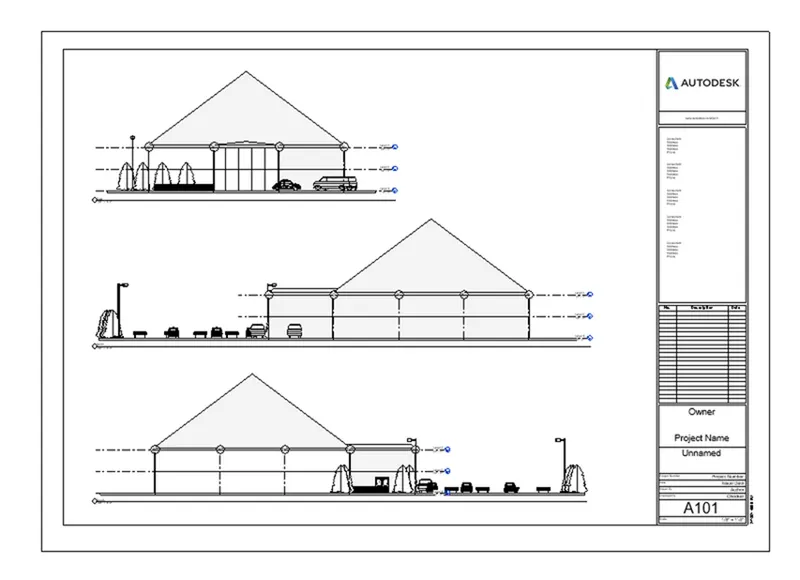

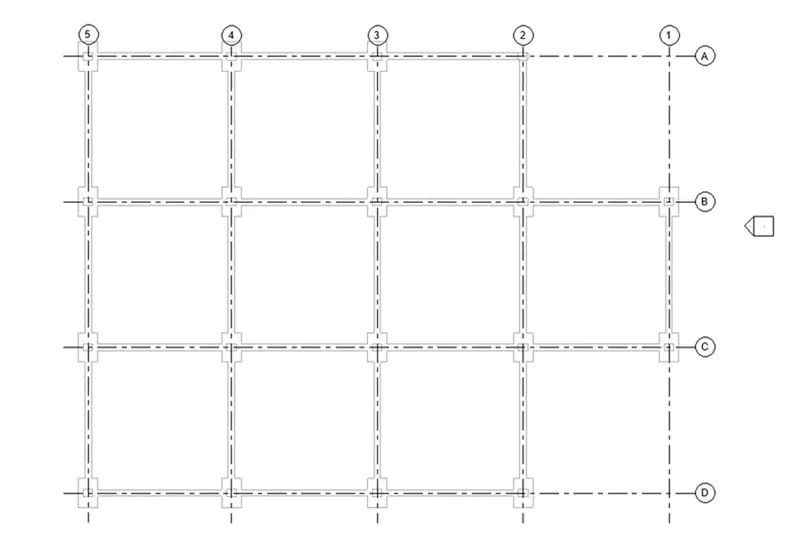

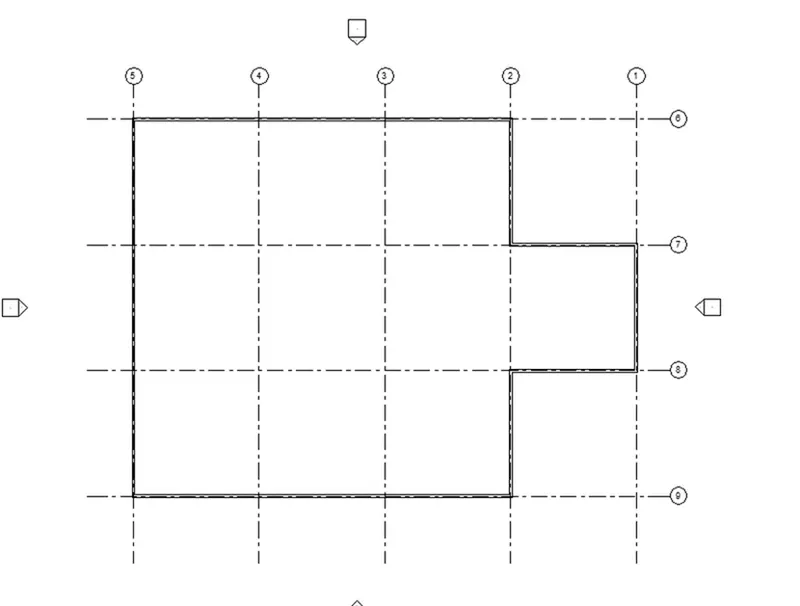

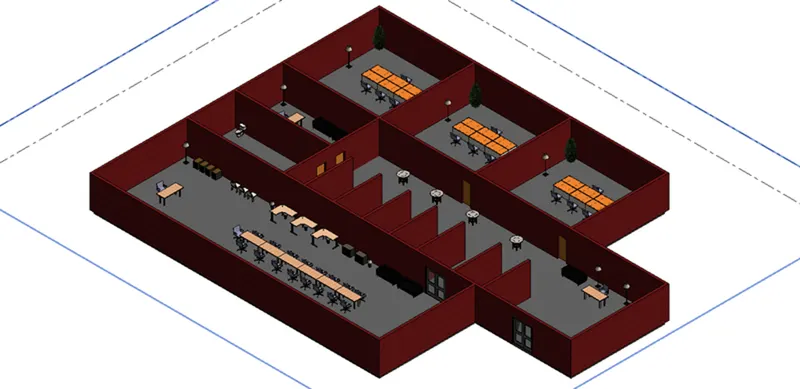

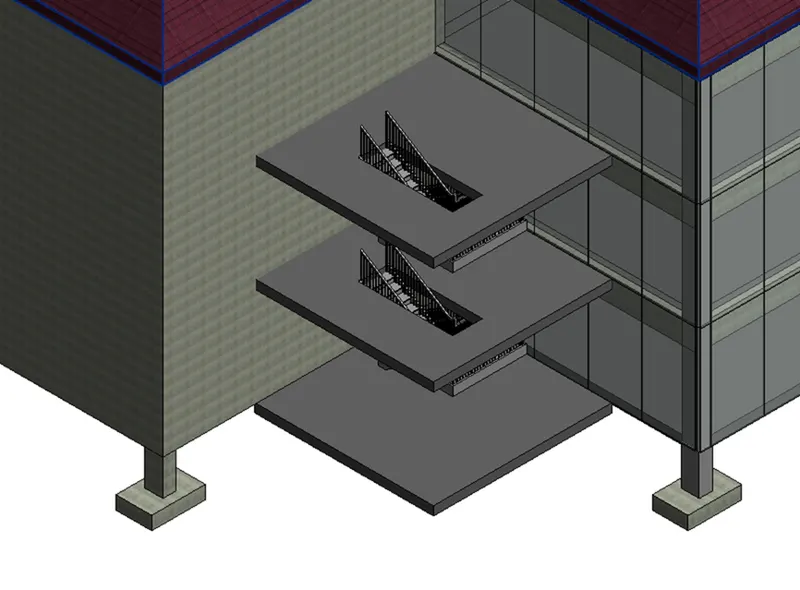

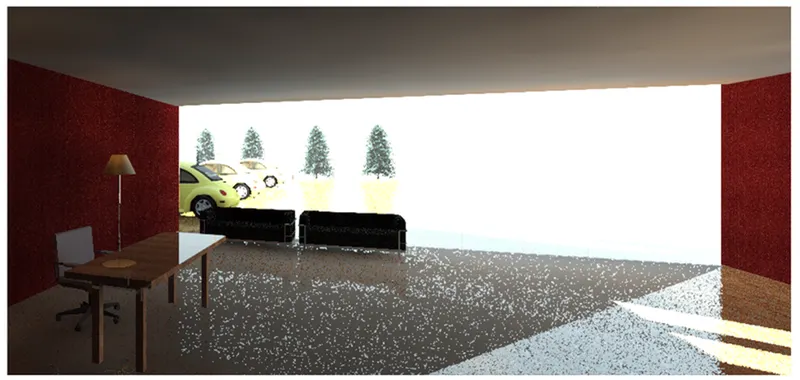

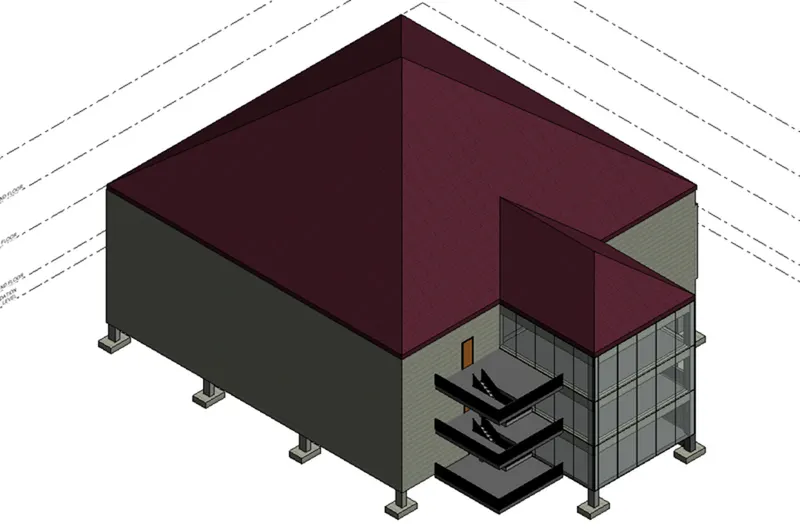

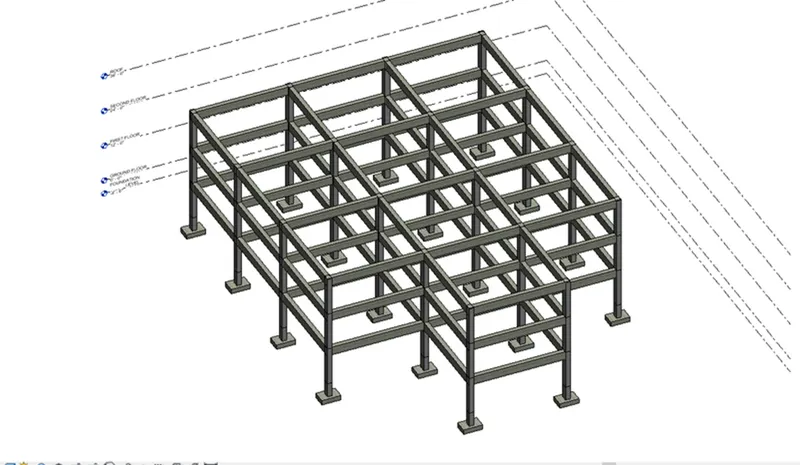

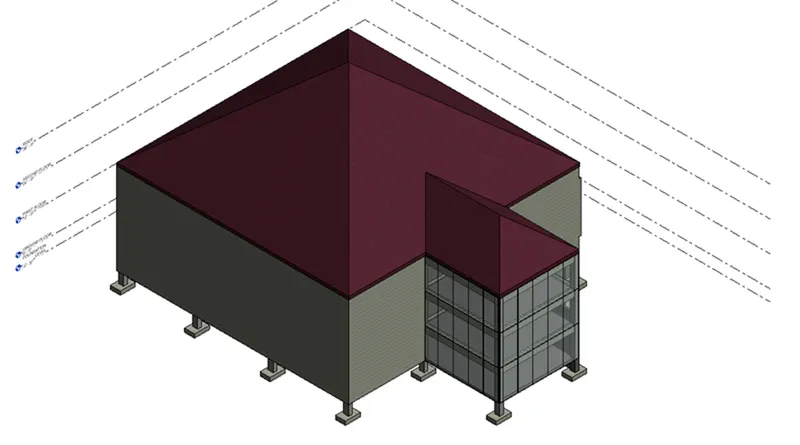

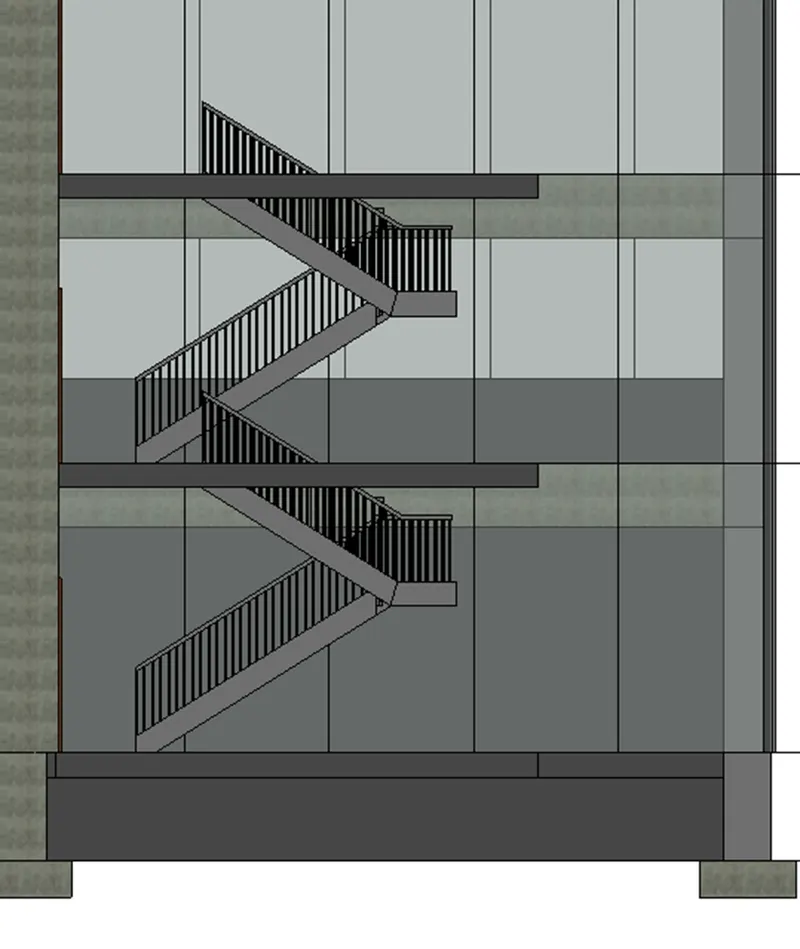

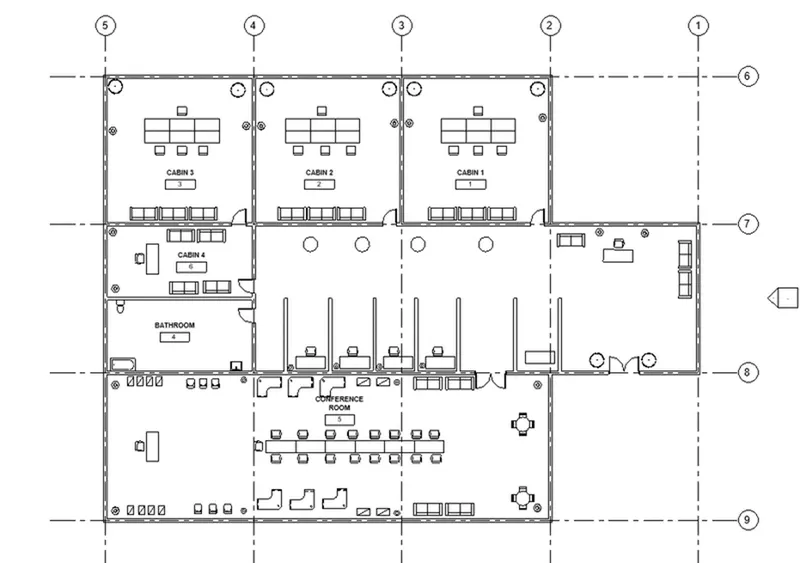

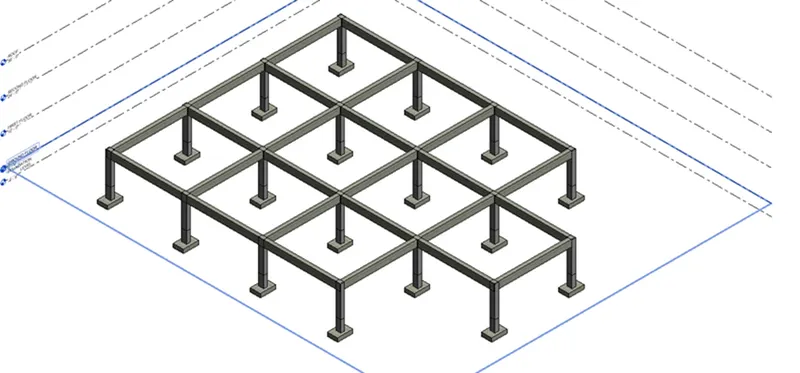

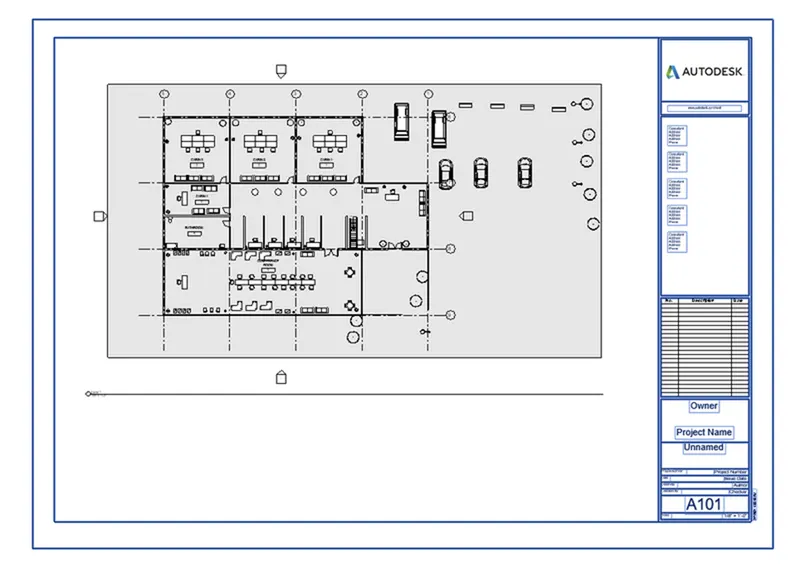

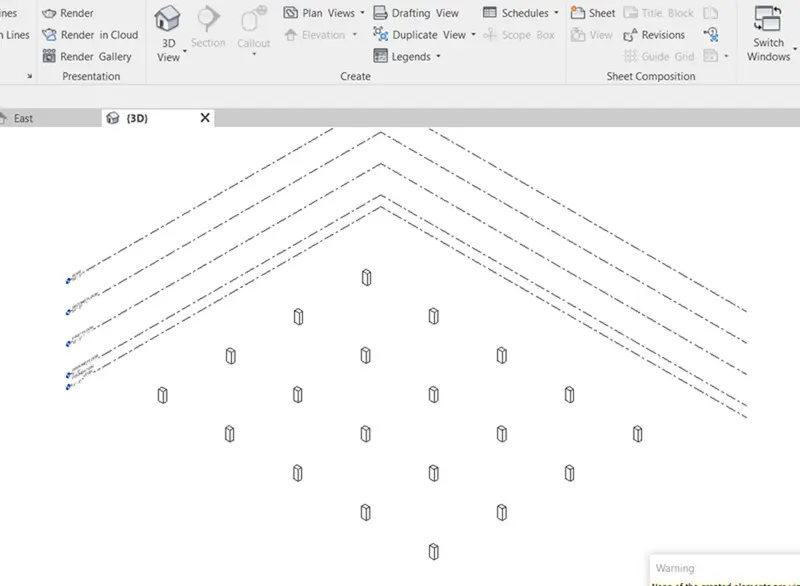

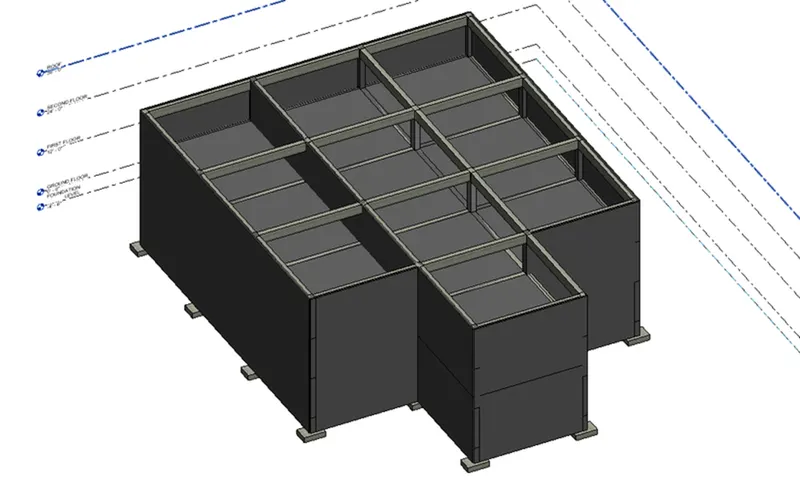

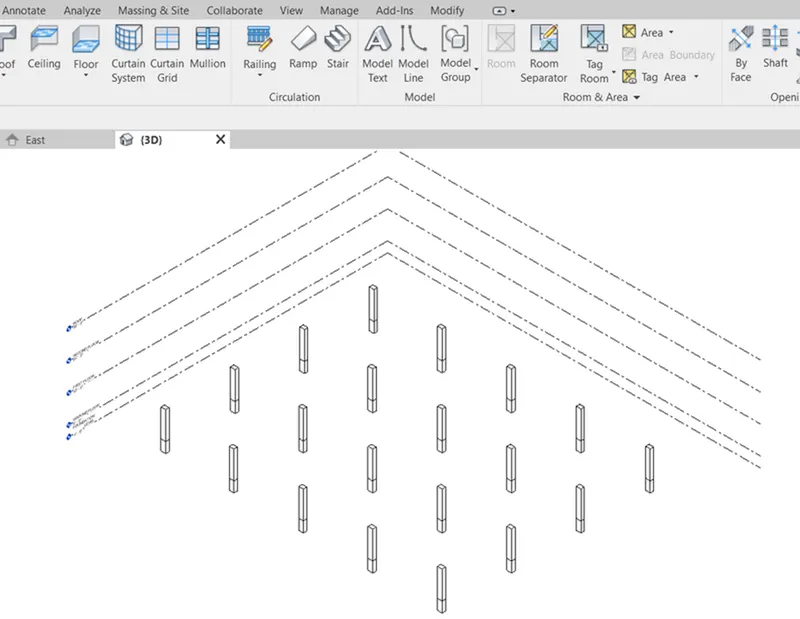

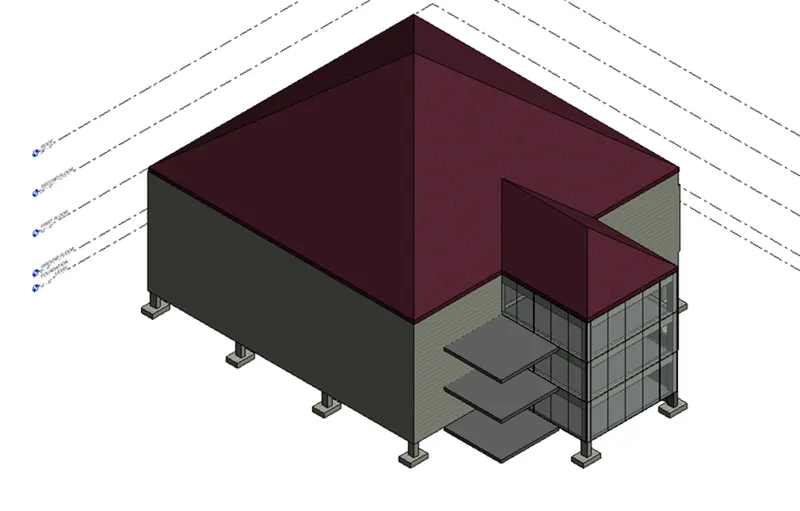

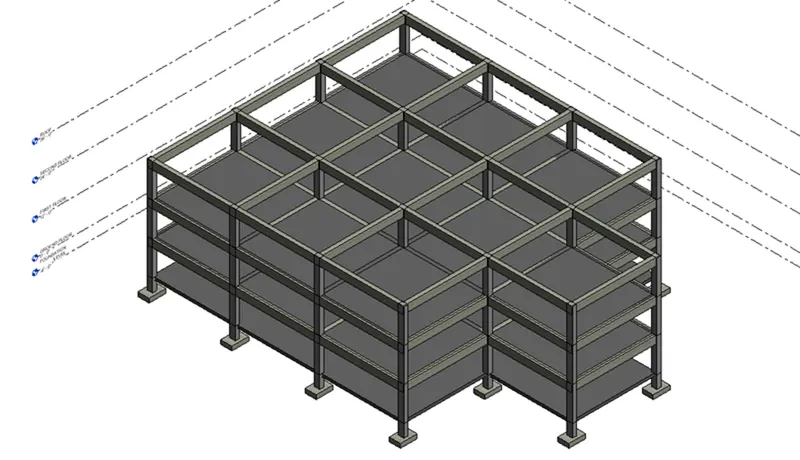

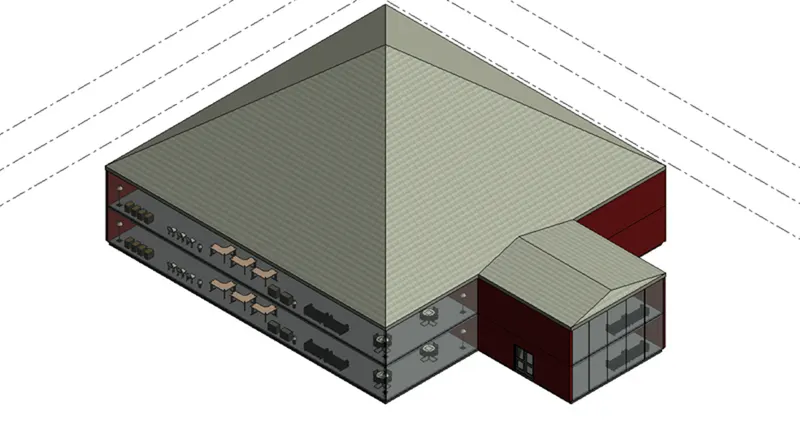

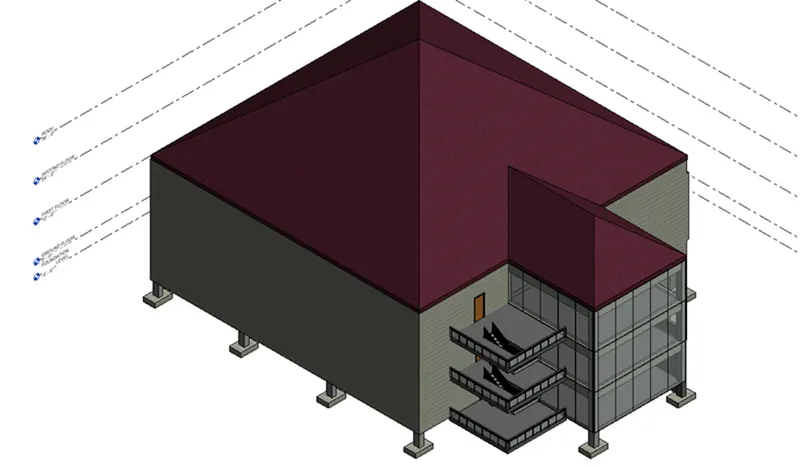

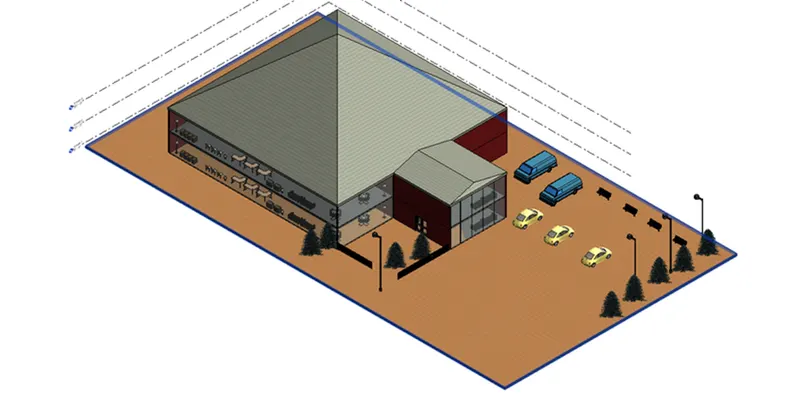

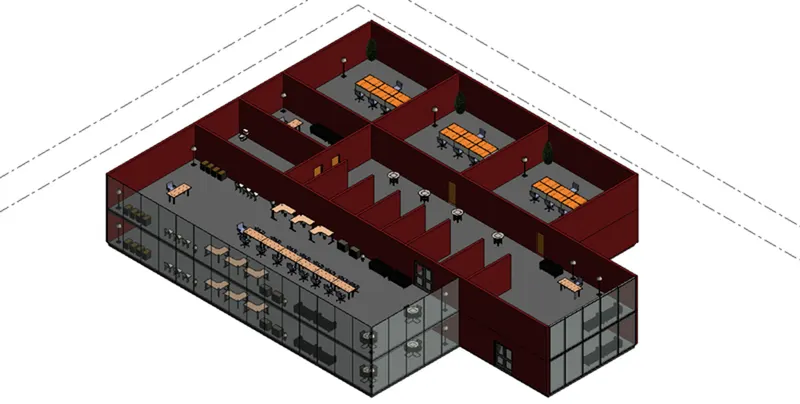

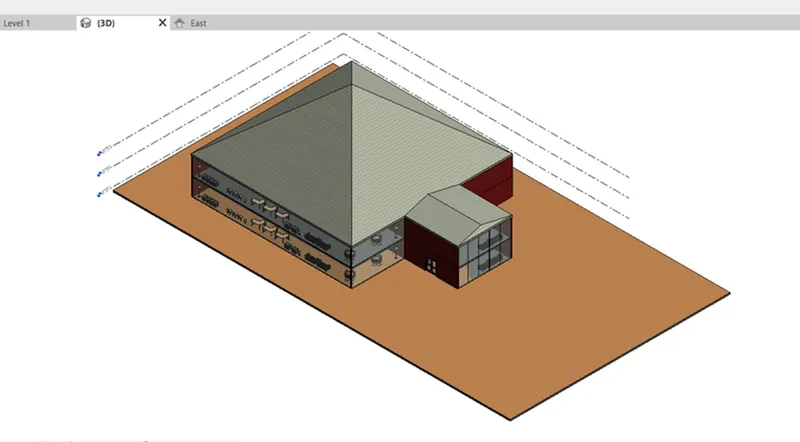

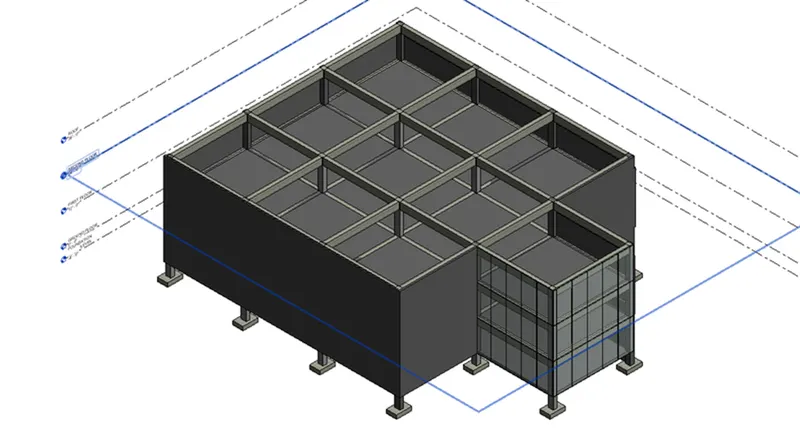

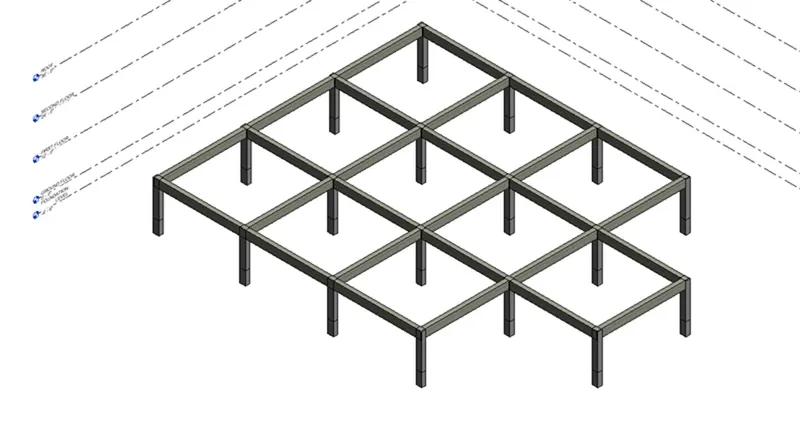

AIM : To develop a model as per the given plan and analyze and design the structure. TOOLS USED : Paint. Manage property sets. Construction levels. Grids. Columns. Beams. REports. Model report. Show report. Interactive design. Slabs on beams. Frames. Roof panels. Wall panels. Loads. Loadcases. Seismic wizard. PROCEDURE…

1) Generate report for the steel building design from challenges 1 – 6 along with the loading summary   AIM :  To Generate report for the steel building design from challenges 1 – 6 along with the loading summary   INTRODUCTION :  Open the model. If needed, number the model. ... On the Drawings & reports tab, click Reports.…

1.Design the slab and foundation of the model. Outline the thought process for designing of the elements (column, beam, slab and foundations) Aim - To design the slab and foundation of the model. Tools Used - 1st Order analysis, Analysis all ( static ), Status , check panel ,Properties window etc.   Procedure - Open the…

Que:   Based on the analysis design RC column and beam.   AIM: To run the analysis of the structure and design reinforced concrete beam and column   *********Design of Reinforced Concrete COLUMN*********   INTRODUCTION: The structural design of reinforced concrete (R.C.) columns involves the provision of adequate compression…

1. Generate seismic loading based IS codal provisions and zone II. Any other data you can assume and input accordingly.   AIM: To generate seismic loading based IS codal provisions and zone II.   INTRODUCTION: Seismic load indicates how much seismic energy (waves of energy that travel through the earth) a structure would…

Aim: To setup a model for RC building design PROCEDURE: Open Tekla structural design Go to settings->Structure defaults Select the SSL for the cover in contact with the ground  enter the cover values as given in the above table. For the cover above the ground change default type to TOF and apply the cover to the slabs…

PROJECT 1 AIM: The aim of this project is to, Analyze and design a steel building to 10T CRANE as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. Provide bracings and moment connection for lateral stability.  Consider dead, live, equipment and wind loading. Consider the brick wall…

1.Summarize your study for the bending moment, shear force, and deflection diagrams for the elements of the model AIM  To analyse the structure and summarize study for bending moment, shear force, and deflection diagrams for the elements of the model and also display these parameters for our model. PROCEDURE To open the…

Generate manual wind loading in the design report based IS code as per the following input Basic wind speed = 39m/s Terrain category 2 AIM : To calculate wind load as per IS Code 875-III  INTRODUCTION : Wind load is calculated according to IS Code 875-III For Industrial building Terrain category is given as 2 Vb = Basic…

  Brick wall load = 0.15 x 20x 5.2 = 15.6 kN/m^2 (Ground to intermediate floor) Brick wall load = 0.15 x 20x6.8 = 20.5 kN/m^2 (Intermediate to roof) Brick wall load = 0.15 x 20x14.5 = 14.5 kN/m^2 (Roof to top ) Roof load = 1.5 kN/m Ceiling load = 0.3 kN/m Procedure: Now open Tekla structural designer software Open the…

1. AIm: To Create beam properties for the First floor and model the beams. Procedure: Open the Tekla structure software  And then open the week2 challenge file. Now go to levels and select intermediate floor Now go to manage property and create the new beam  And then model the beam. Now Model the secondary beams in the…

Aim: Create column properties for different types of pedestal members and models in the grids Procedure: Open TSD and create new model by click on 'new' option. Set construction levels. Select grid lines and draw them Select manage property and create new property as PDI column size 400x 500 mm and grade of concrete M30.…

Challenge 1 1. Aim: Summarize the user interface in TSD Procedure: Project Workspace Open the Tekla Software and click on the New option. Now the project workspace will be visible Scene Content– Demonstrate the use of scene content Open the Tekla Software and click on the New option. Now the project workspace will be visible…

Question 1)The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account the restraint…

AIM:- To undersstand the  Concept on positioning of Columns INTRODUCTION:- There are some of the basic principles in determining the positions of columns. Some of them are: . Columns should be preferred to be positioned at the corners of the building and at the intersection of beams. . They should be placed in such a way…

AIM-:1. Differentiate Static analysis and Dynamic analysis  Ans.- Static Analysis Dynamic Analysis  static analysis time invariant analysis of forces like Stress, strain and displacement etc. Dynamic analysis is time dependent analysis  The results are a consequence of the applied constraints and loads, for example, bearings,…

AIM:    Identification of Cracks INTRODUCTION: There are two types of failure modes in reinforced concrete beams: flexural failure and shear failure. The former occurs when the imposed load exceeds the flexural capacity of the beam's materials, whereas the latter occurs due to a lack of shear resistance between the beam's…

1) Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows:      Width  30m Length 50m Eave Height 9m Bay spacing 6m Soil type Medium Safe Bearing Capacity 200 kN/m2 Roof slope 1 in 12 Assume suitable sections for structural elements. Follow IS800:2007, IS1893…

1. Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:      Building floors G + 6 + R Plan dimension B = 25m ,  L = 16m Storey Height h = 3.5m Soil  Hard soil Use Residential Purpose Safe Bearing Capacity 180…

Q1. 1. State the primary load cases to be considered for design. ANSWER:- The primary load cases that are to be considered for design are listed below: Dead Load (IS 875: Part I). Live Load (IS 875: Part II). Wind Load (IS 875: Part III). Snow Load (IS 875: Part IV). Seismic Load (IS 1893: 2016). 2.…

PROCEDURE:-  Here first I will mention question one by one then answer then in the same manner. Question- 1. 1. How will you assign Circular section to column? Ans= First open staad software and provide details Step-1 i) Create the model in the STAAD Pro  ii) Draw the Nodes at ( 0 ,0 , 0) and ( 0 , 10, 0) as shown below …

Q1. 1. Write the steps involved to upload a .std file through web mail? ANSWER:- Steps involved to upload a .std file through web mails are as follows; Open the STAAD pro software and locate the share option available on the introduction screen. After clicking on the share button, select send mail option. Then, browse…

A)  AIM: To use the architecture/structural project file developed from week 6-8, Export the Revit file to Navisworks cache file. TOOLS/COMMANDS USED : Architectural file. file. Open Export. NWC. Navisworks. View.  3D view.  PROCEDURE : 1.the Revit file which is to be exported to the Navisworks file is to be opened with…

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo Introduction: Dynamo is an open source visual programming language for Revit, written by designers and construction professionals. Its a programminglanguage that allows you to type lines of code;  while also creating…

Q1) AIM:  Select the type of structure you want to build from one of the three below:         a. Multi-Unit Residential Apartment         b. Office Buildings         c. School. ANS) OFFICE BUILDING Q2) AIM :  Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions…

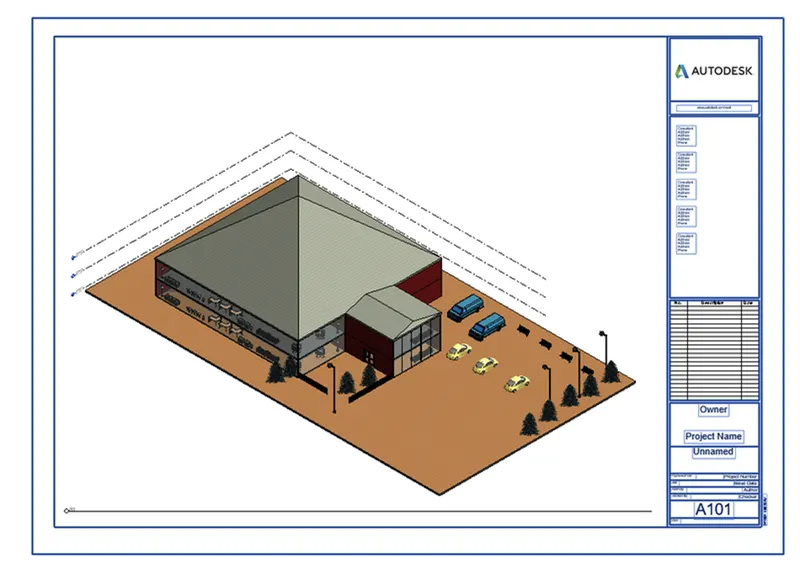

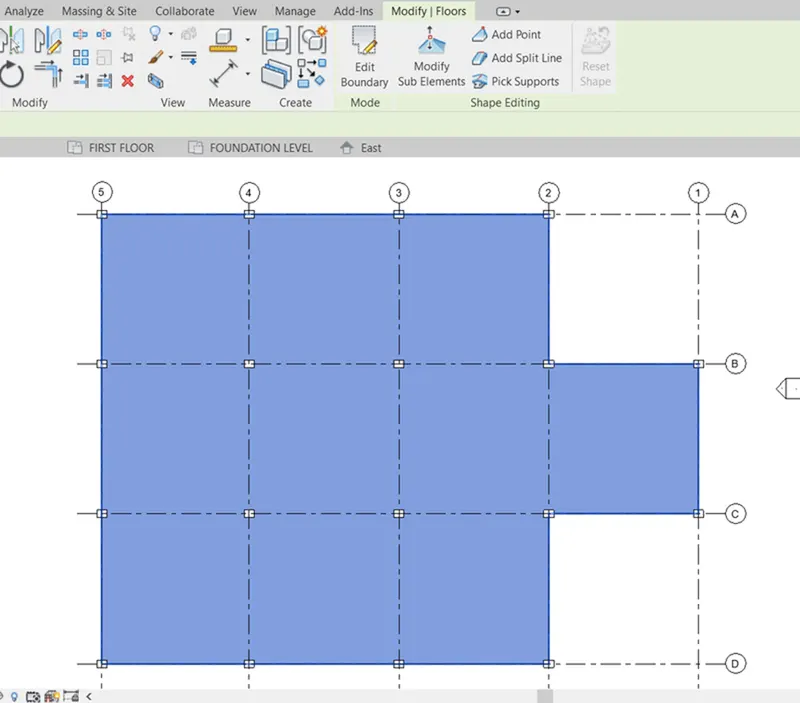

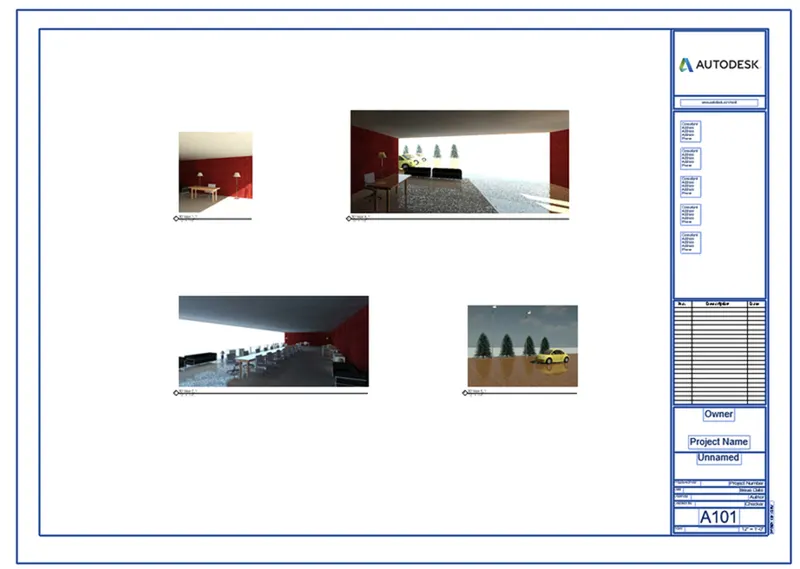

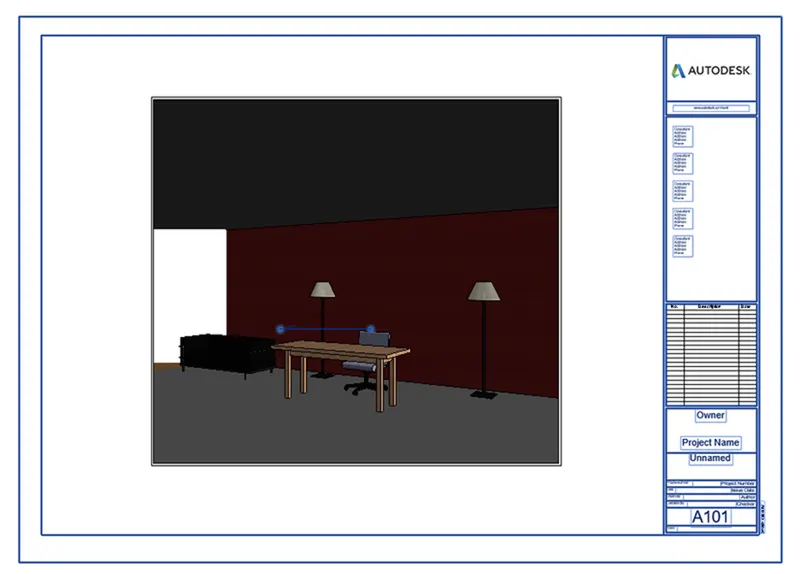

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT   1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.…

AIM:  To create a 3D rendered model for a Residential Building in AutoCAD INTRODUCTION: The main objective of this project is to understand about to create a Plan in 2D, then convert it into 3D using AutoCAD 3D, applying materials and rendering. AutoCAD is primarily used for generating 2D sketches. While it is…

CHALLENGE:-1 Q1] Create a 3D Isometric View of the building with plan and elevation given.        AIM:- To create a 3D isometric view of the given building with plan and elevation.    INTRODUCTION:-  An isometric drawing is a 3D representation of an object,…

1.AIM         To create a 3D Furniture elements using the various commands in Auto CAD. INTRODUCTION BY 3D VIEW The process of creating a mathematical representation of any surface of an object in three dimensions by using special software. A 3D model can even be represented as a two dimensional image…

AIM: To create layout of plan and section, creating viewports, editing attributes and taking a plot. To create a kitchen layout in A4 sheet and take a plot To create Multiview ports for industrial section drawing, scaling it and taking a plot. COMMANDS USED: View Layout. Multiple View. Model Space. Paper Space. Scale.…

Q1. Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards. Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the…

Q1   Q2       Q3   Q4       Q5

AIM: To create an  Architectural drawing consisting of Floor plan, Elevations and Sections for the plot size 60'x20' and also create the structural drawings for Column, Footing and Beam. INDRODUCTION: To draw an architectural and structural drawings in an Autocad. Plot size: 60'x20' (18.3m x6m) Orientation: East…
